Montážní klip pro přisazení DB128

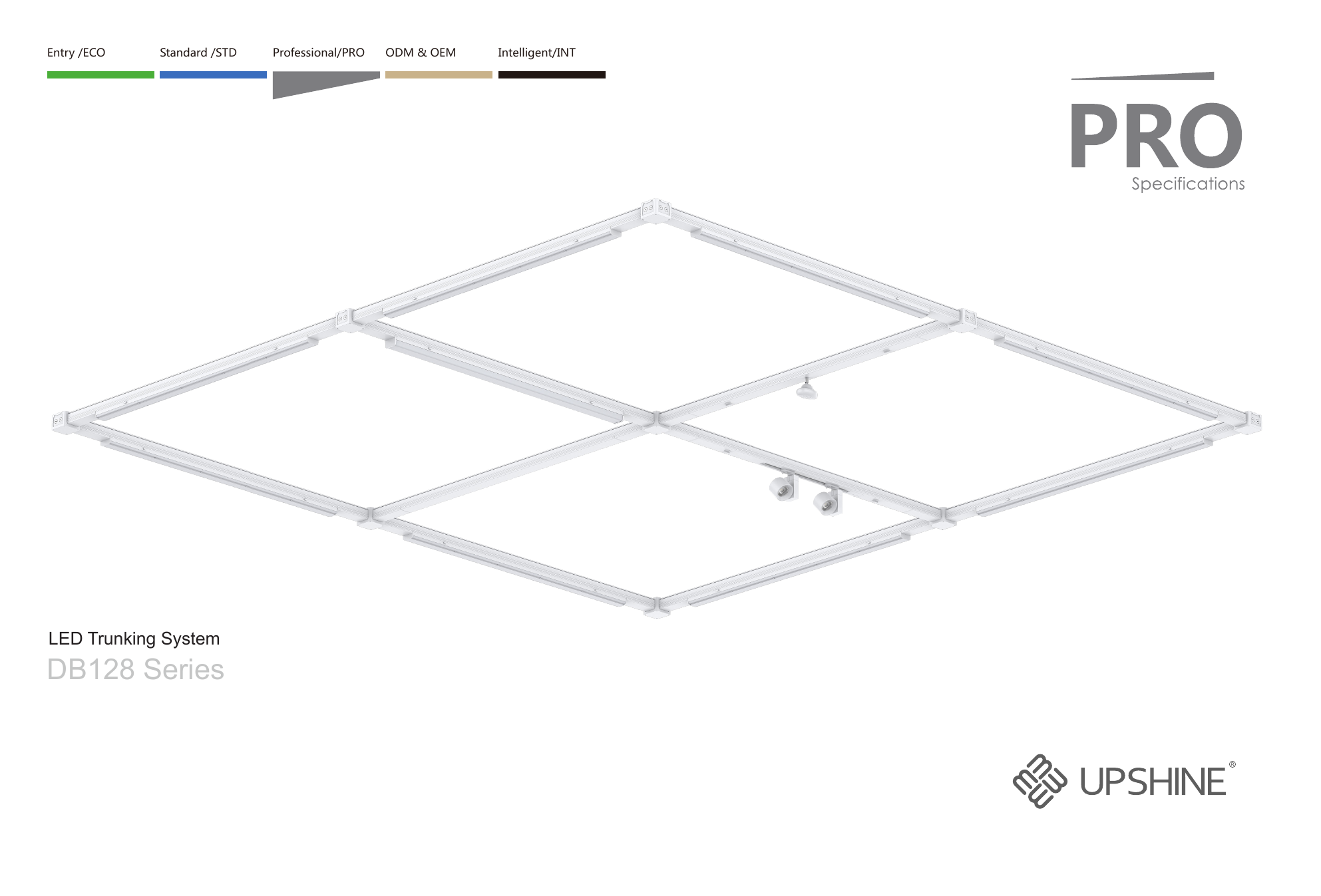

Entry /ECO Standard /STD Professional/PRO ODM & OEM Intelligent/INT LED Trunking System DB128 Series

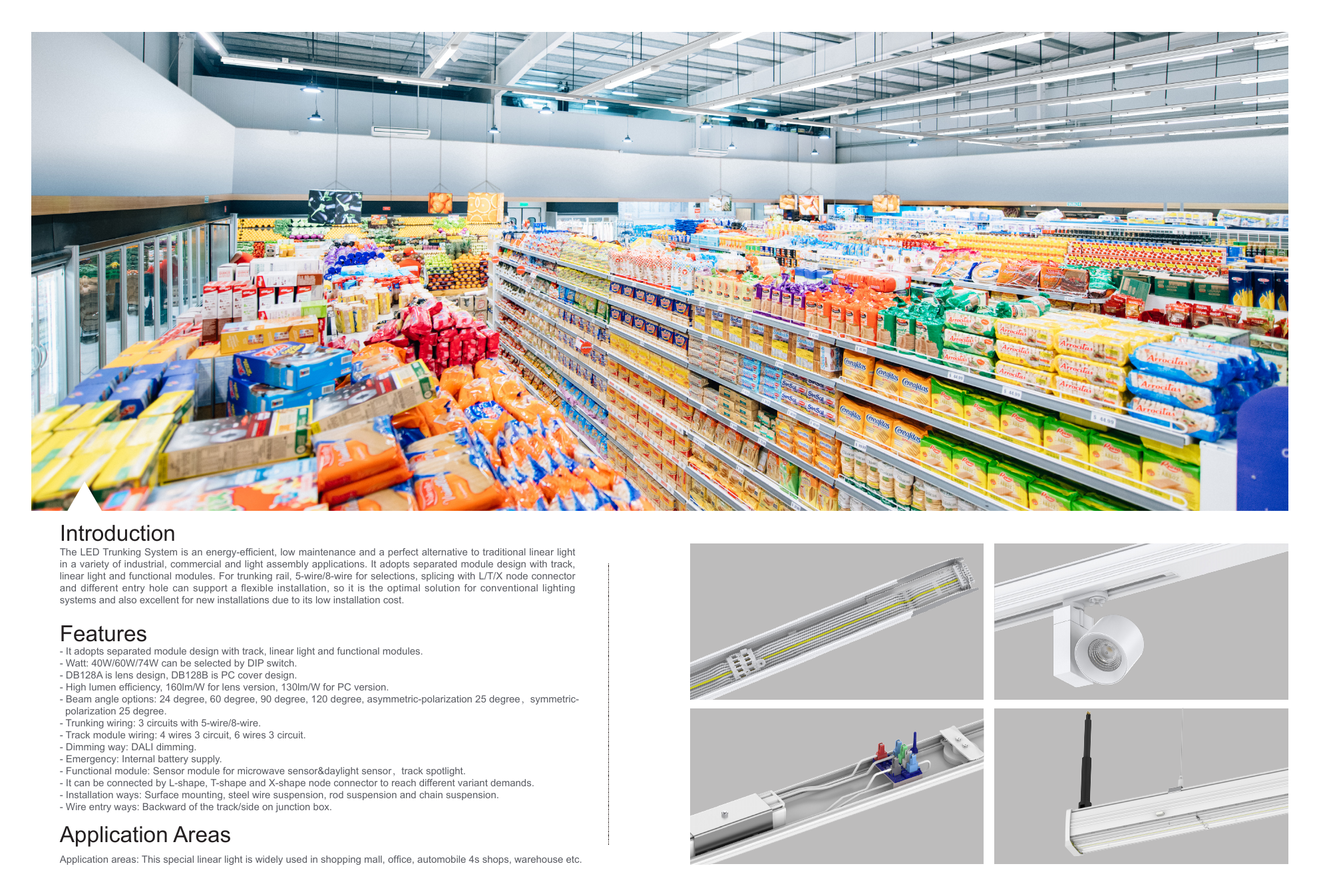

Introduction

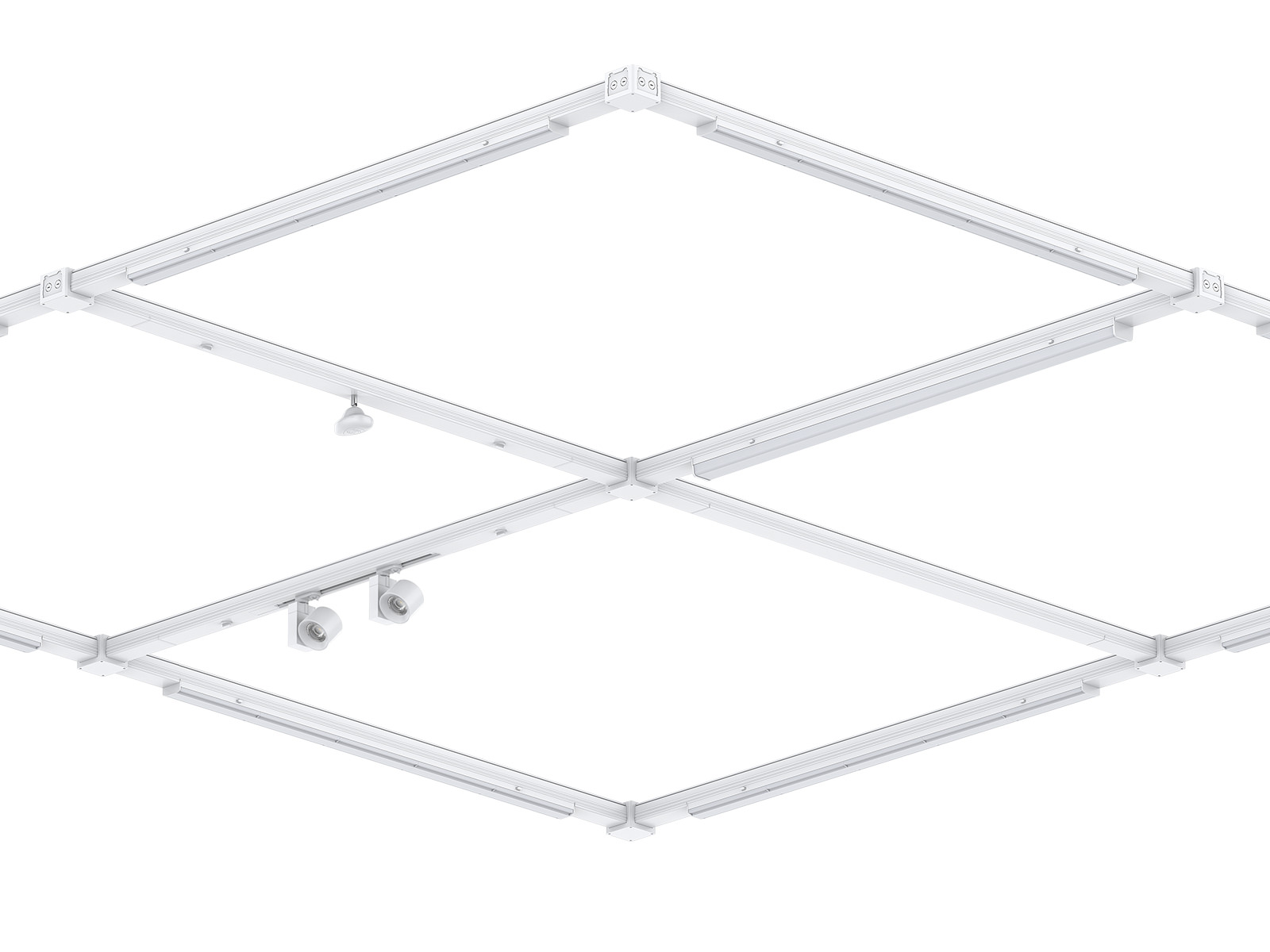

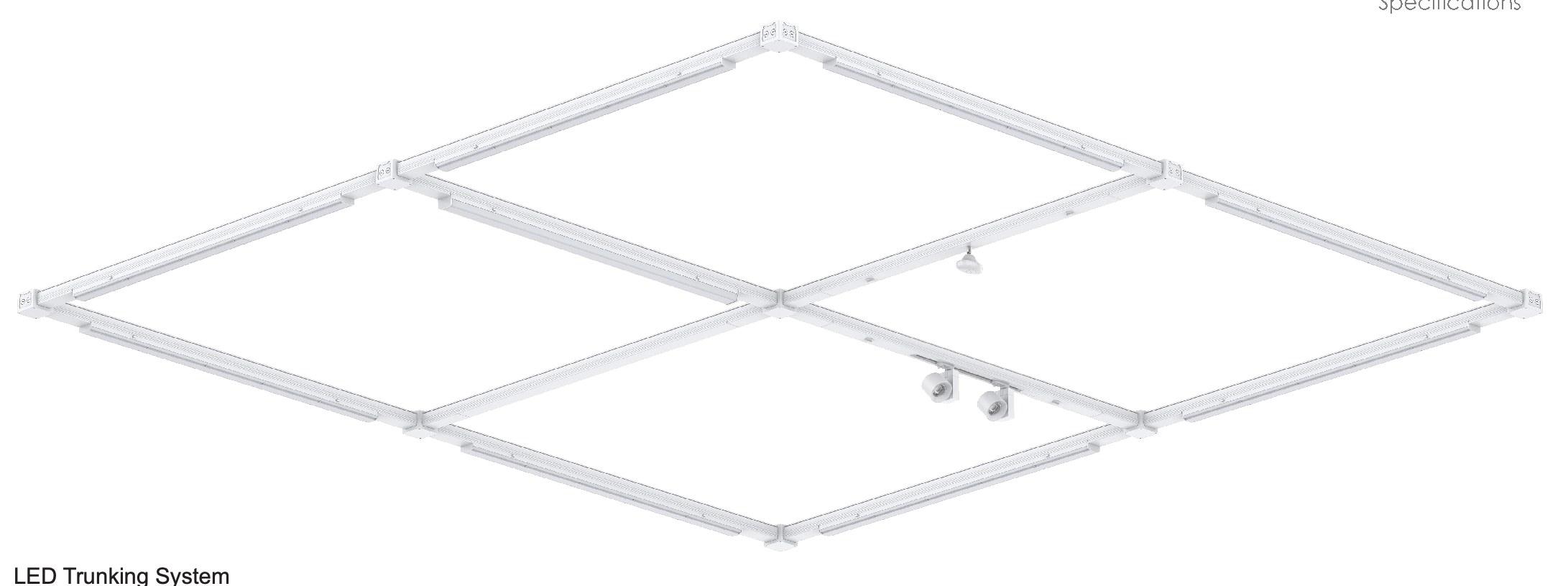

The LED Trunking System is an energy-efficient, low maintenance and a perfect alternative to traditional linear light in a variety of industrial, commercial and light assembly applications. It adopts separated module design with track,

linear light and functional modules. For trunking rail, 5-wire/8-wire for selections, splicing with L/T/X node connector and different entry hole can support a flexible installation, so it is the optimal solution for conventional lighting

systems and also excellent for new installations due to its low installation cost.

Features

• It adopts separated module design with track, linear light and functional modules.
• Watt: 40W/60W/74W can be selected by DIP switch.
• DB128A is lens design, DB128B is PC cover design.
• High lumen efficiency, 160lm/W for lens version, 130lm/W for PC version.
• Beam angle options: 24 degree, 60 degree, 90 degree, 120 degree, asymmetric-polarization 25 degree，symmetric-

polarization 25 degree.

• Trunking wiring: 3 circuits with 5-wire/8-wire.
• Track module wiring: 4 wires 3 circuit, 6 wires 3 circuit.
• Dimming way: DALI dimming.
• Emergency: Internal battery supply.
• Functional module: Sensor module for microwave sensor&daylight sensor，track spotlight.

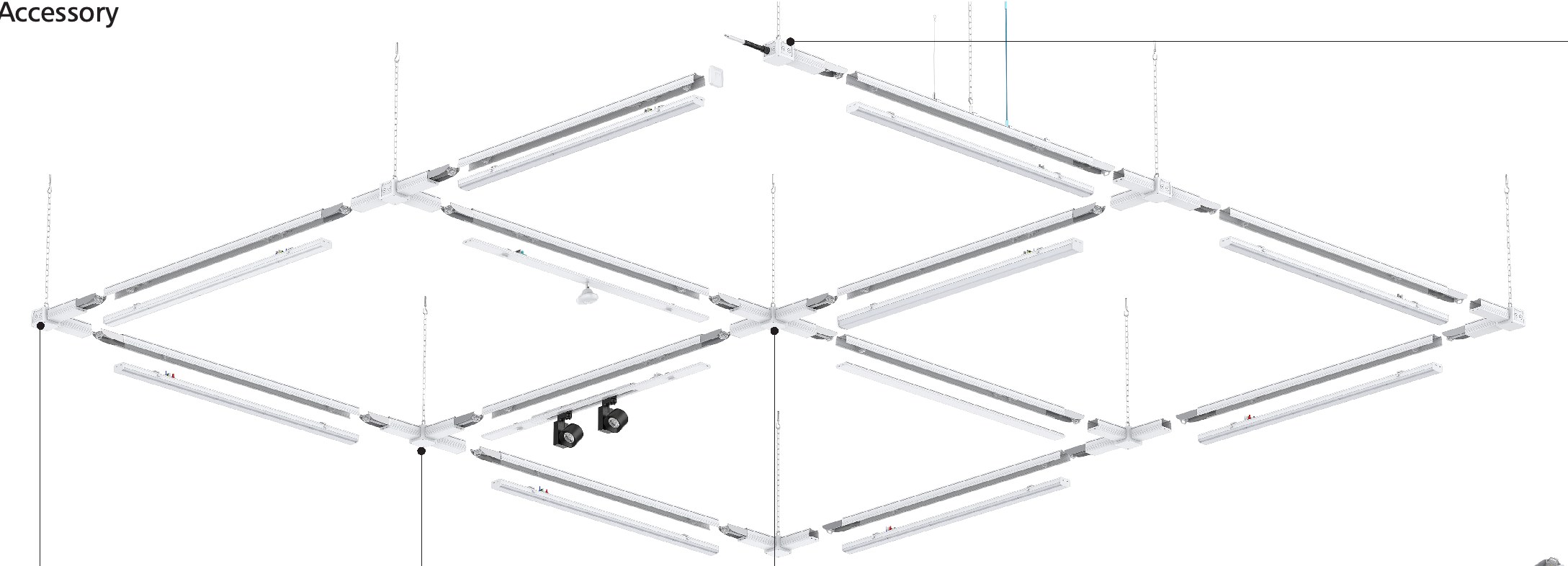

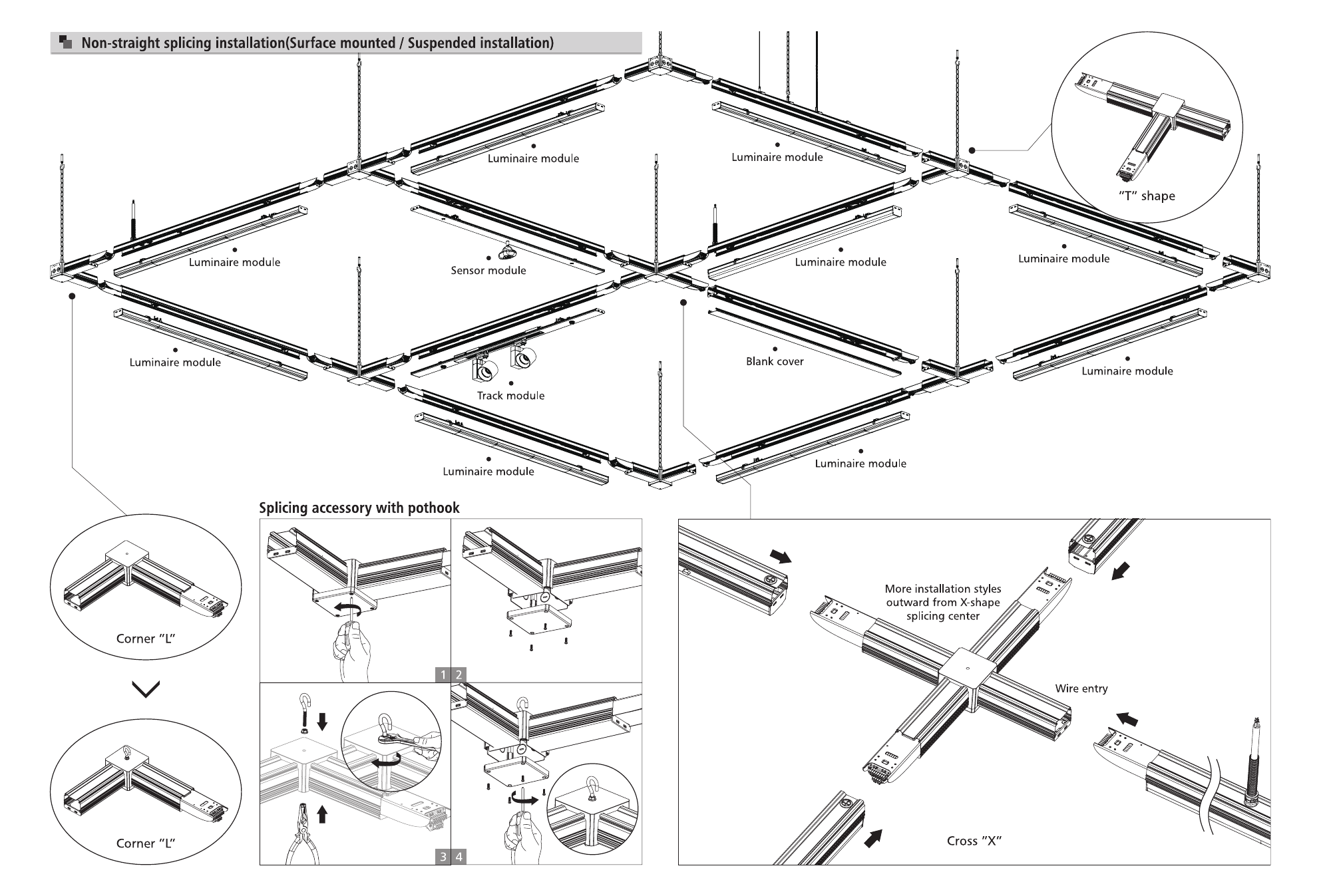

• It can be connected by L-shape, T-shape and X-shape node connector to reach different variant demands.

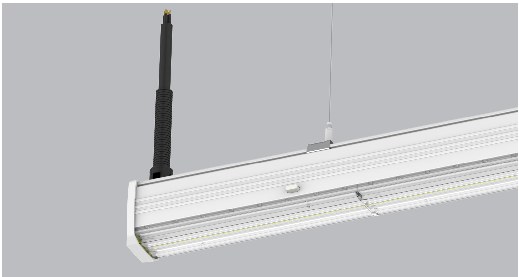

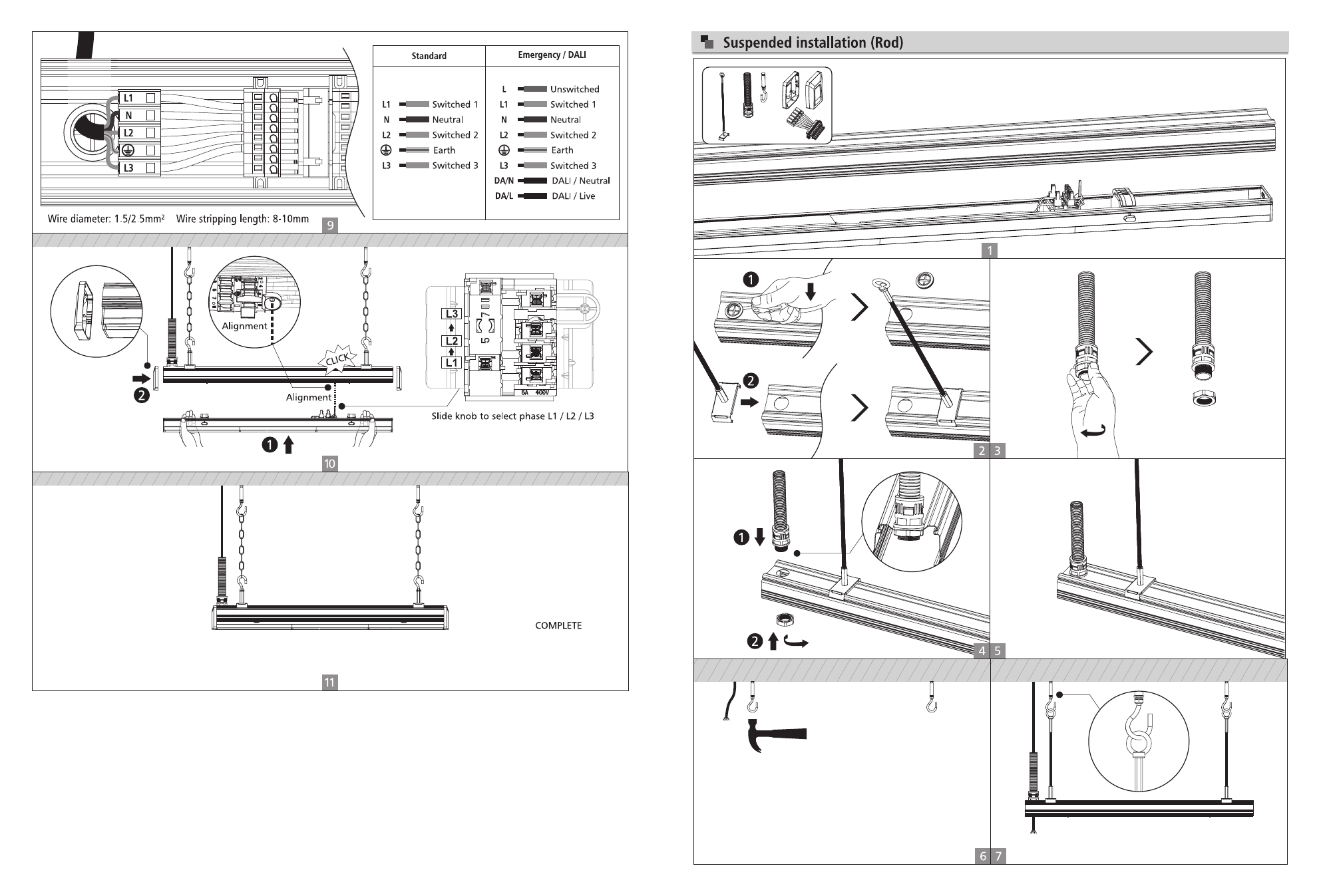

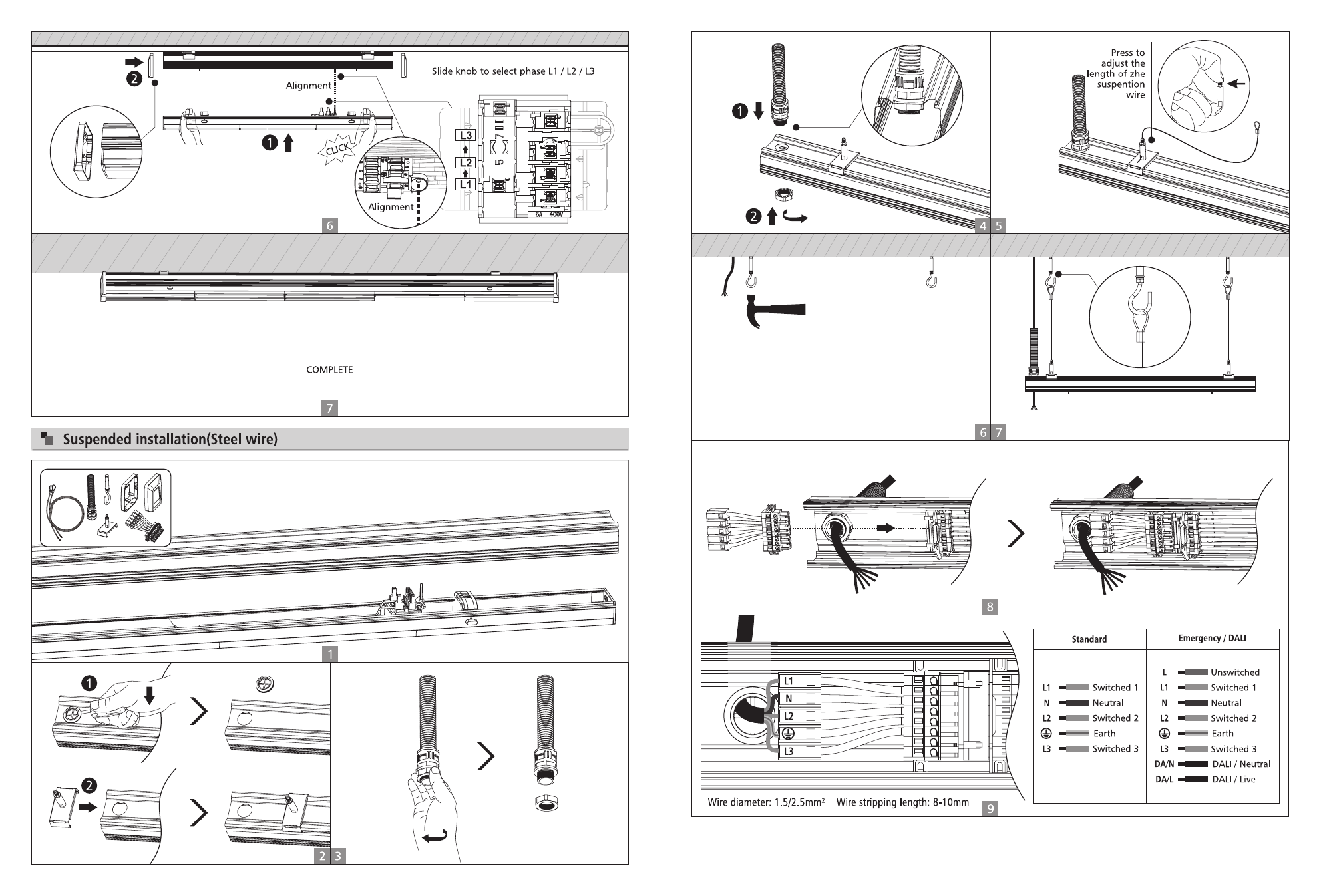

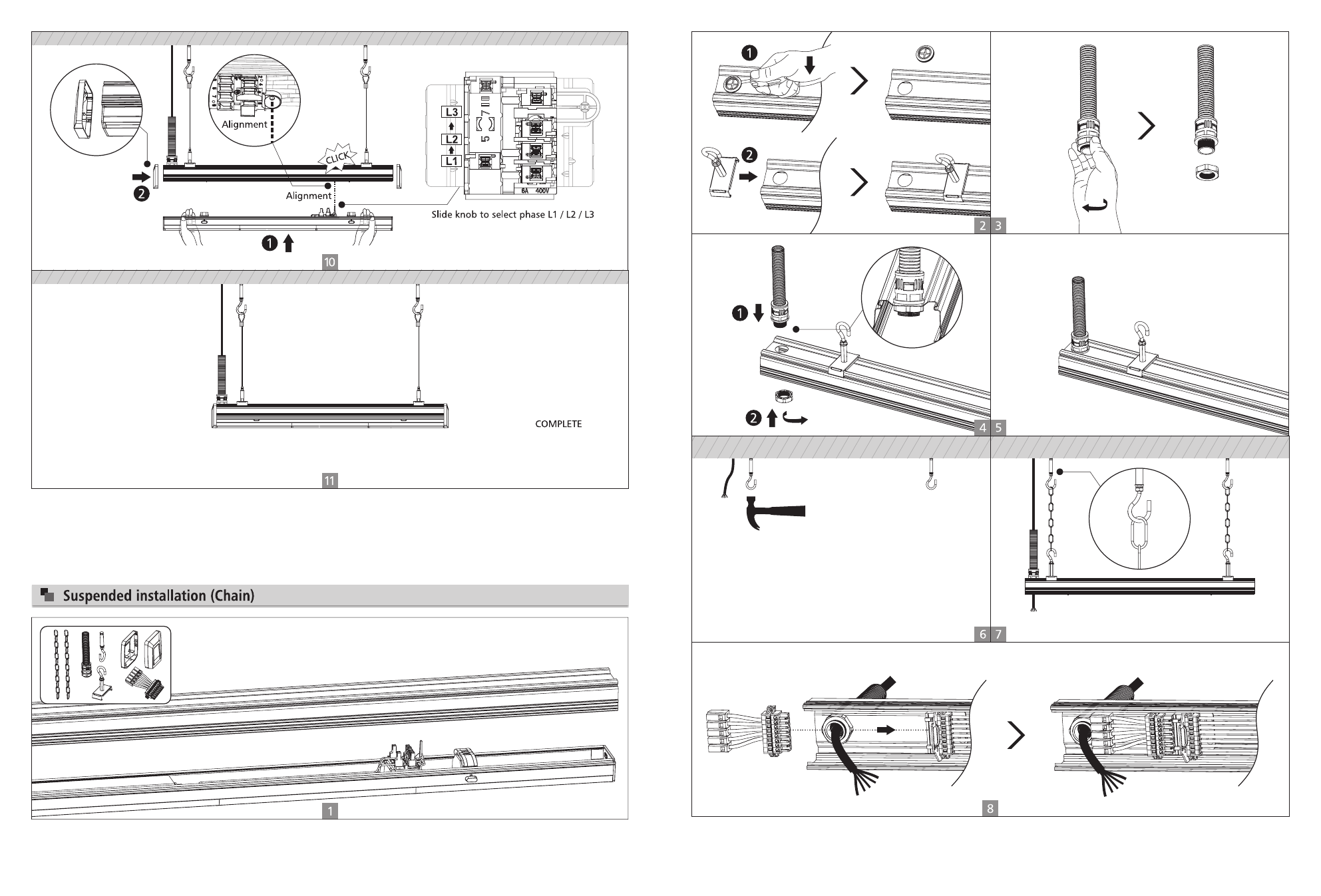

• Installation ways: Surface mounting, steel wire suspension, rod suspension and chain suspension.
• Wire entry ways: Backward of the track/side on junction box.

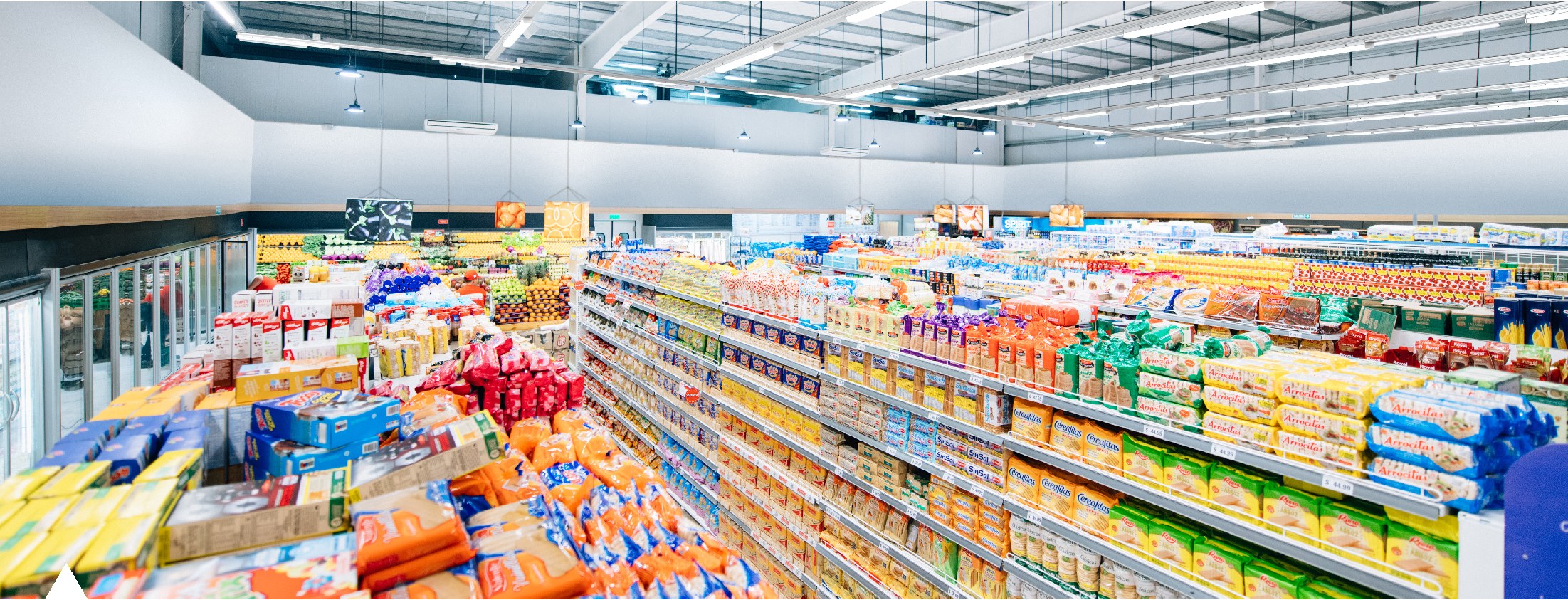

Application Areas Application areas: This special linear light is widely used in shopping mall, office, automobile 4s shops, warehouse etc.

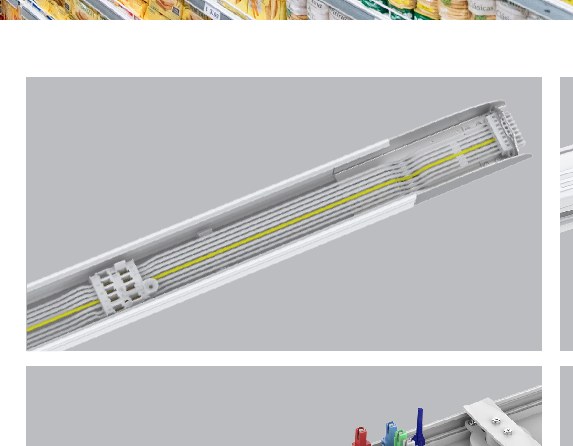

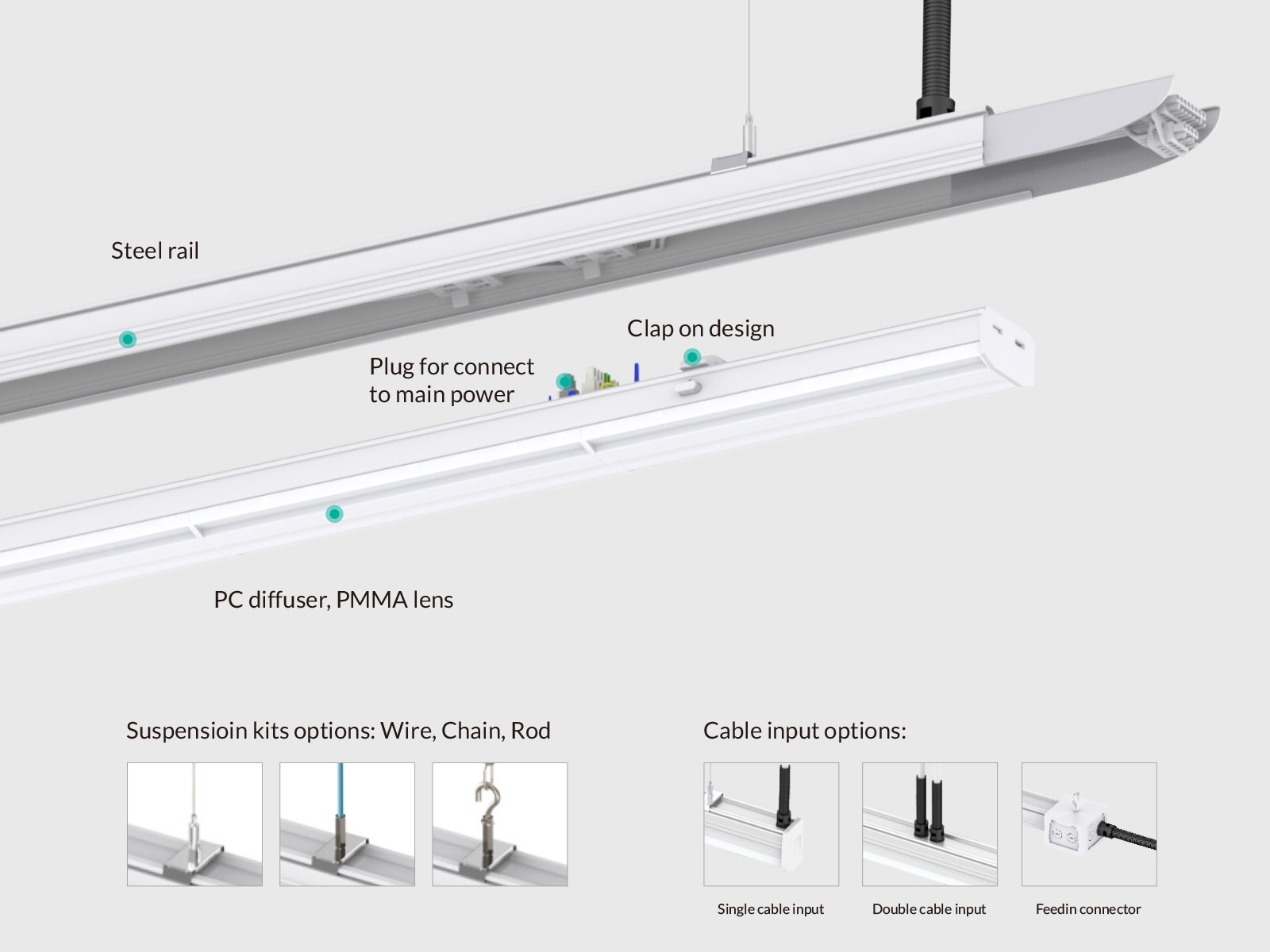

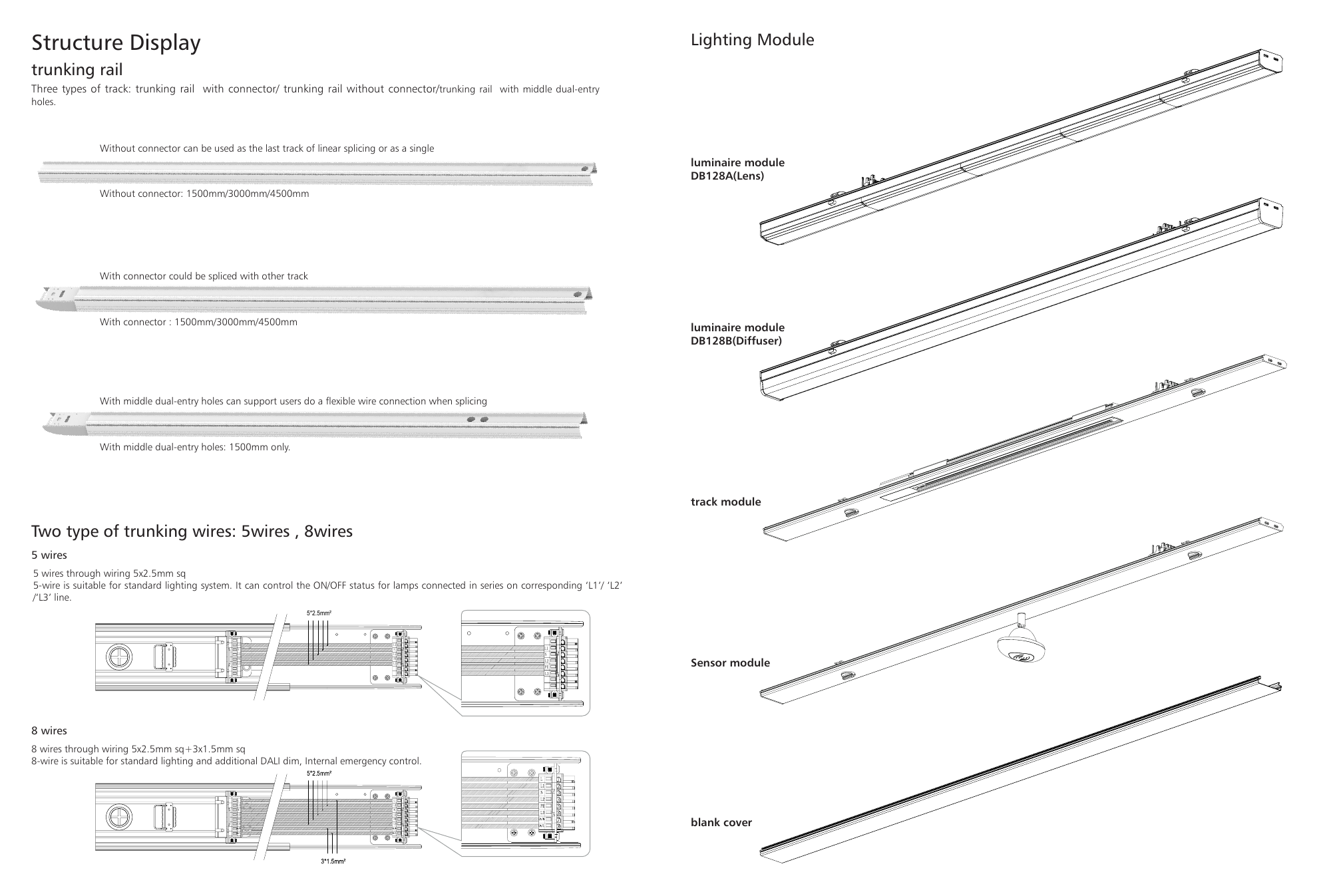

Structure Display Lighting Module trunking rail Three types of track: trunking rail with connector/ trunking rail without connector/trunking rail with middle dual-entry

holes.

Without connector can be used as the last track of linear splicing or as a single luminaire module DB128A(Lens) Without connector: 1500mm/3000mm/4500mm

With connector could be spliced with other track With connector : 1500mm/3000mm/4500mm luminaire module DB128B(Diffuser) With middle dual-entry holes can support users do a flexible wire connection when splicing

With middle dual-entry holes: 1500mm only.

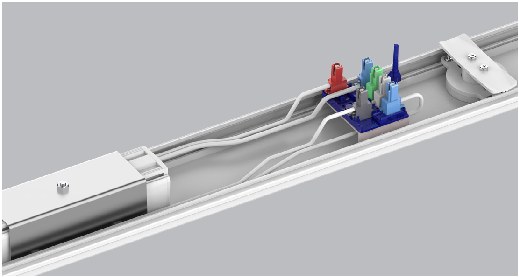

track module Two type of trunking wires: 5wires , 8wires 5 wires 5 wires through wiring 5x2.5mm sq 5-wire is suitable for standard lighting system. It can control the ON/OFF status for lamps connected in series on corresponding ‘L1’/ ‘L2’

/‘L3’ line.

5*2.5mm² L N 1 L N 1 1 3 2 L1 1 2 L2 L2 4 N 3 L P 3 E L P 3 E 7 5 6 P L E 2 5 4 Sensor module 8 L3 6

8 wires 8 wires through wiring 5x2.5mm sq+3x1.5mm sq 8-wire is suitable for standard lighting and additional DALI dim, Internal emergency control.

blank cover

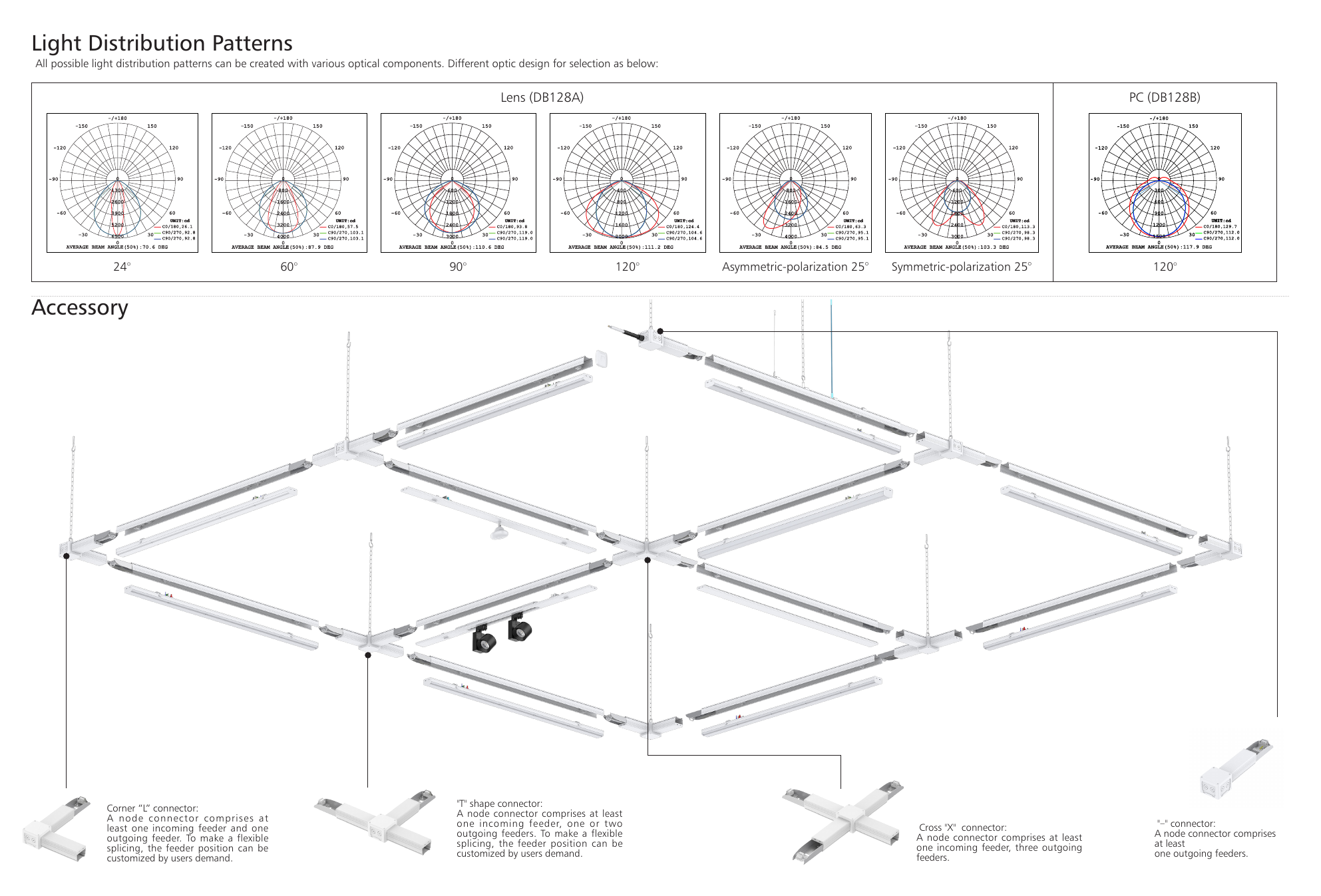

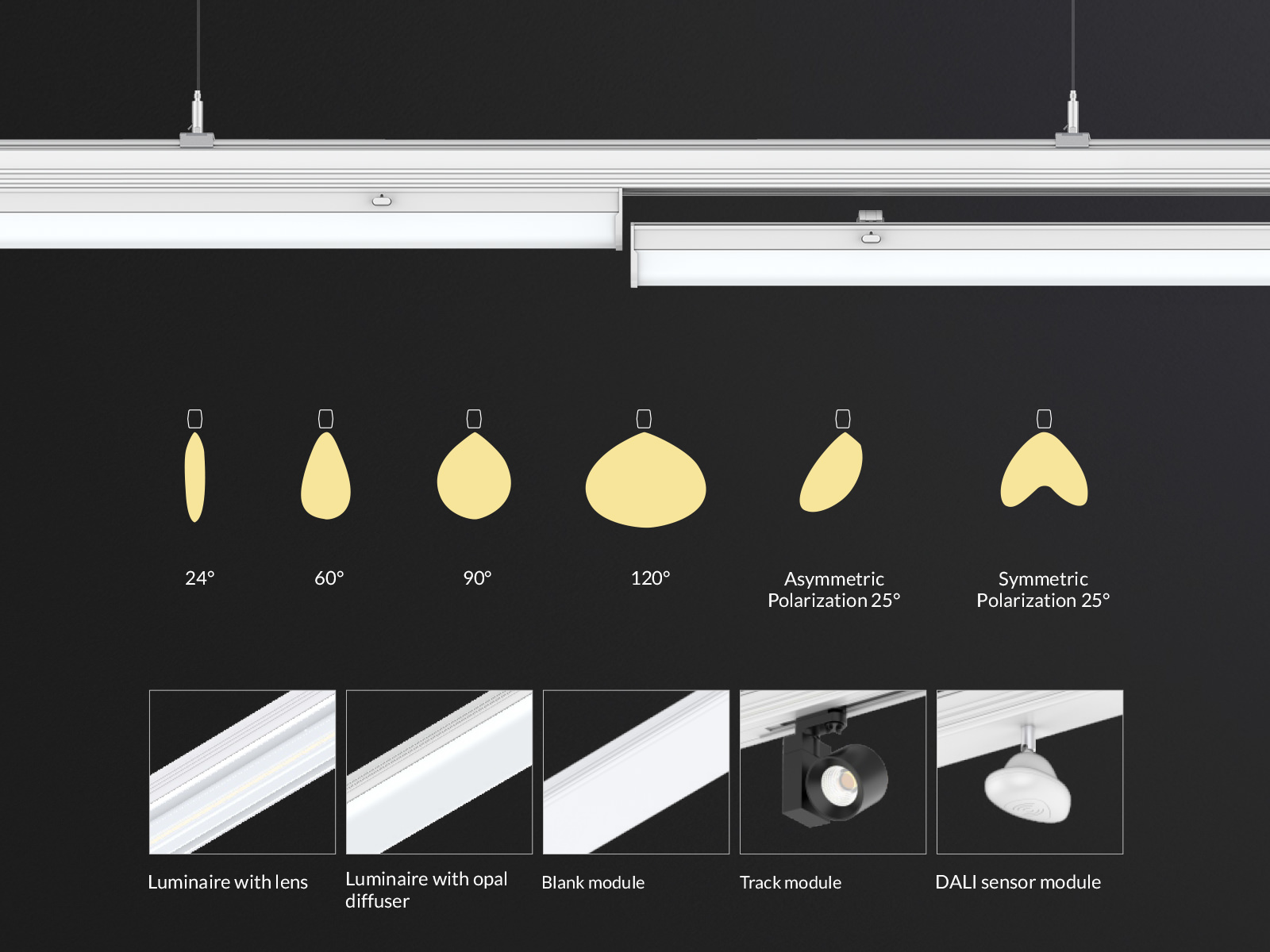

Light Distribution Patterns All possible light distribution patterns can be created with various optical components. Different optic design for selection as below:

Lens (DB128A) PC (DB128B) 24° 60° 90° 120° Asymmetric-polarization 25° Symmetric-polarization 25° 120°

Accessory

"T" shape connector:

Corner “L” connector:

A node connector comprises at least A node connector comprises at one incoming feeder, one or two "-" connector:

least one incoming feeder and one Cross "X" connector:

outgoing feeders. To make a flexible A node connector comprises outgoing feeder. To make a flexible A node connector comprises at least

splicing, the feeder position can be at least splicing, the feeder position can be one incoming feeder, three outgoing customized by users demand. one outgoing feeders.

customized by users demand. feeders.

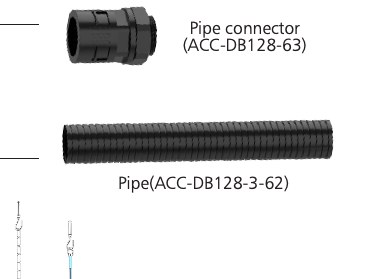

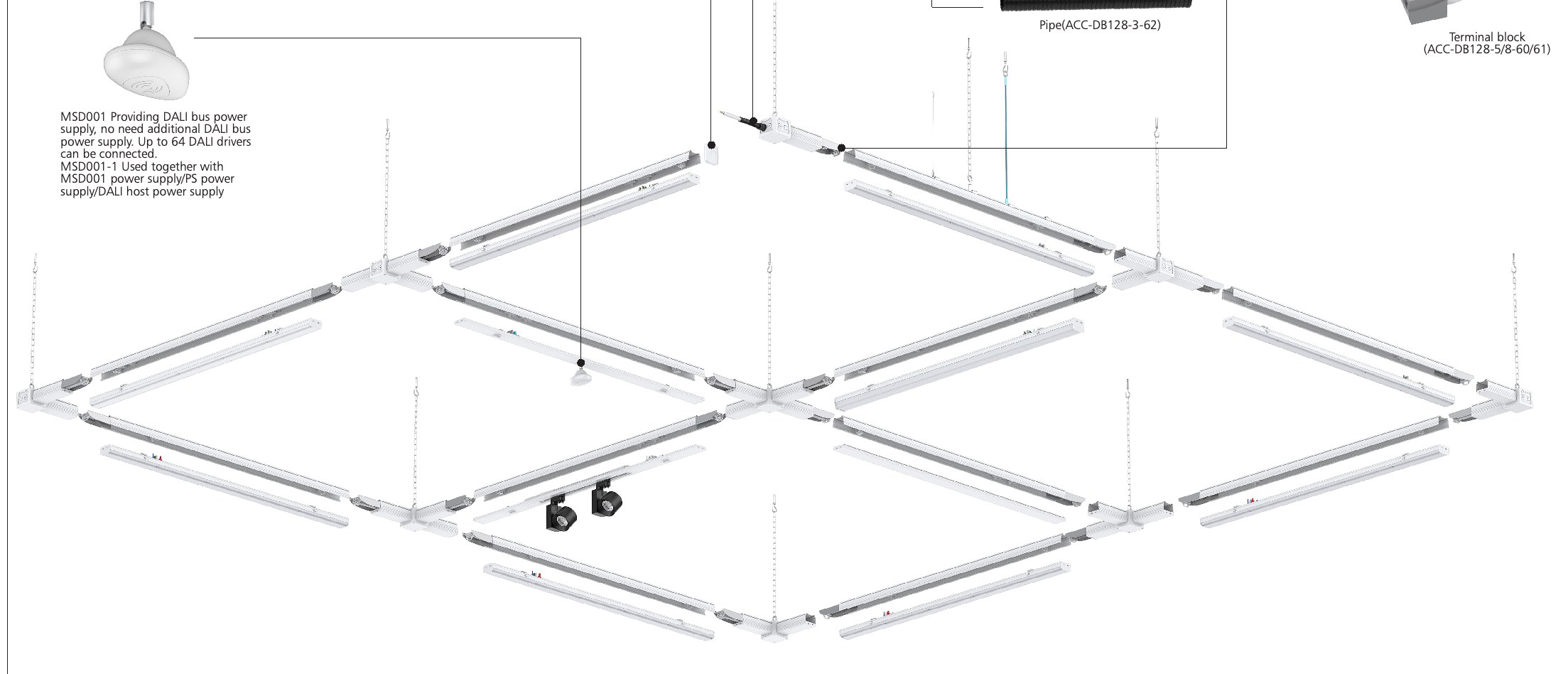

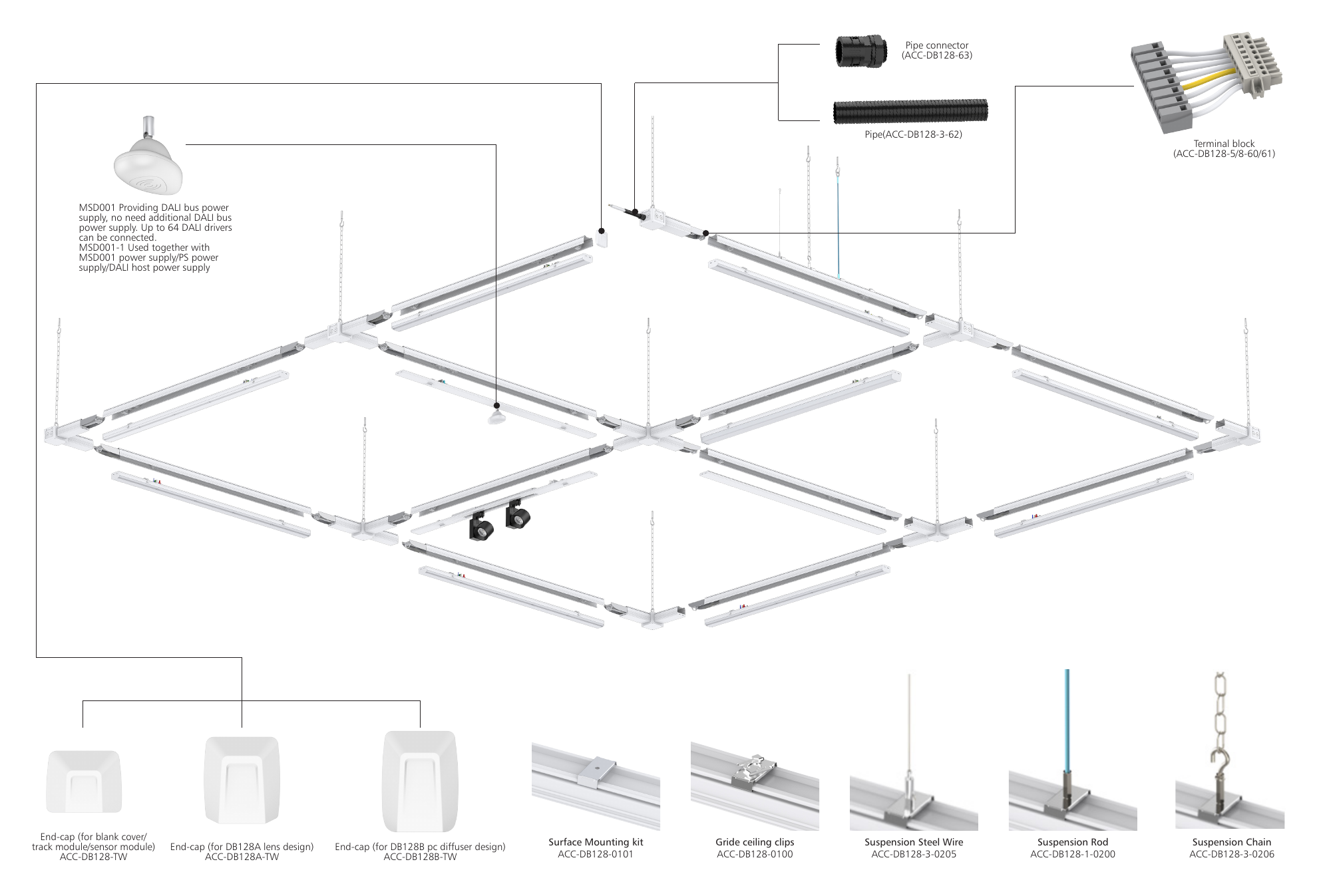

Pipe connector (ACC-DB128-63) Pipe(ACC-DB128-3-62) Terminal block (ACC-DB128-5/8-60/61) MSD001 Providing DALI bus power supply, no need additional DALI bus

power supply. Up to 64 DALI drivers can be connected.

MSD001-1 Used together with MSD001 power supply/PS power supply/DALI host power supply End-cap (for blank cover/ Surface Mounting kit Gride ceiling clips Suspension Steel Wire Suspension Rod Suspension Chain

track module/sensor module) End-cap (for DB128A lens design) End-cap (for DB128B pc diffuser design) ACC-DB128-TW ACC-DB128A-TW ACC-DB128B-TW ACC-DB128-0101 ACC-DB128-0100 ACC-DB128-3-0205 ACC-DB128-1-0200 ACC-DB128-3-0206

IP20 PF 0.9 24° 60° 90° 120° S 25° D 25° Emergency Sensor ACC-DB128-1500/3000/4500- ACC-DB128-1500/3000/4500- ACC-DB128-1500-WT-5/8-0151

WT-5/8-50 WT-5/8-0150 ACC-DB128-WT-5/8-0352 ACC-DB128-WT-5/8-0353

A

B

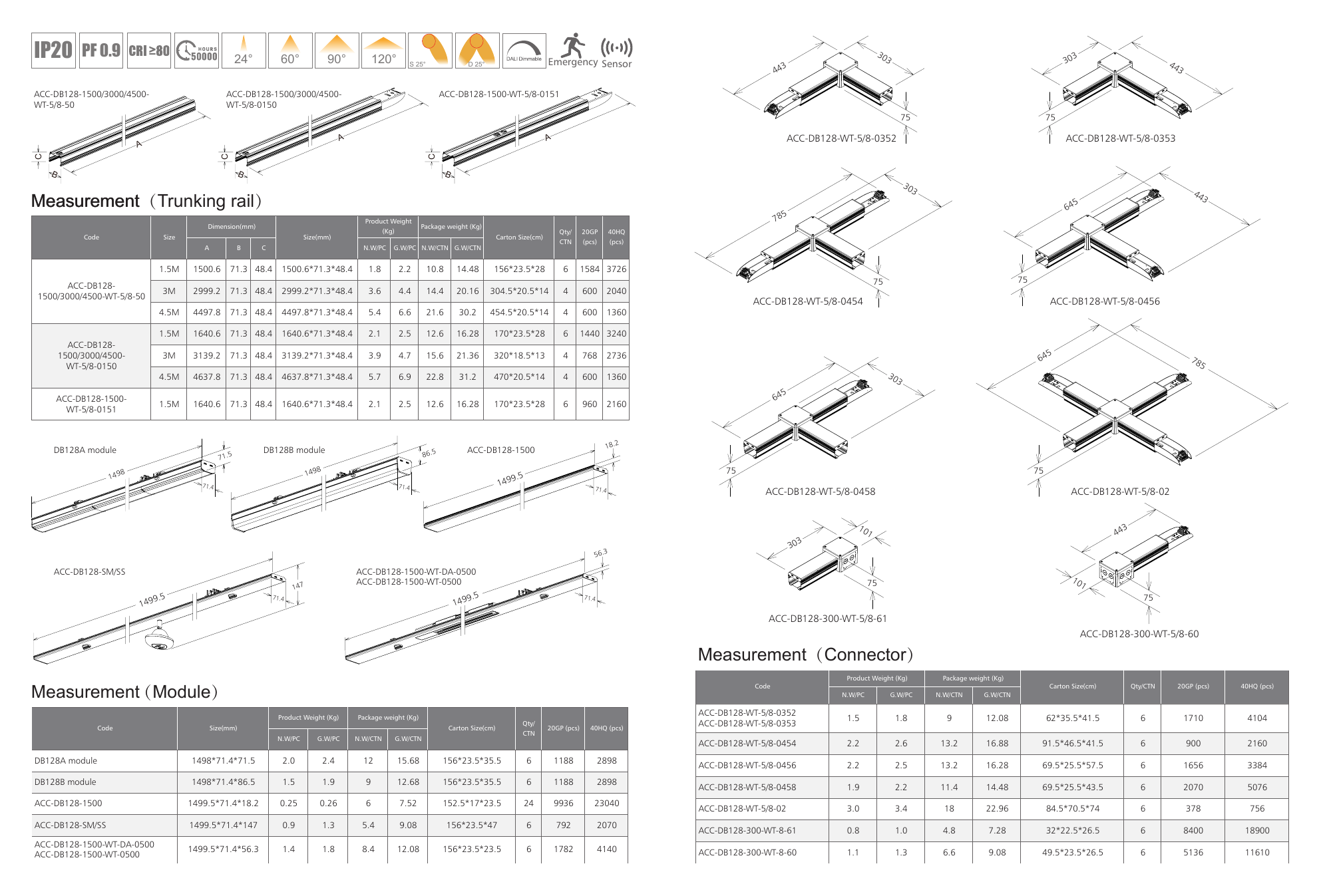

MMeeaassuurreemmeenntt（Trunking rail） Product Weight Dimension(mm) Package weight (Kg) (Kg) Qty/ 20GP 40HQ Code Size Size(mm) Carton Size(cm)

CTN (pcs) (pcs) A B C N.W/PC G.W/PC N.W/CTN G.W/CTN 1.5M 1500.6 71.3 48.4 1500.6*71.3*48.4 1.8 2.2 10.8 14.48 156*23.5*28 6 1584 3726

ACC-DB128-3M 2999.2 71.3 48.4 2999.2*71.3*48.4 3.6 4.4 14.4 20.16 304.5*20.5*14 4 600 2040 1500/3000/4500-WT-5/8-50 ACC-DB128-WT-5/8-0454 ACC-DB128-WT-5/8-0456

4.5M 4497.8 71.3 48.4 4497.8*71.3*48.4 5.4 6.6 21.6 30.2 454.5*20.5*14 4 600 1360 1.5M 1640.6 71.3 48.4 1640.6*71.3*48.4 2.1 2.5 12.6 16.28 170*23.5*28 6 1440 3240

ACC-DB128-1500/3000/4500- 3M 3139.2 71.3 48.4 3139.2*71.3*48.4 3.9 4.7 15.6 21.36 320*18.5*13 4 768 2736 WT-5/8-0150 4.5M 4637.8 71.3 48.4 4637.8*71.3*48.4 5.7 6.9 22.8 31.2 470*20.5*14 4 600 1360

ACC-DB128-1500-1.5M 1640.6 71.3 48.4 1640.6*71.3*48.4 2.1 2.5 12.6 16.28 170*23.5*28 6 960 2160 WT-5/8-0151 DB128A module DB128B module ACC-DB128-1500

ACC-DB128-WT-5/8-0458 ACC-DB128-WT-5/8-02 ACC-DB128-SM/SS ACC-DB128-1500-WT-DA-0500 ACC-DB128-1500-WT-0500 ACC-DB128-300-WT-5/8-61

ACC-DB128-300-WT-5/8-60

Measurement（Connector）

Product Weight (Kg) Package weight (Kg) Measurement（Module） Code Carton Size(cm) Qty/CTN 20GP (pcs) 40HQ (pcs) N.W/PC G.W/PC N.W/CTN G.W/CTN

ACC-DB128-WT-5/8-0352 Product Weight (Kg) Package weight (Kg) 1.5 1.8 9 12.08 62*35.5*41.5 6 1710 4104 Qty/ ACC-DB128-WT-5/8-0353

Code Size(mm) Carton Size(cm) 20GP (pcs) 40HQ (pcs) CTN N.W/PC G.W/PC N.W/CTN G.W/CTN ACC-DB128-WT-5/8-0454 2.2 2.6 13.2 16.88 91.5*46.5*41.5 6 900 2160

DB128A module 1498*71.4*71.5 2.0 2.4 12 15.68 156*23.5*35.5 6 1188 2898 ACC-DB128-WT-5/8-0456 2.2 2.5 13.2 16.28 69.5*25.5*57.5 6 1656 3384

DB128B module 1498*71.4*86.5 1.5 1.9 9 12.68 156*23.5*35.5 6 1188 2898 ACC-DB128-WT-5/8-0458 1.9 2.2 11.4 14.48 69.5*25.5*43.5 6 2070 5076

ACC-DB128-1500 1499.5*71.4*18.2 0.25 0.26 6 7.52 152.5*17*23.5 24 9936 23040 ACC-DB128-WT-5/8-02 3.0 3.4 18 22.96 84.5*70.5*74 6 378 756

ACC-DB128-SM/SS 1499.5*71.4*147 0.9 1.3 5.4 9.08 156*23.5*47 6 792 2070 ACC-DB128-300-WT-8-61 0.8 1.0 4.8 7.28 32*22.5*26.5 6 8400 18900

ACC-DB128-1500-WT-DA-0500 ACC-DB128-1500-WT-0500 1499.5*71.4*56.3 1.4 1.8 8.4 12.08 156*23.5*23.5 6 1782 4140 ACC-DB128-300-WT-8-60 1.1 1.3 6.6 9.08 49.5*23.5*26.5 6 5136 11610

C

A

B

C

A

B

C

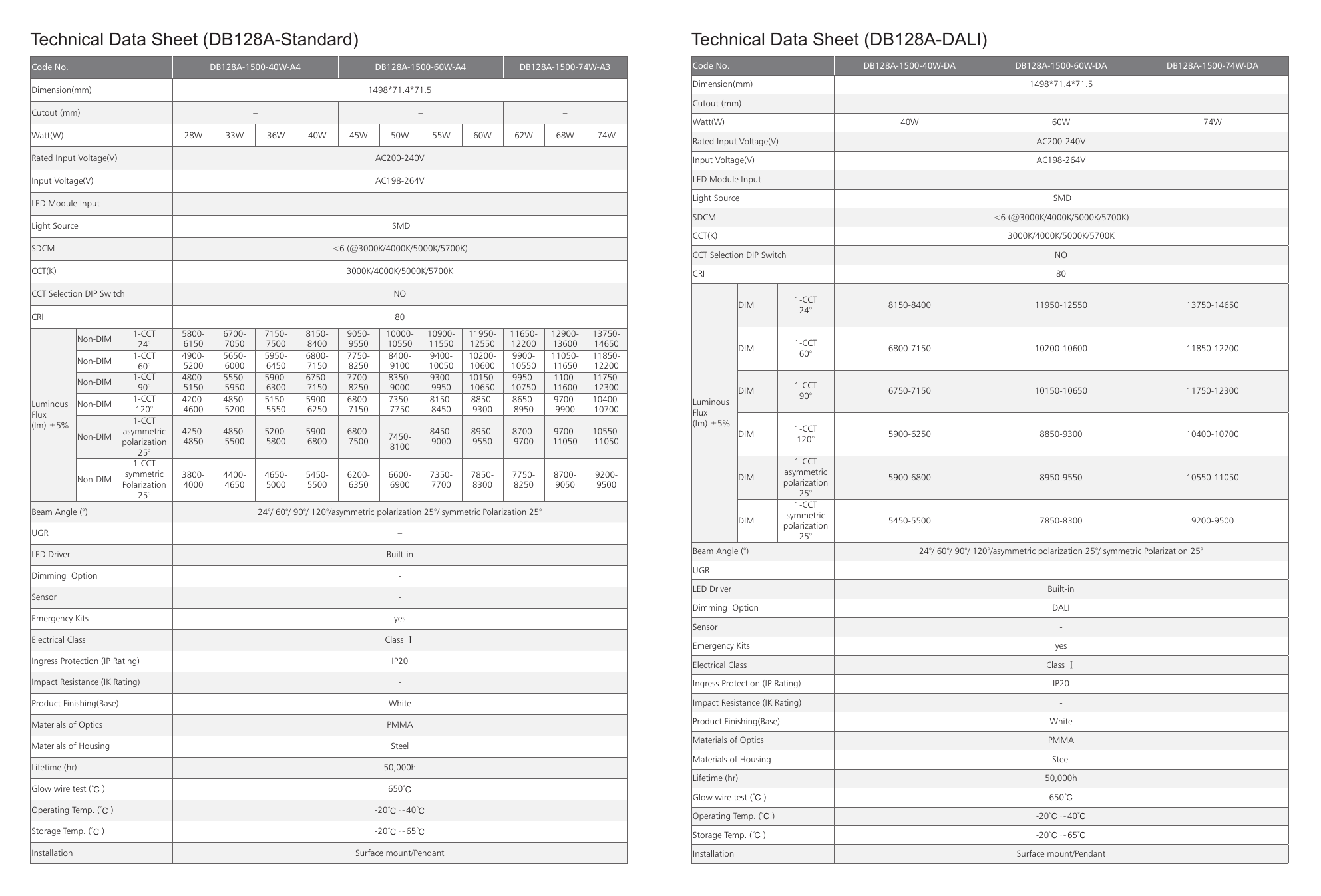

Technical Data Sheet (DB128A-Standard) Technical Data Sheet (DB128A-DALI) Code No. DB128A-1500-40W-A4 DB128A-1500-60W-A4 DB128A-1500-74W-A3 Code No. DB128A-1500-40W-DA DB128A-1500-60W-DA DB128A-1500-74W-DA

Dimension(mm) 1498*71.4*71.5 Dimension(mm) 1498*71.4*71.5 Cutout (mm) – Cutout (mm) – – – Watt(W) 40W 60W 74W Watt(W) 28W 33W 36W 40W 45W 50W 55W 60W 62W 68W 74W

Rated Input Voltage(V) AC200-240V Rated Input Voltage(V) AC200-240V Input Voltage(V) AC198-264V Input Voltage(V) AC198-264V LED Module Input –

Light Source SMD LED Module Input – SDCM <6 (@3000K/4000K/5000K/5700K) Light Source SMD CCT(K) 3000K/4000K/5000K/5700K SDCM <6 (@3000K/4000K/5000K/5700K)

CCT Selection DIP Switch NO CCT(K) 3000K/4000K/5000K/5700K CRI 80 CCT Selection DIP Switch NO 1-CCT DIM 8150-8400 11950-12550 13750-14650

CRI 80 1-CCT 5800- 6700- 7150- 8150- 9050- 10000- 10900- 11950- 11650- 12900- 13750-Non-DIM 24° 6150 7050 7500 8400 9550 10550 11550 12550 12200 13600 14650 1-CCT

DIM 6800-7150 10200-10600 11850-12200 1-CCT 4900- 5650- 5950- 6800- 7750- 8400- 9400- 10200- 9900- 11050- 11850- 60° Non-DIM

1-CCT 4800- 5550- 5900- 6750- 7700- 8350- 9300- 10150- 9950- 1100- 11750-Non-DIM 90° 5150 5950 6300 7150 8250 9000 9950 10650 10750 11600 12300 1-CCT

DIM 6750-7150 10150-10650 11750-12300 Luminous Non-DIM 1-CCT 4200- 4850- 5150- 5900- 6800- 7350- 8150- 8850- 8650- 9700- 10400- Luminous 90°

Flux 120° 4600 5200 5550 6250 7150 7750 8450 9300 8950 9900 10700 Flux (lm) ±5% Non-DIM p a o sy l

a m

r

C

i m z

C

a e

T

t t io ri n c 4 4 2 8 5 5 0 0 - 4 5 8 5 5 0 0 0 - 5 5 2 8 0 0 0 0 - 5 6 9 8 0 0 0 0 - 6 7 8 5 0 0 0 0 - 7 4 5 0 - 8 9 4 0 5 0 0 0 - 8 9 9 5 5 5 0 0 - 8 9 7 7 0 0 0 0 - 1 9 1 7 0 0 5 0 0 - 1 1 0 1 5 0 5 5 0 0 -

(lm) ±5% DIM 1 1 - 2 C 0 C ° T 5900-6250 8850-9300 10400-10700

1-CCT 1-CCT Non-DIM P s o y l m ar m iza e t t i r o ic n 3 4 8 0 0 0 0 0 - 4 4 4 6 0 5 0 0 - 4 5 6 0 5 0 0 0 - 5 5 4 5 5 0 0 0 - 6 6 2 3 0 5 0 0 - 6 6 6 9 0 0 0 0 - 7 7 3 7 5 0 0 0 - 7 8 8 3 5 0 0 0 - 7 8 7 2 5 5 0 0 - 8 9 7 0 0 5 0 0 - 9 9 2 5 0 0 0 0 - DIM p a o sy la m ri m za e t t io ri n c 5900-6800 8950-9550 10550-11050

1-CCT Beam Angle (°) 24°/ 60°/ 90°/ 120°/asymmetric polarization 25°/ symmetric Polarization 25° symmetric DIM 5450-5500 7850-8300 9200-9500

polarization UGR – 25° LED Driver Built-in Beam Angle (°) 24°/ 60°/ 90°/ 120°/asymmetric polarization 25°/ symmetric Polarization 25°

UGR – Dimming Option -LED Driver Built-in Sensor -Dimming Option DALI Emergency Kits yes Sensor -Electrical Class Class Ⅰ

Emergency Kits yes Ingress Protection (IP Rating) IP20 Electrical Class Class Ⅰ Impact Resistance (IK Rating) - Ingress Protection (IP Rating) IP20

Product Finishing(Base) White Impact Resistance (IK Rating) -Product Finishing(Base) White Materials of Optics PMMA Materials of Optics PMMA

Materials of Housing Steel Materials of Housing Steel Lifetime (hr) 50,000h Lifetime (hr) 50,000h Glow wire test (℃ ) 650℃

Glow wire test (℃ ) 650℃ Operating Temp. (℃ ) -20℃ ~40℃ Operating Temp. (℃ ) -20℃ ~40℃ Storage Temp. (℃ ) -20℃ ~65℃ Storage Temp. (℃ ) -20℃ ~65℃

Installation Surface mount/Pendant Installation Surface mount/Pendant

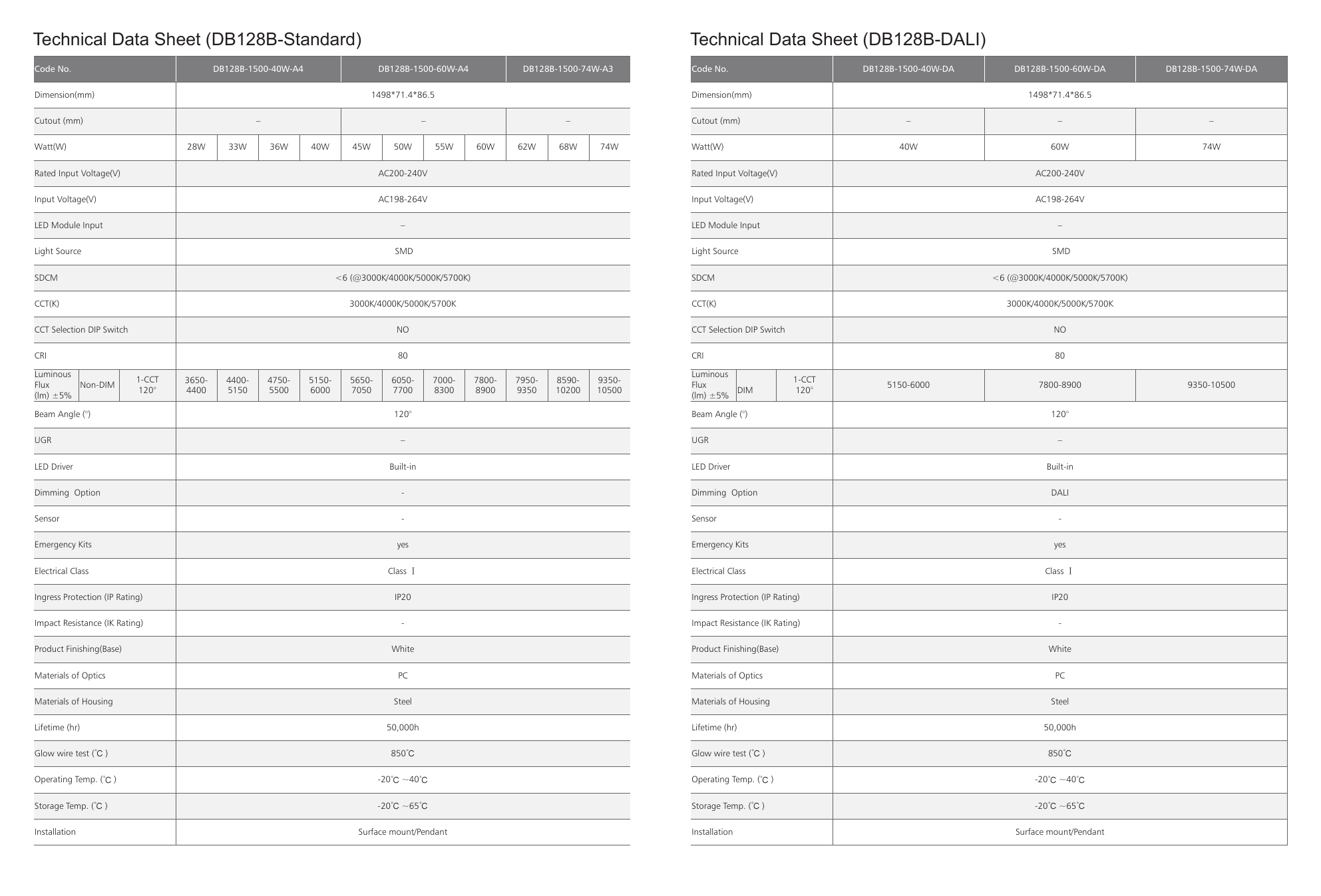

Technical Data Sheet (DB128B-Standard) Technical Data Sheet (DB128B-DALI) Code No. DB128B-1500-40W-A4 DB128B-1500-60W-A4 DB128B-1500-74W-A3 Code No. DB128B-1500-40W-DA DB128B-1500-60W-DA DB128B-1500-74W-DA

Dimension(mm) 1498*71.4*86.5 Dimension(mm) 1498*71.4*86.5 Cutout (mm) – – – Cutout (mm) – – – Watt(W) 28W 33W 36W 40W 45W 50W 55W 60W 62W 68W 74W Watt(W) 40W 60W 74W

Rated Input Voltage(V) AC200-240V Rated Input Voltage(V) AC200-240V Input Voltage(V) AC198-264V Input Voltage(V) AC198-264V

LED Module Input – LED Module Input – Light Source SMD Light Source SMD SDCM <6 (@3000K/4000K/5000K/5700K) SDCM <6 (@3000K/4000K/5000K/5700K)

CCT(K) 3000K/4000K/5000K/5700K CCT(K) 3000K/4000K/5000K/5700K CCT Selection DIP Switch NO CCT Selection DIP Switch NO CRI 80 CRI 80

Luminous Luminous 1-CCT 3650- 4400- 4750- 5150- 5650- 6050- 7000- 7800- 7950- 8590- 9350- 1-CCT Flux Non-DIM Flux 5150-6000 7800-8900 9350-10500

120° 4400 5150 5500 6000 7050 7700 8300 8900 9350 10200 10500 DIM 120° (lm) ±5% (lm) ±5% Beam Angle (°) 120° Beam Angle (°) 120°

UGR – UGR – LED Driver Built-in LED Driver Built-in Dimming Option - Dimming Option DALI Sensor - Sensor -Emergency Kits yes Emergency Kits yes

Electrical Class Class Ⅰ Electrical Class Class Ⅰ Ingress Protection (IP Rating) IP20 Ingress Protection (IP Rating) IP20

Impact Resistance (IK Rating) - Impact Resistance (IK Rating) -Product Finishing(Base) White Product Finishing(Base) White

Materials of Optics PC Materials of Optics PC Materials of Housing Steel Materials of Housing Steel Lifetime (hr) 50,000h Lifetime (hr) 50,000h

Glow wire test (℃ ) 850℃ Glow wire test (℃ ) 850℃ Operating Temp. (℃ ) -20℃ ~40℃ Operating Temp. (℃ ) -20℃ ~40℃ Storage Temp. (℃ ) -20℃ ~65℃ Storage Temp. (℃ ) -20℃ ~65℃

Installation Surface mount/Pendant Installation Surface mount/Pendant

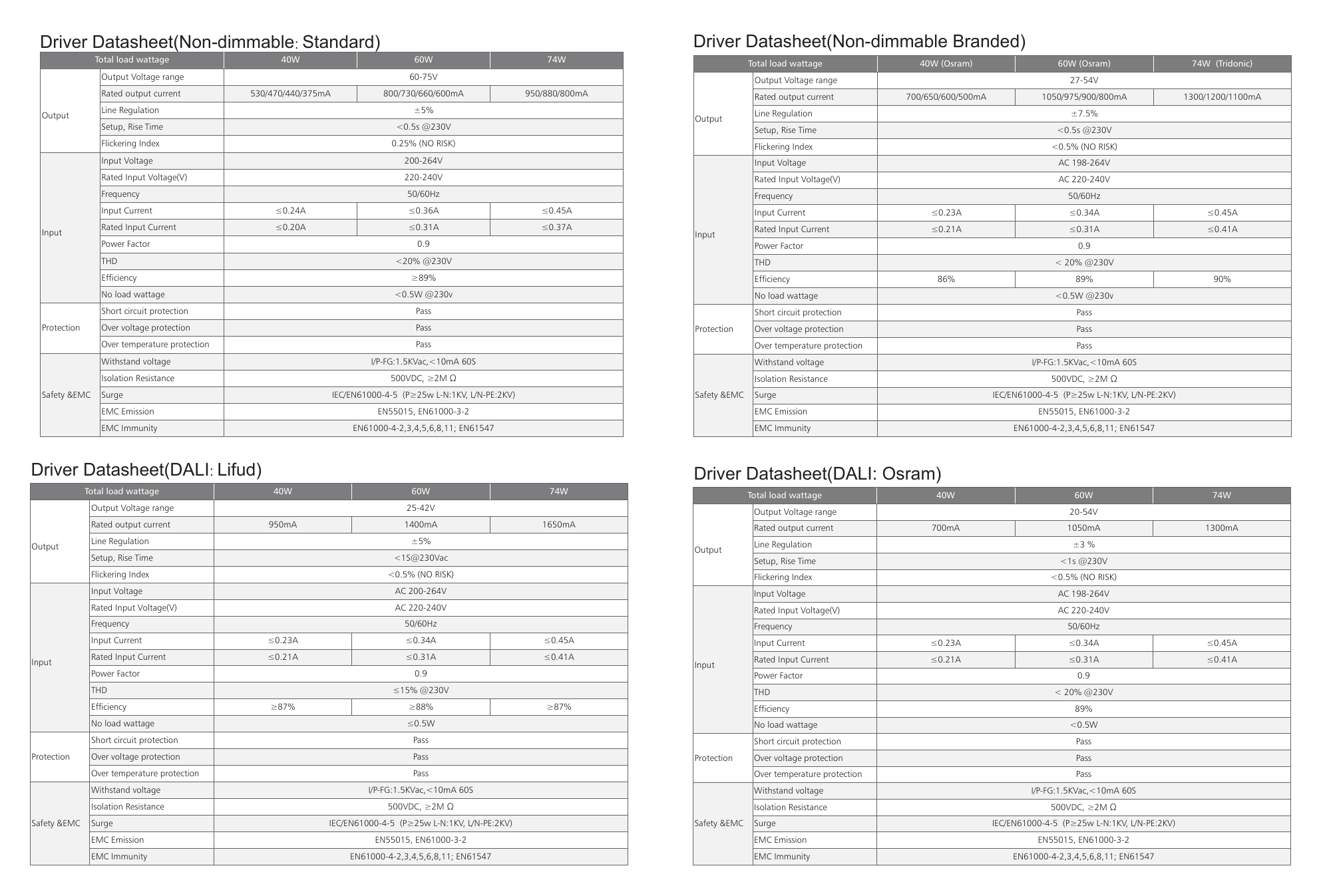

Driver Datasheet(Non-dimmable: Standard) Driver Datasheet(Non-dimmable Branded) Total load wattage 40W 60W 74W Total load wattage 40W (Osram) 60W (Osram) 74W (Tridonic)

Output Voltage range 60-75V Output Voltage range 27-54V Rated output current 530/470/440/375mA 800/730/660/600mA 950/880/800mA Rated output current 700/650/600/500mA 1050/975/900/800mA 1300/1200/1100mA

Output Line Regulation ±5% Output Line Regulation ±7.5% Setup, Rise Time <0.5s @230V Setup, Rise Time <0.5s @230V Flickering Index 0.25% (NO RISK) Flickering Index <0.5% (NO RISK)

Input Voltage 200-264V Input Voltage AC 198-264V Rated Input Voltage(V) 220-240V Rated Input Voltage(V) AC 220-240V Frequency 50/60Hz Frequency 50/60Hz

Input Current ≤0.24A ≤0.36A ≤0.45A Input Current ≤0.23A ≤0.34A ≤0.45A Input Rated Input Current ≤0.20A ≤0.31A ≤0.37A Input Rated Input Current ≤0.21A ≤0.31A ≤0.41A

Power Factor 0.9 Power Factor 0.9 THD <20% @230V THD < 20% @230V Efficiency ≥89% Efficiency 86% 89% 90% No load wattage <0.5W @230v No load wattage <0.5W @230v

Short circuit protection Pass Short circuit protection Pass Protection Over voltage protection Pass Protection Over voltage protection Pass

Over temperature protection Pass Over temperature protection Pass Withstand voltage I/P-FG:1.5KVac,<10mA 60S Withstand voltage I/P-FG:1.5KVac,<10mA 60S

Isolation Resistance 500VDC, ≥2M Ω Isolation Resistance 500VDC, ≥2M Ω Safety &EMC Surge IEC/EN61000-4-5 (P≥25w L-N:1KV, L/N-PE:2KV) Safety &EMC Surge IEC/EN61000-4-5 (P≥25w L-N:1KV, L/N-PE:2KV)

EMC Emission EN55015, EN61000-3-2 EMC Emission EN55015, EN61000-3-2 EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547 EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547

Driver Datasheet(DALI: Lifud) Driver Datasheet(DALI: Osram) Total load wattage 40W 60W 74W Total load wattage 40W 60W 74W

Output Voltage range 25-42V Output Voltage range 20-54V Rated output current 950mA 1400mA 1650mA Rated output current 700mA 1050mA 1300mA

Line Regulation ±5% Output Line Regulation ±3 %

Output

Setup, Rise Time <1S@230Vac Setup, Rise Time <1s @230V Flickering Index <0.5% (NO RISK) Flickering Index <0.5% (NO RISK) Input Voltage AC 200-264V Input Voltage AC 198-264V

Rated Input Voltage(V) AC 220-240V Rated Input Voltage(V) AC 220-240V Frequency 50/60Hz Frequency 50/60Hz Input Current ≤0.23A ≤0.34A ≤0.45A Input Current ≤0.23A ≤0.34A ≤0.45A

Input Rated Input Current ≤0.21A ≤0.31A ≤0.41A Input Rated Input Current ≤0.21A ≤0.31A ≤0.41A Power Factor 0.9 Power Factor 0.9

THD ≤15% @230V THD < 20% @230V Efficiency ≥87% ≥88% ≥87% Efficiency 89% No load wattage ≤0.5W No load wattage <0.5W Short circuit protection Pass Short circuit protection Pass

Protection Over voltage protection Pass Protection Over voltage protection Pass Over temperature protection Pass Over temperature protection Pass

Withstand voltage I/P-FG:1.5KVac,<10mA 60S Withstand voltage I/P-FG:1.5KVac,<10mA 60S Isolation Resistance 500VDC, ≥2M Ω Isolation Resistance 500VDC, ≥2M Ω

Safety &EMC Surge IEC/EN61000-4-5 (P≥25w L-N:1KV, L/N-PE:2KV) Safety &EMC Surge IEC/EN61000-4-5 (P≥25w L-N:1KV, L/N-PE:2KV)

EMC Emission EN55015, EN61000-3-2 EMC Emission EN55015, EN61000-3-2 EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547 EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547

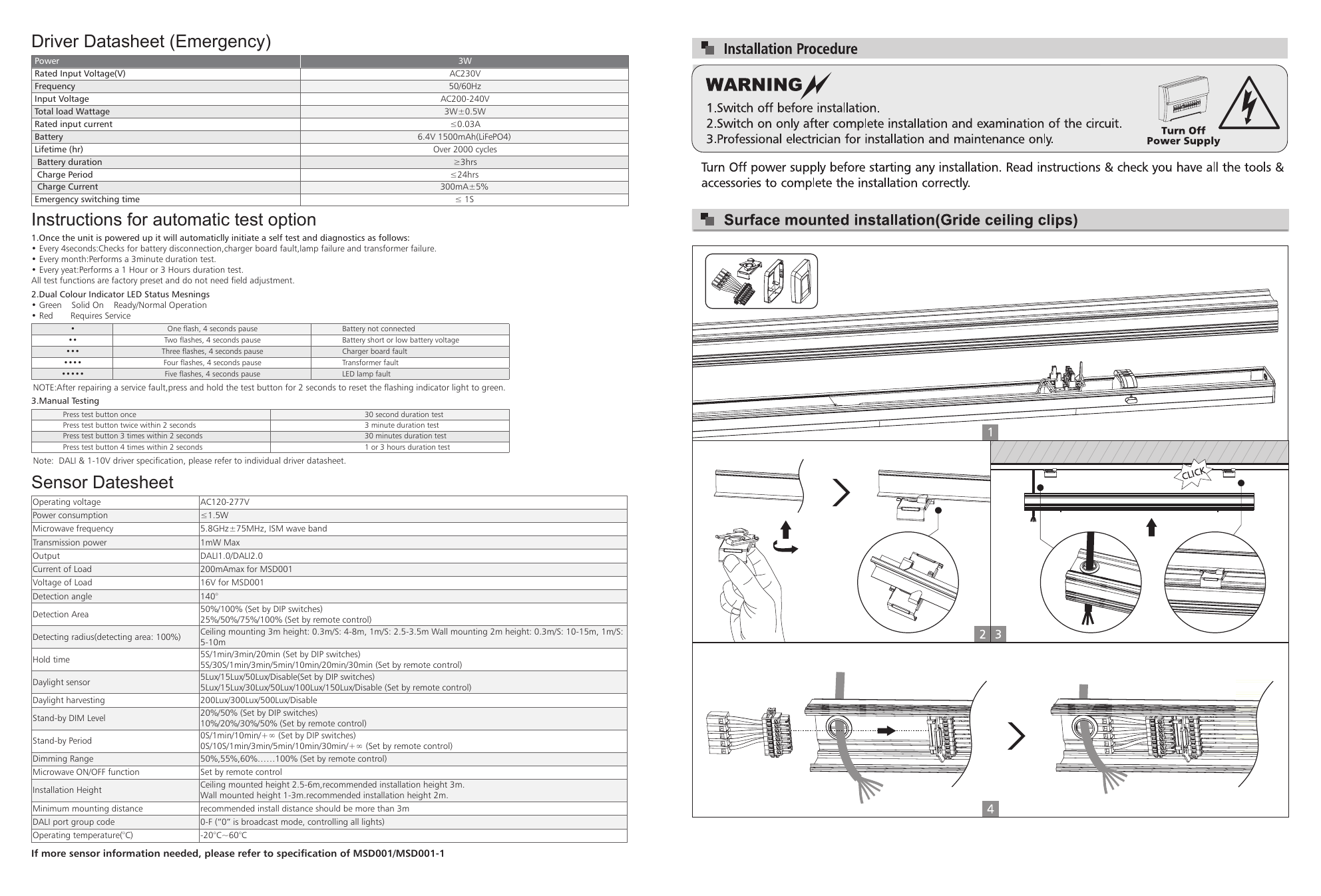

Driver Datasheet (Emergency) Power 3W Rated Input Voltage(V) AC230V Frequency 50/60Hz Input Voltage AC200-240V Total load Wattage 3W±0.5W

Rated input current ≤0.03A Battery 6.4V 1500mAh(LiFePO4) Lifetime (hr) Over 2000 cycles Battery duration ≥3hrs Charge Period ≤24hrs

Charge Current 300mA±5% Emergency switching time ≤ 1S Instructions for automatic test option 1.Once the unit is powered up it will automaticlly initiate a self test and diagnostics as follows:

• Every 4seconds:Checks for battery disconnection,charger board fault,lamp failure and transformer failure.

• Every month:Performs a 3minute duration test.

• Every yeat:Performs a 1 Hour or 3 Hours duration test.

All test functions are factory preset and do not need field adjustment.

2.Dual Colour Indicator LED Status Mesnings • Green Solid On Ready/Normal Operation • Red Requires Service • One flash, 4 seconds pause Battery not connected

•• Two flashes, 4 seconds pause Battery short or low battery voltage ••• Three flashes, 4 seconds pause Charger board fault

•••• Four flashes, 4 seconds pause Transformer fault ••••• Five flashes, 4 seconds pause LED lamp fault NOTE:After repairing a service fault,press and hold the test button for 2 seconds to reset the flashing indicator light to green.

3.Manual Testing Press test button once 30 second duration test Press test button twice within 2 seconds 3 minute duration test

Press test button 3 times within 2 seconds 30 minutes duration test Press test button 4 times within 2 seconds 1 or 3 hours duration test

Note: DALI & 1-10V driver specification, please refer to individual driver datasheet.

Sensor Datesheet Operating voltage AC120-277V Power consumption ≤1.5W Microwave frequency 5.8GHz±75MHz, ISM wave band Transmission power 1mW Max

Output DALI1.0/DALI2.0 Current of Load 200mAmax for MSD001 Voltage of Load 16V for MSD001 Detection angle 140° 50%/100% (Set by DIP switches)

Detection Area 25%/50%/75%/100% (Set by remote control) Ceiling mounting 3m height: 0.3m/S: 4-8m, 1m/S: 2.5-3.5m Wall mounting 2m height: 0.3m/S: 10-15m, 1m/S:

Detecting radius(detecting area: 100%) 5-10m 5S/1min/3min/20min (Set by DIP switches) Hold time 5S/30S/1min/3min/5min/10min/20min/30min (Set by remote control)

5Lux/15Lux/50Lux/Disable(Set by DIP switches) Daylight sensor 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable (Set by remote control)

Daylight harvesting 200Lux/300Lux/500Lux/Disable 20%/50% (Set by DIP switches) Stand-by DIM Level 10%/20%/30%/50% (Set by remote control)

0S/1min/10min/+∞ (Set by DIP switches) Stand-by Period 0S/10S/1min/3min/5min/10min/30min/+∞ (Set by remote control) Dimming Range 50%,55%,60%……100% (Set by remote control)

Microwave ON/OFF function Set by remote control Ceiling mounted height 2.5-6m,recommended installation height 3m.

Installation Height Wall mounted height 1-3m.recommended installation height 2m.

Minimum mounting distance recommended install distance should be more than 3m DALI port group code 0-F (“0” is broadcast mode, controlling all lights)

Operating temperature(°C) -20°C~60°C If more sensor information needed, please refer to specification of MSD001/MSD001-1
