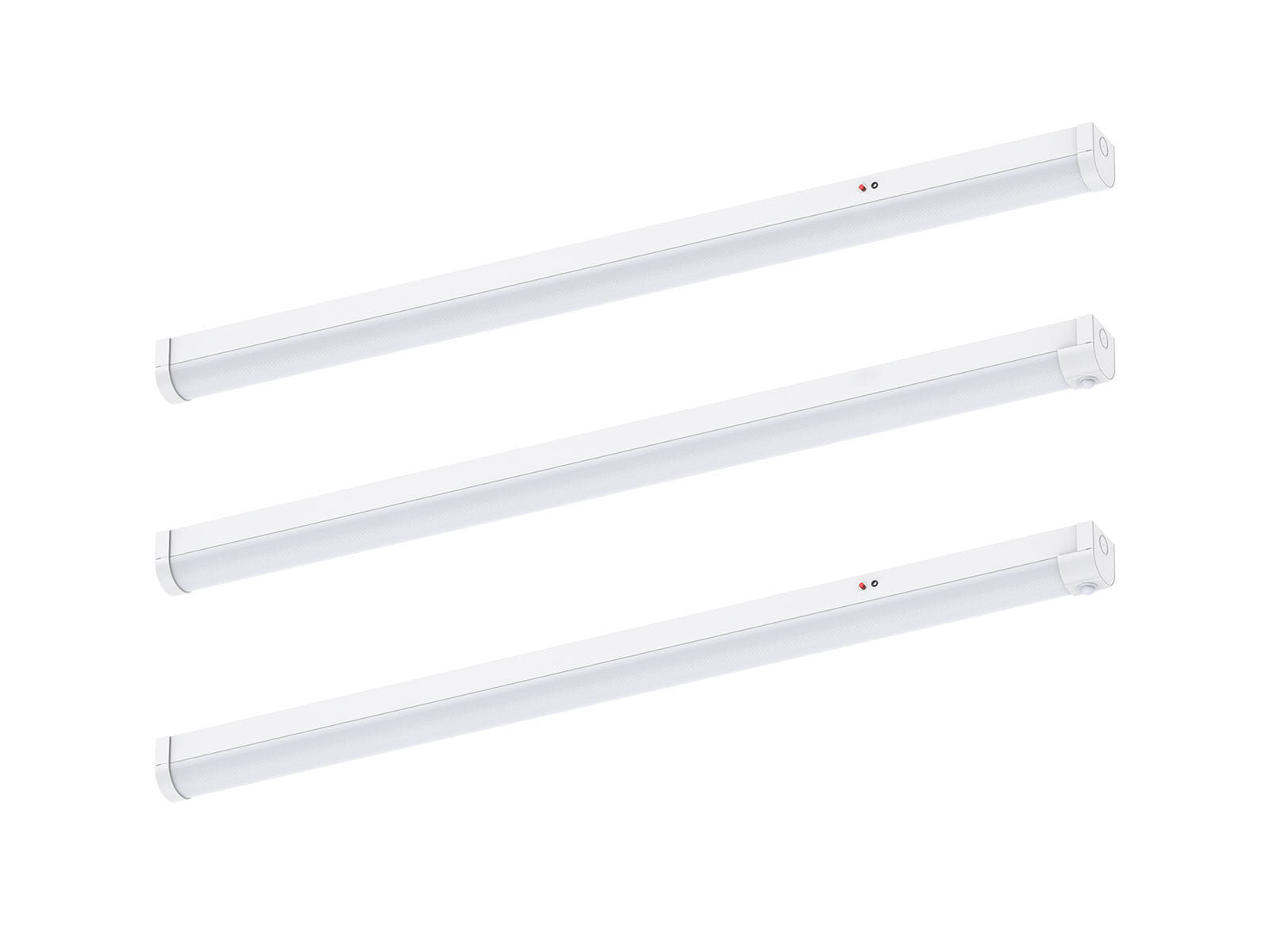

Lineární LED svítidlo 1500mm 25-50W, 7500lm

Entry / ECO Standard / STD Professional / PRO ODM & OEM Intelligent / INT LED Batten Light DB186A/B-PLUS Series

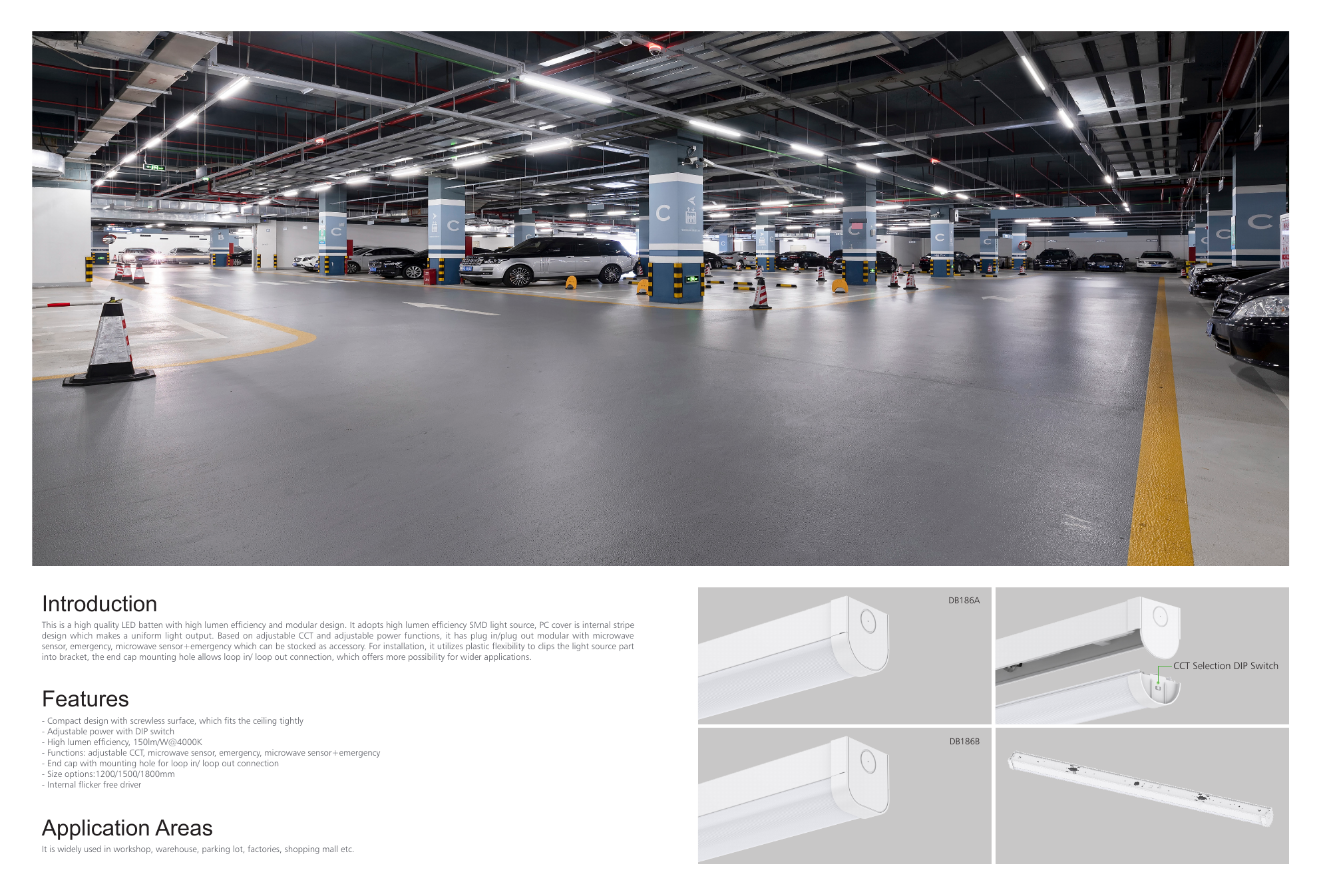

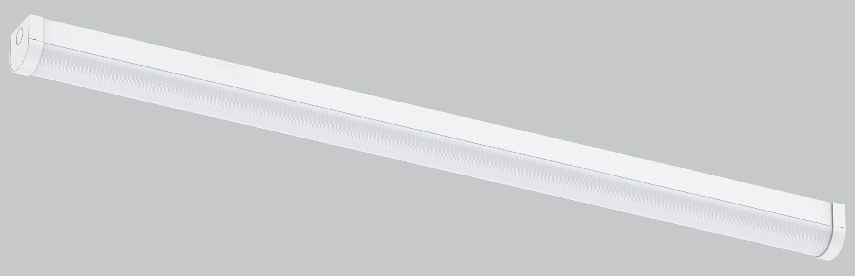

Introduction DB186A This is a high quality LED batten with high lumen efficiency and modular design. It adopts high lumen efficiency SMD light source, PC cover is internal stripe

design which makes a uniform light output. Based on adjustable CCT and adjustable power functions, it has plug in/plug out modular with microwave

sensor, emergency, microwave sensor+emergency which can be stocked as accessory. For installation, it utilizes plastic flexibility to clips the light source part

into bracket, the end cap mounting hole allows loop in/ loop out connection, which offers more possibility for wider applications.

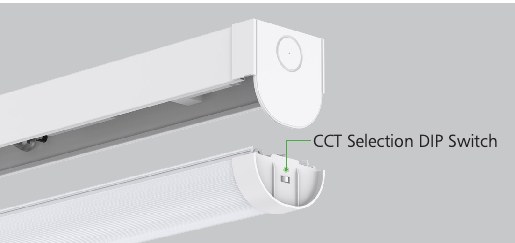

CCT Selection DIP Switch

Features

• Compact design with screwless surface, which fits the ceiling tightly
• Adjustable power with DIP switch
• High lumen efficiency, 150lm/W@4000K DB186B
• Functions: adjustable CCT, microwave sensor, emergency, microwave sensor+emergency

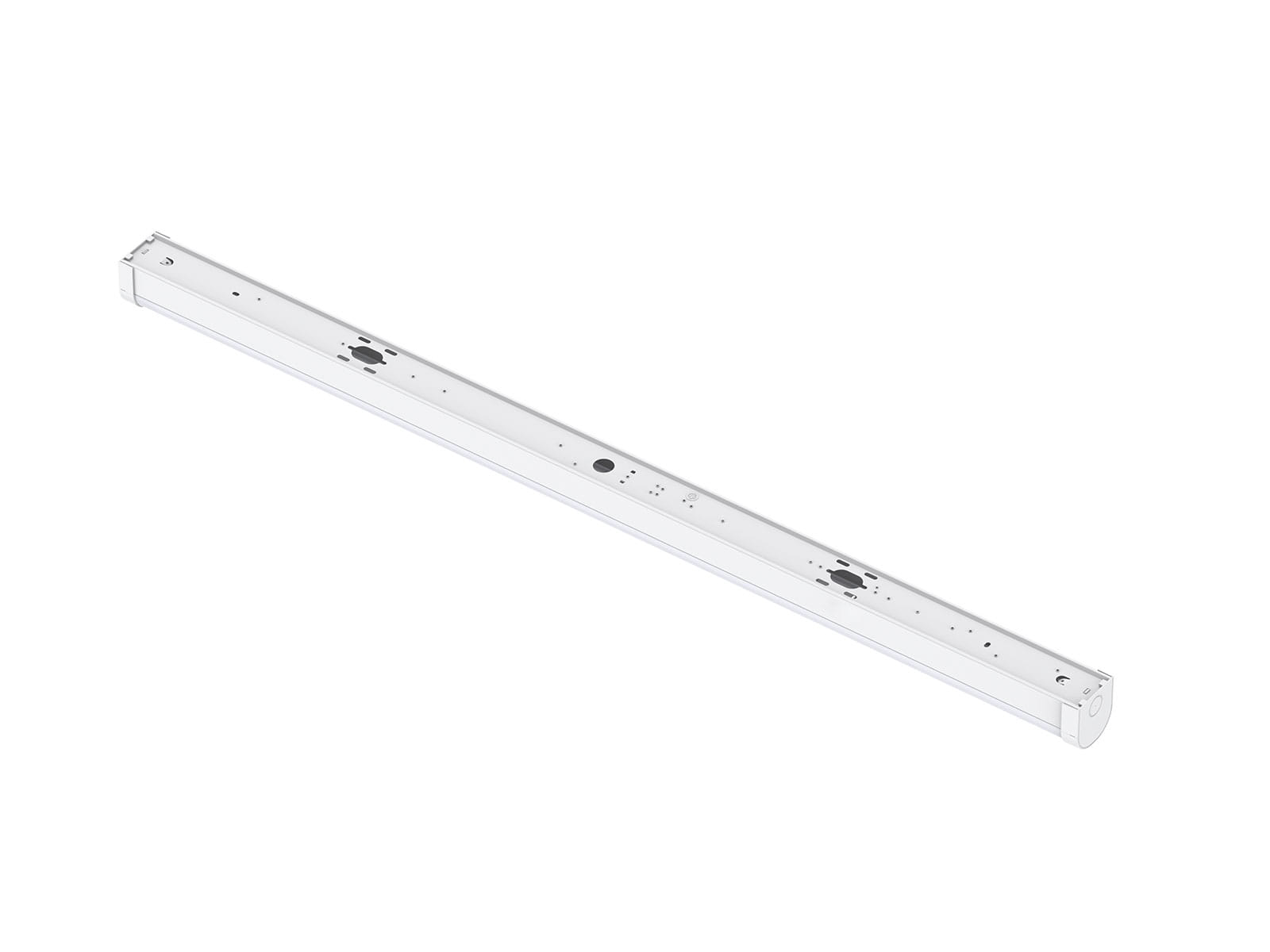

• End cap with mounting hole for loop in/ loop out connection
• Size options:1200/1500/1800mm
• Internal flicker free driver

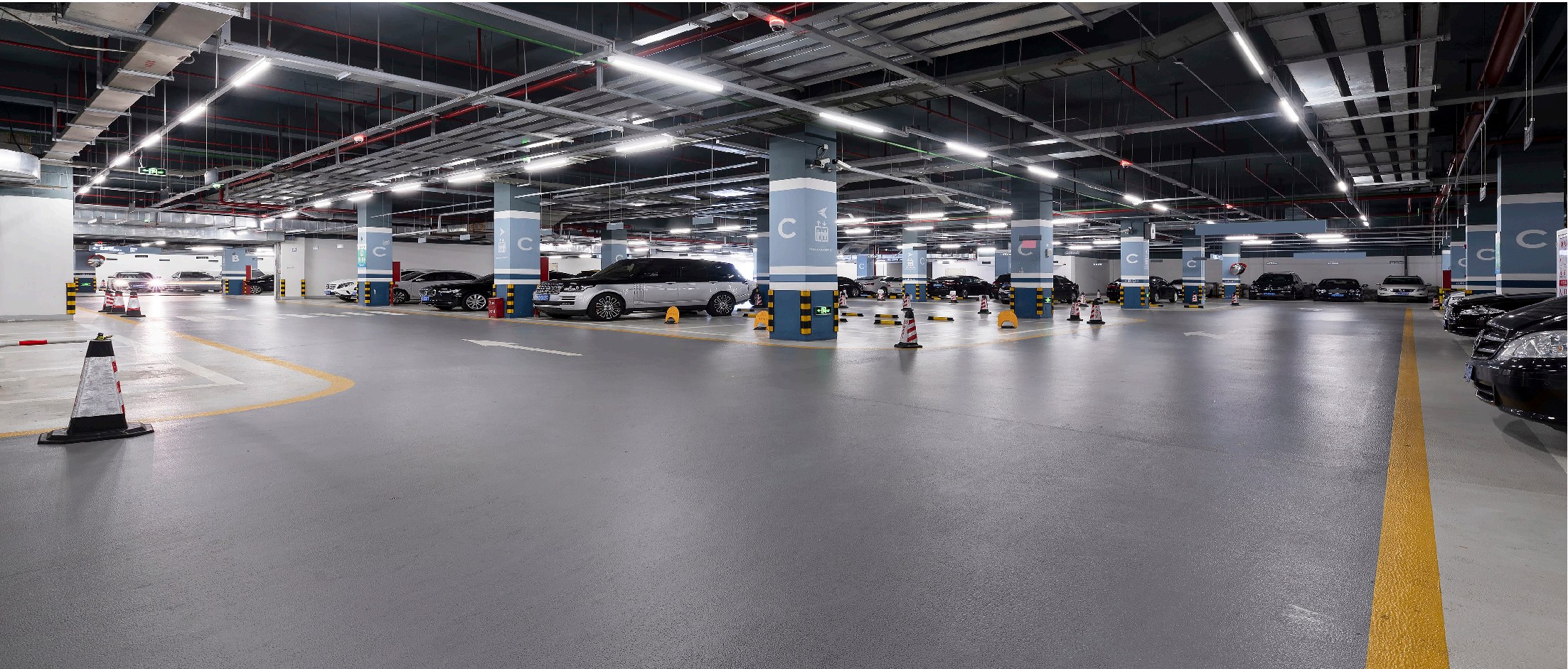

Application Areas It is widely used in workshop, warehouse, parking lot, factories, shopping mall etc.

IP20 PF 0.9

B

A

A

C B DB186A C

B

ACC-DB186-1500-E ACC-DB186-1800-E

A

C

DB186B B A

C

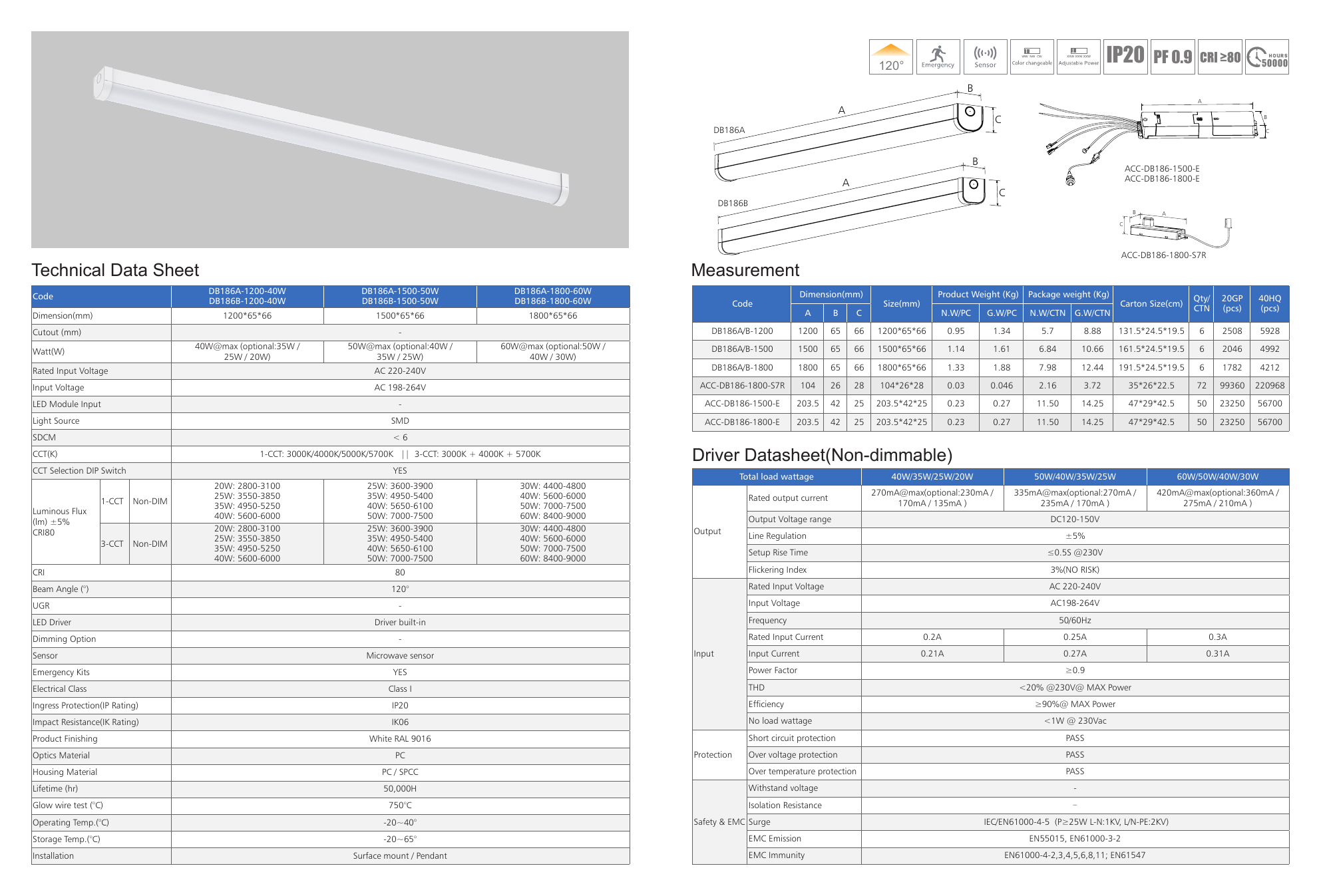

ACC-DB186-1800-S7R Technical Data Sheet Measurement Code D D B B 1 1 8 8 6 6 A B- - 1 1 2 2 0 0 0 0 - - 4 4 0 0 W W D D B B 1 1 8 8 6 6 A B- - 1 1 5 5 0 0 0 0 - - 5 5 0 0 W W D D B B 1 1 8 8 6 6 A B- - 1 1 8 8 0 0 0 0 - - 6 6 0 0 W W Code Dimension(mm) Size(mm) Product Weight (Kg) Package weight (Kg) Carton Size(cm) Qty/ 20GP 40HQ

CTN (pcs) (pcs) Dimension(mm) 1200*65*66 1500*65*66 1800*65*66 A B C N.W/PC G.W/PC N.W/CTN G.W/CTN Cutout (mm) - DB186A/B-1200 1200 65 66 1200*65*66 0.95 1.34 5.7 8.88 131.5*24.5*19.5 6 2508 5928

Watt(W) 40W@max (optional:35W / 50W@max (optional:40W / 60W@max (optional:50W / DB186A/B-1500 1500 65 66 1500*65*66 1.14 1.61 6.84 10.66 161.5*24.5*19.5 6 2046 4992

25W / 20W) 35W / 25W) 40W / 30W) DB186A/B-1800 1800 65 66 1800*65*66 1.33 1.88 7.98 12.44 191.5*24.5*19.5 6 1782 4212 Rated Input Voltage AC 220-240V

Input Voltage AC 198-264V ACC-DB186-1800-S7R 104 26 28 104*26*28 0.03 0.046 2.16 3.72 35*26*22.5 72 99360 220968 LED Module Input - ACC-DB186-1500-E 203.5 42 25 203.5*42*25 0.23 0.27 11.50 14.25 47*29*42.5 50 23250 56700

Light Source SMD ACC-DB186-1800-E 203.5 42 25 203.5*42*25 0.23 0.27 11.50 14.25 47*29*42.5 50 23250 56700 SDCM < 6 CCT(K) 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K Driver Datasheet(Non-dimmable)

CCT Selection DIP Switch YES Total load wattage 40W/35W/25W/20W 50W/40W/35W/25W 60W/50W/40W/30W 20W: 2800-3100 25W: 3600-3900 30W: 4400-4800

270mA@max(optional:230mA / 335mA@max(optional:270mA / 420mA@max(optional:360mA / 1-CCT Non-DIM 2 3 5 5 W W : : 3 4 5 9 5 5 0 0 - - 3 5 8 2 5 5 0 0 3 4 5 0 W W : : 4 5 9 6 5 5 0 0 - - 5 6 4 1 0 0 0 0 4 5 0 0 W W : : 5 7 6 0 0 0 0 0 - - 6 7 0 5 0 0 0 0 Rated output current 170mA / 135mA ) 235mA / 170mA ) 275mA / 210mA )

Luminous Flux (lm) ±5% 40W: 5600-6000 50W: 7000-7500 60W: 8400-9000 Output Voltage range DC120-150V CRI80 20W: 2800-3100 25W: 3600-3900 30W: 4400-4800 Output

25W: 3550-3850 35W: 4950-5400 40W: 5600-6000 Line Regulation ±5% 3-CCT Non-DIM 35W: 4950-5250 40W: 5650-6100 50W: 7000-7500

Setup Rise Time ≤0.5S @230V 40W: 5600-6000 50W: 7000-7500 60W: 8400-9000 CRI 80 Flickering Index 3%(NO RISK) Beam Angle (°) 120° Rated Input Voltage AC 220-240V

UGR - Input Voltage AC198-264V LED Driver Driver built-in Frequency 50/60Hz Dimming Option - Rated Input Current 0.2A 0.25A 0.3A

Sensor Microwave sensor Input Input Current 0.21A 0.27A 0.31A Emergency Kits YES Power Factor ≥0.9 Electrical Class Class I THD <20% @230V@ MAX Power

Ingress Protection(IP Rating) IP20 Efficiency ≥90%@ MAX Power Impact Resistance(IK Rating) IK06 No load wattage <1W @ 230Vac

Product Finishing White RAL 9016 Short circuit protection PASS Optics Material PC Protection Over voltage protection PASS

Housing Material PC / SPCC Over temperature protection PASS Lifetime (hr) 50,000H Withstand voltage -Glow wire test (°C) 750°C Isolation Resistance -

Operating Temp.(°C) -20~40° Safety & EMC Surge IEC/EN61000-4-5 (P≥25W L-N:1KV, L/N-PE:2KV) Storage Temp.(°C) -20~65° EMC Emission EN55015, EN61000-3-2

Installation Surface mount / Pendant EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547

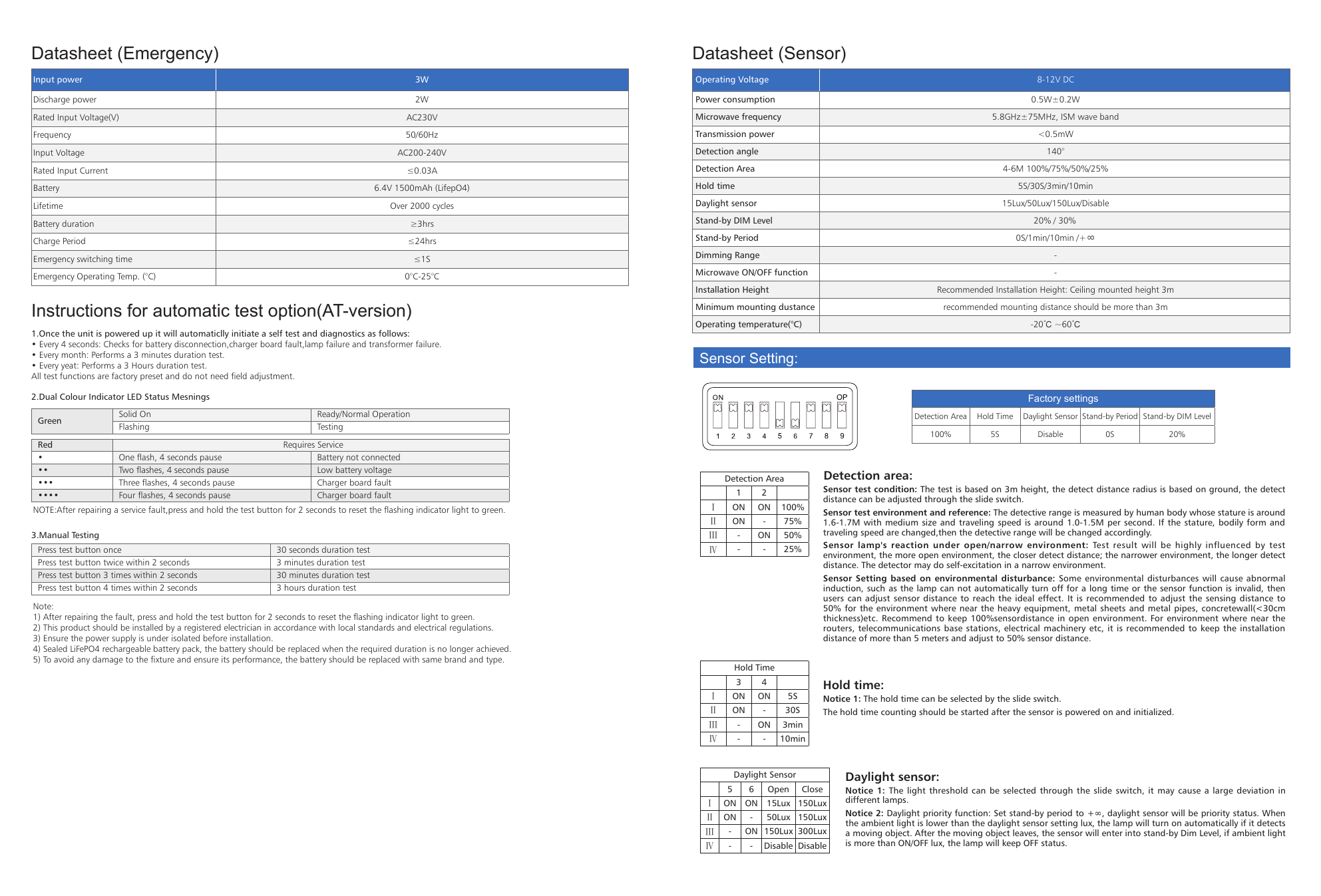

Datasheet (Emergency) Datasheet (Sensor) Input power 3W Operating Voltage 8-12V DC Discharge power 2W Power consumption 0.5W±0.2W

Rated Input Voltage(V) AC230V Microwave frequency 5.8GHz±75MHz, ISM wave band Frequency 50/60Hz Transmission power <0.5mW

Input Voltage AC200-240V Detection angle 140° Rated Input Current ≤0.03A Detection Area 4-6M 100%/75%/50%/25% Battery 6.4V 1500mAh (LifepO4) Hold time 5S/30S/3min/10min

Lifetime Over 2000 cycles Daylight sensor 15Lux/50Lux/150Lux/Disable Battery duration ≥3hrs Stand-by DIM Level 20% / 30% Stand-by Period 0S/1min/10min /+ Charge Period ≤24hrs

Emergency switching time ≤1S Emergency Operating Temp. (°C) 0°C-25°C Instructions for automatic test option(AT-version) 1.Once the unit is powered up it will automaticlly initiate a self test and diagnostics as follows:

• Every 4 seconds: Checks for battery disconnection,charger board fault,lamp failure and transformer failure.

• Every month: Performs a 3 minutes duration test.

• Every yeat: Performs a 3 Hours duration test.

All test functions are factory preset and do not need field adjustment.

2.Dual Colour Indicator LED Status Mesnings Solid On Ready/Normal Operation

Green

Flashing Testing Red Requires Service • One flash, 4 seconds pause Battery not connected •• Two flashes, 4 seconds pause Low battery voltage

••• Three flashes, 4 seconds pause Charger board fault •••• Four flashes, 4 seconds pause Charger board fault NOTE:After repairing a service fault,press and hold the test button for 2 seconds to reset the flashing indicator light to green.

3.Manual Testing Press test button once 30 seconds duration test Press test button twice within 2 seconds 3 minutes duration test

Press test button 3 times within 2 seconds 30 minutes duration test Press test button 4 times within 2 seconds 3 hours duration test

Note:

1) After repairing the fault, press and hold the test button for 2 seconds to reset the flashing indicator light to green.

2) This product should be installed by a registered electrician in accordance with local standards and electrical regulations.

3) Ensure the power supply is under isolated before installation.

4) Sealed LiFePO4 rechargeable battery pack, the battery should be replaced when the required duration is no longer achieved.

5) To avoid any damage to the fixture and ensure its performance, the battery should be replaced with same brand and type.

Dimming Range -Microwave ON/OFF function -Installation Height Recommended Installation Height: Ceiling mounted height 3m Minimum mounting dustance recommended mounting distance should be more than 3m

Operating temperature(°C) -20℃ ~60℃ Sensor Setting:

Factory settings Detection Area Hold Time Daylight Sensor Stand-by Period Stand-by DIM Level 100% 5S Disable 0S 20% Detection area:

Detection Area Sensor test condition: The test is based on 3m height, the detect distance radius is based on ground, the detect

distance can be adjusted through the slide switch.

Ⅰ ON ON 100% Sensor test environment and reference: The detective range is measured by human body whose stature is around

Ⅱ ON - 75% 1.6-1.7M with medium size and traveling speed is around 1.0-1.5M per second. If the stature, bodily form and Ⅲ - ON 50% traveling speed are changed,then the detective range will be changed accordingly.

Sensor lamp's reaction under open/narrow environment: Test result will be highly influenced by test Ⅳ - - 25% environment, the more open environment, the closer detect distance; the narrower environment, the longer detect

distance. The detector may do self-excitation in a narrow environment.

Sensor Setting based on environmental disturbance: Some environmental disturbances will cause abnormal induction, such as the lamp can not automatically turn off for a long time or the sensor function is invalid, then

users can adjust sensor distance to reach the ideal effect. It is recommended to adjust the sensing distance to 50% for the environment where near the heavy equipment, metal sheets and metal pipes, concretewall(<30cm

thickness)etc. Recommend to keep 100%sensordistance in open environment. For environment where near the routers, telecommunications base stations, electrical machinery etc, it is recommended to keep the installation

distance of more than 5 meters and adjust to 50% sensor distance.

Hold Time 3 4 Hold time:

Ⅰ ON ON 5S Notice 1: The hold time can be selected by the slide switch.

Ⅱ ON - 30S The hold time counting should be started after the sensor is powered on and initialized.

Ⅲ - ON 3min Ⅳ - - 10min Daylight Sensor Daylight sensor:

5 6 Open Close Notice 1: The light threshold can be selected through the slide switch, it may cause a large deviation in Ⅰ ON ON 15Lux 150Lux different lamps.

Notice 2: Daylight priority function: Set stand-by period to +∞, daylight sensor will be priority status. When Ⅱ ON - 50Lux 150Lux

the ambient light is lower than the daylight sensor setting lux, the lamp will turn on automatically if it detects Ⅲ - ON 150Lux 300Lux a moving object. After the moving object leaves, the sensor will enter into stand-by Dim Level, if ambient light

Ⅳ - - Disable Disable is more than ON/OFF lux, the lamp will keep OFF status.

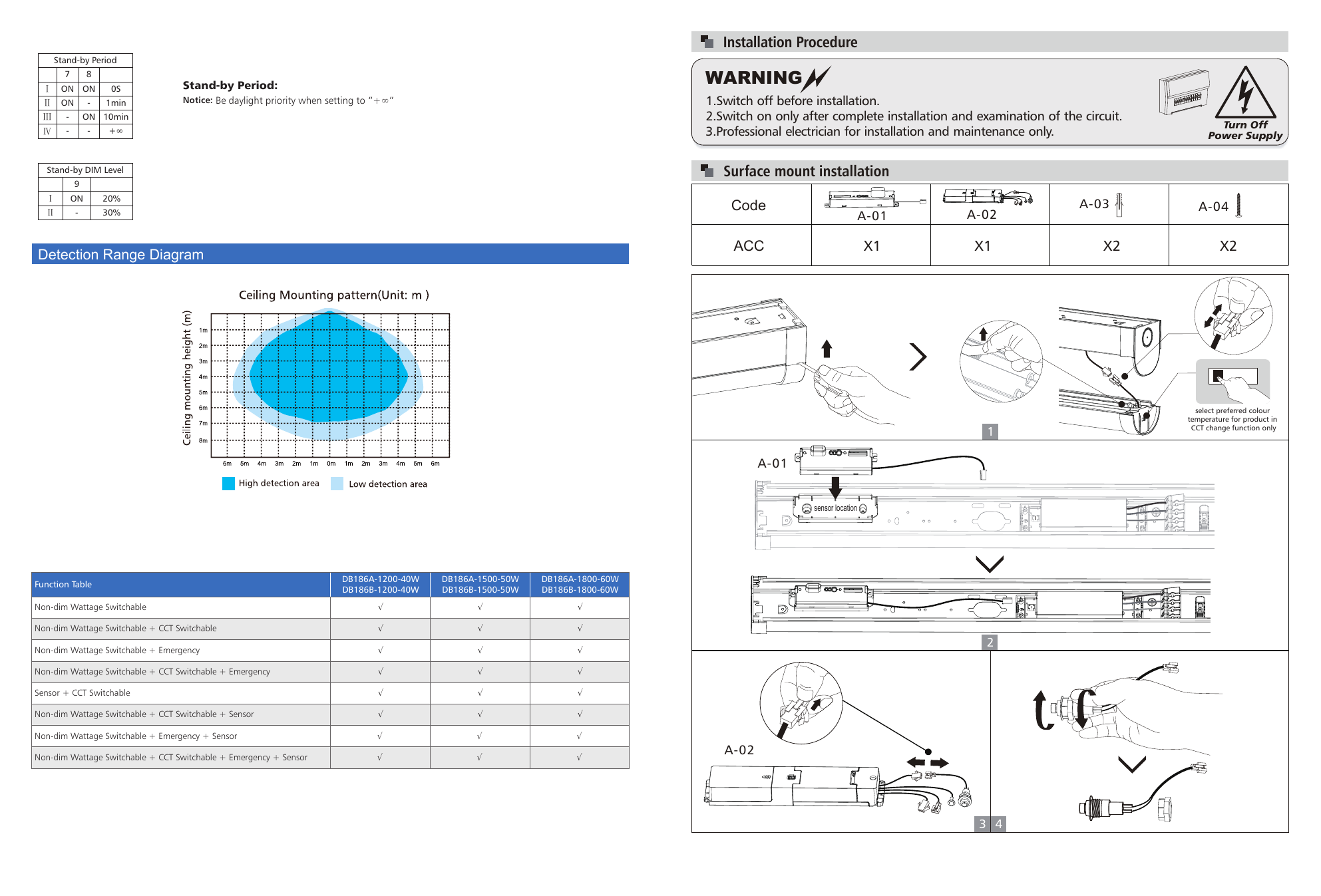

Installation Procedure Stand-by Period 7 8 WARNING Stand-by Period:

Ⅰ ON ON 0S Ⅱ ON - 1min Notice: Be daylight priority when setting to “+∞” 1.Switch off before installation.

Ⅲ - ON 10min 2.Switch on only after complete installation and examination of the circuit.

Turn Off Ⅳ - - +∞ 3.Professional electrician for installation and maintenance only.

Power Supply Stand-by DIM Level Surface mount installation

Ⅰ ON 20% Code A-03 A-04 Ⅱ - 30% A-01 A-02 ACC X1 X1 X2 X2 Detection Range Diagram select preferred colour temperature for product in

1 CCT change function only

A-01

sensor location DB186A-1200-40W DB186A-1500-50W DB186A-1800-60W Function Table DB186B-1200-40W DB186B-1500-50W DB186B-1800-60W

Non-dim Wattage Switchable √ √ √ Non-dim Wattage Switchable + CCT Switchable √ √ √

Non-dim Wattage Switchable + Emergency √ √ √ Non-dim Wattage Switchable + CCT Switchable + Emergency √ √ √ Sensor + CCT Switchable √ √ √

Non-dim Wattage Switchable + CCT Switchable + Sensor √ √ √ Non-dim Wattage Switchable + Emergency + Sensor √ √ √

A-02

Non-dim Wattage Switchable + CCT Switchable + Emergency + Sensor √ √ √

A-02

CLICK 1

Emergency kit location COMPLETE

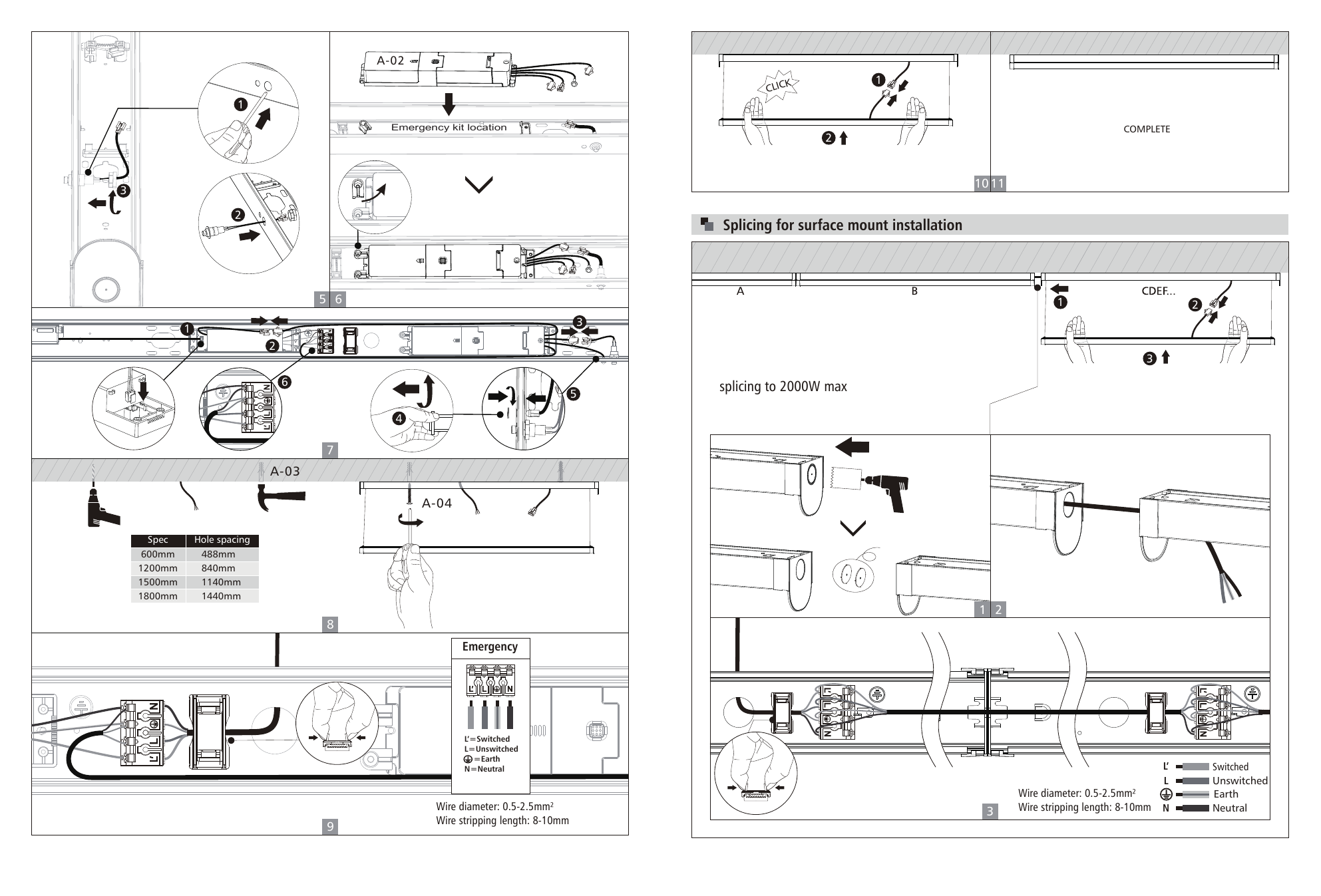

Splicing for surface mount installation

6 splicing to 2000W max

A-03

A-04

Spec Hole spacing 600mm 488mm 1200mm 840mm 1500mm 1140mm 1800mm 1440mm

Emergency

L’=Switched

L=Unswitched

=Earth

N=Neutral L’ Switched L Unswitched Wire diameter: 0.5-2.5mm² Earth Wire diameter: 0.5-2.5mm² 3 Wire stripping length: 8-10mm N Neutral

Wire stripping length: 8-10mm

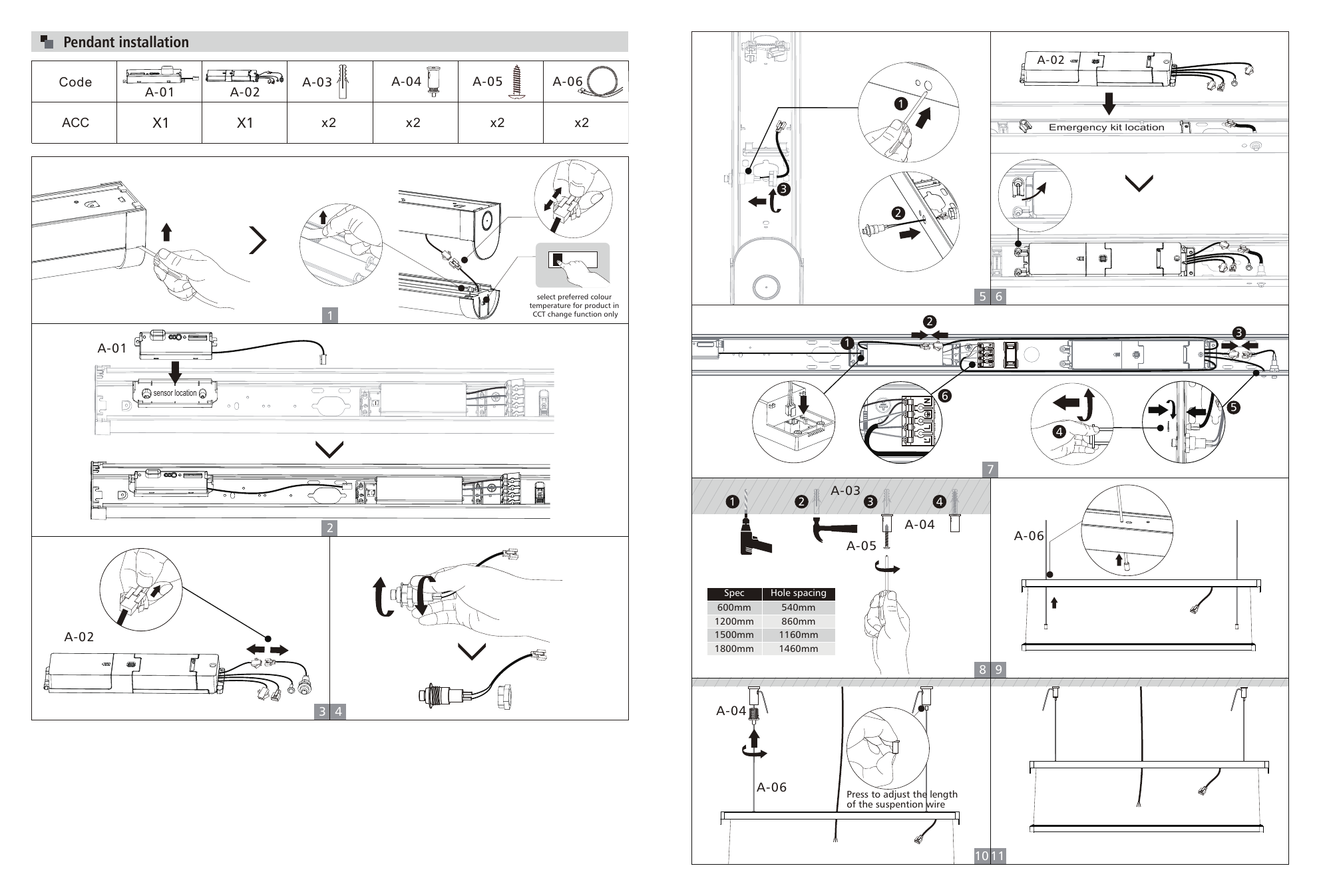

Pendant installation

A-02

Code A-03 A-04 A-05 A-06 A-01 A-02

ACC X1 X1 x2 x2 x2 x2 Emergency kit location

select preferred colour 5 6 temperature for product in 1 CCT change function only

A-01

sensor location 6

A-03

A-04

A-06

A-05

Spec Hole spacing 600mm 540mm 1200mm 860mm A-02 1500mm 1160mm 1800mm 1460mm

3 4 A-04

A-06

Press to adjust the length of the suspention wire

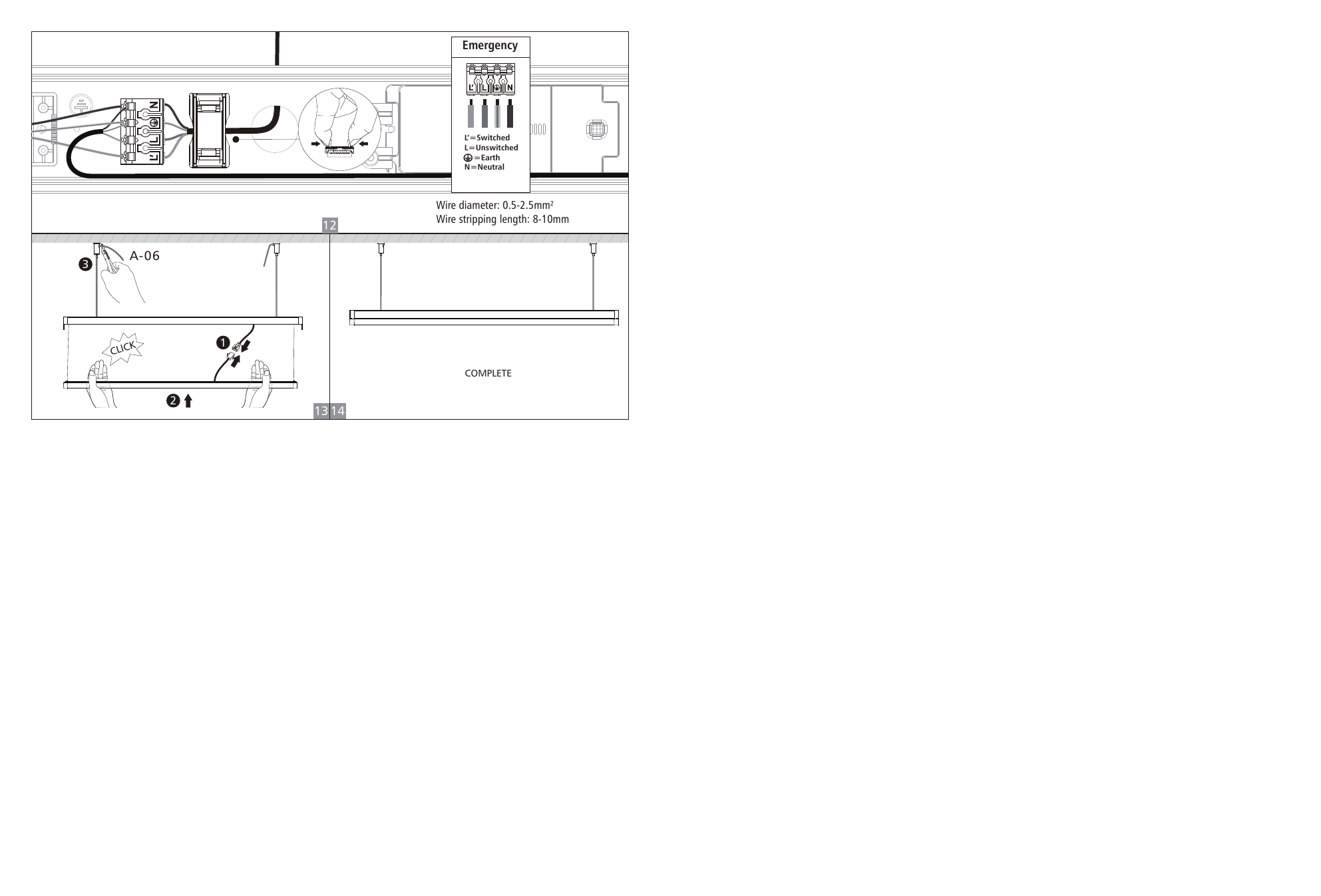

Emergency

L’=Switched

L=Unswitched

=Earth

N=Neutral

Wire diameter: 0.5-2.5mm² Wire stripping length: 8-10mm

A-06

CLICK 1 COMPLETE
