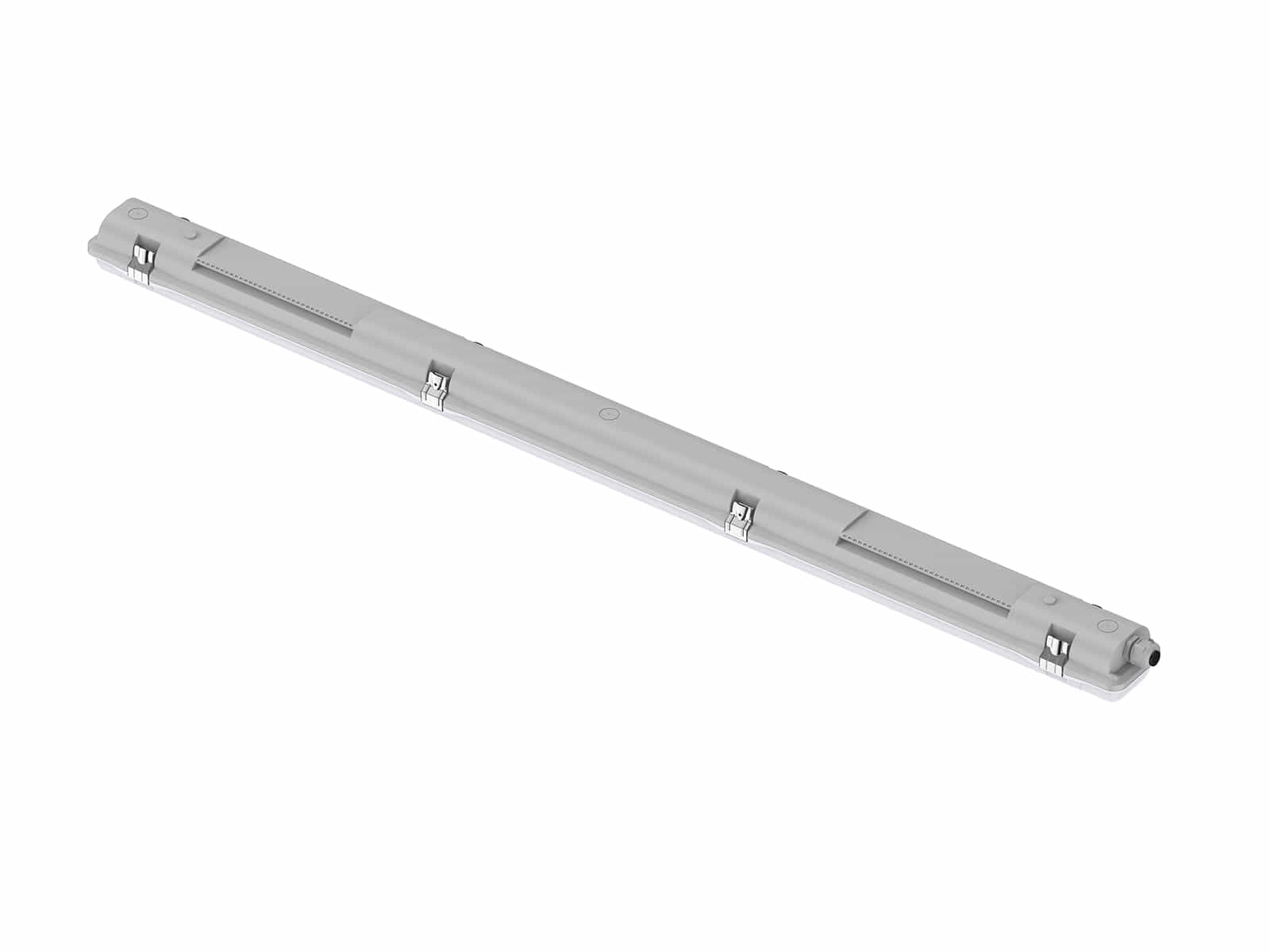

Prachotěsné LED svítidlo 35-60W,4000K, IP65, CRI80

Tri-proof LED Light TRP12-G2.0 Series Entry /ECO Standard /STD Professional/PRO ODM & OEM Intelligent/INT

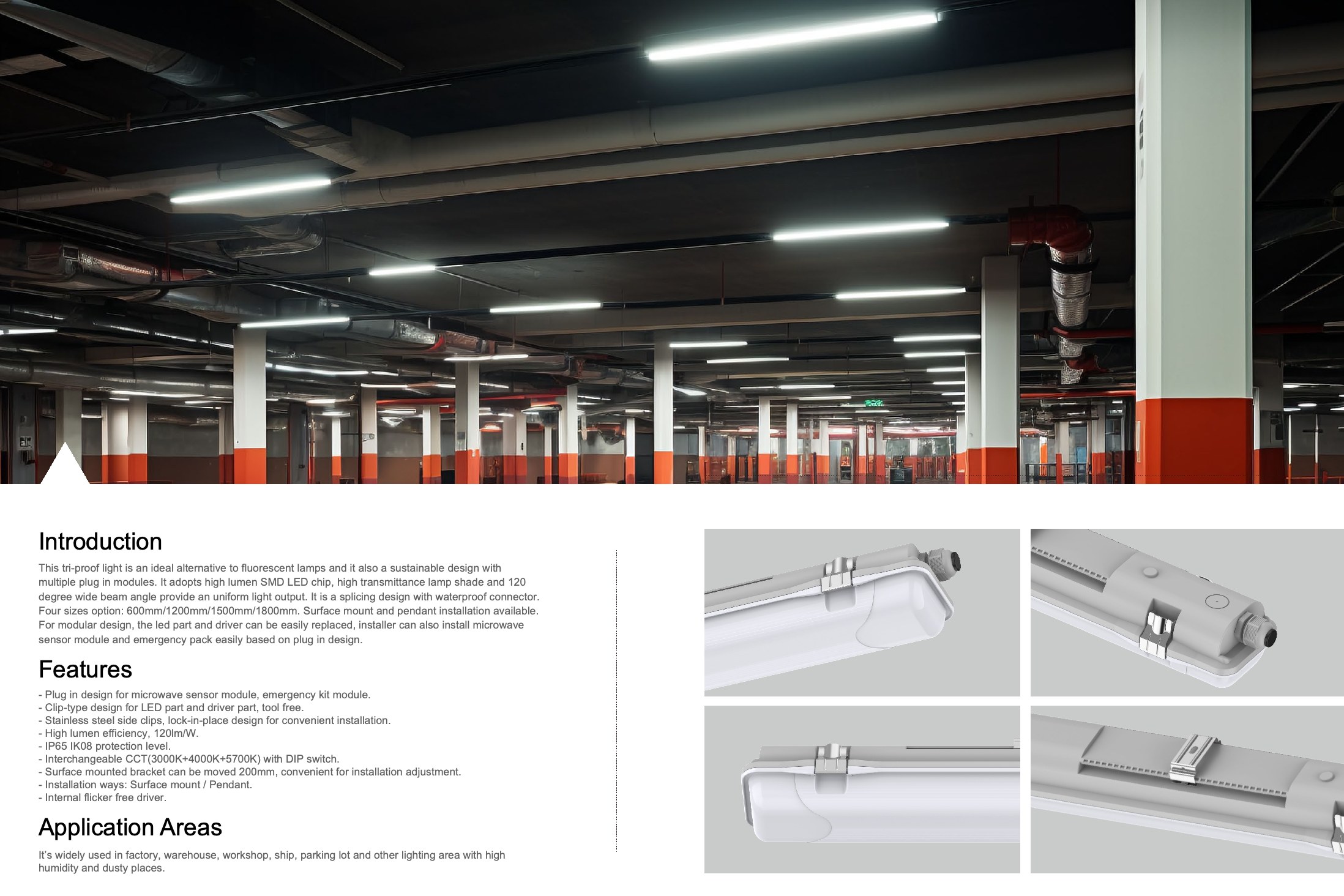

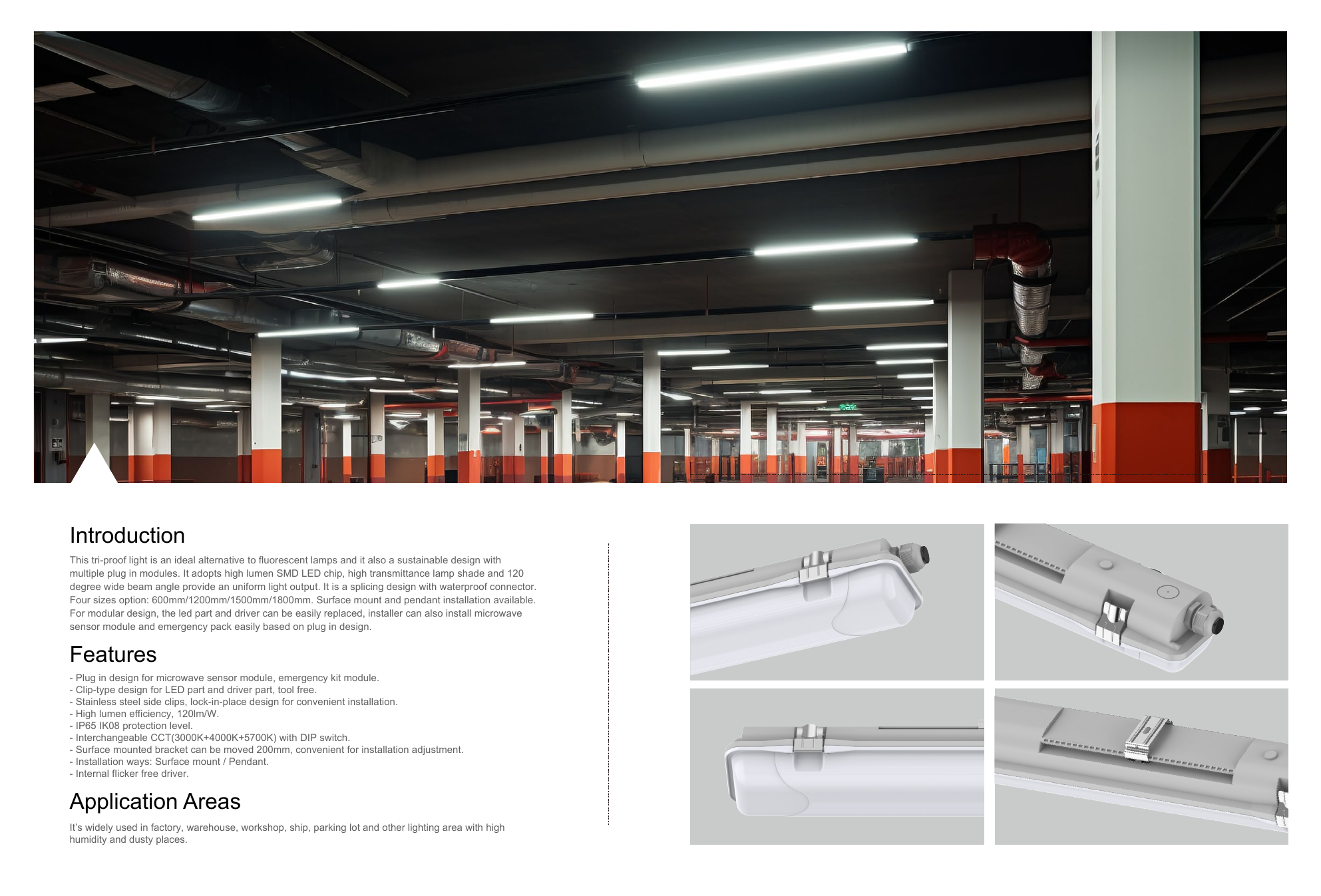

Introduction

This tri-proof light is an ideal alternative to fluorescent lamps and it also a sustainable design with multiple plug in modules. It adopts high lumen SMD LED chip, high transmittance lamp shade and 120

degree wide beam angle provide an uniform light output. It is a splicing design with waterproof connector.

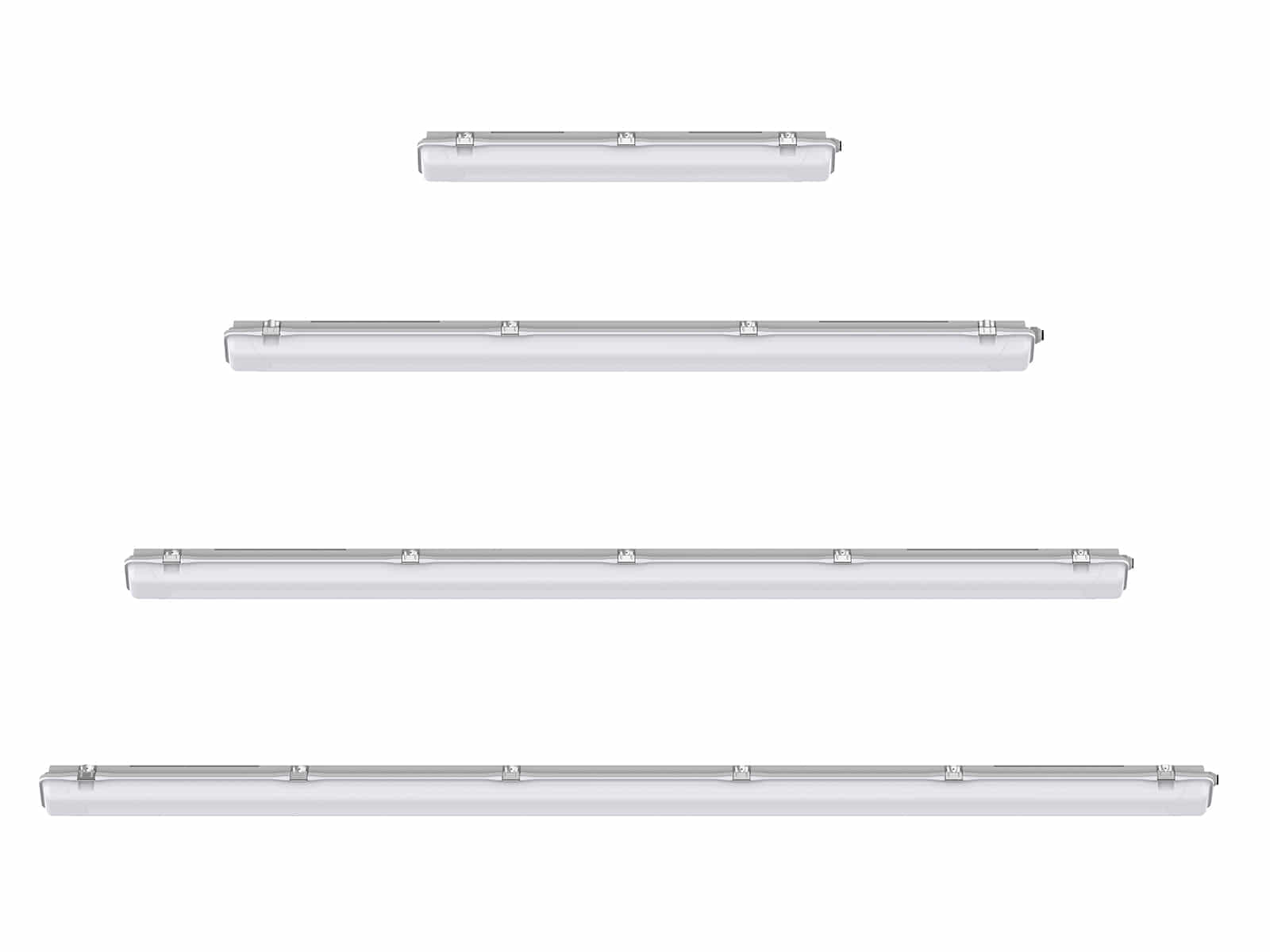

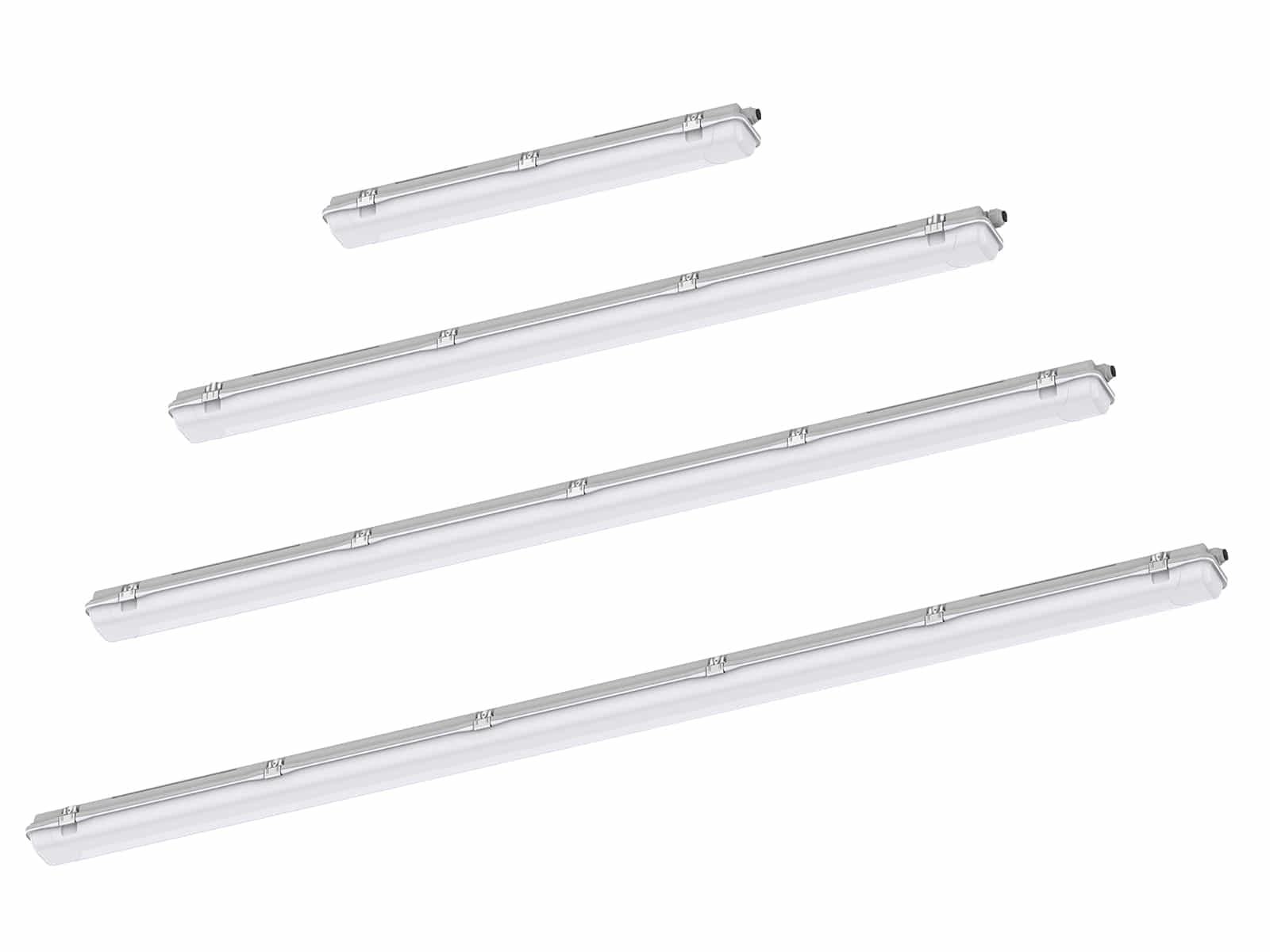

Four sizes option: 600mm/1200mm/1500mm/1800mm. Surface mount and pendant installation available.

For modular design, the led part and driver can be easily replaced, installer can also install microwave sensor module and emergency pack easily based on plug in design.

Features

• Plug in design for microwave sensor module, emergency kit module.
• Clip-type design for LED part and driver part, tool free.
• Stainless steel side clips, lock-in-place design for convenient installation.
• High lumen efficiency, 120lm/W.
• IP65 IK08 protection level.
• Interchangeable CCT(3000K+4000K+5700K) with DIP switch.
• Surface mounted bracket can be moved 200mm, convenient for installation adjustment.
• Installation ways: Surface mount / Pendant.
• Internal flicker free driver.

Application Areas It’s widely used in factory, warehouse, workshop, ship, parking lot and other lighting area with high humidity and dusty places.

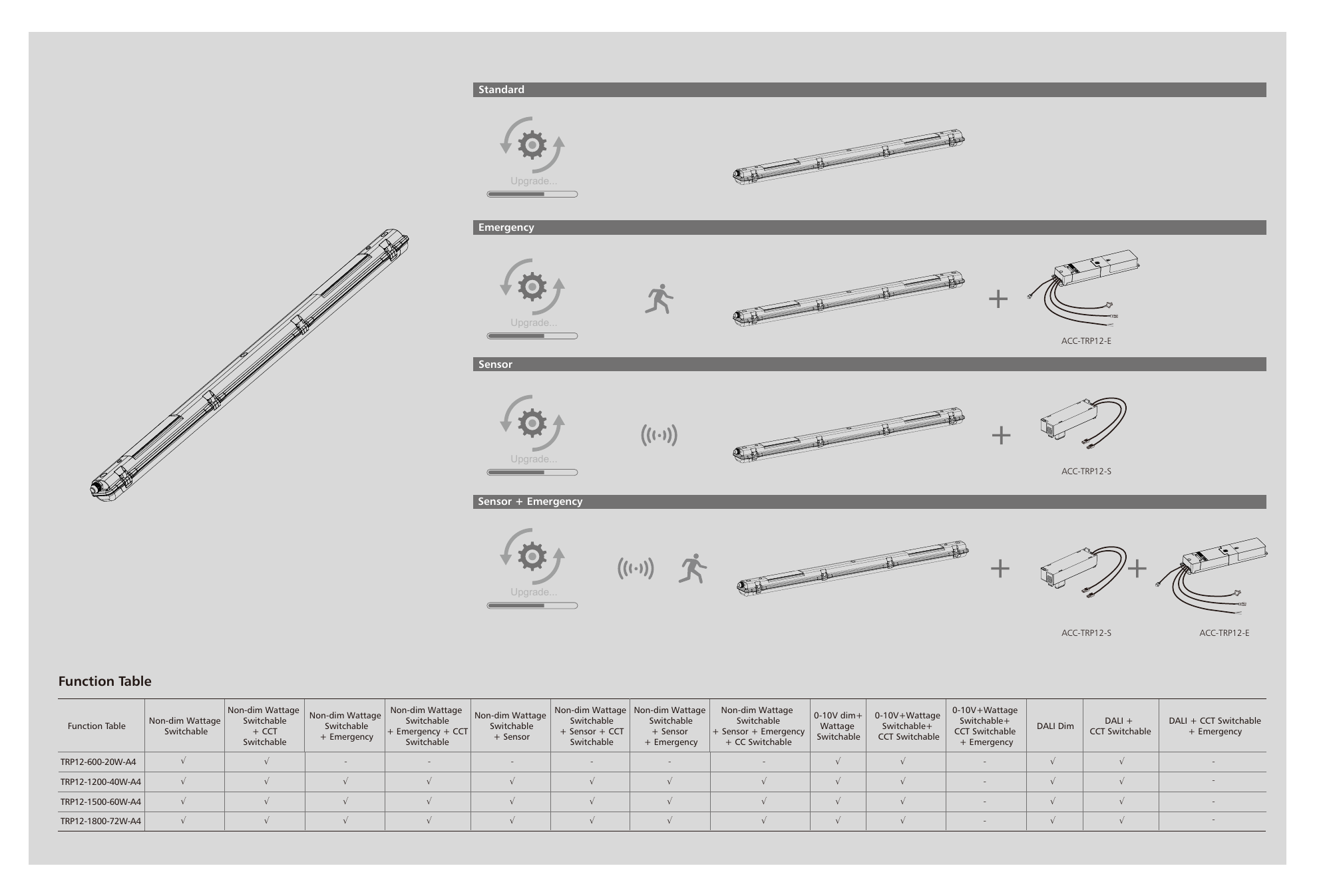

Standard

Upgrade...

Emergency

Upgrade...

ACC-TRP12-E

Sensor

Upgrade...

ACC-TRP12-S Sensor + Emergency

Upgrade...

ACC-TRP12-S ACC-TRP12-E Function Table Non-dim Wattage Non-dim Wattage Non-dim Wattage Non-dim Wattage Non-dim Wattage 0-10V+Wattage

Non-dim Wattage Non-dim Wattage 0-10V dim+ 0-10V+Wattage Non-dim Wattage Switchable Switchable Switchable Switchable Switchable Switchable+ DALI + DALI + CCT Switchable

Function Table Switchable Switchable Wattage Switchable+ DALI Dim Switchable + CCT + Emergency + CCT + Sensor + CCT + Sensor + Sensor + Emergency CCT Switchable CCT Switchable + Emergency

+ Emergency + Sensor Switchable CCT Switchable Switchable Switchable Switchable + Emergency + CC Switchable + Emergency TRP12-600-20W-A4 √ √ - - - - - - √ √ - √ √ -

TRP12-1200-40W-A4 √ √ √ √ √ √ √ √ √ √ - √ √ -TRP12-1500-60W-A4 √ √ √ √ √ √ √ √ √ √ - √ √ -TRP12-1800-72W-A4 √ √ √ √ √ √ √ √ √ √ - √ √ -

IP65 IK08 PF 0.9

C

D

A

B

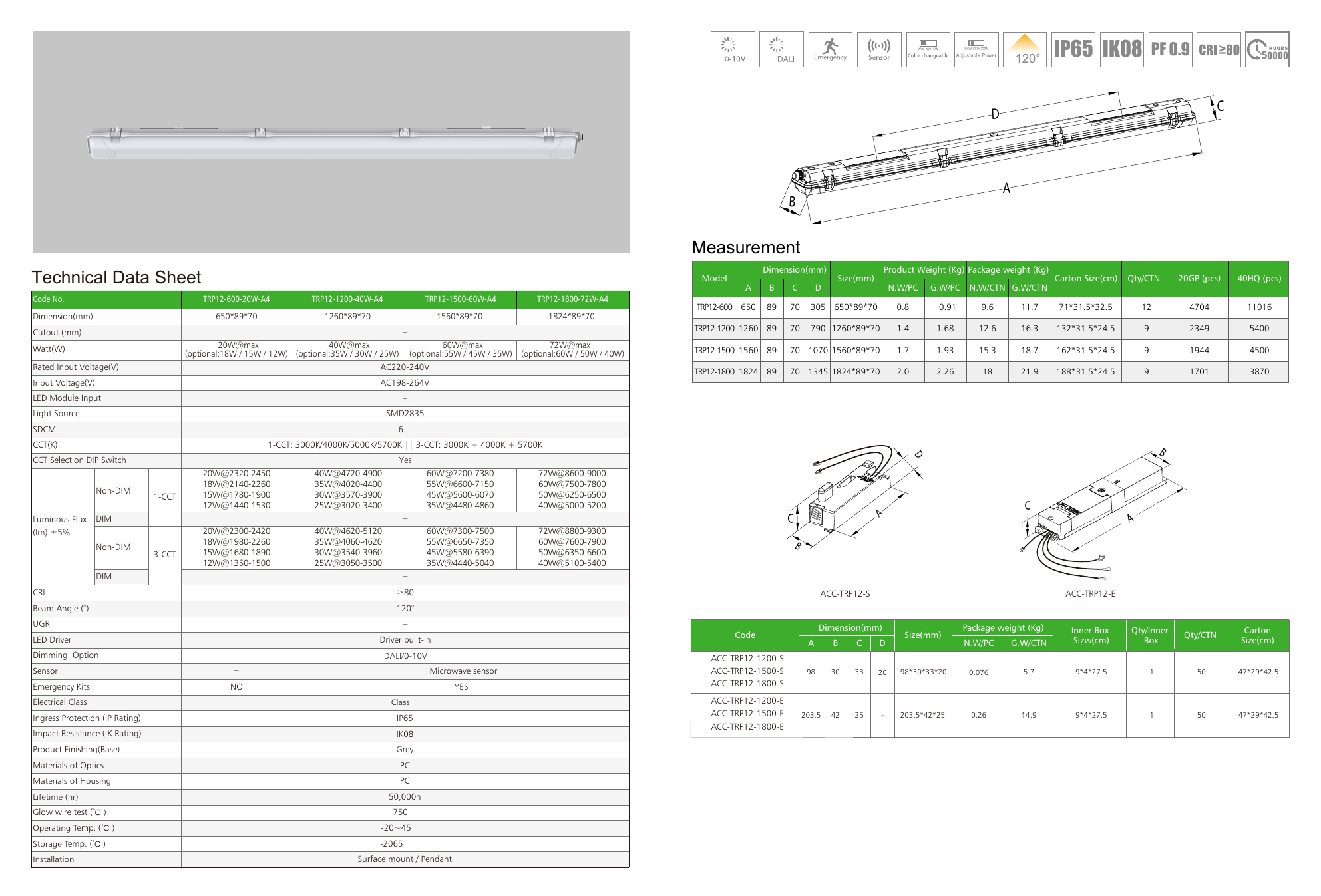

Measurement

Dimension(mm) Product Weight (Kg) Package weight (Kg) Technical Data Sheet Model Size(mm) Carton Size(cm) Qty/CTN 20GP (pcs) 40HQ (pcs)

A B C D N.W/PC G.W/PC N.W/CTN G.W/CTN Code No. TRP12-600-20W-A4 TRP12-1200-40W-A4 TRP12-1500-60W-A4 TRP12-1800-72W-A4 TRP12-600 650 89 70 305 650*89*70 0.8 0.91 9.6 11.7 71*31.5*32.5 12 4704 11016

Dimension(mm) 650*89*70 1260*89*70 1560*89*70 1824*89*70 TRP12-1200 1260 89 70 790 1260*89*70 1.4 1.68 12.6 16.3 132*31.5*24.5 9 2349 5400

Cutout (mm) – 20W@max 40W@max 60W@max 72W@max Watt(W) TRP12-1500 1560 89 70 1070 1560*89*70 1.7 1.93 15.3 18.7 162*31.5*24.5 9 1944 4500

(optional:18W / 15W / 12W) (optional:35W / 30W / 25W) (optional:55W / 45W / 35W) (optional:60W / 50W / 40W) Rated Input Voltage(V) AC220-240V

TRP12-1800 1824 89 70 1345 1824*89*70 2.0 2.26 18 21.9 188*31.5*24.5 9 1701 3870 Input V oltage(V) AC198-264V LED Module Input –

Light Source SMD2835 SDCM ＜6 CCT(K) 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K D B CCT Selection DIP Switch Yes

20W@2320-2450 40W@4720-4900 60W@7200-7380 72W@8600-9000 18W@2140-2260 35W@4020-4400 55W@6600-7150 60W@7500-7800 Non-DIM 1-CCT 15W@1780-1900 30W@3570-3900 45W@5600-6070 50W@6250-6500

12W@1440-1530 25W@3020-3400 35W@4480-4860 40W@5000-5200 C

A

Luminous Flux DIM – C A (lm) ±5% 20W@2300-2420 40W@4620-5120 60W@7300-7500 72W@8800-9300 Non-DIM 18W@1980-2260 35W@4060-4620 55W@6650-7350 60W@7600-7900 B

3-CCT 15W@1680-1890 30W@3540-3960 45W@5580-6390 50W@6350-6600 12W@1350-1500 25W@3050-3500 35W@4440-5040 40W@5100-5400 DIM –

CRI ≥80 ACC-TRP12-S ACC-TRP12-E Beam Angle (°) 120° UGR – Dimension(mm) Package weight (Kg) Inner Box Qty/Inner Carton Code Size(mm) Qty/CTN

LED Driver Driver built-in A B C D N.W/PC G.W/CTN Sizw(cm) Box Size(cm) Dimming Option DALI/0-10V ACC-TRP12-1200-S Sensor – Microwave sensor ACC-TRP12-1500-S 98 30 33 20 98*30*33*20 0.076 5.7 9*4*27.5 1 50 47*29*42.5

Emergency Kits NO YES ACC-TRP12-1800-S Electrical Class ClassⅠ ACC-TRP12-1200-E Ingress Protection (IP Rating) IP65 ACC-TRP12-1500-E 203.5 42 25 - 203.5*42*25 0.26 14.9 9*4*27.5 1 50 47*29*42.5

ACC-TRP12-1800-E Impact Resistance (IK Rating) IK08 Product Finishing(Base) Grey Materials of Optics PC Materials of Housing PC

Lifetime (hr) 50,000h Glow wire test (℃ ) 750℃ Operating Temp. (℃ ) -20℃~45℃ Storage Temp. (℃ ) -20℃～65℃ Installation Surface mount / Pendant

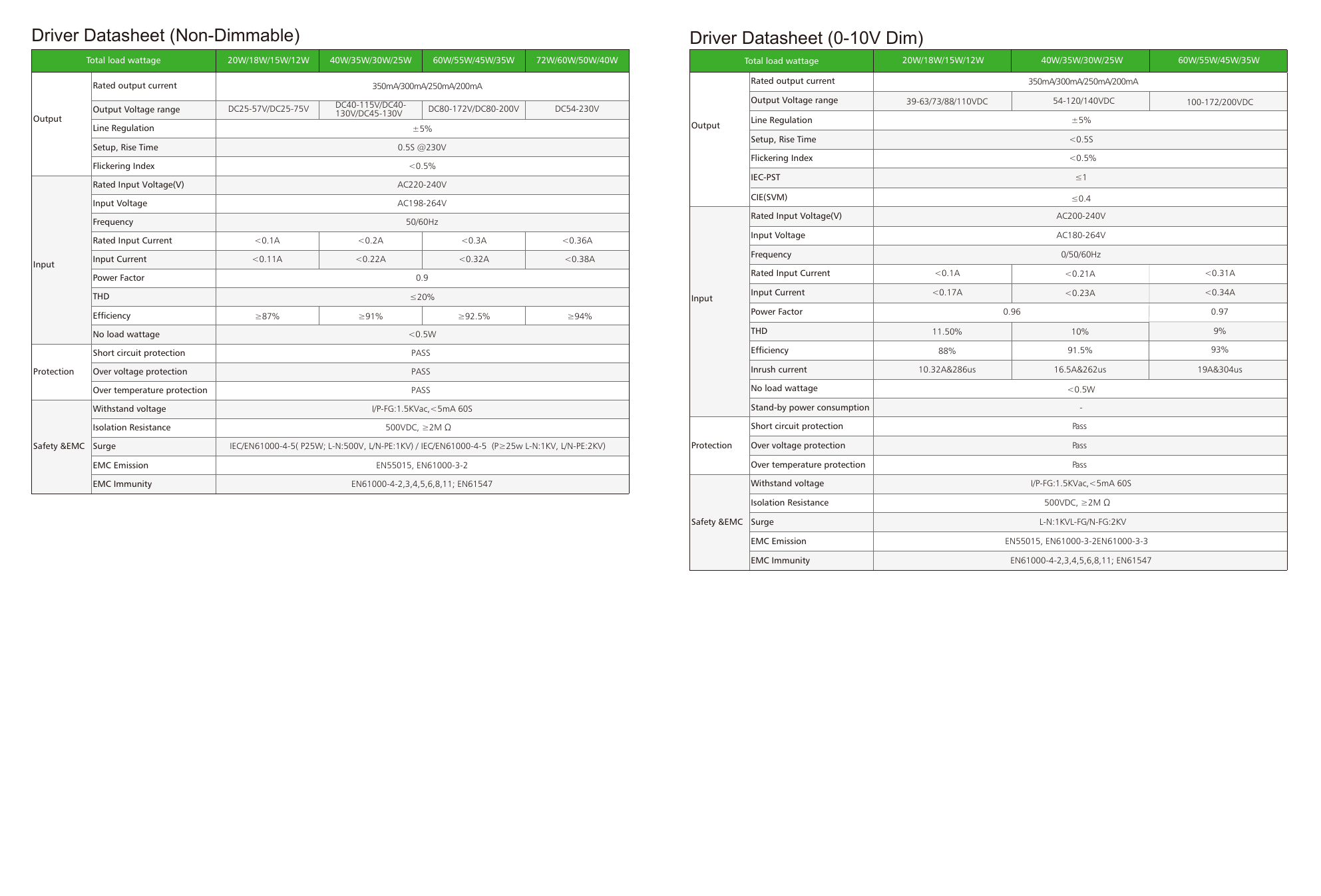

Driver Datasheet (Non-Dimmable) Driver Datasheet (0-10V Dim) Total load wattage 20W/18W/15W/12W 40W/35W/30W/25W 60W/55W/45W/35W 72W/60W/50W/40W Total load wattage 20W/18W/15W/12W 40W/35W/30W/25W 60W/55W/45W/35W

Rated output current 350mA/300mA/250mA/200mA Rated output current 350mA/300mA/250mA/200mA DC40-115V/DC40- Output Voltage range 39-63/73/88/110VDC 54-120/140VDC 100-172/200VDC

Output Voltage range DC25-57V/DC25-75V DC80-172V/DC80-200V DC54-230V 130V/DC45-130V Output Line Regulation ±5% Line Regulation ±5% Output

Setup, Rise Time <0.5S Setup, Rise Time 0.5S @230V Flickering Index <0.5% Flickering Index <0.5% IEC-PST ≤1 Rated Input Voltage(V) AC220-240V

CIE(SVM) ≤0.4 Input Voltage AC198-264V Rated Input Voltage(V) AC200-240V Frequency 50/60Hz Input Voltage AC180-264V Rated Input Current <0.1A <0.2A <0.3A <0.36A

Frequency 0/50/60Hz Input Current <0.11A <0.22A <0.32A <0.38A

Input

Rated Input Current <0.1A <0.21A <0.31A Power Factor 0.9 Input Current <0.17A <0.23A <0.34A THD ≤20% Input Power Factor 0.96 0.97

Efficiency ≥87% ≥91% ≥92.5% ≥94% No load wattage <0.5W THD 11.50% 10% 9% Short circuit protection PASS Efficiency 88% 91.5% 93%

Protection Over voltage protection PASS Inrush current 10.32A&286us 16.5A&262us 19A&304us Over temperature protection PASS No load wattage <0.5W

Withstand voltage I/P-FG:1.5KVac,<5mA 60S Stand-by power consumption -Isolation Resistance 500VDC, ≥2M Ω Short circuit protection Pass

Safety &EMC Surge IEC/EN61000-4-5( P＜25W; L-N:500V, L/N-PE:1KV) / IEC/EN61000-4-5 (P≥25w L-N:1KV, L/N-PE:2KV) Protection Over voltage protection Pass

EMC Emission EN55015, EN61000-3-2 Over temperature protection Pass EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547 Withstand voltage I/P-FG:1.5KVac,<5mA 60S

Isolation Resistance 500VDC, ≥2M Ω Safety &EMC Surge L-N:1KV，L-FG/N-FG:2KV EMC Emission EN55015, EN61000-3-2，EN61000-3-3 EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547

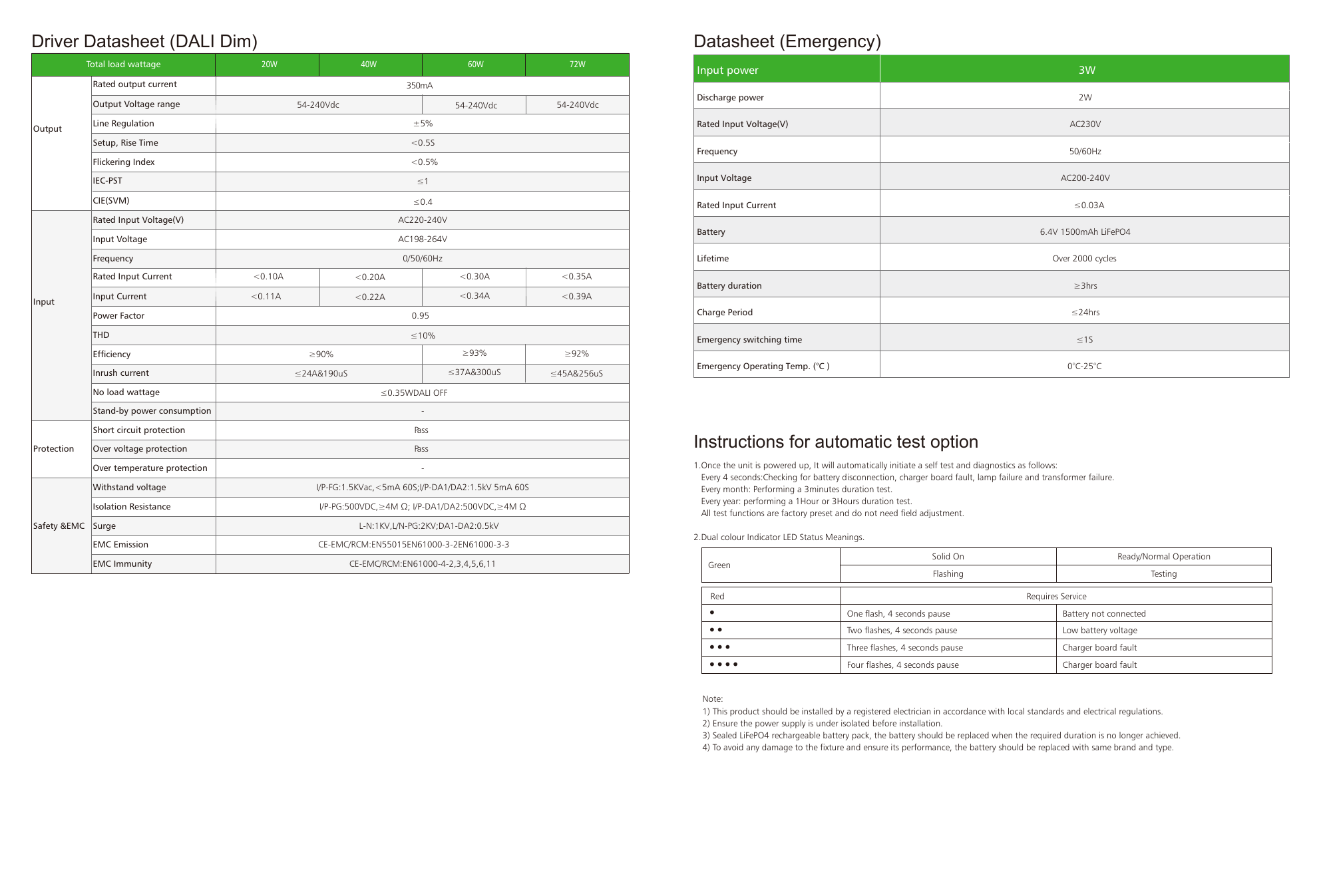

Driver Datasheet (DALI Dim) Datasheet (Emergency) Total load wattage 20W 40W 60W 72W Input power 3W Rated output current 350mA

Discharge power 2W Output Voltage range 54-240Vdc 54-240Vdc 54-240Vdc Line Regulation ±5% Rated Input Voltage(V) AC230V

Output

Setup, Rise Time <0.5S Frequency 50/60Hz Flickering Index <0.5% IEC-PST ≤1 Input Voltage AC200-240V CIE(SVM) ≤0.4 Rated Input Current ≤0.03A

Rated Input Voltage(V) AC220-240V Battery 6.4V 1500mAh LiFePO4 Input Voltage AC198-264V Frequency 0/50/60Hz Lifetime Over 2000 cycles

Rated Input Current <0.10A <0.20A <0.30A <0.35A Battery duration ≥3hrs Input Current <0.11A <0.22A <0.34A <0.39A

Input

Power Factor ≥0.95 Charge Period ≤24hrs THD ≤10% Emergency switching time ≤1S Efficiency ≥90% ≥93% ≥92% Emergency Operating Temp. (°C ) 0°C-25°C

Inrush current ≤24A&190uS ≤37A&300uS ≤45A&256uS No load wattage ≤0.35W（DALI OFF） Stand-by power consumption -Short circuit protection Pass

Instructions for automatic test option Protection Over voltage protection Pass Over temperature protection - 1.Once the unit is powered up, It will automatically initiate a self test and diagnostics as follows:

Every 4 seconds:Checking for battery disconnection, charger board fault, lamp failure and transformer failure.

Withstand voltage I/P-FG:1.5KVac,<5mA 60S;I/P-DA1/DA2:1.5kV 5mA 60S Every month: Performing a 3minutes duration test.

Every year: performing a 1Hour or 3Hours duration test.

Isolation Resistance I/P-PG:500VDC,≥4M Ω; I/P-DA1/DA2:500VDC,≥4M Ω All test functions are factory preset and do not need field adjustment.

Safety &EMC Surge L-N:1KV,L/N-PG:2KV;DA1-DA2:0.5kV 2.Dual colour Indicator LED Status Meanings.

EMC Emission CE-EMC/RCM:EN55015，EN61000-3-2，EN61000-3-3 Solid On Ready/Normal Operation EMC Immunity CE-EMC/RCM:EN61000-4-2,3,4,5,6,11 Green

Flashing Testing Red Requires Service • One flash, 4 seconds pause Battery not connected •• Two flashes, 4 seconds pause Low battery voltage

••• Three flashes, 4 seconds pause Charger board fault •••• Four flashes, 4 seconds pause Charger board fault

Note:

1) This product should be installed by a registered electrician in accordance with local standards and electrical regulations.

2) Ensure the power supply is under isolated before installation.

3) Sealed LiFePO4 rechargeable battery pack, the battery should be replaced when the required duration is no longer achieved.

4) To avoid any damage to the fixture and ensure its performance, the battery should be replaced with same brand and type.

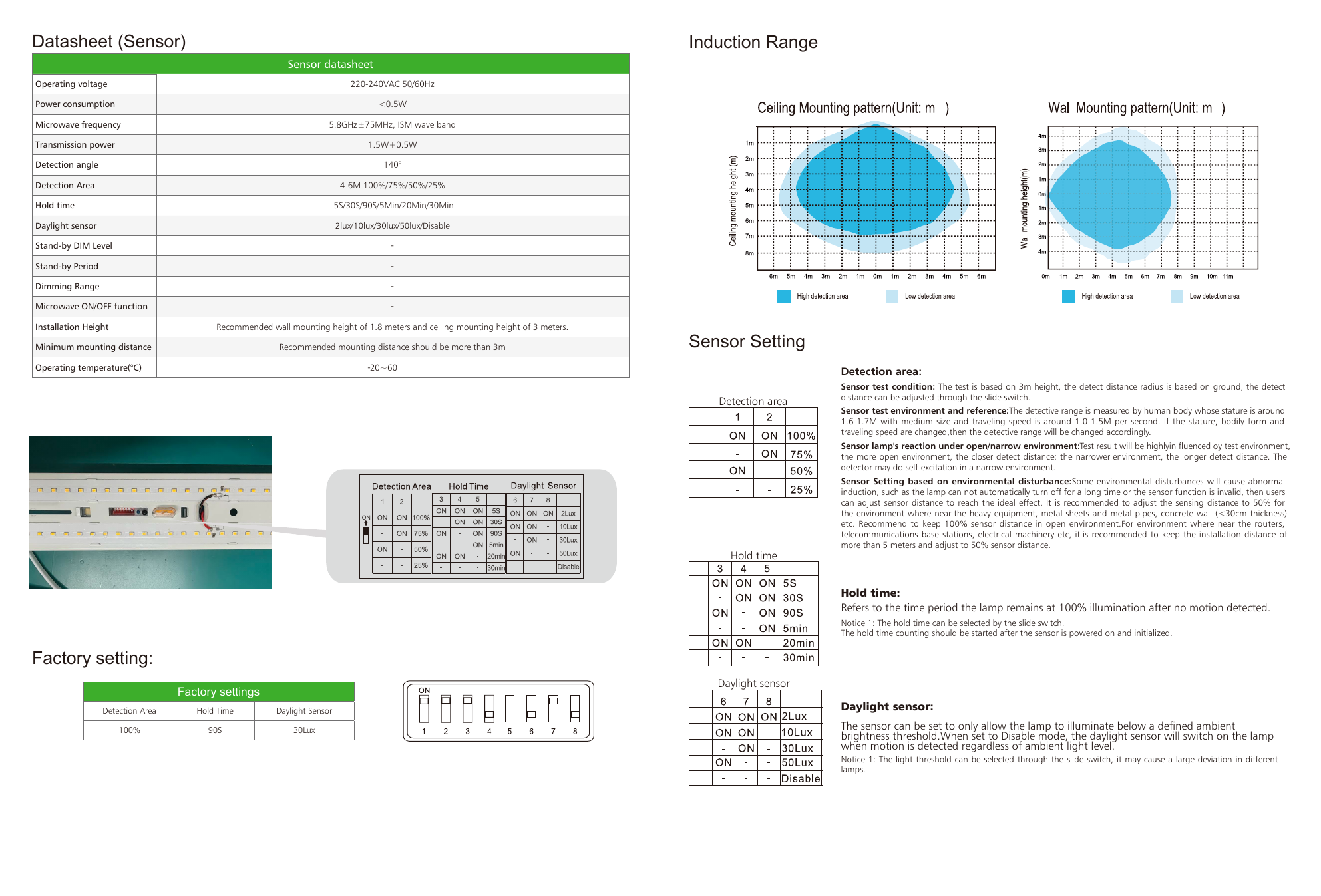

Datasheet (Sensor) Induction Range Sensor datasheet Operating voltage 220-240VAC 50/60Hz Power consumption <0.5W Microwave frequency 5.8GHz±75MHz, ISM wave band

Transmission power 1.5W+0.5W Detection angle 140° Detection Area 4-6M 100%/75%/50%/25% Hold time 5S/30S/90S/5Min/20Min/30Min

Daylight sensor 2lux/10lux/30lux/50lux/Disable Stand-by DIM Level -Stand-by Period -Dimming Range -Microwave ON/OFF function -

Installation Height Recommended wall mounting height of 1.8 meters and ceiling mounting height of 3 meters.

Sensor Setting Minimum mounting distance Recommended mounting distance should be more than 3m Operating temperature(°C) -20℃~60℃ Detection area:

Sensor test condition: The test is based on 3m height, the detect distance radius is based on ground, the detect Detection area distance can be adjusted through the slide switch.

Sensor test environment and reference:The detective range is measured by human body whose stature is around 1.6-1.7M with medium size and traveling speed is around 1.0-1.5M per second. If the stature, bodily form and

Ⅰ traveling speed are changed,then the detective range will be changed accordingly.

Sensor lamp's reaction under open/narrow environment:Test result will be highlyin fluenced oy test environment,

Ⅱ

the more open environment, the closer detect distance; the narrower environment, the longer detect distance. The Ⅲ detector may do self-excitation in a narrow environment.

Sensor Setting based on environmental disturbance:Some environmental disturbances will cause abnormal

Ⅳ

induction, such as the lamp can not automatically turn off for a long time or the sensor function is invalid, then users can adjust sensor distance to reach the ideal effect. It is recommended to adjust the sensing distance to 50% for

the environment where near the heavy equipment, metal sheets and metal pipes, concrete wall (<30cm thickness) etc. Recommend to keep 100% sensor distance in open environment.For environment where near the routers,

telecommunications base stations, electrical machinery etc, it is recommended to keep the installation distance of more than 5 meters and adjust to 50% sensor distance.

Hold time

Ⅰ

Ⅱ Hold time:

Refers to the time period the lamp remains at 100% illumination after no motion detected.

Ⅲ

Ⅳ Notice 1: The hold time can be selected by the slide switch.

The hold time counting should be started after the sensor is powered on and initialized.

Ⅴ

Factory setting: Ⅵ Daylight sensor Factory settings Daylight sensor:

Detection Area Hold Time Daylight Sensor

Ⅰ

The sensor can be set to only allow the lamp to illuminate below a defined ambient 100% 90S 30Lux Ⅱ brightness threshold.When set to Disable mode, the daylight sensor will switch on the lamp

Ⅲ when motion is detected regardless of ambient light level.

Ⅳ Notice 1: The light threshold can be selected through the slide switch, it may cause a large deviation in different lamps.

Ⅴ

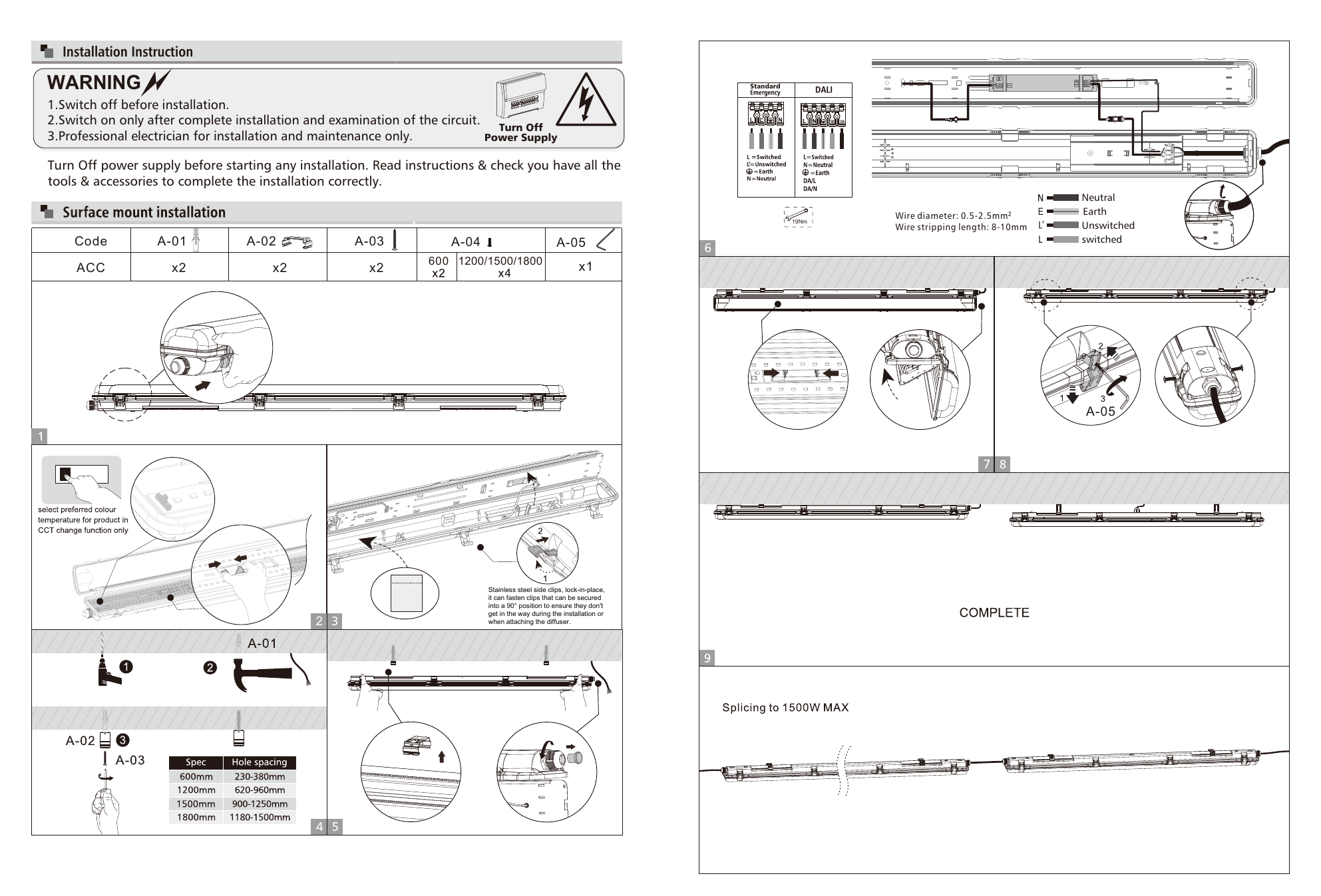

Installation Instruction WARNING Standard LLEEDD+- AACC--NL 1.Switch off before installation.

2.Switch on only after complete installation and examination of the circuit.

Turn Off 3.Professional electrician for installation and maintenance only. Power Supply Turn Off power supply before starting any installation. Read instructions & check you have all the

tools & accessories to complete the installation correctly.

Neutral

Wire diameter: 0.5-2.5mm² E Earth 19Nm Wire stripping length: 8-10mm Unswitched Code A-01 A-02 A-03 A-04 A-05 switched

ACC x2 x2 x2 x1

A-05

Stainless steel side clips, lock-in-place, it can fasten clips that can be secured into a 90° position to ensure they don't

get in the way during the installation or 2 3 when attaching the diffuser.

A-08

Standard LLEEDD+- AACC--NL x1

Neutral

Wire diameter: 0.5-2.5mm² E Earth 19Nm Wire stripping length: 8-10mm Unswitched switched

Stainless steel side clips, lock-in-place, it can fasten clips that can be secured into a 90° position to ensure they don't

get in the way during the installation or 2 when attaching the diffuser.

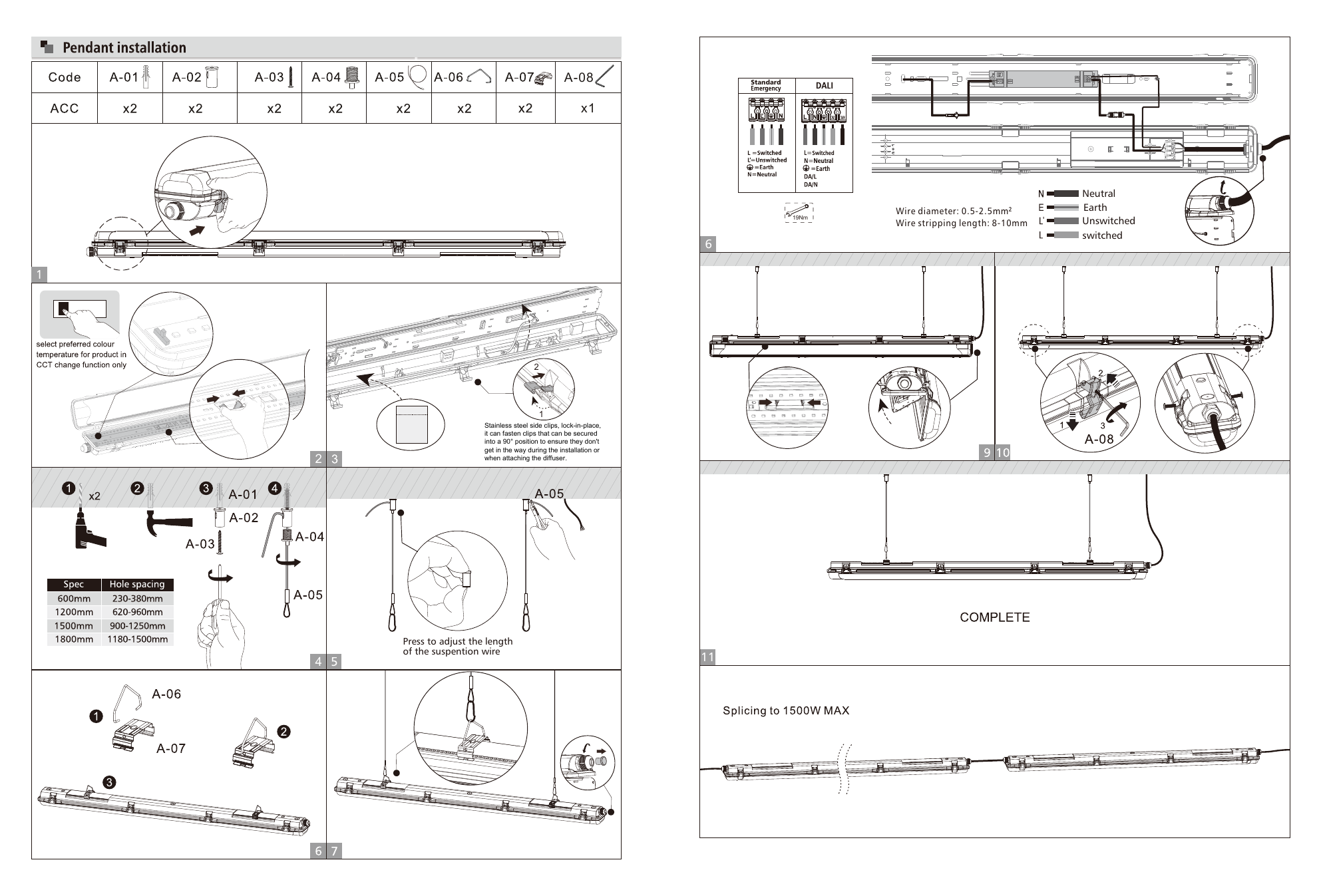

Press to adjust the length of the suspention wire

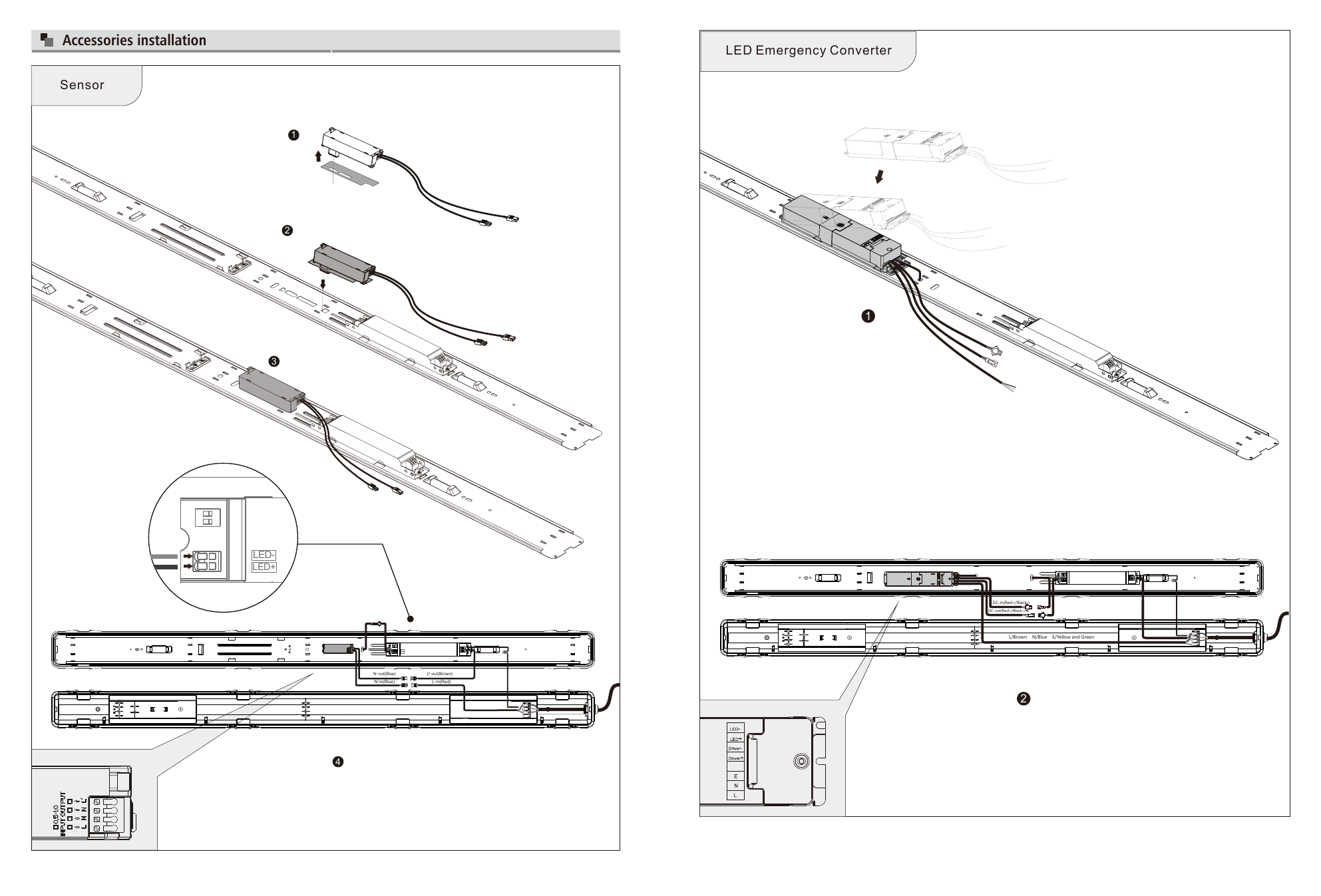

Accessories installation LED Emergency Converter

Sensor

LED-LED+ DC-in(Red+/Black-) DC-out(Red+/Black-) L/Brown N/Blue E/Yellow and Green LLEEDD+-N-out(Blue) L-out(Brown) N-in(Blue) L-in(Red)

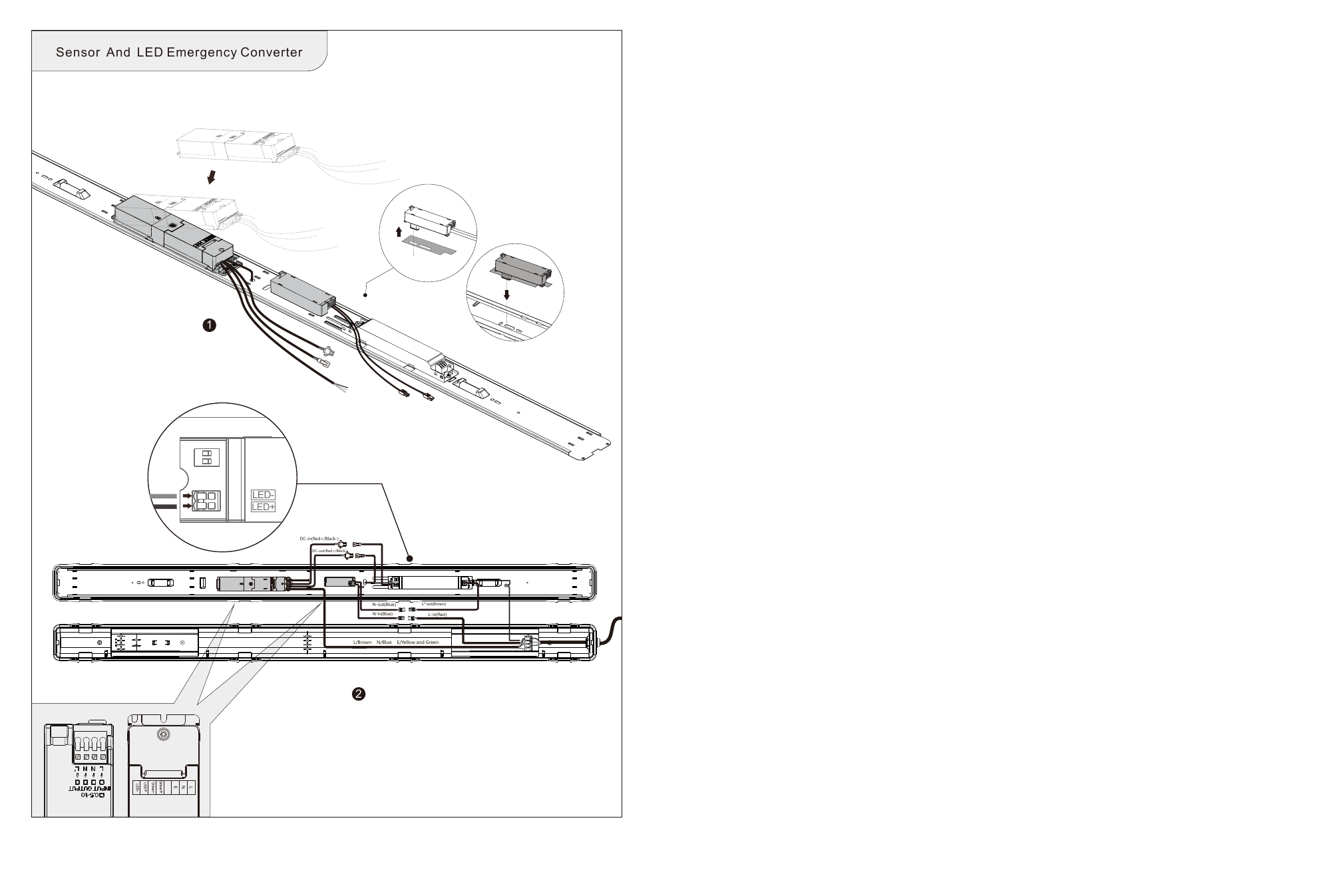

Sensor And LED Emergency Converter

LED-LED+ DC-in(Red+/Black-) DC-out(Red+/Black-) N-out(Blue) L-out(Brown) N-in(Blue) L-in(Red) L/Brown N/Blue E/Yellow and Green
