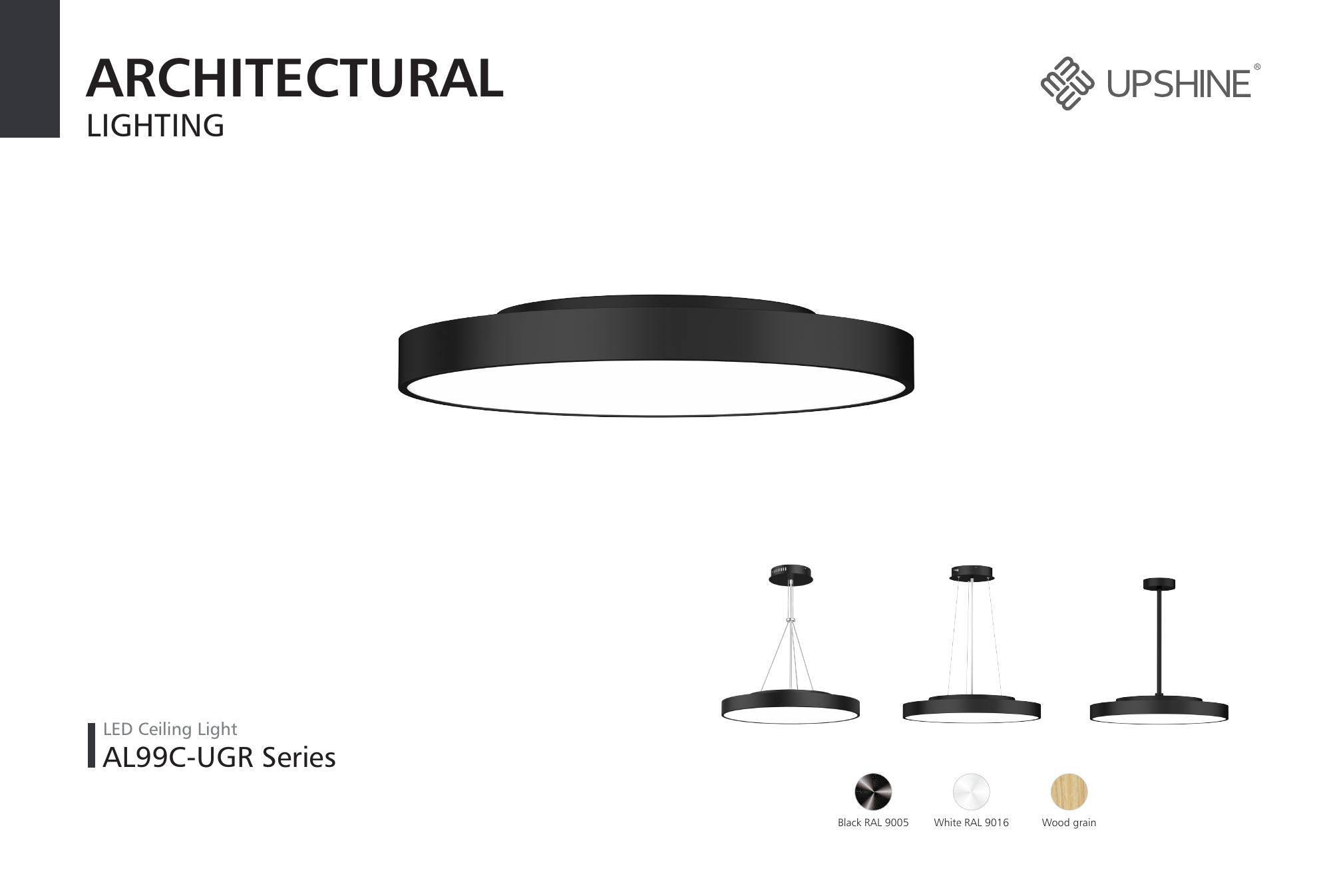

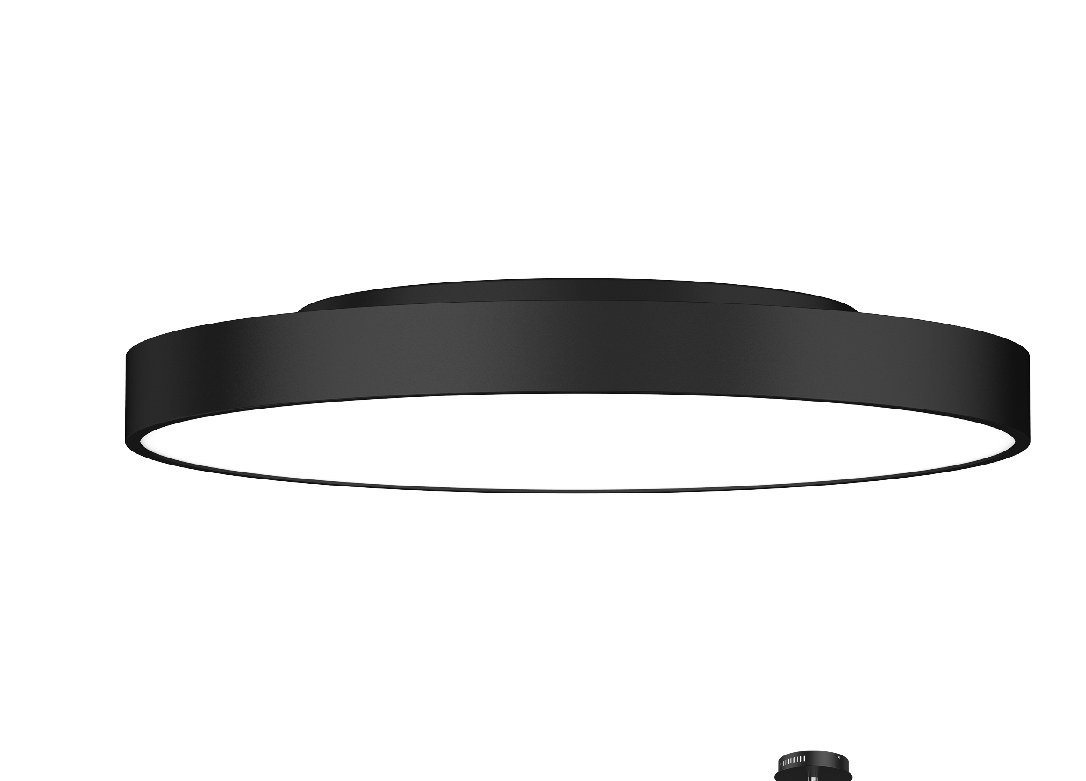

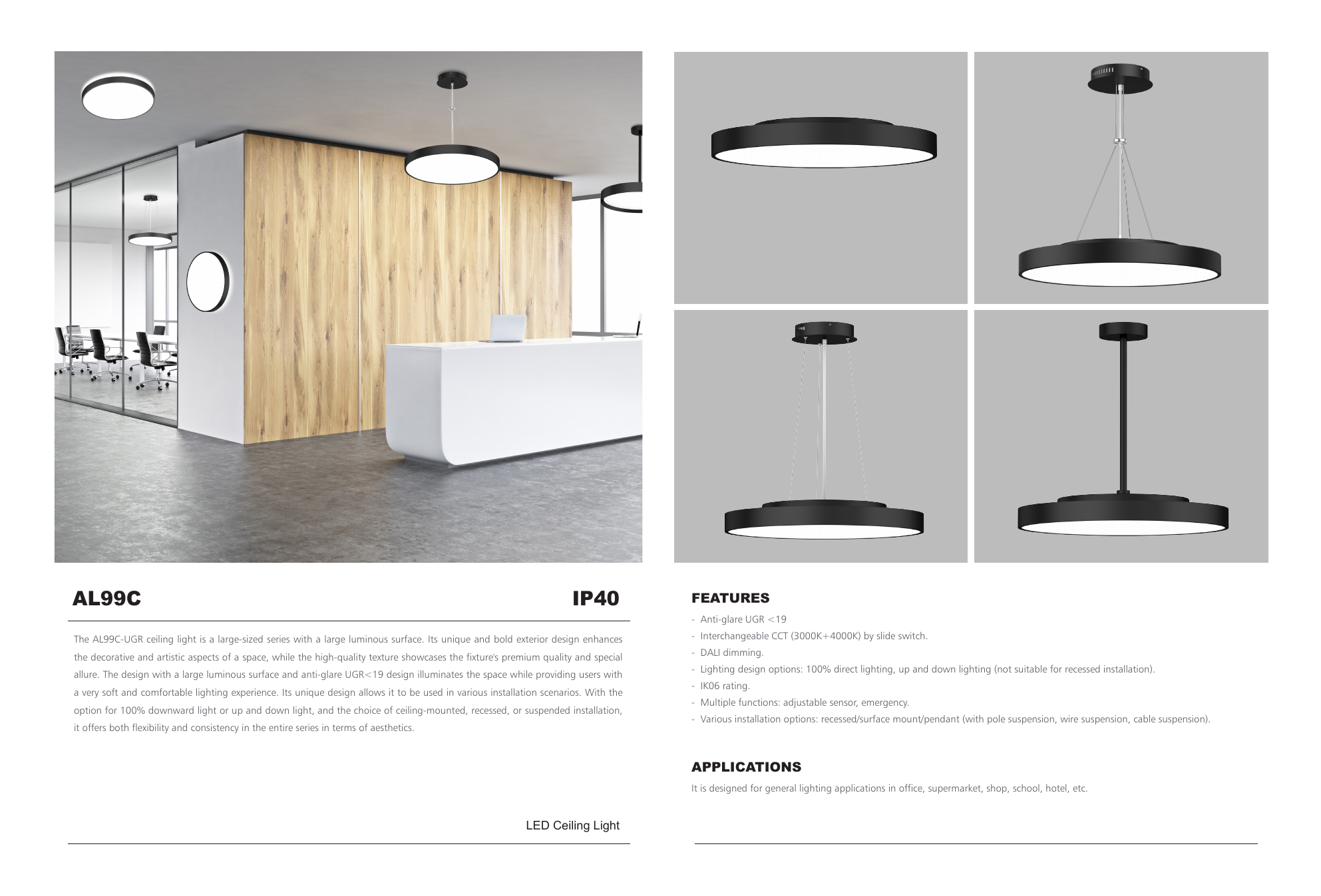

ARCHITECTURAL LIGHTING LED Ceiling Light AL99C-UGR Series Black RAL 9005 White RAL 9016 Wood grain

AL99C IP40 FEATURES

• Anti-glare UGR <19
• Interchangeable CCT (3000K+4000K) by slide switch.

The AL99C-UGR ceiling light is a large-sized series with a large luminous surface. Its unique and bold exterior design enhances

• DALI dimming.

the decorative and artistic aspects of a space, while the high-quality texture showcases the fixture's premium quality and special

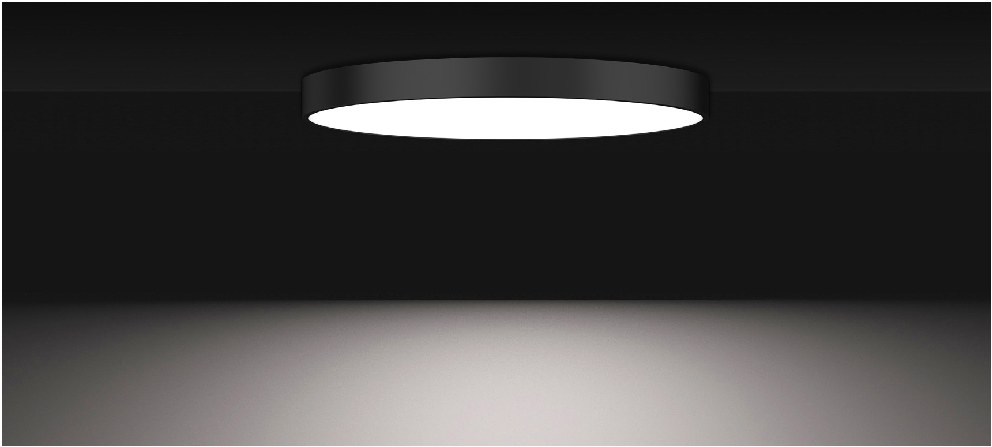

• Lighting design options: 100% direct lighting, up and down lighting (not suitable for recessed installation).

allure. The design with a large luminous surface and anti-glare UGR<19 design illuminates the space while providing users with

• IK06 rating.

a very soft and comfortable lighting experience. Its unique design allows it to be used in various installation scenarios. With the

• Multiple functions: adjustable sensor, emergency.

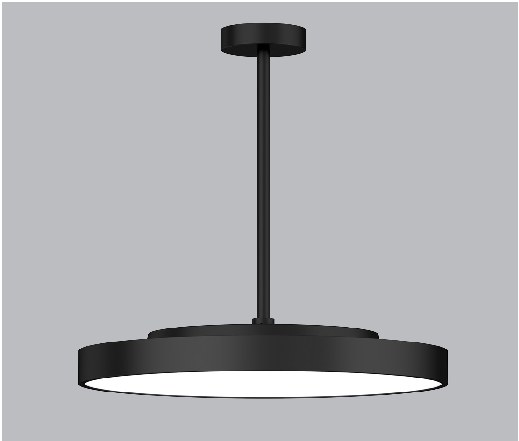

option for 100% downward light or up and down light, and the choice of ceiling-mounted, recessed, or suspended installation,

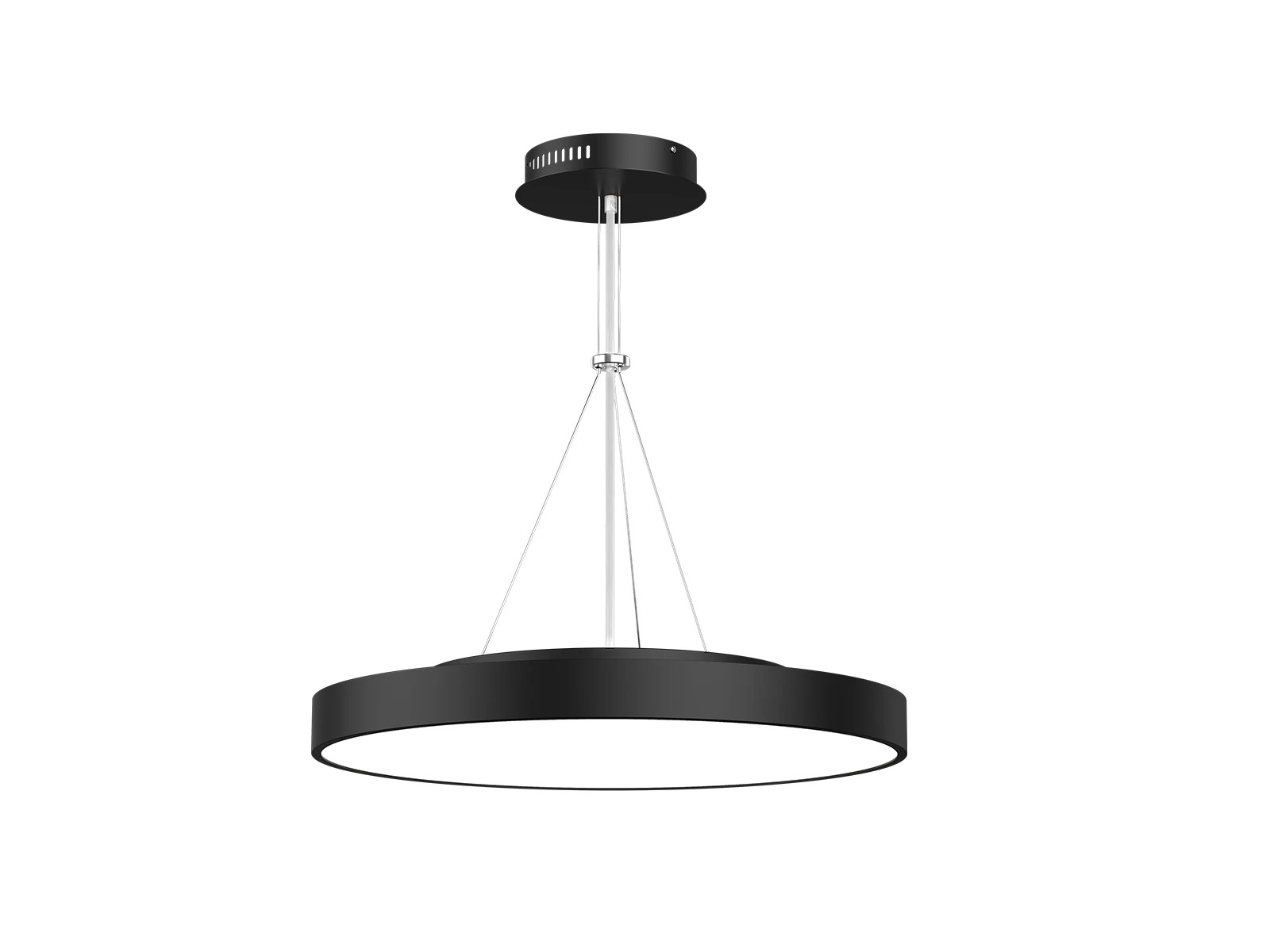

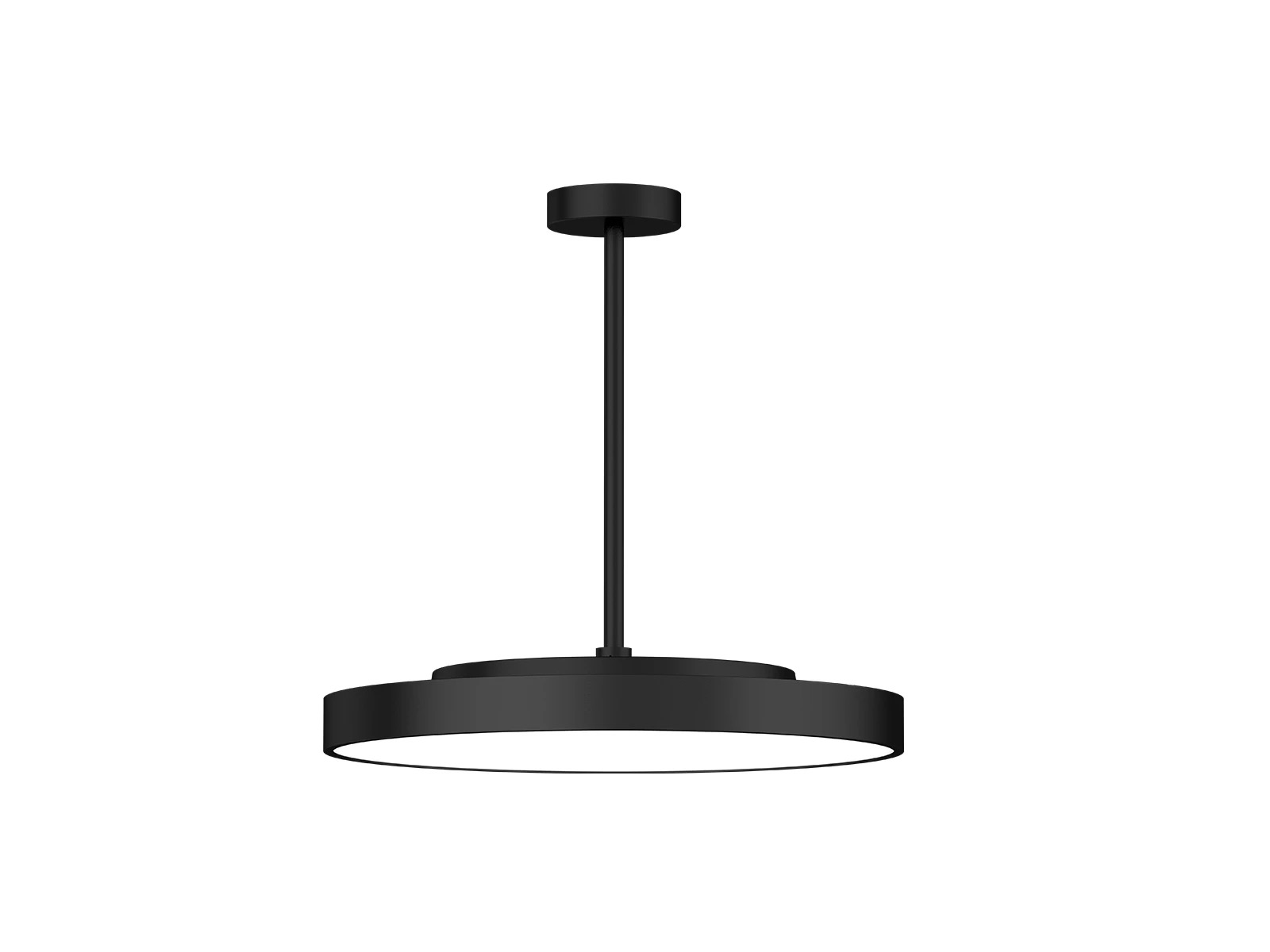

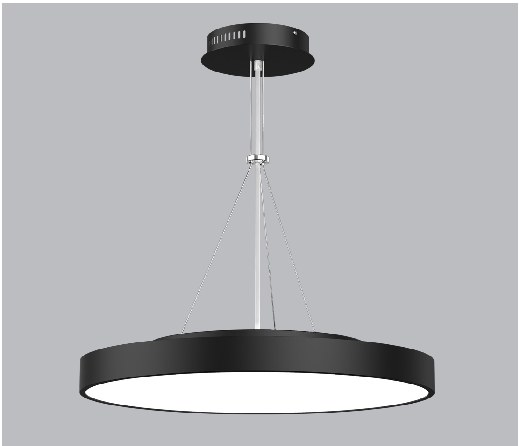

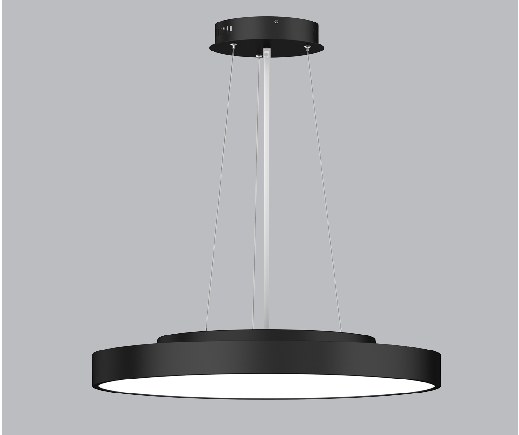

• Various installation options: recessed/surface mount/pendant (with pole suspension, wire suspension, cable suspension).

it offers both flexibility and consistency in the entire series in terms of aesthetics.

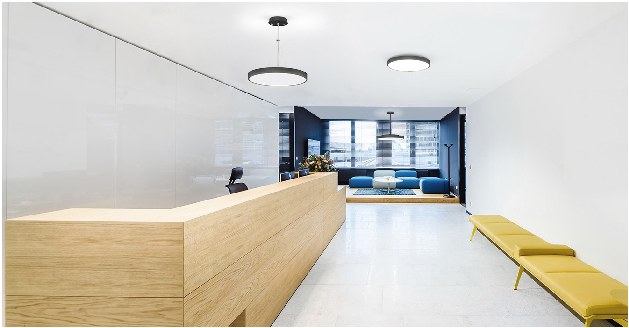

APPLICATIONS It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc.

LED Ceiling Light

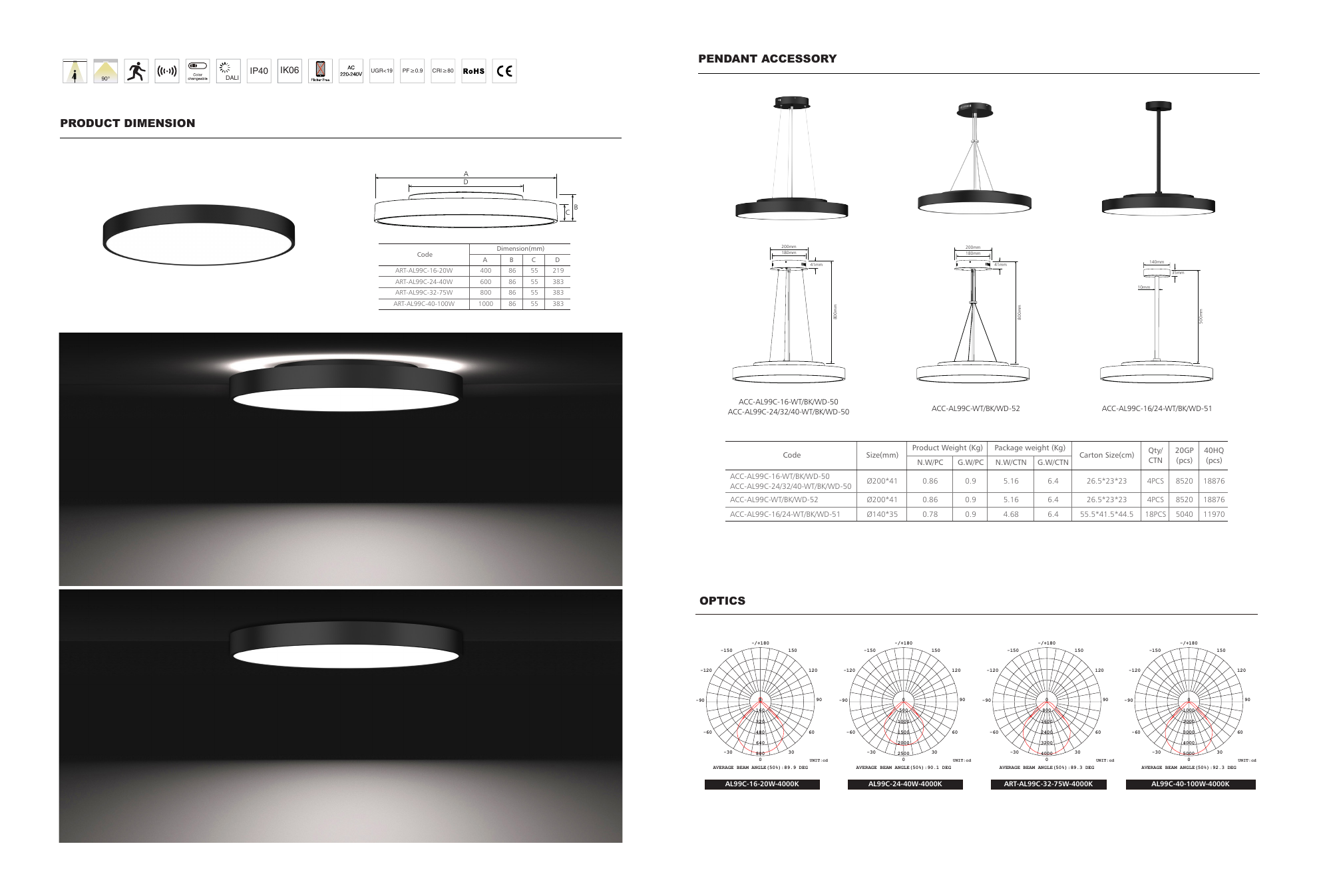

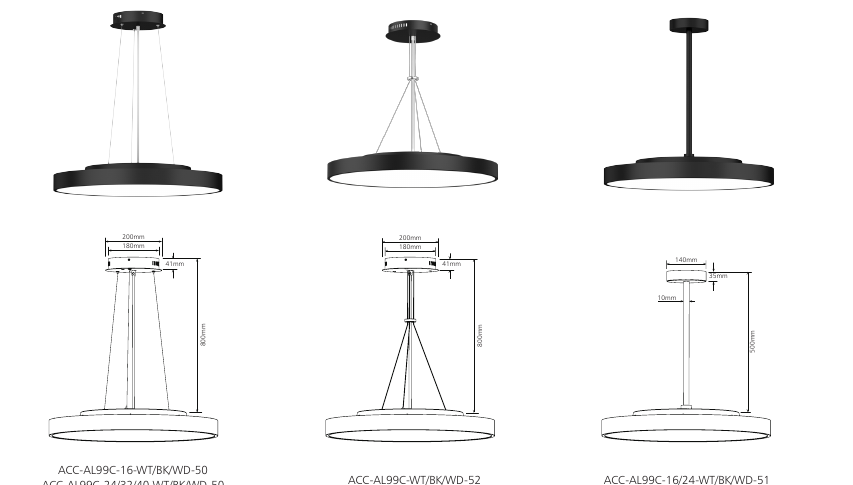

PENDANT ACCESSORY IP40 UGR<19 PF≥0.9 CRI≥80 PRODUCT DIMENSION

A

D

B

C

Dimension(mm) Code 180mm A B C D 41mm ART-AL99C-16-20W 400 86 55 219 ART-AL99C-24-40W 600 86 55 383 ART-AL99C-32-75W 800 86 55 383

ART-AL99C-40-100W 1000 86 55 383 OPTICS AL99C-16-20W-4000K AL99C-24-40W-4000K ART-AL99C-32-75W-4000K AL99C-40-100W-4000K mm008

200mm 180mm 41mm mm008 200mm 140mm 35mm mm005 IK06 90° DALI 10mm ACC-AL99C-16-WT/BK/WD-50 ACC-AL99C-24/32/40-WT/BK/WD-50 ACC-AL99C-WT/BK/WD-52 ACC-AL99C-16/24-WT/BK/WD-51

Product Weight (Kg) Package weight (Kg) Qty/ 20GP 40HQ Code Size(mm) Carton Size(cm) N.W/PC G.W/PC N.W/CTN G.W/CTN CTN (pcs) (pcs)

ACC-AL99C-16-WT/BK/WD-50 Ø200*41 0.86 0.9 5.16 6.4 26.5*23*23 4PCS 8520 18876 ACC-AL99C-24/32/40-WT/BK/WD-50 ACC-AL99C-WT/BK/WD-52 Ø200*41 0.86 0.9 5.16 6.4 26.5*23*23 4PCS 8520 18876

ACC-AL99C-16/24-WT/BK/WD-51 Ø140*35 0.78 0.9 4.68 6.4 55.5*41.5*44.5 18PCS 5040 11970

0 UNIT:cd 0 UNIT:cd 0 UNIT:cd 0 UNIT:cd AVERAGE BEAM ANGLE(50%):89.9 DEG AVERAGE BEAM ANGLE(50%):90.1 DEG AVERAGE BEAM ANGLE(50%):89.3 DEG AVERAGE BEAM ANGLE(50%):92.3 DEG

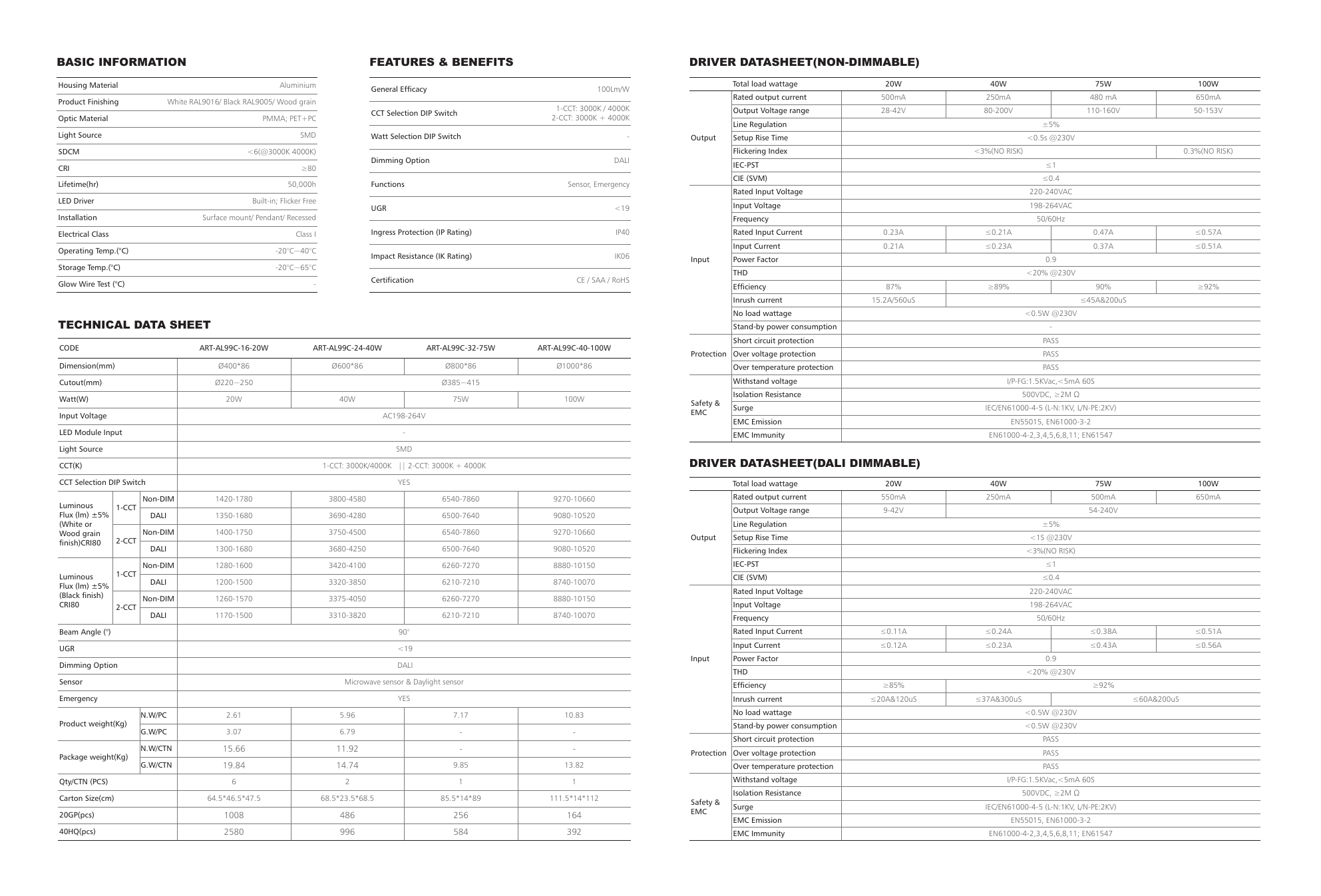

BASIC INFORMATION FEATURES & BENEFITS DRIVER DATASHEET(NON-DIMMABLE) Housing Material Aluminium Total load wattage 20W 40W 75W 100W

General Efficacy 100Lm/W Rated output current 500mA 250mA 480 mA 650mA Product Finishing White RAL9016/ Black RAL9005/ Wood grain

CCT Selection DIP Switch 1-CCT: 3000K / 4000K Output Voltage range 28-42V 80-200V 110-160V 50-153V Optic Material PMMA; PET+PC 2-CCT: 3000K + 4000K

Line Regulation ±5% Light Source SMD Watt Selection DIP Switch - Output Setup Rise Time <0.5s @230V SDCM <6(@3000K 4000K) Flickering Index <3%(NO RISK) 0.3%(NO RISK)

Dimming Option DALI CRI ≥80 IEC-PST ≤1 CIE (SVM) ≤0.4 Lifetime(hr) 50,000h Functions Sensor, Emergency Rated Input Voltage 220-240VAC

LED Driver Built-in; Flicker Free UGR <19 Input Voltage 198-264VAC Installation Surface mount/ Pendant/ Recessed Frequency 50/60Hz

Electrical Class Class I Ingress Protection (IP Rating) IP40 Rated Input Current 0.23A ≤0.21A 0.47A ≤0.57A Input Current 0.21A ≤0.23A 0.37A ≤0.51A

Operating Temp.(°C) -20°C~40°C Impact Resistance (IK Rating) IK06 Input Power Factor 0.9 Storage Temp.(°C) -20°C~65°C THD <20% @230V

Certification CE / SAA / RoHS Glow Wire Test (°C) - Efficiency 87% ≥89% 90% ≥92% Inrush current 15.2A/560uS ≤45A&200uS No load wattage <0.5W @230V

TECHNICAL DATA SHEET Stand-by power consumption -Short circuit protection PASS CODE ART-AL99C-16-20W ART-AL99C-24-40W ART-AL99C-32-75W ART-AL99C-40-100W

Protection Over voltage protection PASS Dimension(mm) Ø400*86 Ø600*86 Ø800*86 Ø1000*86 Over temperature protection PASS Cutout(mm) Ø220~250 Ø385~415 Withstand voltage I/P-FG:1.5KVac,<5mA 60S

Isolation Resistance 500VDC, ≥2M Ω Watt(W) 20W 40W 75W 100W Safety & Surge IEC/EN61000-4-5 (L-N:1KV, L/N-PE:2KV) EMC Input Voltage AC198-264V

EMC Emission EN55015, EN61000-3-2 LED Module Input - EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547 Light Source SMD CCT(K) 1-CCT: 3000K/4000K || 2-CCT: 3000K + 4000K DRIVER DATASHEET(DALI DIMMABLE)

CCT Selection DIP Switch YES Total load wattage 20W 40W 75W 100W Non-DIM 1420-1780 3800-4580 6540-7860 9270-10660 Rated output current 550mA 250mA 500mA 650mA

Luminous 1-CCT Output Voltage range 9-42V 54-240V Flux (lm) ±5% DALI 1350-1680 3690-4280 6500-7640 9080-10520 (White or Line Regulation ±5%

Wood grain Non-DIM 1400-1750 3750-4500 6540-7860 9270-10660 Output Setup Rise Time <1S @230V finish)CRI80 2-CCT DALI 1300-1680 3680-4250 6500-7640 9080-10520 Flickering Index <3%(NO RISK)

Non-DIM 1280-1600 3420-4100 6260-7270 8880-10150 IEC-PST ≤1 Luminous 1-CCT CIE (SVM) ≤0.4 DALI 1200-1500 3320-3850 6210-7210 8740-10070

Flux (lm) ±5% Rated Input Voltage 220-240VAC (Black finish) Non-DIM 1260-1570 3375-4050 6260-7270 8880-10150 CRI80 2-CCT Input Voltage 198-264VAC

DALI 1170-1500 3310-3820 6210-7210 8740-10070 Frequency 50/60Hz Beam Angle (°) 90° Rated Input Current ≤0.11A ≤0.24A ≤0.38A ≤0.51A

Input Current ≤0.12A ≤0.23A ≤0.43A ≤0.56A UGR <19 Input Power Factor 0.9 Dimming Option DALI THD <20% @230V Sensor Microwave sensor & Daylight sensor Efficiency ≥85% ≥92%

Emergency YES Inrush current ≤20A&120uS ≤37A&300uS ≤60A&200uS N.W/PC 2.61 5.96 7.17 10.83 No load wattage <0.5W @230V Product weight(Kg) Stand-by power consumption <0.5W @230V

G.W/PC 3.07 6.79 - -Short circuit protection PASS N.W/CTN 15.66 11.92 - -Protection Over voltage protection PASS Package weight(Kg)

G.W/CTN 19.84 14.74 9.85 13.82 Over temperature protection PASS Qty/CTN (PCS) 6 2 1 1 Withstand voltage I/P-FG:1.5KVac,<5mA 60S

Isolation Resistance 500VDC, ≥2M Ω Carton Size(cm) 64.5*46.5*47.5 68.5*23.5*68.5 85.5*14*89 111.5*14*112 Safety & Surge IEC/EN61000-4-5 (L-N:1KV, L/N-PE:2KV)

EMC 20GP(pcs) 1008 486 256 164 EMC Emission EN55015, EN61000-3-2 40HQ(pcs) 2580 996 584 392 EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547

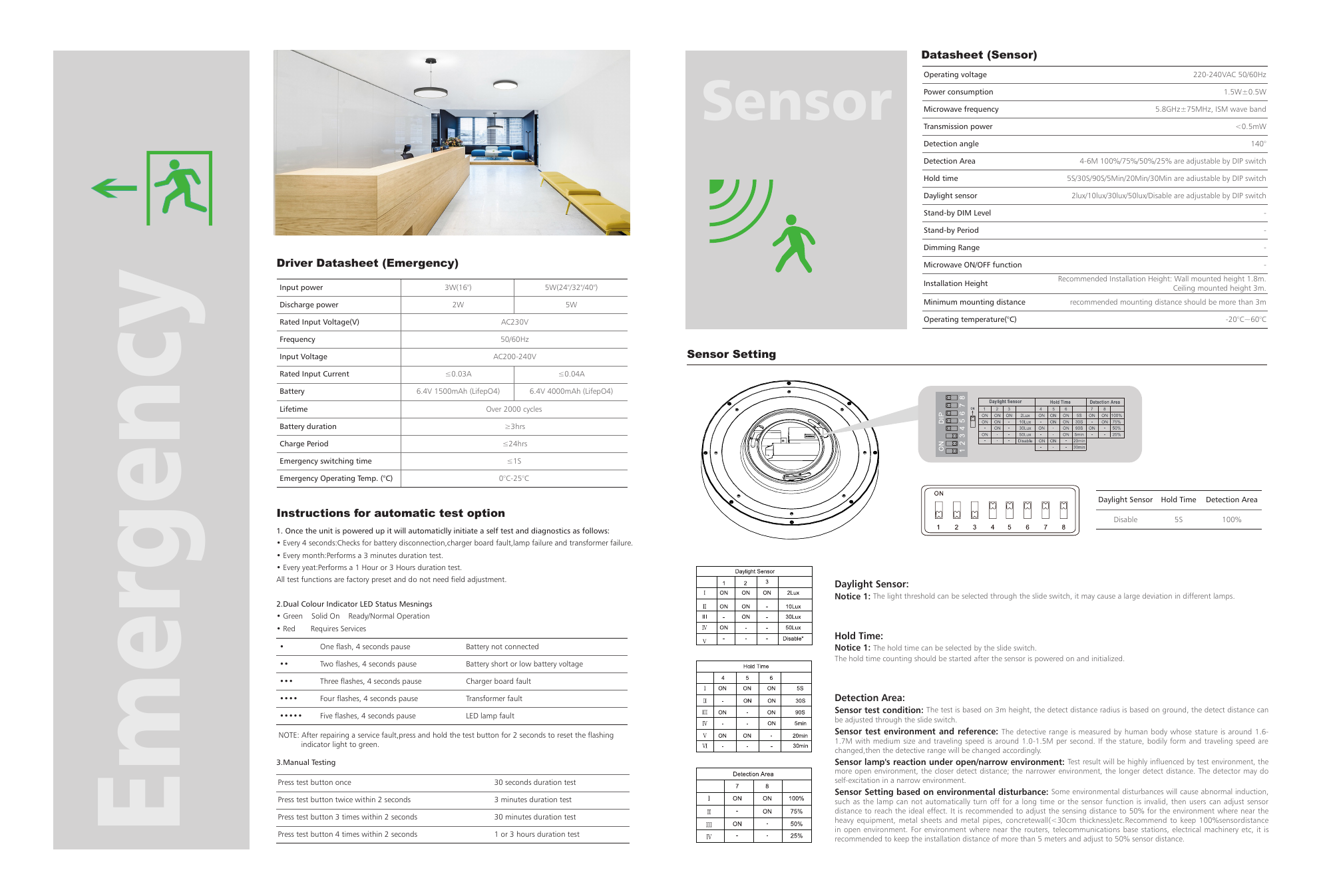

Driver Datasheet (Emergency) ycnegremE Datasheet (Sensor) Operating voltage 220-240VAC 50/60Hz

Sensor

Power consumption 1.5W±0.5W Microwave frequency 5.8GHz±75MHz, ISM wave band Transmission power <0.5mW Detection angle 140°

Detection Area 4-6M 100%/75%/50%/25% are adjustable by DIP switch Hold time 5S/30S/90S/5Min/20Min/30Min are adiustable by DIP switch

Daylight sensor 2lux/10lux/30lux/50lux/Disable are adjustable by DIP switch Stand-by DIM Level -Stand-by Period -Dimming Range -

Microwave ON/OFF function -Recommended Installation Height: Wall mounted height 1.8m.

Installation Height Input power 3W(16") 5W(24"/32"/40") Ceiling mounted height 3m.

Discharge power 2W 5W Minimum mounting distance recommended mounting distance should be more than 3m Rated Input Voltage(V) AC230V Operating temperature(°C) -20°C~60°C

Frequency 50/60Hz Sensor Setting Input Voltage AC200-240V Rated Input Current ≤0.03A ≤0.04A Battery 6.4V 1500mAh (LifepO4) 6.4V 4000mAh (LifepO4)

Lifetime Over 2000 cycles Battery duration ≥3hrs Charge Period ≤24hrs Emergency switching time ≤1S Emergency Operating Temp. (°C) 0°C-25°C

Daylight Sensor Hold Time Detection Area Instructions for automatic test option Disable 5S 100% 1. Once the unit is powered up it will automaticlly initiate a self test and diagnostics as follows:

• Every 4 seconds:Checks for battery disconnection,charger board fault,lamp failure and transformer failure.

• Every month:Performs a 3 minutes duration test.

• Every yeat:Performs a 1 Hour or 3 Hours duration test.

All test functions are factory preset and do not need field adjustment.

Daylight Sensor:

Notice 1: The light threshold can be selected through the slide switch, it may cause a large deviation in different lamps.

2.Dual Colour Indicator LED Status Mesnings • Green Solid On Ready/Normal Operation • Red Requires Services Hold Time:

• One flash, 4 seconds pause Battery not connected Notice 1: The hold time can be selected by the slide switch.

The hold time counting should be started after the sensor is powered on and initialized.

•• Two flashes, 4 seconds pause Battery short or low battery voltage ••• Three flashes, 4 seconds pause Charger board fault

•••• Four flashes, 4 seconds pause Transformer fault Detection Area:

Sensor test condition: The test is based on 3m height, the detect distance radius is based on ground, the detect distance can

••••• Five flashes, 4 seconds pause LED lamp fault be adjusted through the slide switch.

Sensor test environment and reference: The detective range is measured by human body whose stature is around 1.6-NOTE: After repairing a service fault,press and hold the test button for 2 seconds to reset the flashing

1.7M with medium size and traveling speed is around 1.0-1.5M per second. If the stature, bodily form and traveling speed are

indicator light to green.

changed,then the detective range will be changed accordingly.

3.Manual Testing Sensor lamp's reaction under open/narrow environment: Test result will be highly influenced by test environment, the

more open environment, the closer detect distance; the narrower environment, the longer detect distance. The detector may do

Press test button once 30 seconds duration test self-excitation in a narrow environment.

Sensor Setting based on environmental disturbance: Some environmental disturbances will cause abnormal induction, Press test button twice within 2 seconds 3 minutes duration test such as the lamp can not automatically turn off for a long time or the sensor function is invalid, then users can adjust sensor

distance to reach the ideal effect. It is recommended to adjust the sensing distance to 50% for the environment where near the

Press test button 3 times within 2 seconds 30 minutes duration test heavy equipment, metal sheets and metal pipes, concretewall(<30cm thickness)etc.Recommend to keep 100%sensordistance

in open environment. For environment where near the routers, telecommunications base stations, electrical machinery etc, it is

Press test button 4 times within 2 seconds 1 or 3 hours duration test recommended to keep the installation distance of more than 5 meters and adjust to 50% sensor distance.

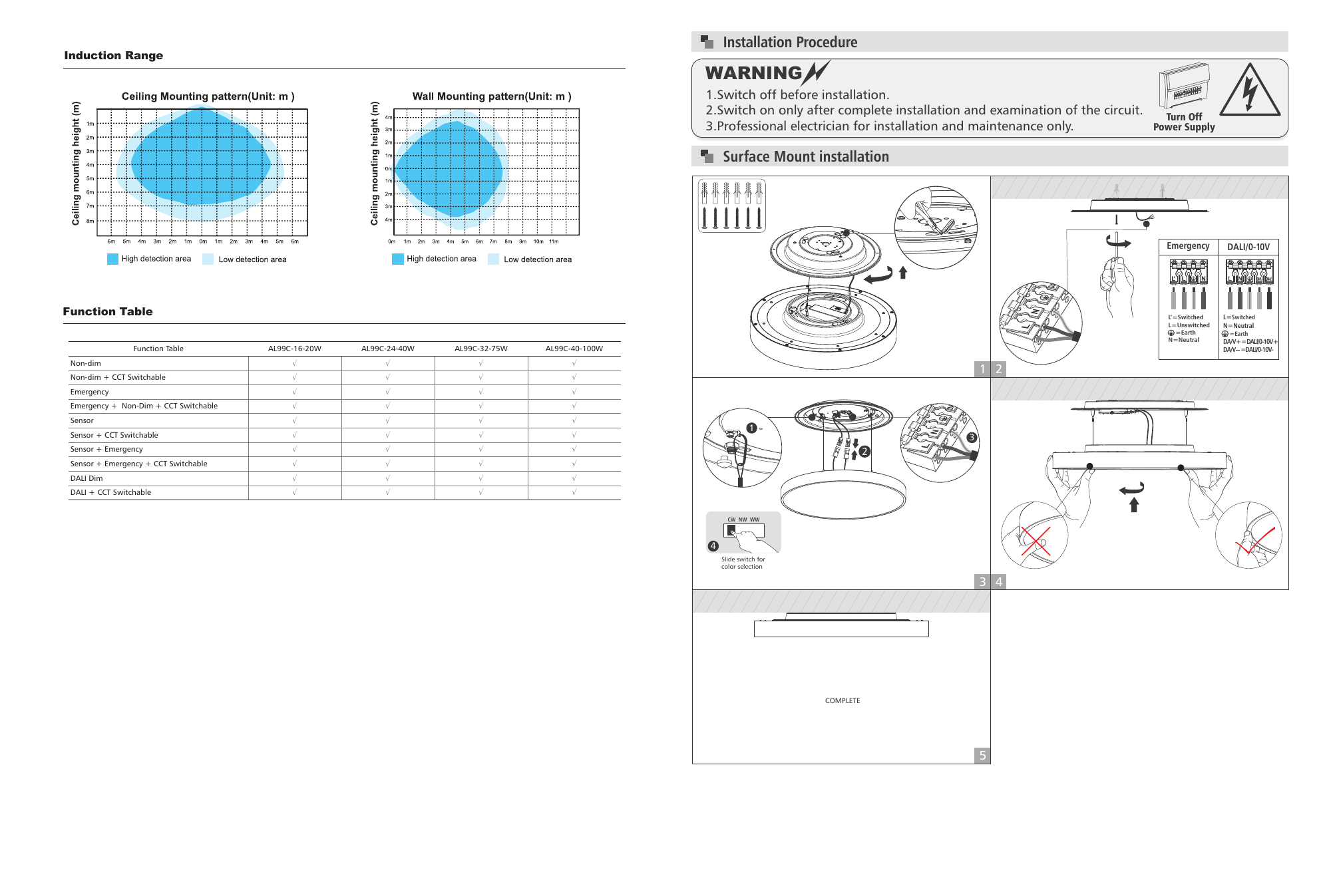

Installation Procedure Induction Range WARNING 1.Switch off before installation.

2.Switch on only after complete installation and examination of the circuit.

Turn Off 3.Professional electrician for installation and maintenance only. Power Supply Surface Mount installation Emergency DALI/0-10V

Function Table L’=Switched L=Switched L=Unswitched N=Neutral =Earth =Earth N=Neutral DA/V+=DALI/0-10V+ Function Table AL99C-16-20W AL99C-24-40W AL99C-32-75W AL99C-40-100W DA/V =DALI/0-10V-

Non-dim √ √ √ √

Non-dim + CCT Switchable √ √ √ √ Emergency √ √ √ √ Emergency + Non-Dim + CCT Switchable √ √ √ √ Sensor √ √ √ √

Sensor + CCT Switchable √ √ √ √ 3 Sensor + Emergency √ √ √ √ 2 Sensor + Emergency + CCT Switchable √ √ √ √ DALI Dim √ √ √ √

DALI + CCT Switchable √ √ √ √ CW NW WW

Slide switch for color selection

COMPLETE

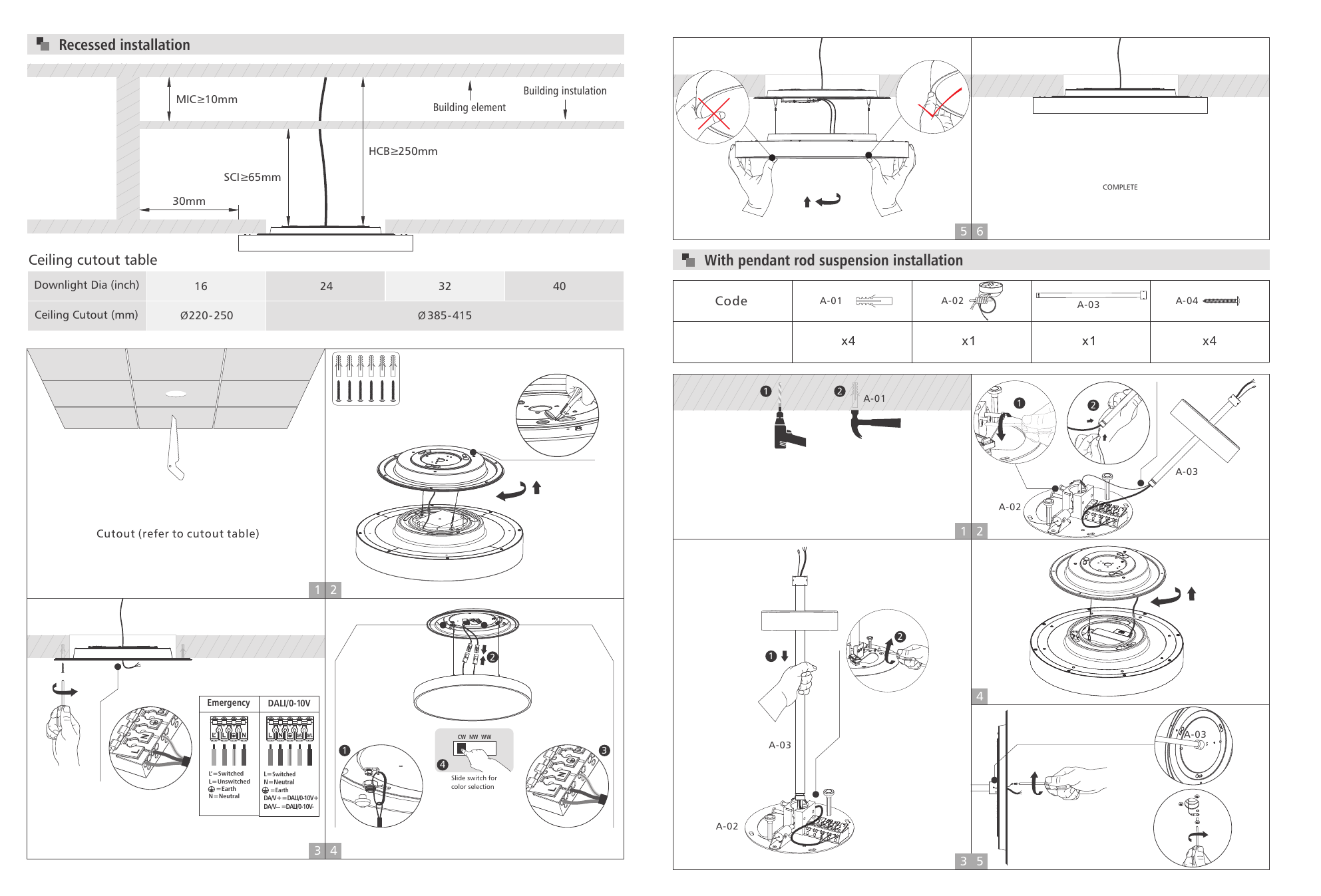

Recessed installation Building instulation MIC≥10mm Building element HCB≥250mm SCI≥65mm 30mm Ceiling cutout table With pendant rod suspension installation

Downlight Dia (inch) 16 24 32 40 Code A-01 A-02 A-04

A-03

Ceiling Cutout (mm) Ø220-250 Ø 385- 415 x4 x1 x1 x4

A-01

A-03

A-02

Cutout (refer to cutout table) 1 2

Emergency DALI/0-10V

A-03

CW NW WW

A-03

L’=Switched L=Switched L=Unswitched N=Neutral Slide switch for =Earth =Earth color selection N=Neutral DA/V+=DALI/0-10V+ DA/V =DALI/0-10V-

A-02

COMPLETE

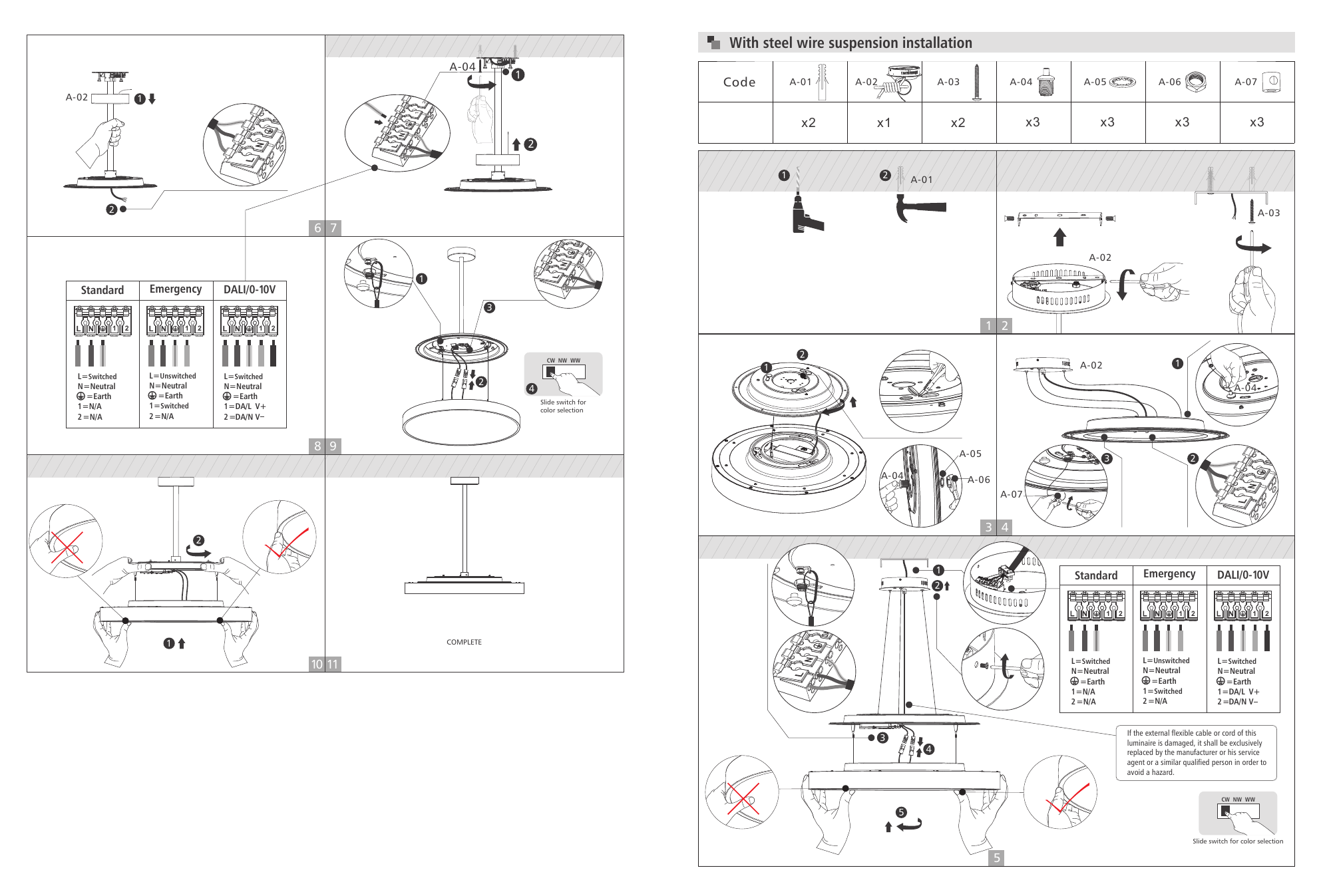

With steel wire suspension installation

A-04

Code A-01 A-02 A-03 A-04 A-05 A-06 A-07 A-02 1

x2 x1 x2 x3 x3 x3 x3

A-01

A-03

A-02

Standard Emergency DALI/0-10V

CW NW WW 1 A-02 1 L=Switched L=Unswitched L=Switched

N=Neutral N=Neutral N=Neutral 4 A-04 =Earth =Earth =Earth 1=N/A 1=Switched 1=DA/L V+ Slide switch for color selection 2=N/A 2=N/A 2=DA/N V

A-05

A-04

A-06

A-07

1 Standard Emergency DALI/0-10V

1 COMPLETE 10 11 L=Switched L=Unswitched L=Switched N=Neutral N=Neutral N=Neutral =Earth =Earth =Earth 1=N/A 1=Switched 1=DA/L V+

2=N/A 2=N/A 2=DA/N V If the external flexible cable or cord of this

luminaire is damaged, it shall be exclusively

replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

CW NW WW

Slide switch for color selection

1 Standard Emergency DALI/0-10V

A-02

L=Switched L=Unswitched L=Switched N=Neutral N=Neutral N=Neutral =Earth =Earth =Earth 1=N/A 1=Switched 1=DA/L V+ 2=N/A 2=N/A 2=DA/N V

COMPLETE

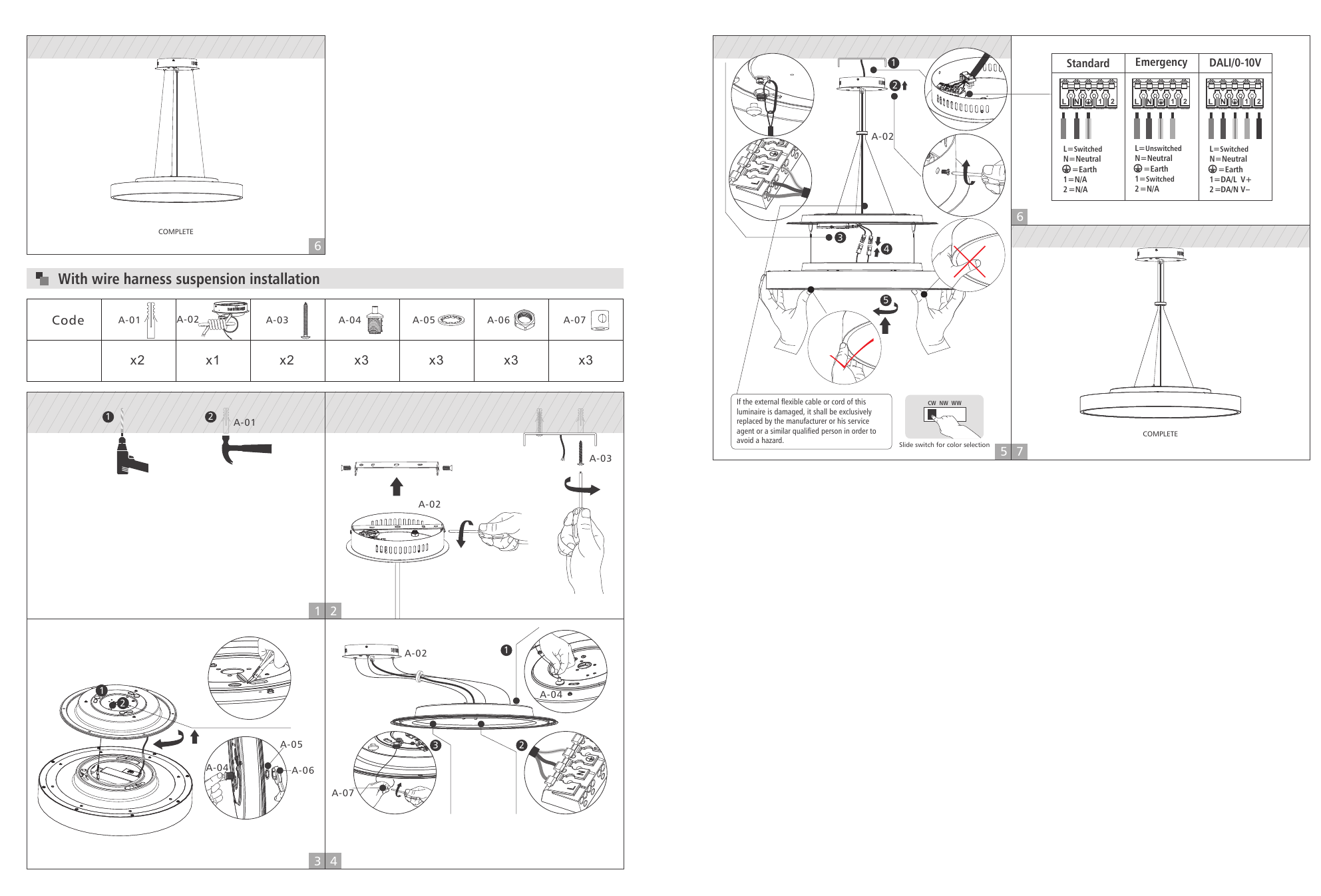

With wire harness suspension installation

Code A-01 A-02 A-03 A-04 A-05 A-06 A-07 x2 x1 x2 x3 x3 x3 x3 If the external flexible cable or cord of this CW NW WW luminaire is damaged, it shall be exclusively

A-01 replaced by the manufacturer or his service agent or a similar qualified person in order to COMPLETE avoid a hazard.

Slide switch for color selection

A-03

A-02

A-02

A-04

A-05 3 2 A-04 A-06

A-07
