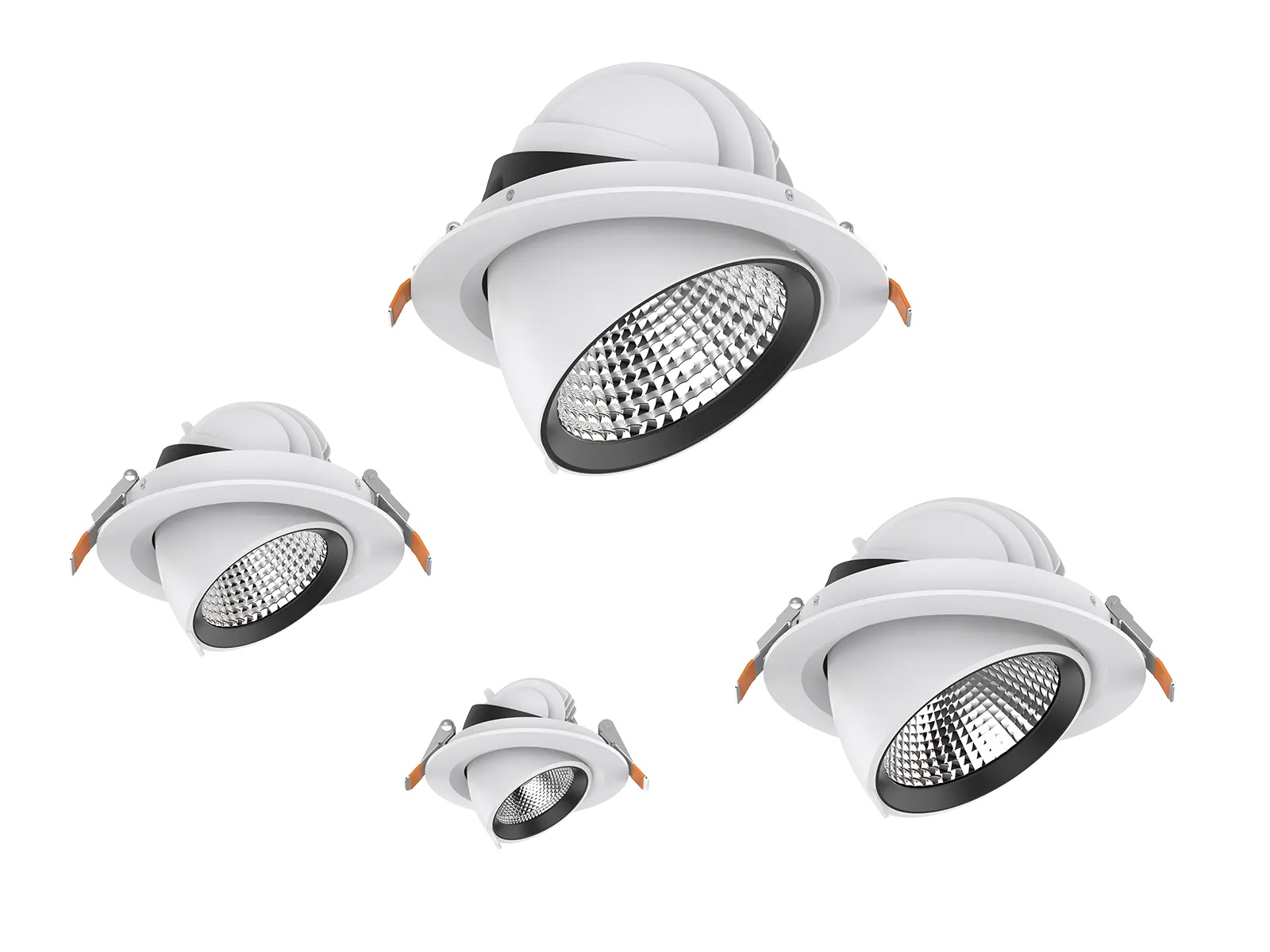

VRL-DL-77

COMMERCIAL LIGHTING LED Downlight DL77(G2.0) Series

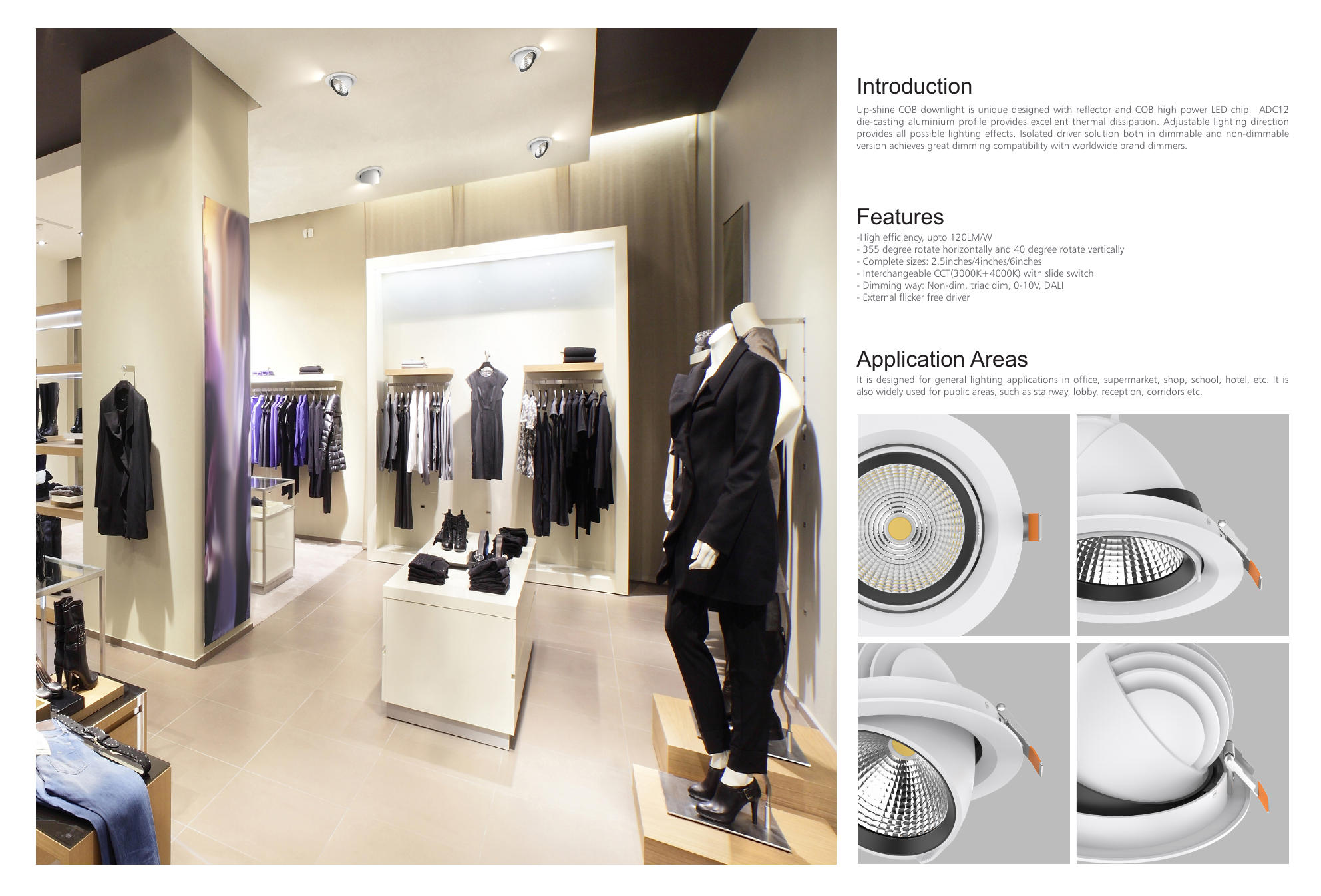

Introduction

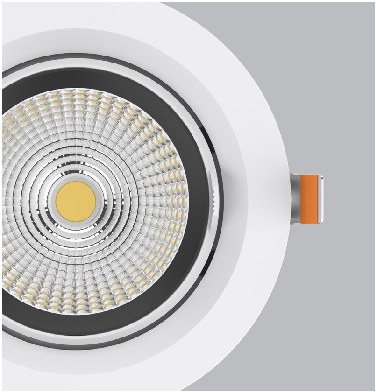

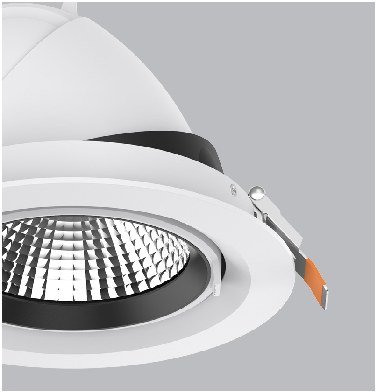

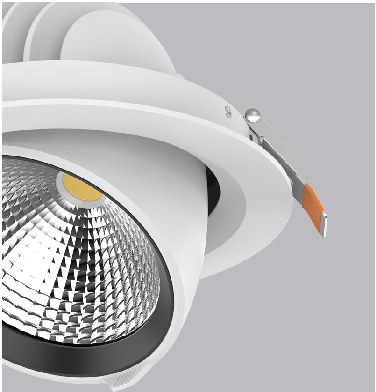

UPSHINE COB downlight is unique designed with reflector and COB high power LED chip. ADC12 die-casting aluminium profile provides excellent thermal dissipation. Adjustable lighting direction

provides all possible lighting effects. Isolated driver solution both in dimmable and non-dimmable version achieves great dimming compatibility with worldwide brand dimmers.

Features

• High efficiency, upto 120LM/W

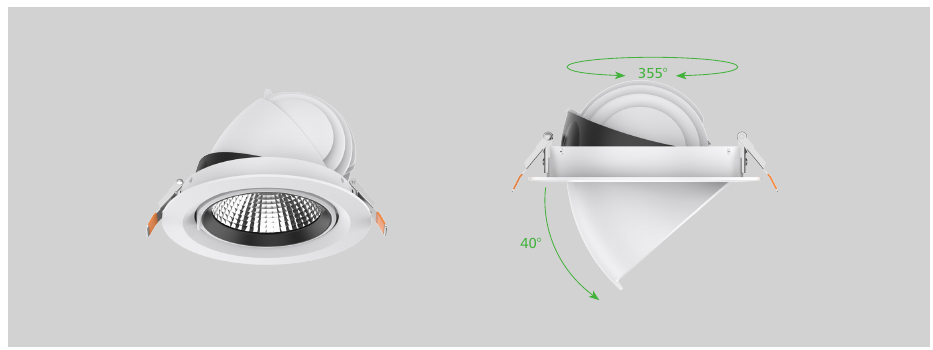

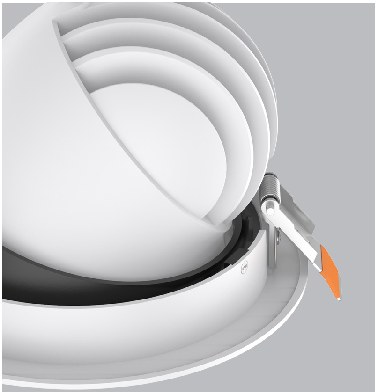

• 355 degree rotate horizontally and 40 degree rotate vertically
• Complete sizes: 2.5inches/4inches/6inches
• Interchangeable CCT(3000K+4000K) with slide switch
• Dimming way: Non-dim, triac dim, 0-10V, DALI
• External flicker free driver

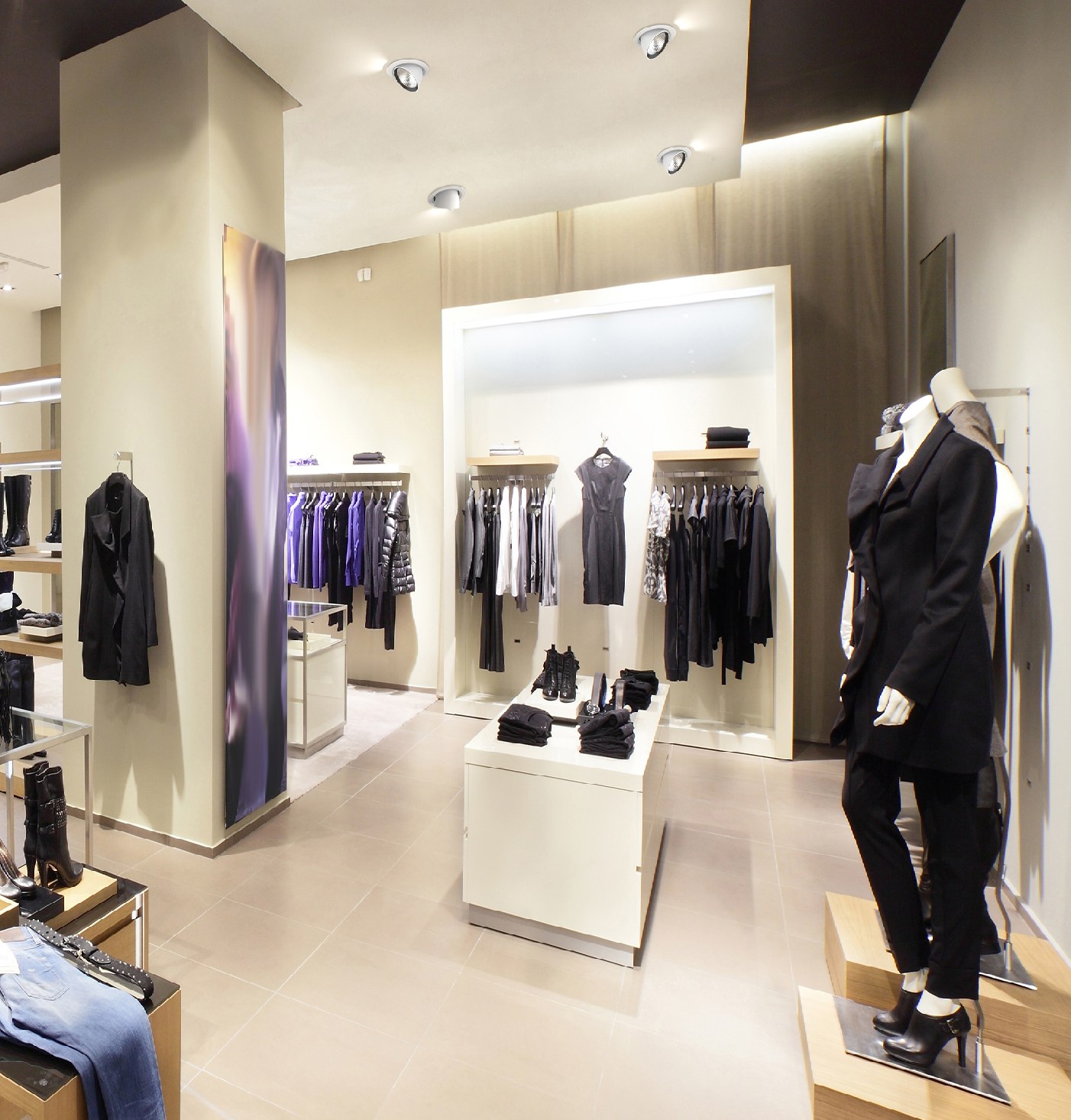

Application Areas It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is

also widely used for public areas, such as stairway, lobby, reception, corridors etc.

IP20 IK06 15° 24° 36° 60° Triac

C

B

D

A

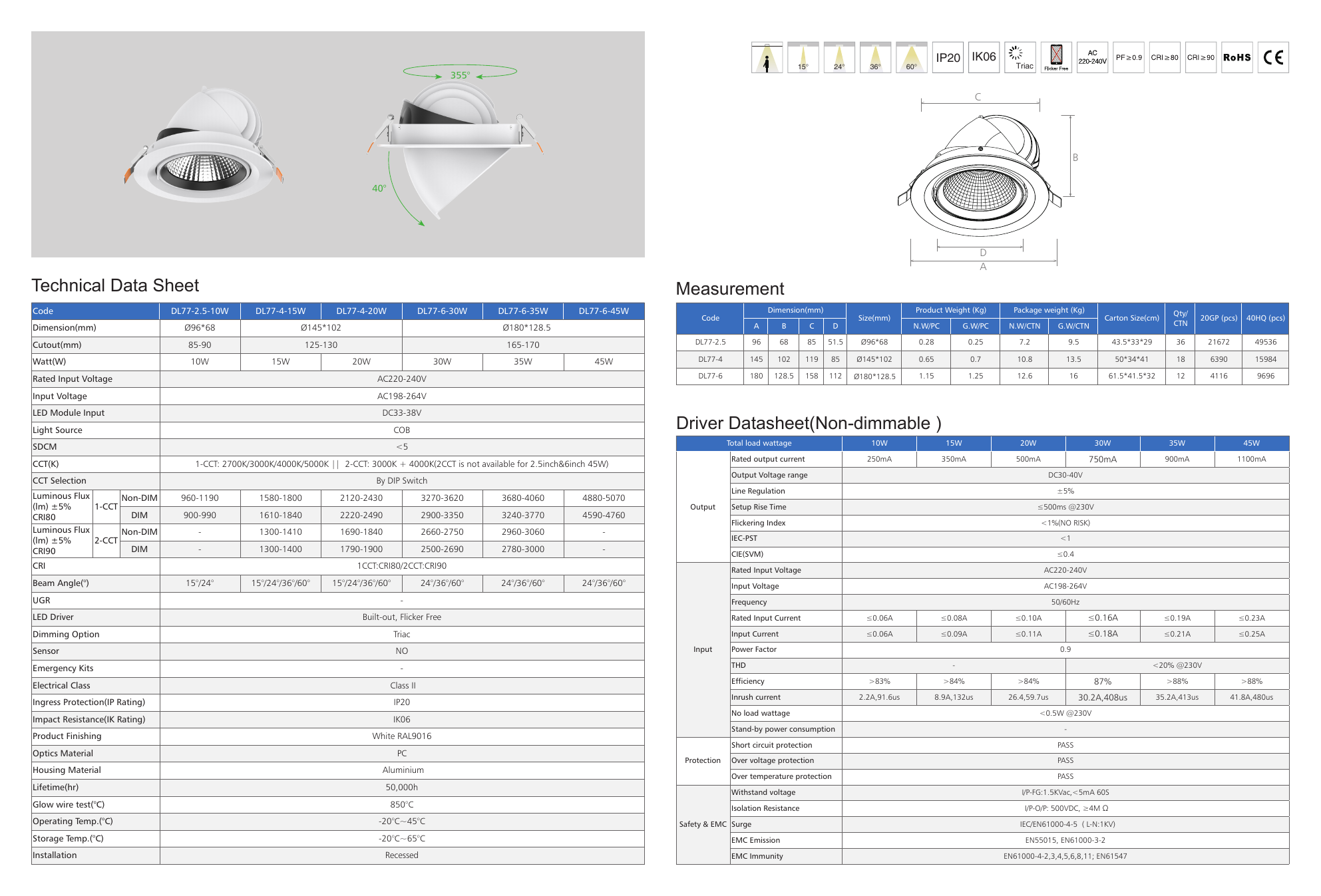

Technical Data Sheet

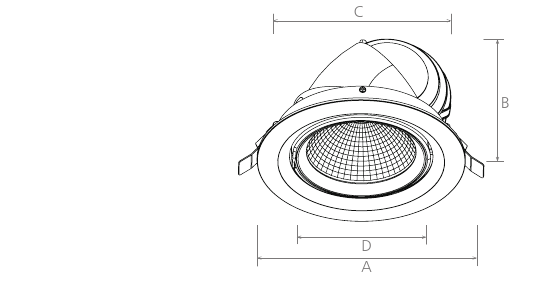

Measurement

Code DL77-2.5-10W DL77-4-15W DL77-4-20W DL77-6-30W DL77-6-35W DL77-6-45W Dimension(mm) Product Weight (Kg) Package weight (Kg) Qty/

Code Size(mm) Carton Size(cm) 20GP (pcs) 40HQ (pcs) Dimension(mm) Ø96*68 Ø145*102 Ø180*128.5 A B C D N.W/PC G.W/PC N.W/CTN G.W/CTN CTN

Cutout(mm) 85-90 125-130 165-170 DL77-2.5 96 68 85 51.5 Ø96*68 0.28 0.25 7.2 9.5 43.5*33*29 36 21672 49536 Watt(W) 10W 15W 20W 30W 35W 45W DL77-4 145 102 119 85 Ø145*102 0.65 0.7 10.8 13.5 50*34*41 18 6390 15984

Rated Input Voltage AC220-240V DL77-6 180 128.5 158 112 Ø180*128.5 1.15 1.25 12.6 16 61.5*41.5*32 12 4116 9696 Input Voltage AC198-264V

LED Module Input DC33-38V Driver Datasheet(Non-dimmable ) Light Source COB SDCM <5 Total load wattage 10W 15W 20W 30W 35W 45W

Rated output current 250mA 350mA 500mA 750mA 900mA 1100mA CCT(K) 1-CCT: 2700K/3000K/4000K/5000K || 2-CCT: 3000K + 4000K(2CCT is not available for 2.5inch&6inch 45W)

Output Voltage range DC30-40V CCT Selection By DIP Switch Line Regulation ±5% Luminous Flux Non-DIM 960-1190 1580-1800 2120-2430 3270-3620 3680-4060 4880-5070

(lm) ±5% 1-CCT Output Setup Rise Time ≤500ms @230V CRI80 DIM 900-990 1610-1840 2220-2490 2900-3350 3240-3770 4590-4760 Flickering Index <1%(NO RISK)

Luminous Flux Non-DIM - 1300-1410 1690-1840 2660-2750 2960-3060 -(lm) ±5% 2-CCT IEC-PST <1 CRI90 DIM - 1300-1400 1790-1900 2500-2690 2780-3000 -

CIE(SVM) ≤0.4 CRI 1CCT:CRI80/2CCT:CRI90 Rated Input Voltage AC220-240V Beam Angle(°) 15°/24° 15°/24°/36°/60° 15°/24°/36°/60° 24°/36°/60° 24°/36°/60° 24°/36°/60°

Input Voltage AC198-264V UGR - Frequency 50/60Hz LED Driver Built-out, Flicker Free Rated Input Current ≤0.06A ≤0.08A ≤0.10A ≤0.16A ≤0.19A ≤0.23A

Dimming Option Triac Input Current ≤0.06A ≤0.09A ≤0.11A ≤0.18A ≤0.21A ≤0.25A Sensor NO Input Power Factor 0.9 Emergency Kits - THD - <20% @230V

Efficiency >83% >84% >84% 87% >88% >88% Electrical Class Class II Inrush current 2.2A,91.6us 8.9A,132us 26.4,59.7us 30.2A,408us 35.2A,413us 41.8A,480us

Ingress Protection(IP Rating) IP20 No load wattage <0.5W @230V Impact Resistance(IK Rating) IK06 Stand-by power consumption -

Product Finishing White RAL9016 Short circuit protection PASS Optics Material PC Protection Over voltage protection PASS Housing Material Aluminium

Over temperature protection PASS Lifetime(hr) 50,000h Withstand voltage I/P-FG:1.5KVac,<5mA 60S Glow wire test(°C) 850°C Isolation Resistance I/P-O/P: 500VDC, ≥4M Ω

Operating Temp.(°C) -20°C~45°C Safety & EMC Surge IEC/EN61000-4-5 ( L-N:1KV) Storage Temp.(°C) -20°C~65°C EMC Emission EN55015, EN61000-3-2

Installation Recessed EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547

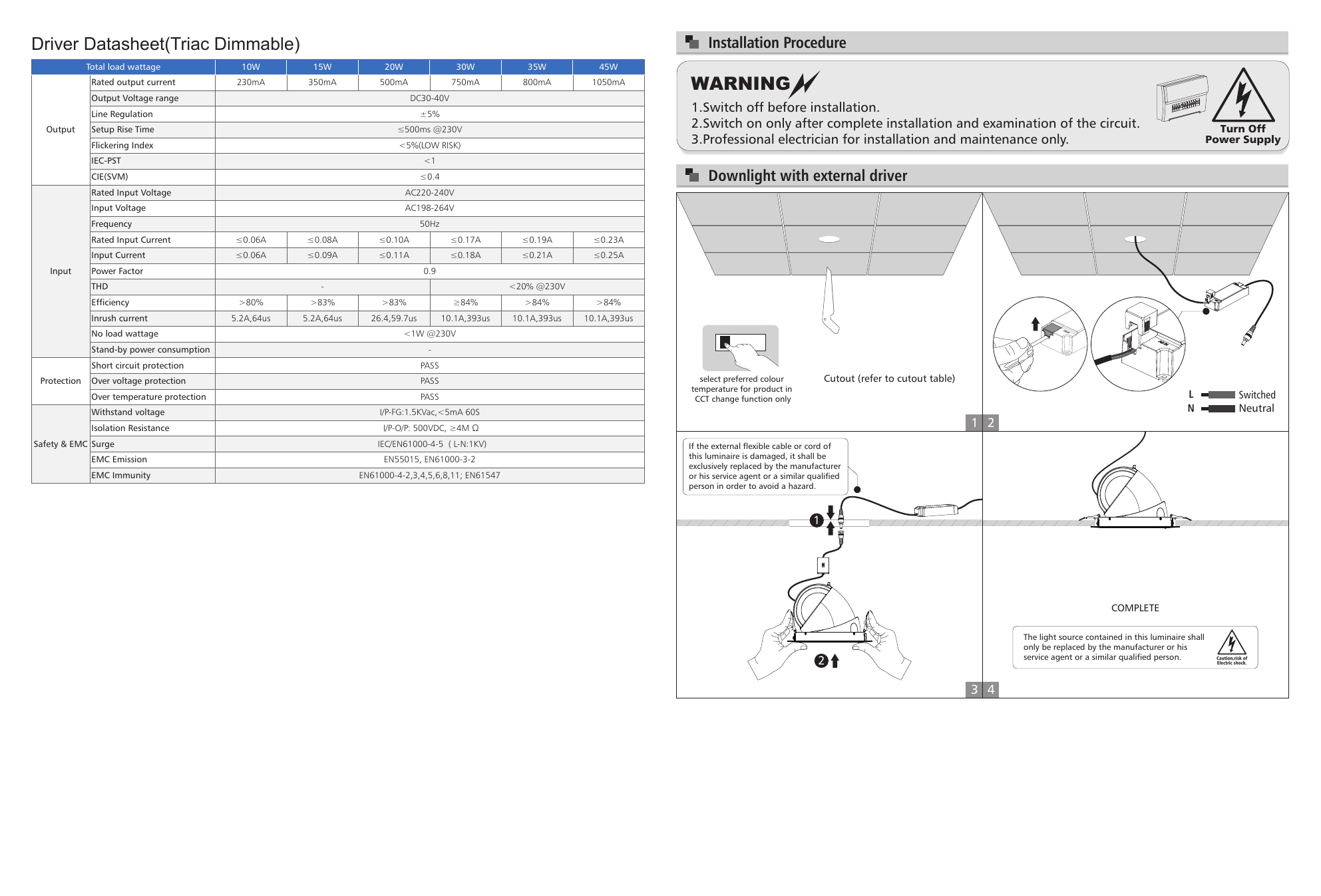

Driver Datasheet(Triac Dimmable) Installation Procedure Total load wattage 10W 15W 20W 30W 35W 45W Rated output current 230mA 350mA 500mA 750mA 800mA 1050mA WARNING

Output Voltage range DC30-40V 1.Switch off before installation.

Line Regulation ±5% 2.Switch on only after complete installation and examination of the circuit.

Output Setup Rise Time ≤500ms @230V Turn Off 3.Professional electrician for installation and maintenance only. Power Supply

Flickering Index <5%(LOW RISK) IEC-PST <1 Downlight with external driver CIE(SVM) ≤0.4 Rated Input Voltage AC220-240V Input Voltage AC198-264V

Frequency 50Hz Rated Input Current ≤0.06A ≤0.08A ≤0.10A ≤0.17A ≤0.19A ≤0.23A Input Current ≤0.06A ≤0.09A ≤0.11A ≤0.18A ≤0.21A ≤0.25A

Input Power Factor 0.9 THD - <20% @230V Efficiency >80% >83% >83% ≥84% >84% >84% Inrush current 5.2A,64us 5.2A,64us 26.4,59.7us 10.1A,393us 10.1A,393us 10.1A,393us

No load wattage <1W @230V Stand-by power consumption -Short circuit protection PASS Protection Over voltage protection PASS select preferred colour Cutout (refer to cutout table)

temperature for product in Over temperature protection PASS CCT change function only L Switched N Neutral Withstand voltage I/P-FG:1.5KVac,<5mA 60S

Isolation Resistance I/P-O/P: 500VDC, ≥4M Ω Safety & EMC Surge IEC/EN61000-4-5 ( L-N:1KV) If the external flexible cable or cord of

EMC Emission EN55015, EN61000-3-2 this luminaire is damaged, it shall be exclusively replaced by the manufacturer EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547 or his service agent or a similar qualified

person in order to avoid a hazard.

COMPLETE The light source contained in this luminaire shall only be replaced by the manufacturer or his 2 service agent or a similar qualified person. Caution,risk of

Electric shock.
