VRL-AL-99CD

AL99C/D Series Entry /ECO Standard /STD Professional/PRO ODM & OEM Intelligent/INT LED Ceiling Light Black RAL 9005 White RAL 9016 Wood grain

Introduction

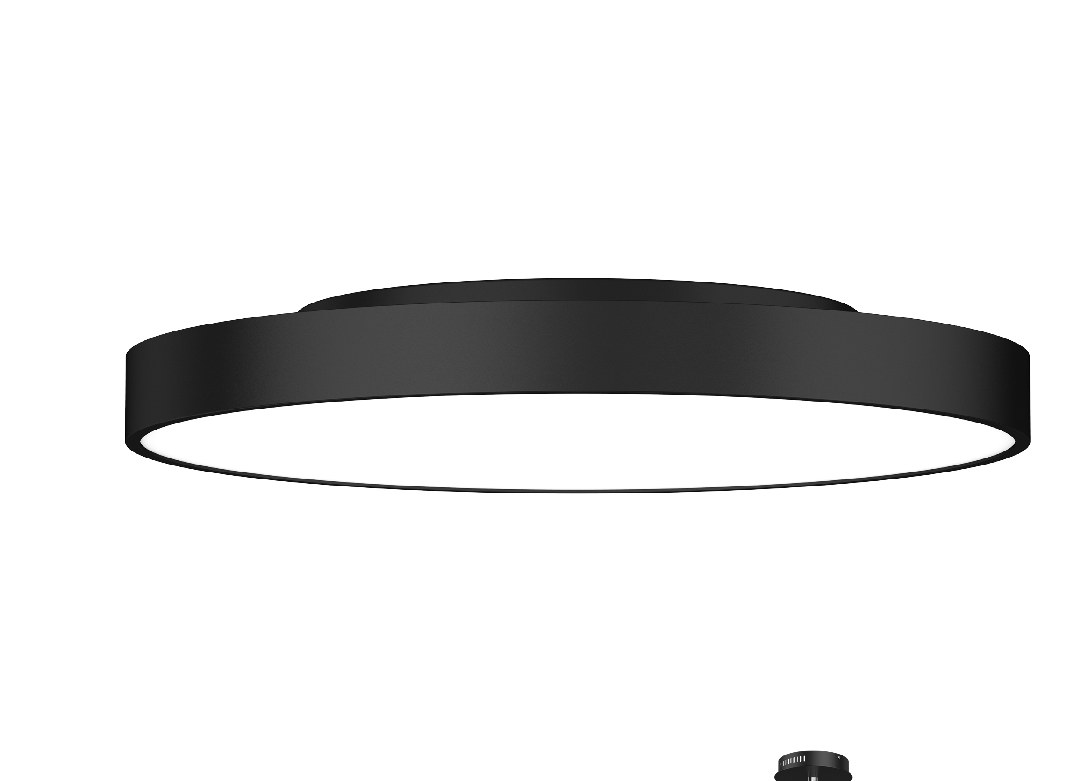

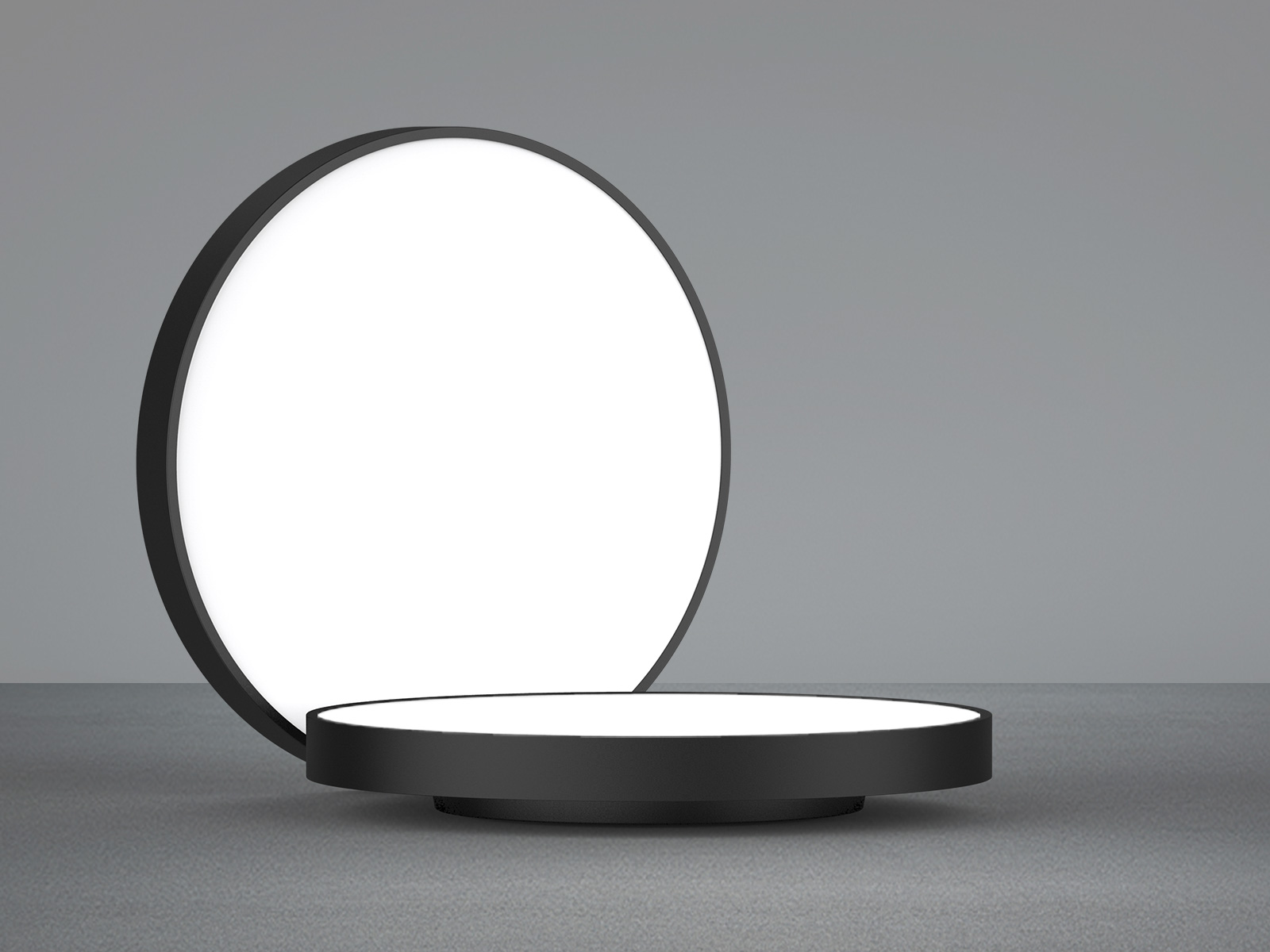

AL99 ceiling light is a big size with up & down lighting design. It’s adopted high lumen SMD LED light source, larger lighting

area and low glare design make a softer and uniform light output. AL6063 aluminum housing provides an excellent thermal management. Size options: 400mm, 600mm, 800mm, 1000mm. It can do CCT adjustable, multiple installation ways available which

meets more application demands.

Features

• Interchangeable CCT (3000K+4000K+5700K) with slide switch.
• DALI dimmable available.

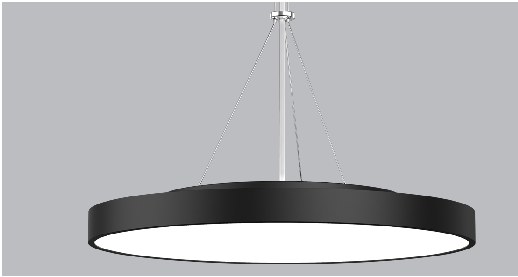

• Multiple installation ways: Recessed/Surface mounted/Pendant(With pendant rod suspension, with steel wire suspension, with wire

harness suspension. )

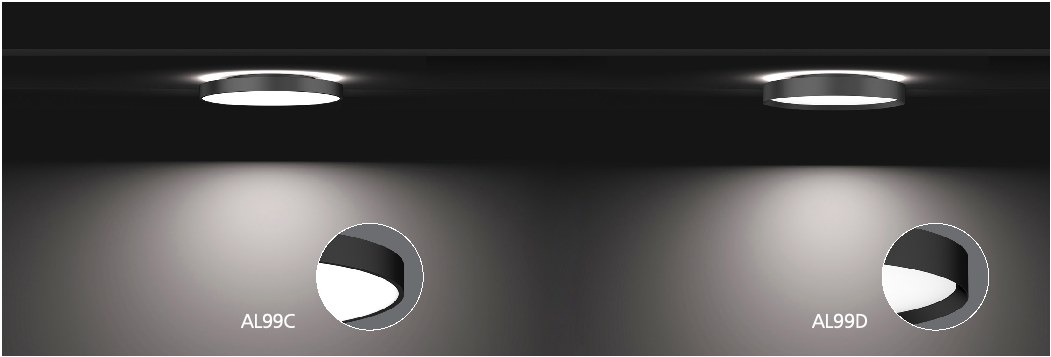

• Two lighting design: 100% direct lighting, up & down lighting (Not for recessed installation).
• Up & down lighting version: 10% up and 90% down lighting ratio.
• Multiple functions : Adjustable sensor, Emergency.

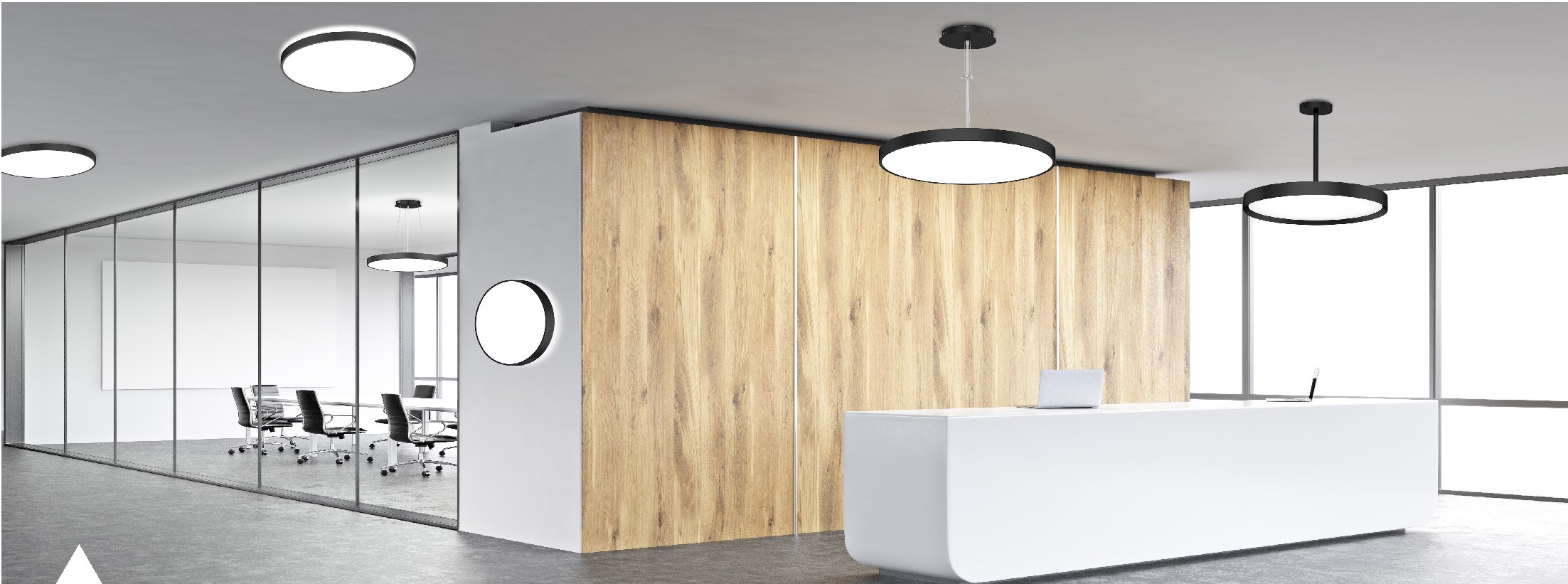

Application Areas It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc.

A

D

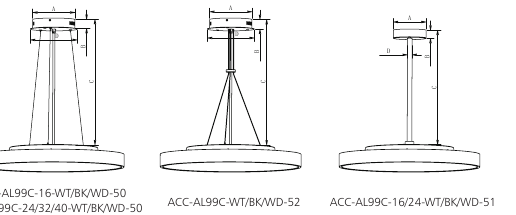

Suspension accessories （Purchase as needed） ACC-AL99C-16-WT/BK/WD-50 ACC-AL99C-WT/BK/WD-52 ACC-AL99C-16/24-WT/BK/WD-51 ACC-AL99C-24/32/40-WT/BK/WD-50

Measurement

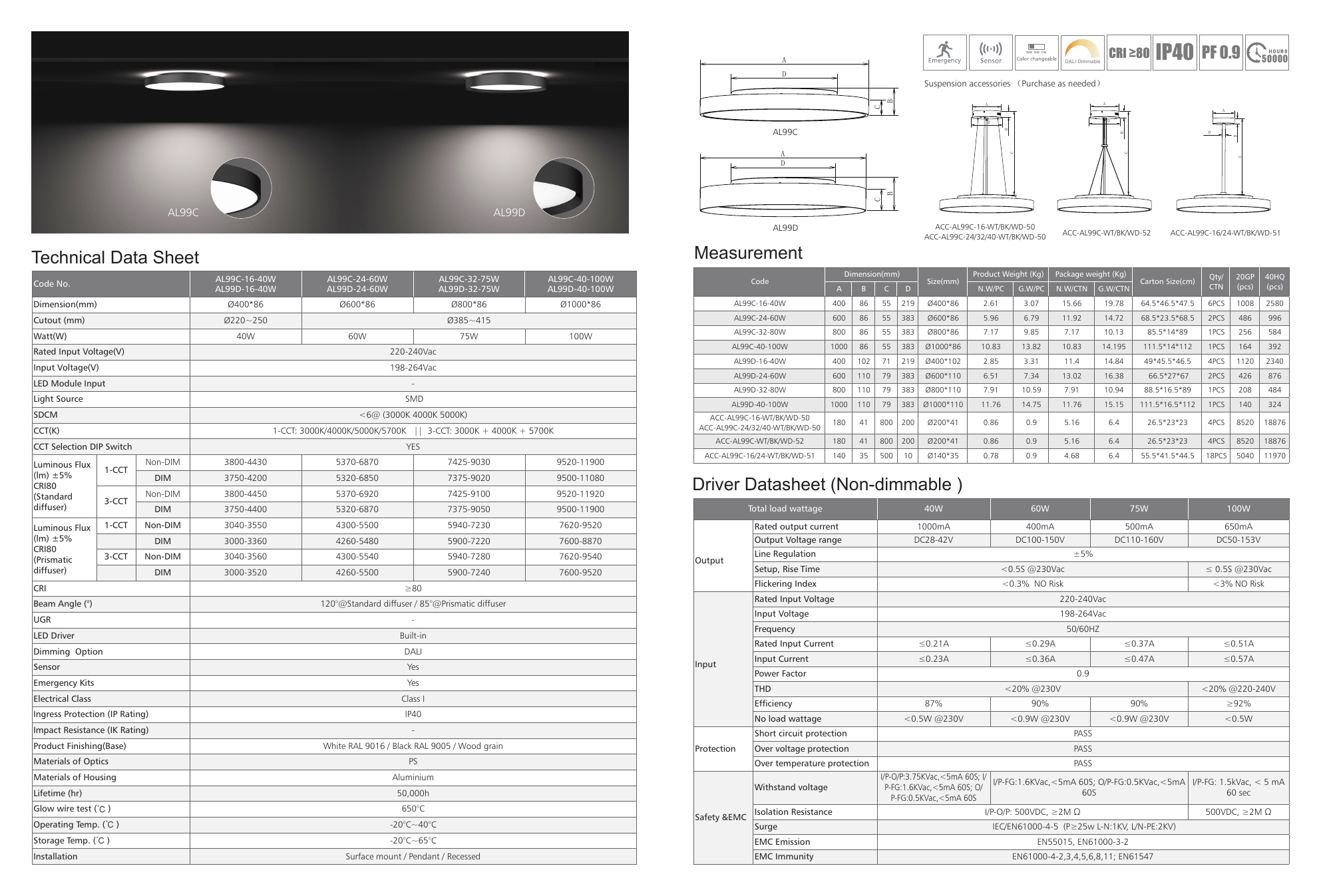

Technical Data Sheet Code No.

A A L L 9 9 9 9 D C- - 1 1 6 6 - - 4 4 0 0 W W A A L L 9 9 9 9 D C- - 2 2 4 4 - - 6 6 0 0 W W A A L L 9 9 9 9 D C- - 3 3 2 2 - - 7 7 5 5 W W A A L L 9 9 9 9 D C- - 4 4 0 0 - - 1 1 0 0 0 0 W W Code A Dime B nsion(m C m) D Size(mm) Pr N o .

d W u / c P t C Weig G h .

t W (K /P g C ) P N a .

c W ka /C g T e N weig G h .W t ( / K C g T ) N Carton Size(cm) Q CT ty N / 2 (p 0 c G s P ) 4 (p 0 c H s Q )

Dimension(mm) Ø400*86 Ø600*86 Ø800*86 Ø1000*86 AL99C-16-40W 400 86 55 219 Ø400*86 2.61 3.07 15.66 19.78 64.5*46.5*47.5 6PCS 1008 2580

Cutout (mm) Ø220~250 Ø385~415 AL99C-24-60W 600 86 55 383 Ø600*86 5.96 6.79 11.92 14.72 68.5*23.5*68.5 2PCS 486 996 AL99C-32-80W 800 86 55 383 Ø800*86 7.17 9.85 7.17 10.13 85.5*14*89 1PCS 256 584

Watt(W) 40W 60W 75W 100W AL99C-40-100W 1000 86 55 383 Ø1000*86 10.83 13.82 10.83 14.195 111.5*14*112 1PCS 164 392 Rated Input Voltage(V) 220-240Vac

AL99D-16-40W 400 102 71 219 Ø400*102 2.85 3.31 11.4 14.84 49*45.5*46.5 4PCS 1120 2340 Input Voltage(V) 198-264Vac AL99D-24-60W 600 110 79 383 Ø600*110 6.51 7.34 13.02 16.38 66.5*27*67 2PCS 426 876

LED Module Input -AL99D-32-80W 800 110 79 383 Ø800*110 7.91 10.59 7.91 10.94 88.5*16.5*89 1PCS 208 484 Light Source SMD AL99D-40-100W 1000 110 79 383 Ø1000*110 11.76 14.75 11.76 15.15 111.5*16.5*112 1PCS 140 324

SDCM <6@ (3000K 4000K 5000K) ACC-AL99C-16-WT/BK/WD-50 180 41 800 200 Ø200*41 0.86 0.9 5.16 6.4 26.5*23*23 4PCS 8520 18876

CCT(K) 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K ACC-AL99C-24/32/40-WT/BK/WD-50 ACC-AL99C-WT/BK/WD-52 180 41 800 200 Ø200*41 0.86 0.9 5.16 6.4 26.5*23*23 4PCS 8520 18876

CCT Selection DIP Switch YES ACC-AL99C-16/24-WT/BK/WD-51 140 35 500 10 Ø140*35 0.78 0.9 4.68 6.4 55.5*41.5*44.5 18PCS 5040 11970

Luminous Flux Non-DIM 3800-4430 5370-6870 7425-9030 9520-11900 1-CCT (lm) ±5% DIM 3750-4200 5320-6850 7375-9020 9500-11080

Driver Datasheet (Non-dimmable ) CRI80 (Standard Non-DIM 3800-4450 5370-6920 7425-9100 9520-11920 3-CCT diffuser) DIM 3750-4400 5320-6870 7375-9050 9500-11900 Total load wattage 40W 60W 75W 100W

Luminous Flux 1-CCT Non-DIM 3040-3550 4300-5500 5940-7230 7620-9520 Rated output current 1000mA 400mA 500mA 650mA (lm) ±5% DIM 3000-3360 4260-5480 5900-7220 7600-8870 Output Voltage range DC28-42V DC100-150V DC110-160V DC50-153V

CRI80 (Prismatic 3-CCT Non-DIM 3040-3560 4300-5540 5940-7280 7620-9540 Output Line Regulation ±5% diffuser) DIM 3000-3520 4260-5500 5900-7240 7600-9520 Setup, Rise Time <0.5S @230Vac ≤ 0.5S @230Vac

Flickering Index <0.3% NO Risk <3% NO Risk CRI ≥80 Rated Input Voltage 220-240Vac Beam Angle (°) 120°@Standard diffuser / 85°@Prismatic diffuser

Input Voltage 198-264Vac UGR -Frequency 50/60HZ LED Driver Built-in Rated Input Current ≤0.21A ≤0.29A ≤0.37A ≤0.51A Dimming Option DALI

Input Current ≤0.23A ≤0.36A ≤0.47A ≤0.57A Sensor Yes Input Power Factor 0.9 Emergency Kits Yes THD <20% @230V <20% @220-240V

Electrical Class Class I Efficiency 87% 90% 90% ≥92% Ingress Protection (IP Rating) IP40 No load wattage <0.5W @230V <0.9W @230V <0.9W @230V <0.5W

Impact Resistance (IK Rating) -Short circuit protection PASS Product Finishing(Base) White RAL 9016 / Black RAL 9005 / Wood grain Protection Over voltage protection PASS

Materials of Optics PS Over temperature protection PASS Materials of Housing Aluminium I/P-O/P:3.75KVac,<5mA 60S; I/ I/P-FG:1.6KVac,<5mA 60S; O/P-FG:0.5KVac,<5mA I/P-FG: 1.5kVac, < 5 mA

Withstand voltage P-FG:1.6KVac,<5mA 60S; O/ Lifetime (hr) 50,000h 60S 60 sec P-FG:0.5KVac,<5mA 60S Glow wire test (℃ ) 650°C Isolation Resistance I/P-O/P: 500VDC, ≥2M Ω 500VDC, ≥2M Ω

Safety &EMC Operating Temp. (℃ ) -20°C~40°C Surge IEC/EN61000-4-5 (P≥25w L-N:1KV, L/N-PE:2KV) Storage Temp. (℃ ) -20°C~65°C EMC Emission EN55015, EN61000-3-2

Installation Surface mount / Pendant / Recessed EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547

C

B

A

D

C

B

A

B

D

C

A

D

B

C

A

B

C

IP40 PF 0.9 DALI Dimmable AL99C D AL99C AL99D AL99D

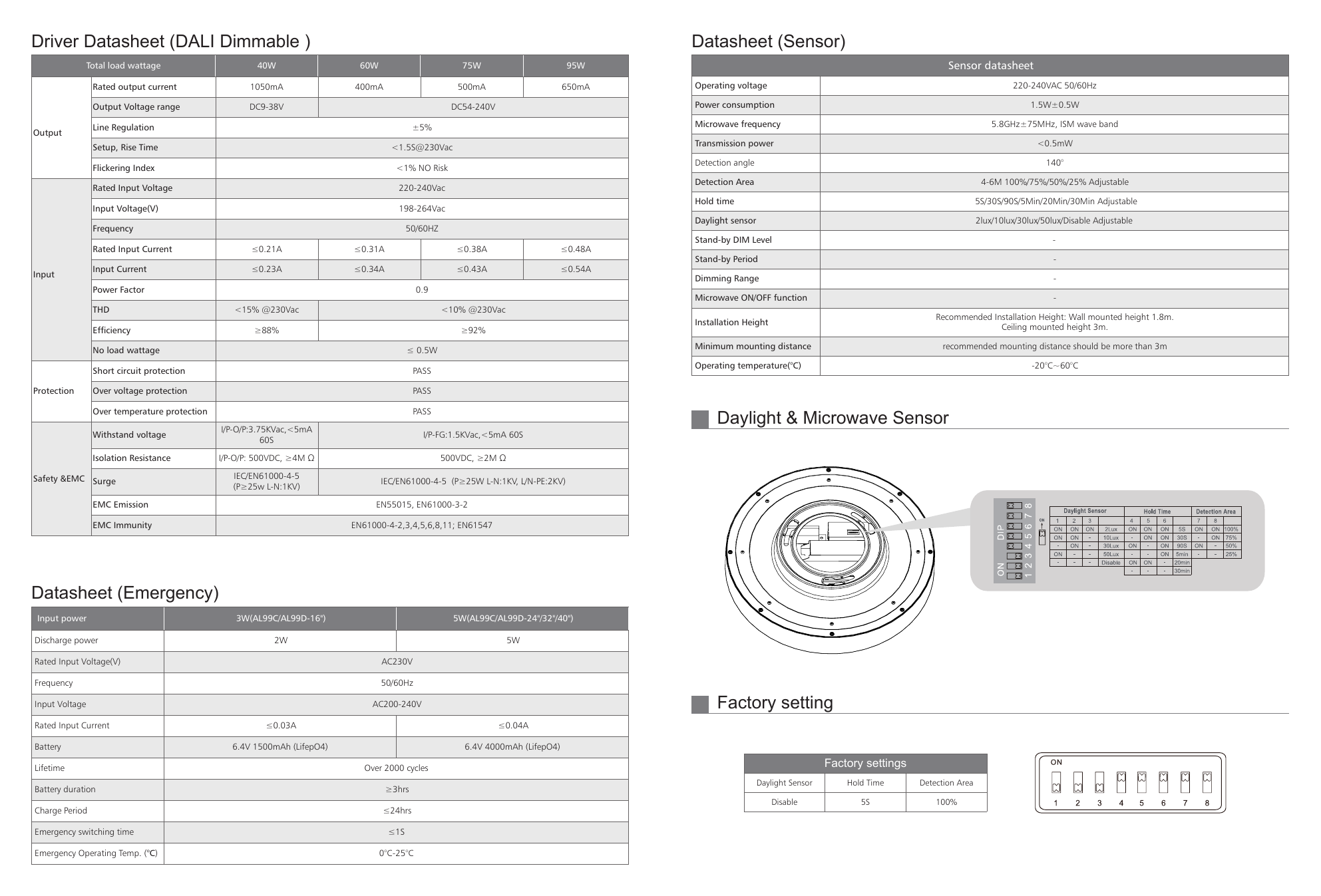

Driver Datasheet (DALI Dimmable ) Datasheet (Sensor) Total load wattage 40W 60W 75W 95W Sensor datasheet Rated output current 1050mA 400mA 500mA 650mA Operating voltage 220-240VAC 50/60Hz

Output Voltage range DC9-38V DC54-240V Power consumption 1.5W±0.5W Microwave frequency 5.8GHz±75MHz, ISM wave band Line Regulation ±5%

Output

Transmission power <0.5mW Setup, Rise Time <1.5S@230Vac Detection angle 140° Flickering Index <1% NO Risk Detection Area 4-6M 100%/75%/50%/25% Adjustable

Rated Input Voltage 220-240Vac Hold time 5S/30S/90S/5Min/20Min/30Min Adjustable Input Voltage(V) 198-264Vac Daylight sensor 2lux/10lux/30lux/50lux/Disable Adjustable

Frequency 50/60HZ Stand-by DIM Level -Rated Input Current ≤0.21A ≤0.31A ≤0.38A ≤0.48A Stand-by Period -Input Current ≤0.23A ≤0.34A ≤0.43A ≤0.54A

Input

Dimming Range -Power Factor 0.9 Microwave ON/OFF function -THD <15% @230Vac <10% @230Vac Recommended Installation Height: Wall mounted height 1.8m.

Installation Height Efficiency ≥88% ≥92% Ceiling mounted height 3m.

Minimum mounting distance recommended mounting distance should be more than 3m No load wattage ≤ 0.5W Operating temperature(°C) -20°C~60°C

Short circuit protection PASS Protection Over voltage protection PASS Over temperature protection PASS Daylight & Microwave Sensor

I/P-O/P:3.75KVac,<5mA Withstand voltage I/P-FG:1.5KVac,<5mA 60S

60S

Isolation Resistance I/P-O/P: 500VDC, ≥4M Ω 500VDC, ≥2M Ω Safety &EMC Surge IEC/EN61000-4-5 IEC/EN61000-4-5 (P≥25W L-N:1KV, L/N-PE:2KV)

(P≥25w L-N:1KV) EMC Emission EN55015, EN61000-3-2 EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547 Datasheet (Emergency) Input power 3W(AL99C/AL99D-16") 5W(AL99C/AL99D-24"/32"/40")

Discharge power 2W 5W Rated Input Voltage(V) AC230V Frequency 50/60Hz Factory setting Input Voltage AC200-240V Rated Input Current ≤0.03A ≤0.04A

Battery 6.4V 1500mAh (LifepO4) 6.4V 4000mAh (LifepO4) Factory settings Lifetime Over 2000 cycles Daylight Sensor Hold Time Detection Area

Battery duration ≥3hrs Disable 5S 100% Charge Period ≤24hrs Emergency switching time ≤1S Emergency Operating Temp. (°C) 0°C-25°C

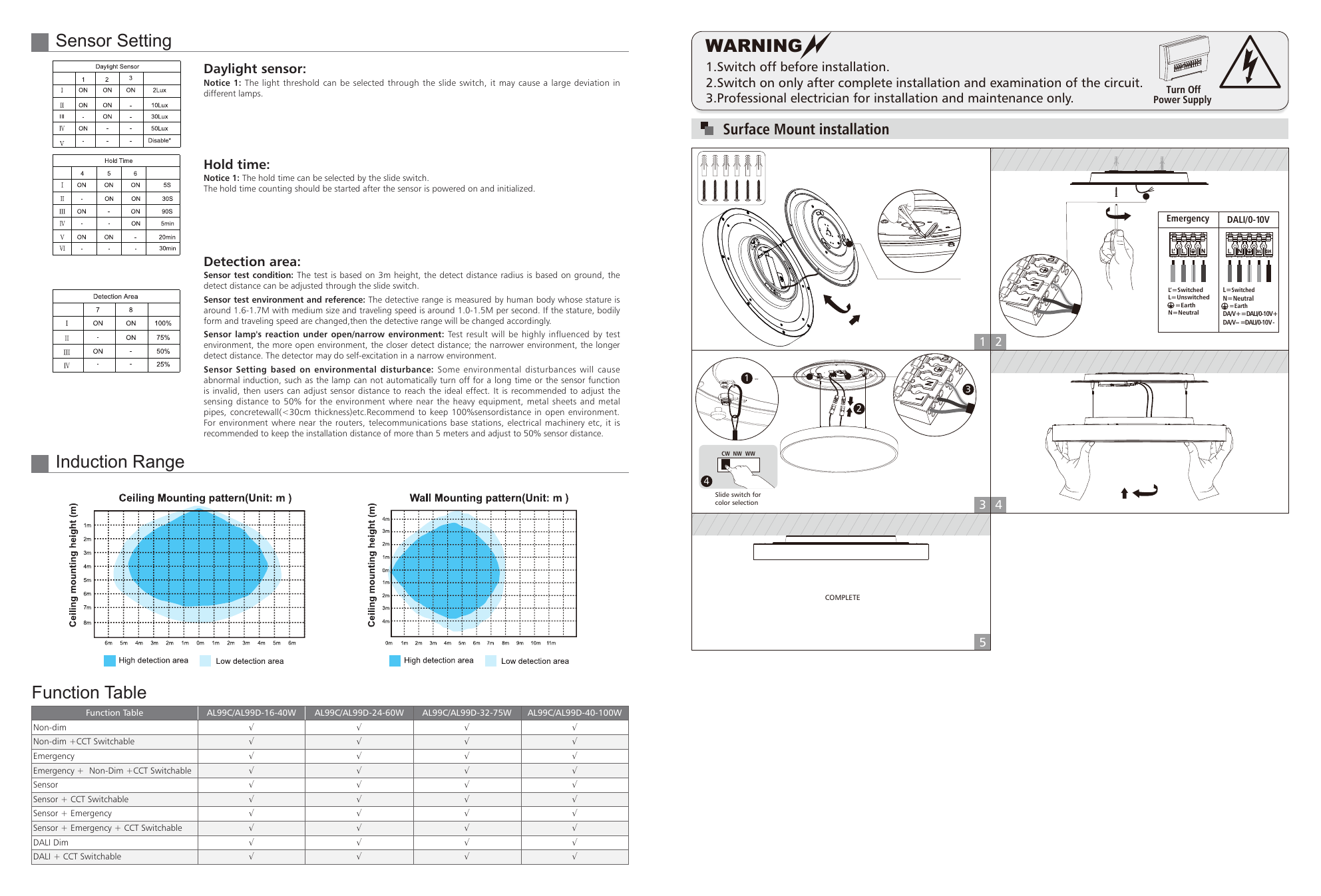

Sensor Setting WARNING Daylight sensor: 1.Switch off before installation.

Notice 1: The light threshold can be selected through the slide switch, it may cause a large deviation in 2.Switch on only after complete installation and examination of the circuit.

Turn Off different lamps. 3.Professional electrician for installation and maintenance only. Power Supply Surface Mount installation

Hold time:

Notice 1: The hold time can be selected by the slide switch.

The hold time counting should be started after the sensor is powered on and initialized.

Emergency DALI/0-10V Detection area:

Sensor test condition: The test is based on 3m height, the detect distance radius is based on ground, the detect distance can be adjusted through the slide switch.

L’=Switched L=Switched Sensor test environment and reference: The detective range is measured by human body whose stature is L=Unswitched N=Neutral

around 1.6-1.7M with medium size and traveling speed is around 1.0-1.5M per second. If the stature, bodily =Earth =Earth N=Neutral DA/V+=DALI/0-10V+

form and traveling speed are changed,then the detective range will be changed accordingly. DA/V =DALI/0-10V-Sensor lamp's reaction under open/narrow environment: Test result will be highly influenced by test

environment, the more open environment, the closer detect distance; the narrower environment, the longer detect distance. The detector may do self-excitation in a narrow environment.

Sensor Setting based on environmental disturbance: Some environmental disturbances will cause abnormal induction, such as the lamp can not automatically turn off for a long time or the sensor function 1

is invalid, then users can adjust sensor distance to reach the ideal effect. It is recommended to adjust the 3 sensing distance to 50% for the environment where near the heavy equipment, metal sheets and metal

pipes, concretewall(<30cm thickness)etc.Recommend to keep 100%sensordistance in open environment.

For environment where near the routers, telecommunications base stations, electrical machinery etc, it is recommended to keep the installation distance of more than 5 meters and adjust to 50% sensor distance.

CW NW WW Induction Range

Slide switch for color selection 3 4 COMPLETE

Function Table Function Table AL99C/AL99D-16-40W AL99C/AL99D-24-60W AL99C/AL99D-32-75W AL99C/AL99D-40-100W Non-dim √ √ √ √

Non-dim +CCT Switchable √ √ √ √ Emergency √ √ √ √ Emergency + Non-Dim +CCT Switchable √ √ √ √ Sensor √ √ √ √ Sensor + CCT Switchable √ √ √ √

Sensor + Emergency √ √ √ √ Sensor + Emergency + CCT Switchable √ √ √ √ DALI Dim √ √ √ √ DALI + CCT Switchable √ √ √ √

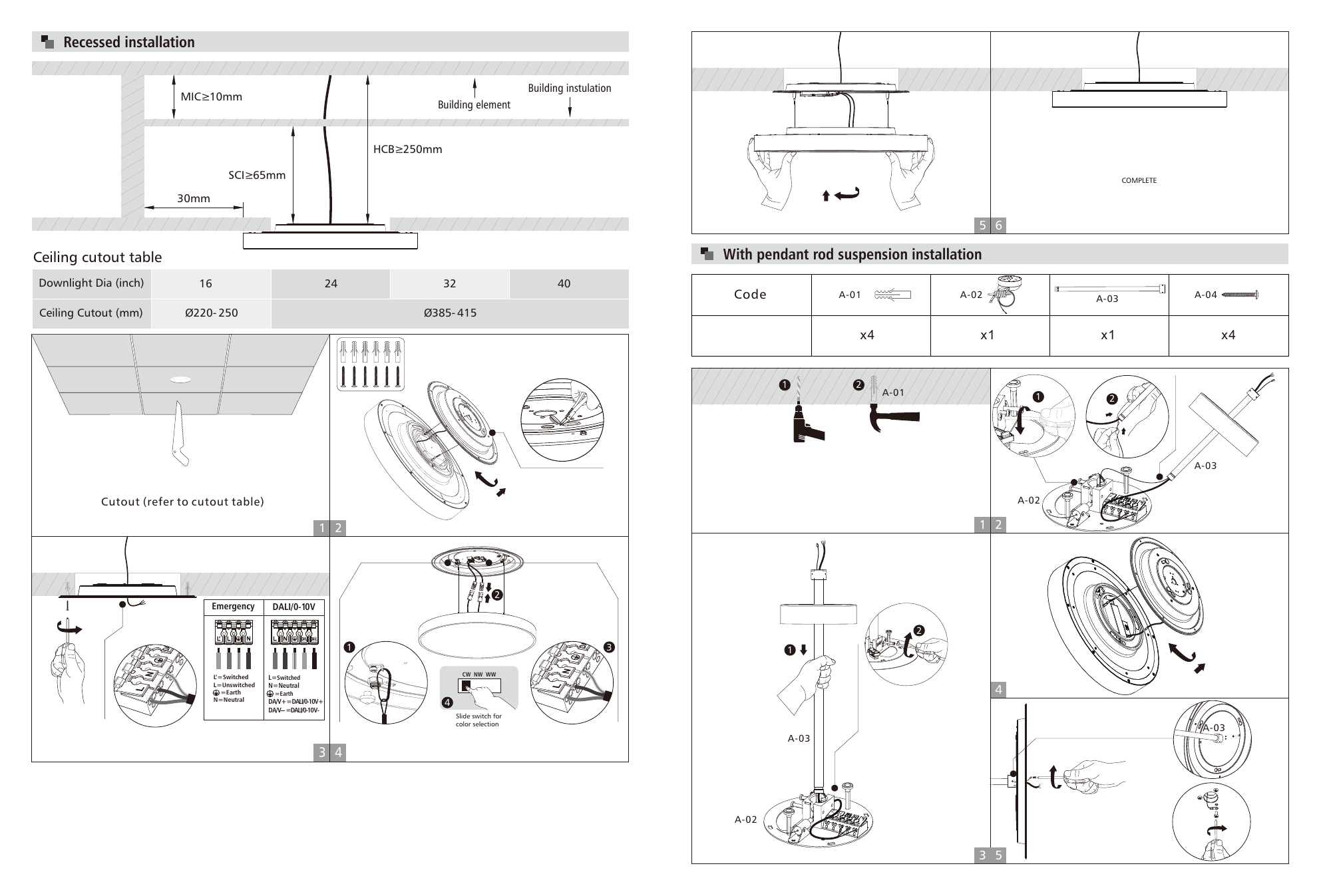

Recessed installation Building instulation MIC≥10mm Building element HCB≥250mm SCI≥65mm 30mm With pendant rod suspension installation

Ceiling cutout table Downlight Dia (inch) 16 24 32 40 Code A-01 A-02 A-04

A-03

Ceiling Cutout (mm) Ø220- 250 Ø385- 415 x4 x1 x1 x4

A-01

A-03

Cutout (refer to cutout table) A-02

Emergency DALI/0-10V

L’=Switched L=Switched CW NW WW L=Unswitched N=Neutral 4 =Earth =Earth N=Neutral DA/V+=DALI/0-10V+ 4 DA/V =DALI/0-10V-Slide switch for

color selection A-03

A-03

A-02

COMPLETE

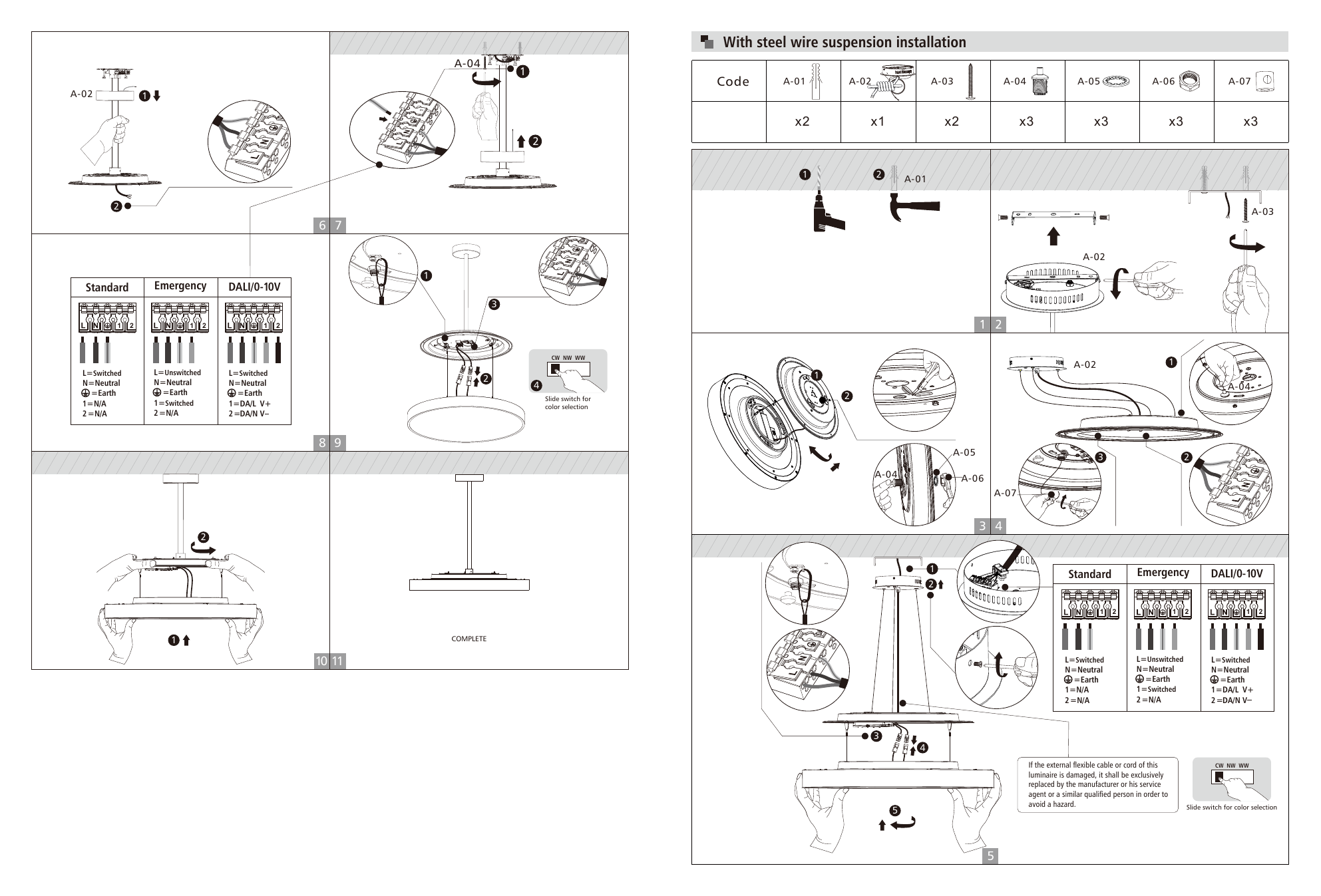

With steel wire suspension installation

A-04

Code A-01 A-02 A-03 A-04 A-05 A-06 A-07 A-02 1

x2 x1 x2 x3 x3 x3 x3

A-01

A-03

A-02

Standard Emergency DALI/0-10V

CW NW WW A-02 1 L=Switched L=Unswitched L=Switched 1

N=Neutral N=Neutral N=Neutral 4 A-04 =Earth =Earth =Earth 2 1=N/A 1=Switched 1=DA/L V+ Slide switch for color selection 2=N/A 2=N/A 2=DA/N V

A-05

A-04

A-06

A-07

1 Standard Emergency DALI/0-10V

1 COMPLETE 10 11 L=Switched L=Unswitched L=Switched N=Neutral N=Neutral N=Neutral =Earth =Earth =Earth 1=N/A 1=Switched 1=DA/L V+

2=N/A 2=N/A 2=DA/N V

If the external flexible cable or cord of this CW NW WW luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service

agent or a similar qualified person in order to avoid a hazard.

5 Slide switch for color selection

Standard Emergency DALI/0-10V

A-02

L=Switched L=Unswitched L=Switched N=Neutral N=Neutral N=Neutral =Earth =Earth =Earth 1=N/A 1=Switched 1=DA/L V+ 2=N/A 2=N/A 2=DA/N V

COMPLETE

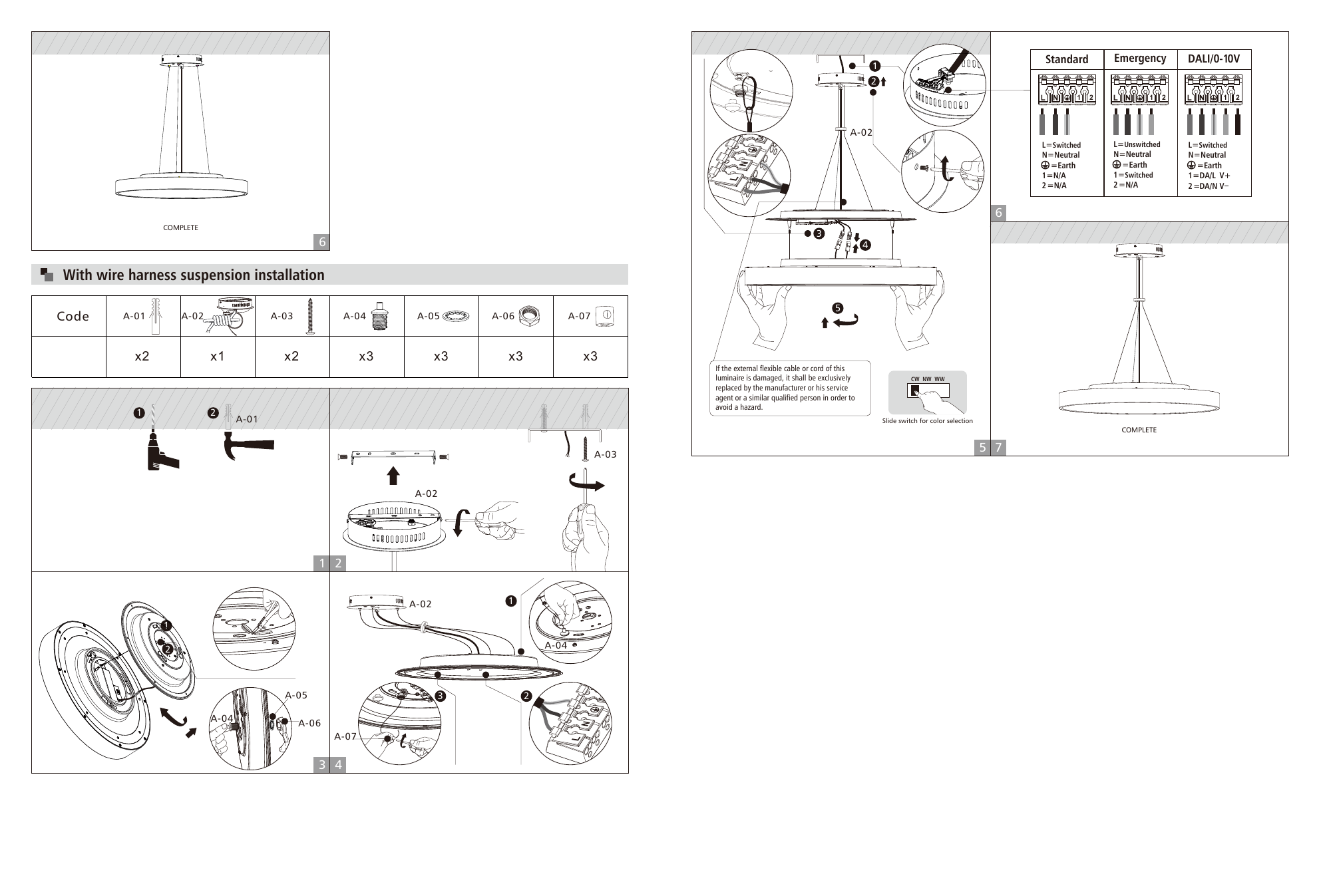

With wire harness suspension installation

Code A-01 A-02 A-03 A-04 A-05 A-06 A-07 x2 x1 x2 x3 x3 x3 x3 If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively CW NW WW

replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

A-01 Slide switch for color selection COMPLETE

A-03

A-02

A-02

A-04

A-05 3 2

A-04

A-06

A-07
