VRL-AL-191

LED Ceiling Light AL191 Series Entry /ECO Standard /STD Professional/PRO ODM & OEM Intelligent/INT

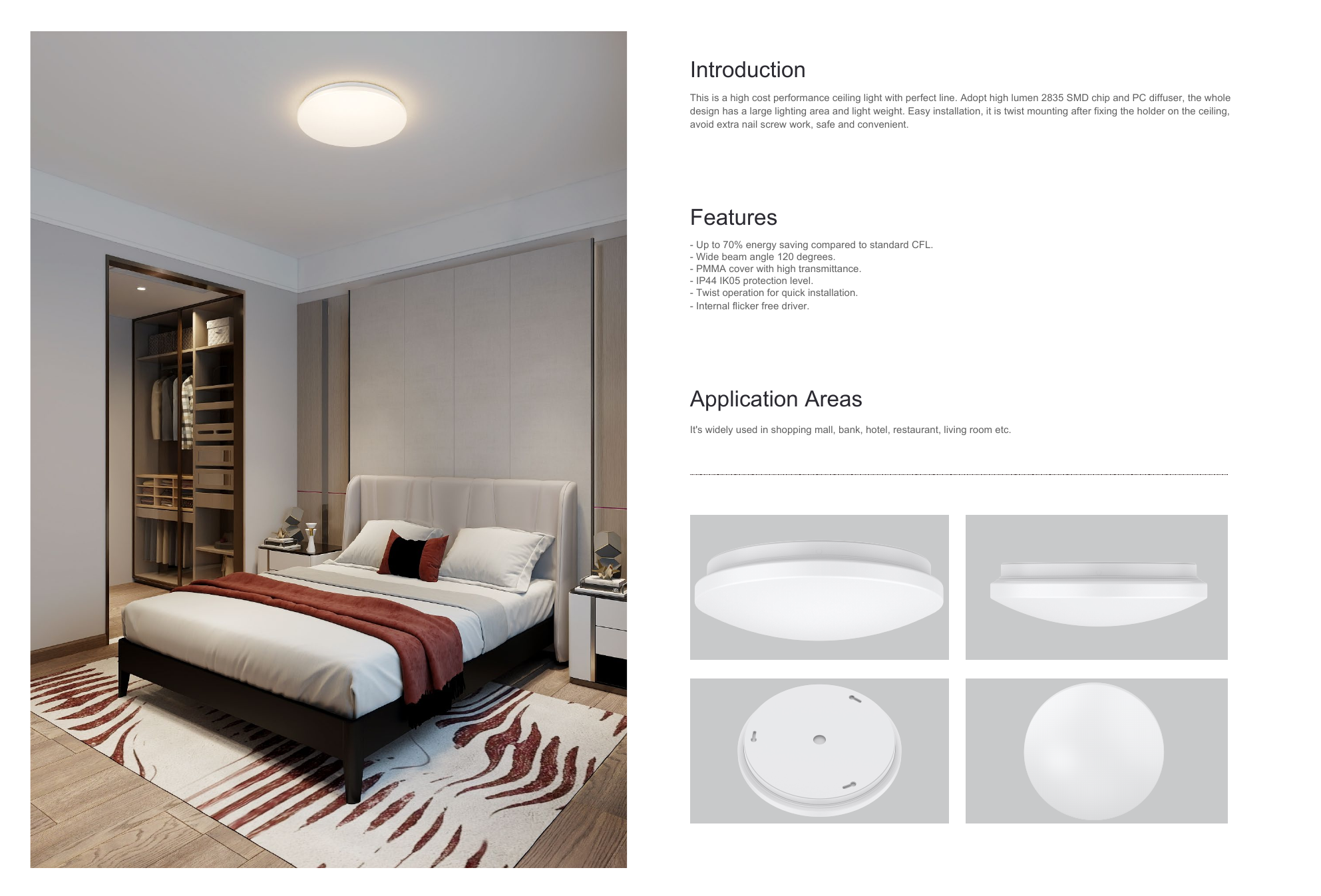

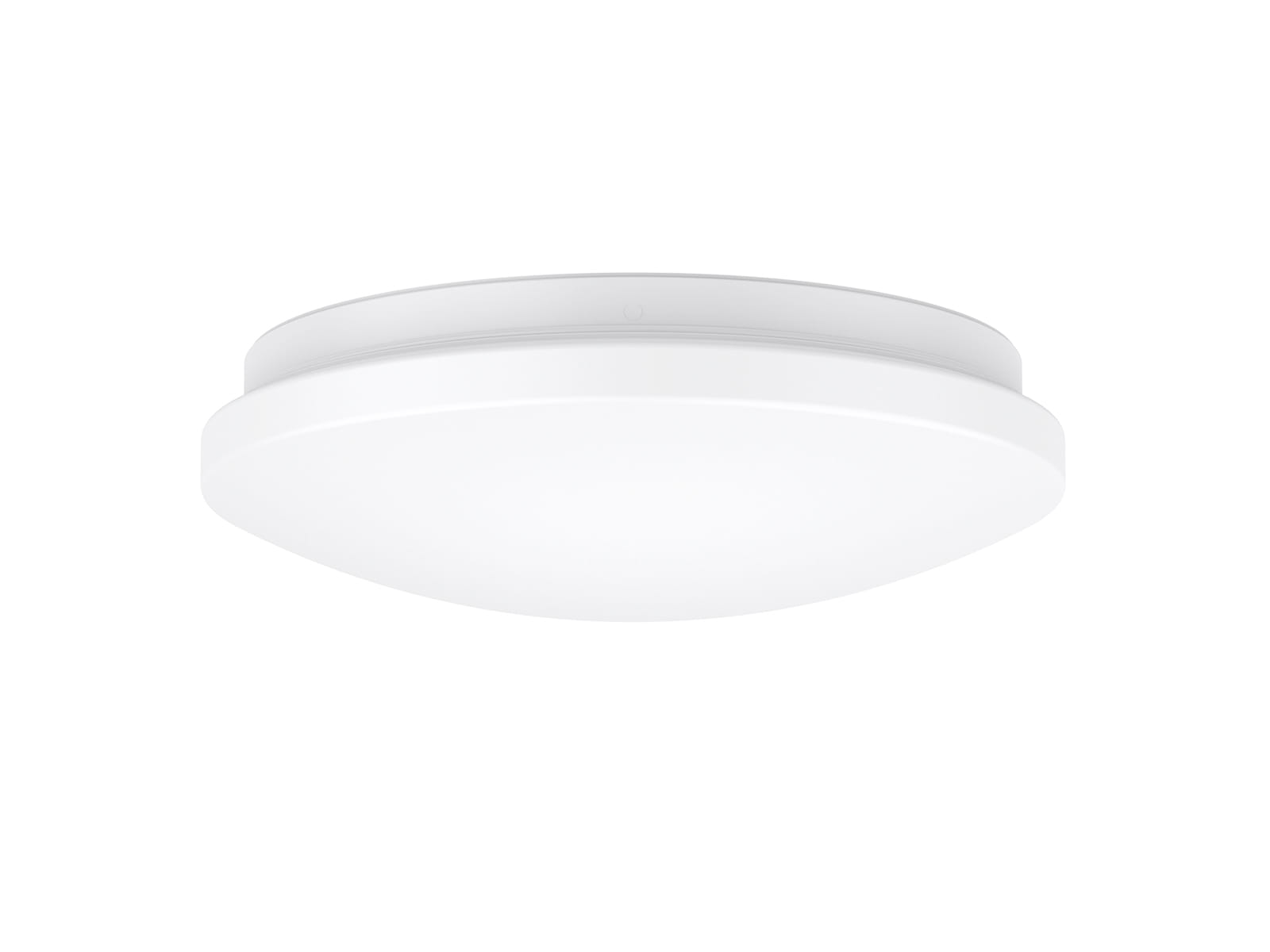

Introduction

This is a high cost performance ceiling light with perfect line. Adopt high lumen 2835 SMD chip and PC diffuser, the whole

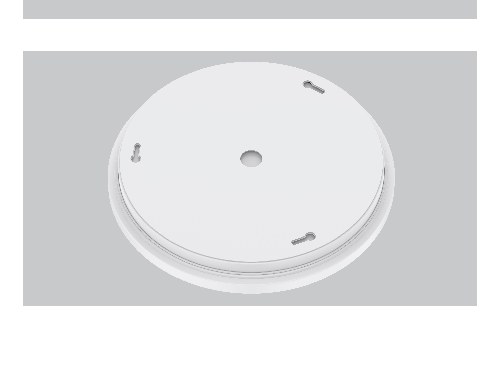

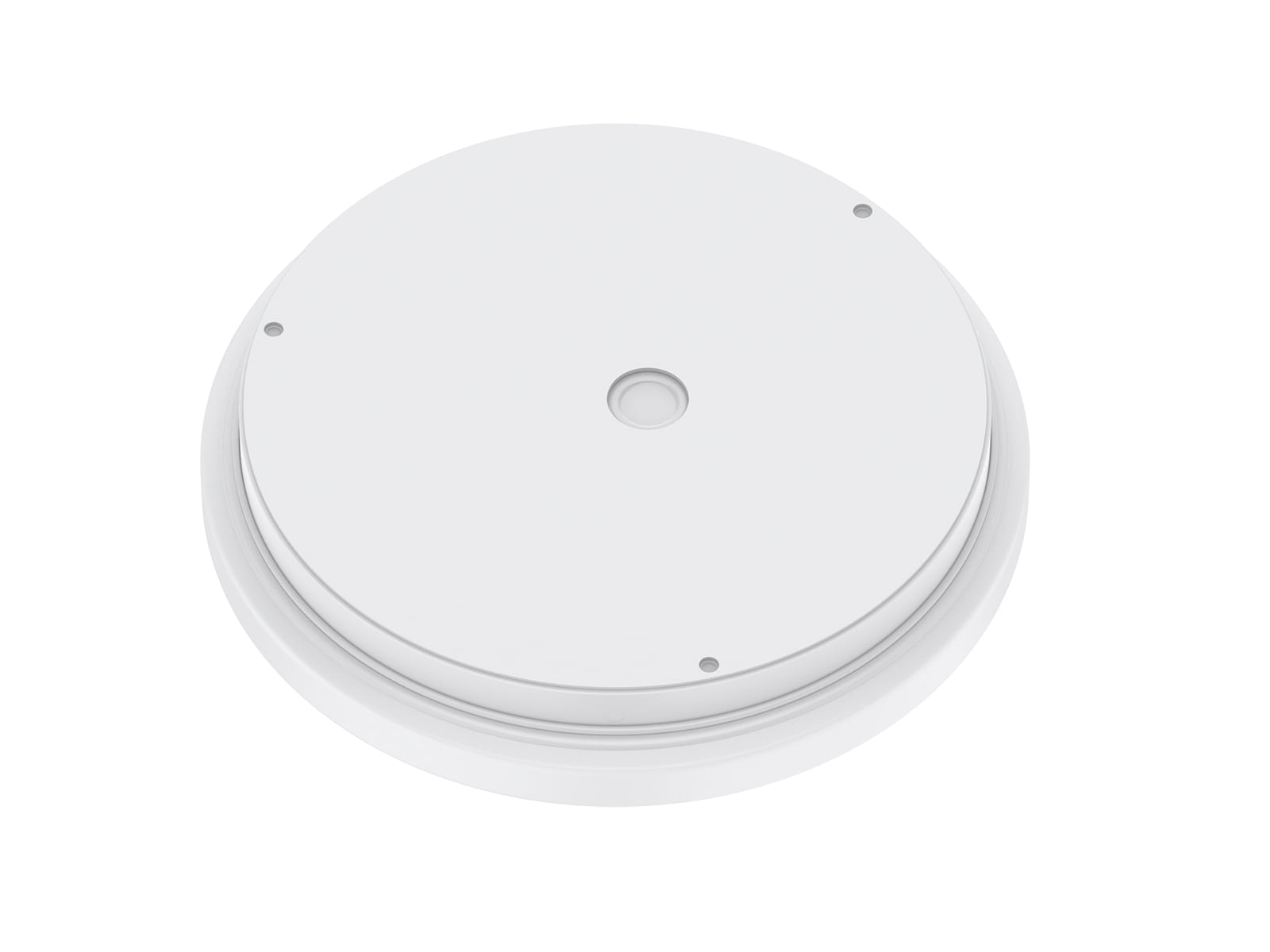

design has a large lighting area and light weight. Easy installation, it is twist mounting after fixing the holder on the ceiling,

avoid extra nail screw work, safe and convenient.

Features

• Up to 70% energy saving compared to standard CFL.
• Wide beam angle 120 degrees.
• PMMA cover with high transmittance.
• IP44 IK05 protection level.
• Twist operation for quick installation.
• Internal flicker free driver.

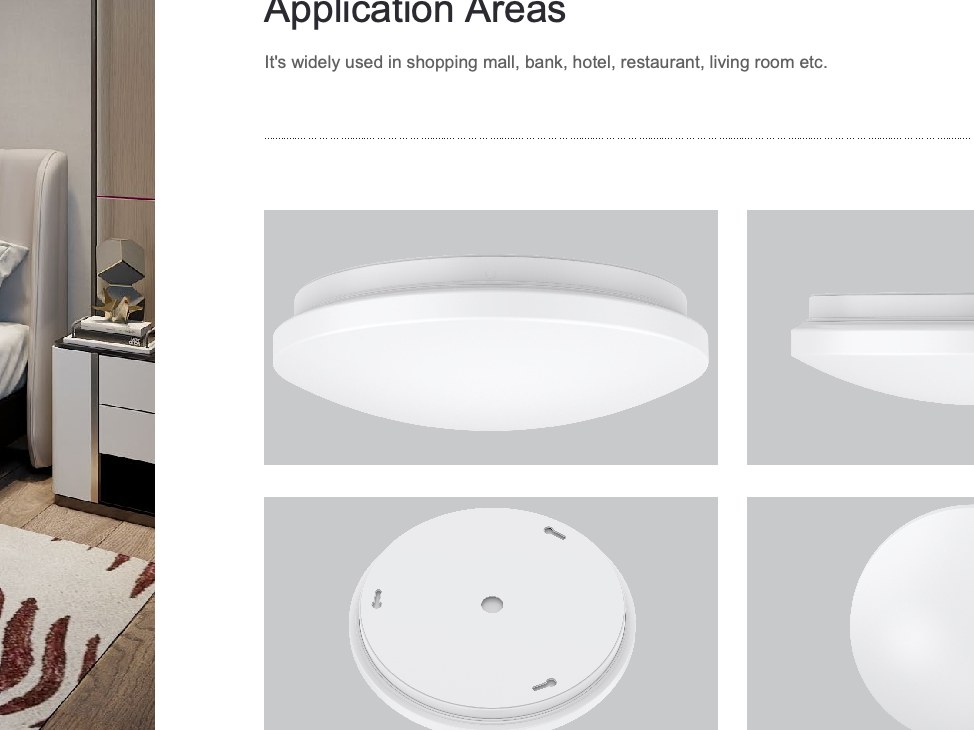

Application Areas It's widely used in shopping mall, bank, hotel, restaurant, living room etc.

IP44 IK05 PF 0.9

A

B

Measurement

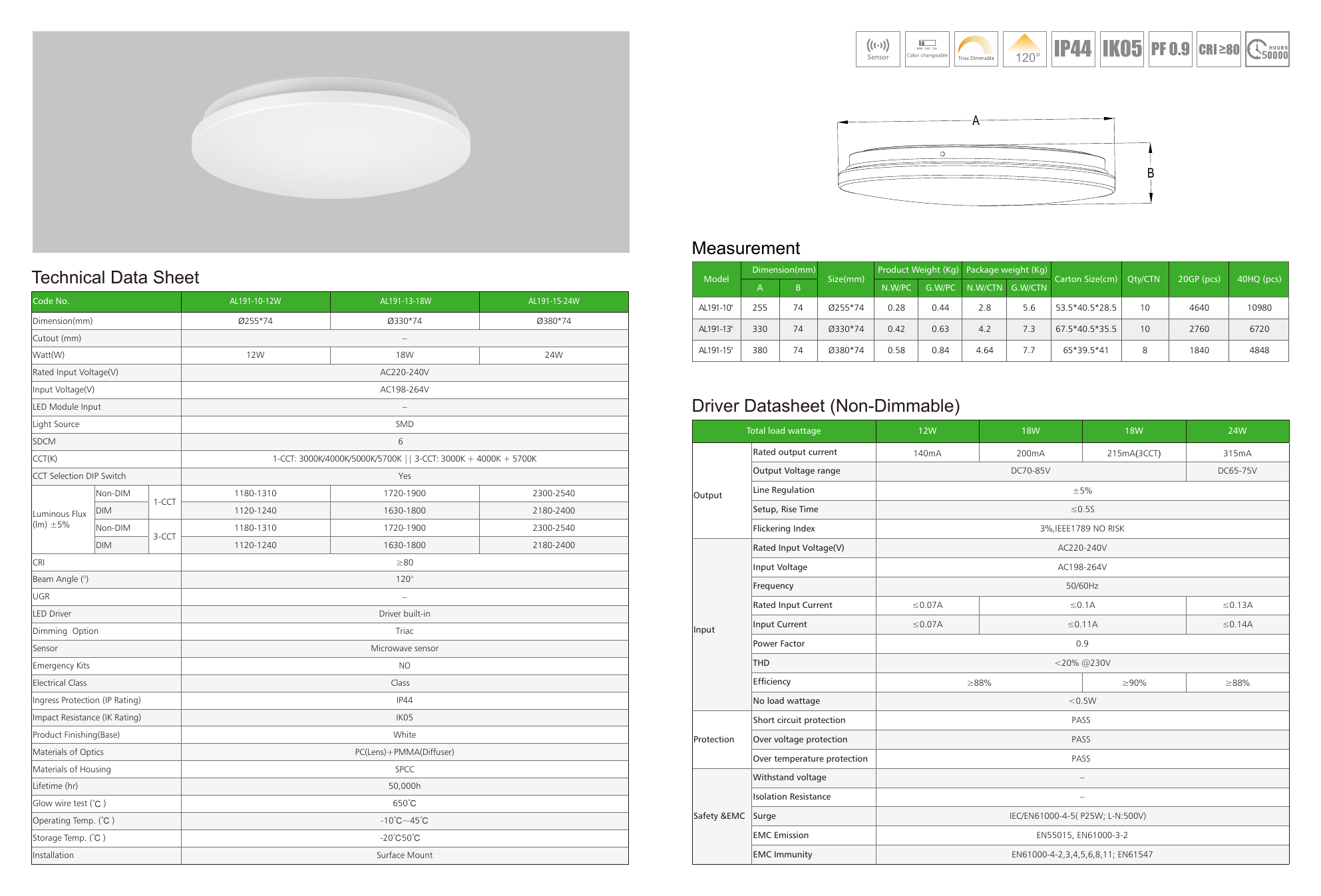

Dimension(mm) Product Weight (Kg) Package weight (Kg) Technical Data Sheet Model Size(mm) Carton Size(cm) Qty/CTN 20GP (pcs) 40HQ (pcs)

A B N.W/PC G.W/PC N.W/CTN G.W/CTN Code No. AL191-10-12W AL191-13-18W AL191-15-24W AL191-10" 255 74 Ø255*74 0.28 0.44 2.8 5.6 53.5*40.5*28.5 10 4640 10980

Dimension(mm) Ø255*74 Ø330*74 Ø380*74 AL191-13" 330 74 Ø330*74 0.42 0.63 4.2 7.3 67.5*40.5*35.5 10 2760 6720 Cutout (mm) –

AL191-15" 380 74 Ø380*74 0.58 0.84 4.64 7.7 65*39.5*41 8 1840 4848 Watt(W) 12W 18W 24W Rated Input Voltage(V) AC220-240V Input Voltage(V) AC198-264V

Driver Datasheet (Non-Dimmable) LED Module Input – Light Source SMD Total load wattage 12W 18W 18W 24W SDCM ＜6 Rated output current 140mA 200mA 215mA(3CCT) 315mA

CCT(K) 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K Output Voltage range DC70-85V DC65-75V CCT Selection DIP Switch Yes

Non-DIM 1180-1310 1720-1900 2300-2540 Output Line Regulation ±5% 1-CCT Luminous Flux DIM 1120-1240 1630-1800 2180-2400 Setup, Rise Time ≤0.5S

(lm) ±5% Non-DIM 1180-1310 1720-1900 2300-2540 Flickering Index 3%,IEEE1789 NO RISK 3-CCT DIM 1120-1240 1630-1800 2180-2400 Rated Input Voltage(V) AC220-240V

CRI ≥80 Input Voltage AC198-264V Beam Angle (°) 120° Frequency 50/60Hz UGR – Rated Input Current ≤0.07A ≤0.1A ≤0.13A LED Driver Driver built-in

Input Current ≤0.07A ≤0.11A ≤0.14A Dimming Option Triac Input Power Factor 0.9 Sensor Microwave sensor Emergency Kits NO THD <20% @230V

Electrical Class ClassⅠ Efficiency ≥88% ≥90% ≥88% Ingress Protection (IP Rating) IP44 No load wattage <0.5W Impact Resistance (IK Rating) IK05 Short circuit protection PASS

Product Finishing(Base) White Protection Over voltage protection PASS Materials of Optics PC(Lens)+PMMA(Diffuser) Over temperature protection PASS

Materials of Housing SPCC Withstand voltage – Lifetime (hr) 50,000h Isolation Resistance – Glow wire test (℃ ) 650℃ Safety &EMC Surge IEC/EN61000-4-5( P＜25W; L-N:500V)

Operating Temp. (℃ ) -10℃~45℃ Storage Temp. (℃ ) -20℃～50℃ EMC Emission EN55015, EN61000-3-2 Installation Surface Mount EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547

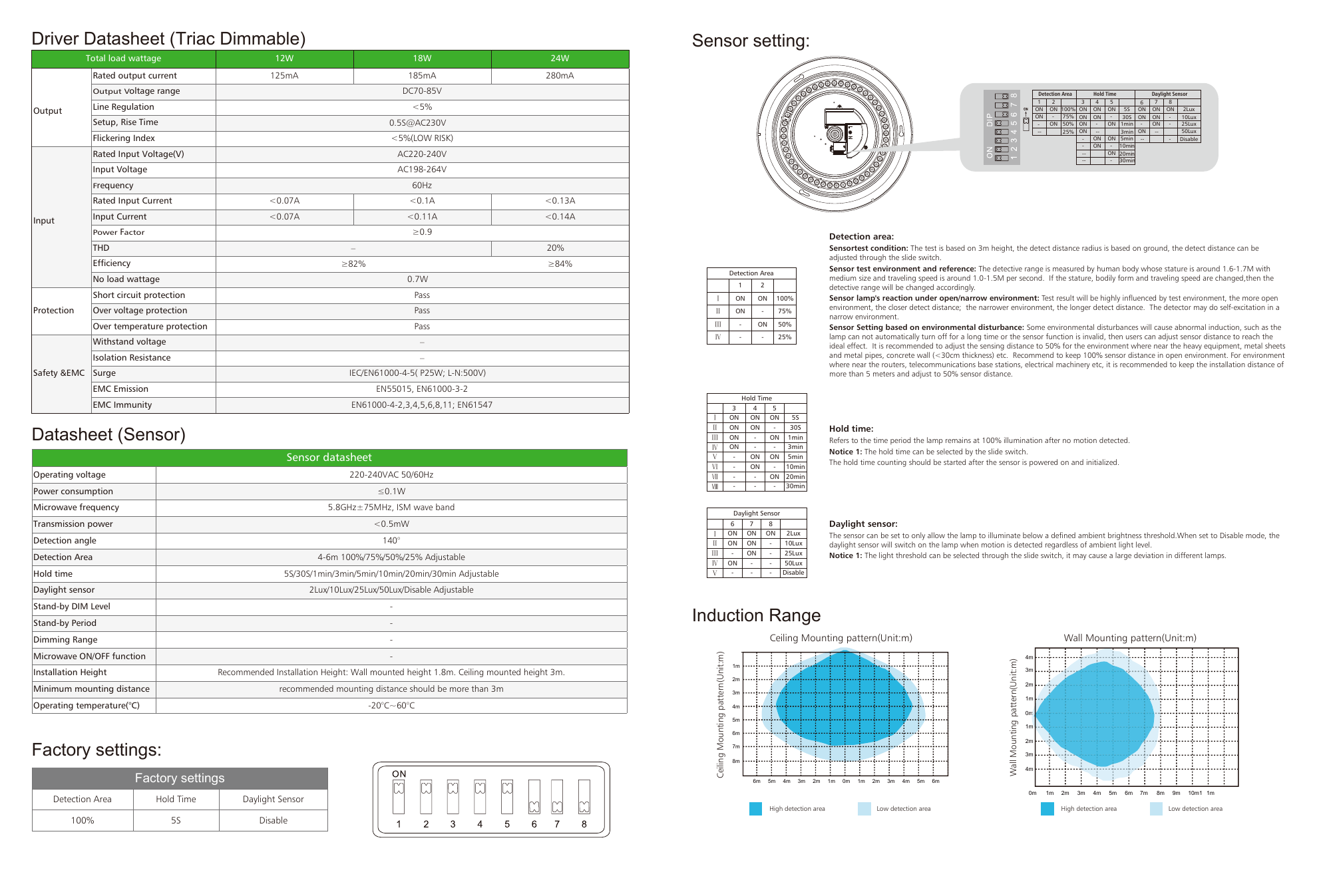

Driver Datasheet (Triac Dimmable) Total load wattage 12W 18W 24W Rated output current 125mA 185mA 280mA Output Voltage range DC70-85V

Line Regulation <5%

Output

Setup, Rise Time ＜0.5S@AC230V Flickering Index <5%(LOW RISK) Rated Input Voltage(V) AC220-240V Input Voltage AC198-264V Frequency 60Hz

Rated Input Current <0.07A <0.1A <0.13A Input Current <0.07A <0.11A <0.14A

Input

Power Factor ≥0.9 THD – ＜20% Efficiency ≥82% ≥84% No load wattage ＜0.7W Short circuit protection Pass Protection Over voltage protection Pass

Over temperature protection Pass Withstand voltage – Isolation Resistance – Safety &EMC Surge IEC/EN61000-4-5( P＜25W; L-N:500V)

EMC Emission EN55015, EN61000-3-2 EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547 Datasheet (Sensor) Sensor datasheet Operating voltage 220-240VAC 50/60Hz

Power consumption ≤0.1W Microwave frequency 5.8GHz±75MHz, ISM wave band Transmission power <0.5mW Detection angle 140° Detection Area 4-6m 100%/75%/50%/25% Adjustable

Hold time 5S/30S/1min/3min/5min/10min/20min/30min Adjustable Daylight sensor 2Lux/10Lux/25Lux/50Lux/Disable Adjustable Stand-by DIM Level -

Induction Range Stand-by Period -Dimming Range - Ceiling Mounting pattern(Unit:m) Microwave ON/OFF function -1m Installation Height Recommended Installation Height: Wall mounted height 1.8m. Ceiling mounted height 3m.

2m Minimum mounting distance recommended mounting distance should be more than 3m 3m Operating temperature(°C) -20°C~60°C 4m

5m 6m Factory settings: 7m 8m 6m 5m 4m 3m 2m 1m 0m 1m 2m 3m 4m 5m 6m High detection area Low detection area High detection area Low detection area

)m:tinU(nrettap gnitnuoM gnilieC Wall Mounting pattern(Unit:m) 4m 3m 2m 1m 0mm 1m 2m 3m 4m 0m 1m 2m 3m 4m 5m 6m 7m 8m 9m 10m1 1m

)m:tinU(nrettap gnitnuoM llaW Sensor setting:

Detection area:

Sensortest condition: The test is based on 3m height, the detect distance radius is based on ground, the detect distance can be

adjusted through the slide switch.

Sensor test environment and reference: The detective range is measured by human body whose stature is around 1.6-1.7M with

Detection Area medium size and traveling speed is around 1.0-1.5M per second. If the stature, bodily form and traveling speed are changed,then the

1 2 detective range will be changed accordingly.

Ⅰ ON ON 100% Sensor lamp's reaction under open/narrow environment: Test result will be highly influenced by test environment, the more open

environment, the closer detect distance; the narrower environment, the longer detect distance. The detector may do self-excitation in a Ⅱ ON - 75%

narrow environment.

Ⅲ - ON 50% Sensor Setting based on environmental disturbance: Some environmental disturbances will cause abnormal induction, such as the

Ⅳ - - 25% lamp can not automatically turn off for a long time or the sensor function is invalid, then users can adjust sensor distance to reach the

ideal effect. It is recommended to adjust the sensing distance to 50% for the environment where near the heavy equipment, metal sheets

and metal pipes, concrete wall (<30cm thickness) etc. Recommend to keep 100% sensor distance in open environment. For environment

where near the routers, telecommunications base stations, electrical machinery etc, it is recommended to keep the installation distance of

more than 5 meters and adjust to 50% sensor distance.

Hold Time

Ⅰ ON ON ON 5S Ⅱ ON ON - 30S Hold time:

Ⅲ ON - ON 1min Refers to the time period the lamp remains at 100% illumination after no motion detected.

Ⅳ ON - - 3min Notice 1: The hold time can be selected by the slide switch.

Ⅴ - ON ON 5min The hold time counting should be started after the sensor is powered on and initialized.

Ⅵ - ON - 10min Ⅶ - - ON 20min Ⅷ - - - 30min Daylight Sensor 6 7 8 Daylight sensor:

Ⅰ ON ON ON 2Lux The sensor can be set to only allow the lamp to illuminate below a defined ambient brightness threshold.When set to Disable mode, the

Ⅱ ON ON - 10Lux daylight sensor will switch on the lamp when motion is detected regardless of ambient light level.

Ⅲ - ON - 25Lux Notice 1: The light threshold can be selected through the slide switch, it may cause a large deviation in different lamps.

Ⅳ ON - - 50Lux Ⅴ - - - Disable

Detection Area Hold Time Daylight Sensor

ON ON 100% ON ON ON 5S ON ON ON 2Lux ON - 75% ON ON - 30S ON ON - 10Lux

• ON 50% ON - ON 1min - ON - 25Lux
• 25% ON -- 3min ON -- 50Lux
• ON ON 5min -- - Disable
• ON - 10min
• ON 20min
• 30min

Factory settings Detection Area Hold Time Daylight Sensor 100% 5S Disable

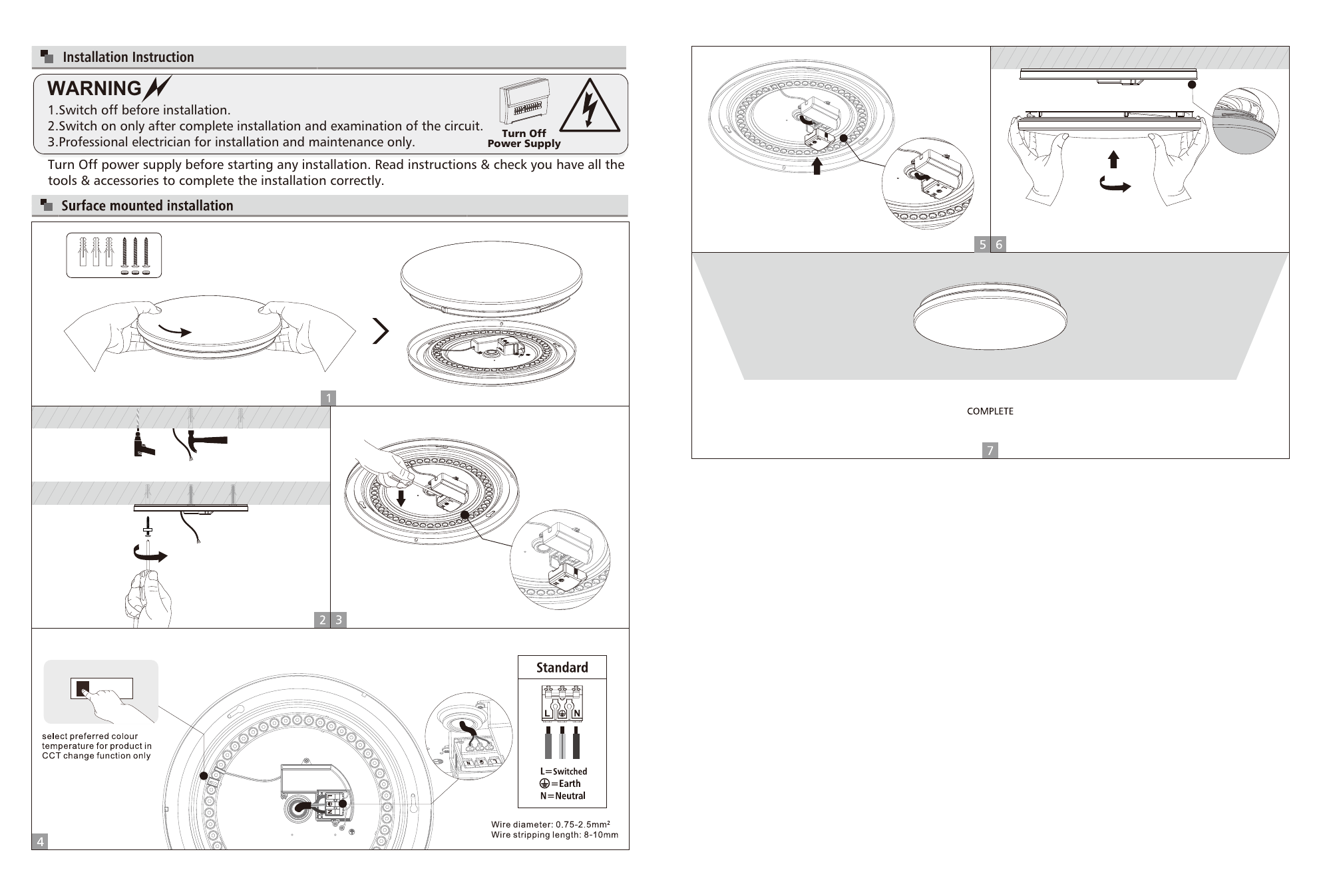

Installation Instruction WARNING 1.Switch off before installation.

2.Switch on only after complete installation and examination of the circuit.

Turn Off 3.Professional electrician for installation and maintenance only. Power Supply Turn Off power supply before starting any installation. Read instructions & check you have all the

tools & accessories to complete the installation correctly.
