LED Track svítidlo, 16W, 4000K, CRI93 vyzařovací úhel 36°

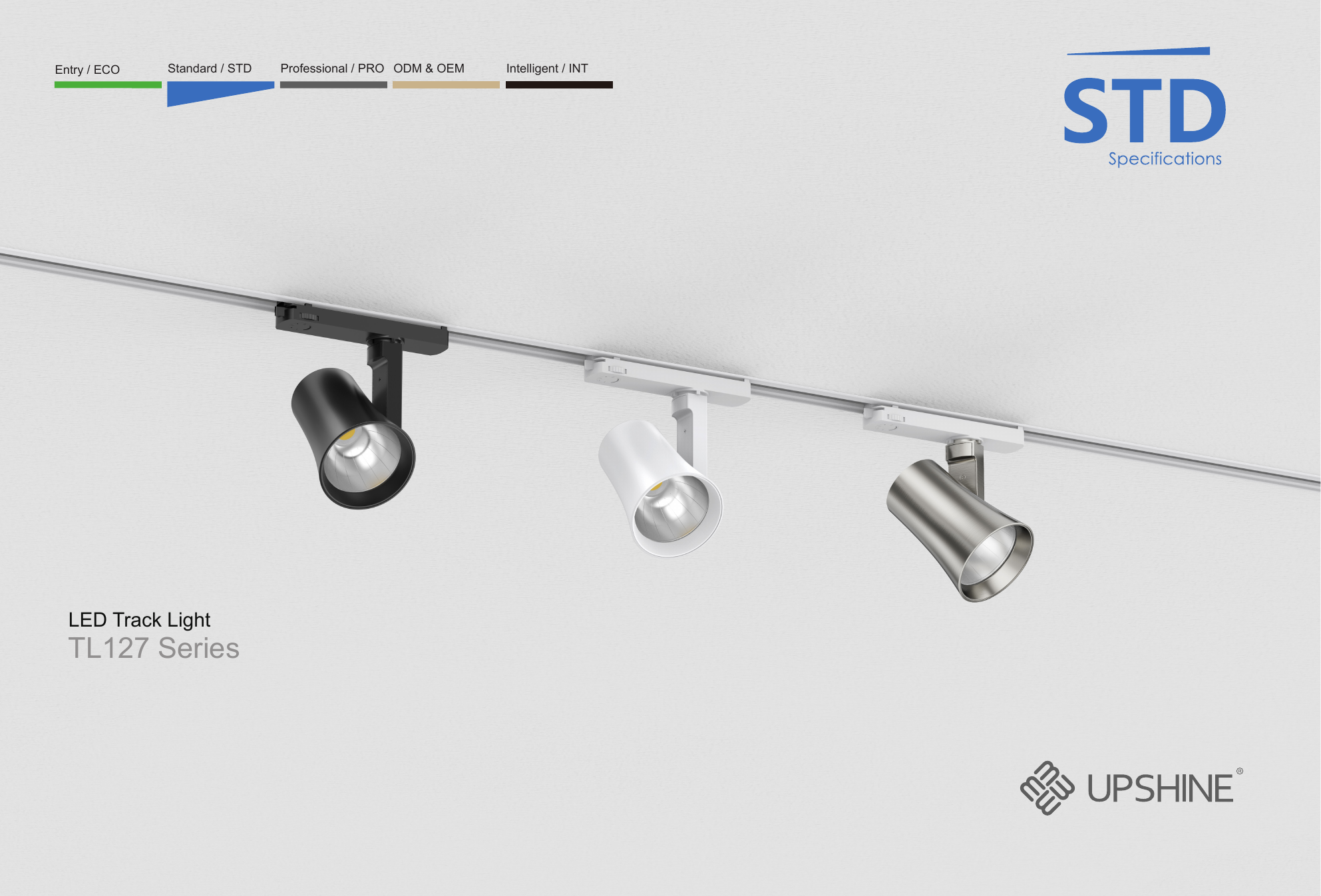

Entry / ECO Standard / STD Professional / PRO ODM & OEM Intelligent / INT LED Track Light TL127 Series

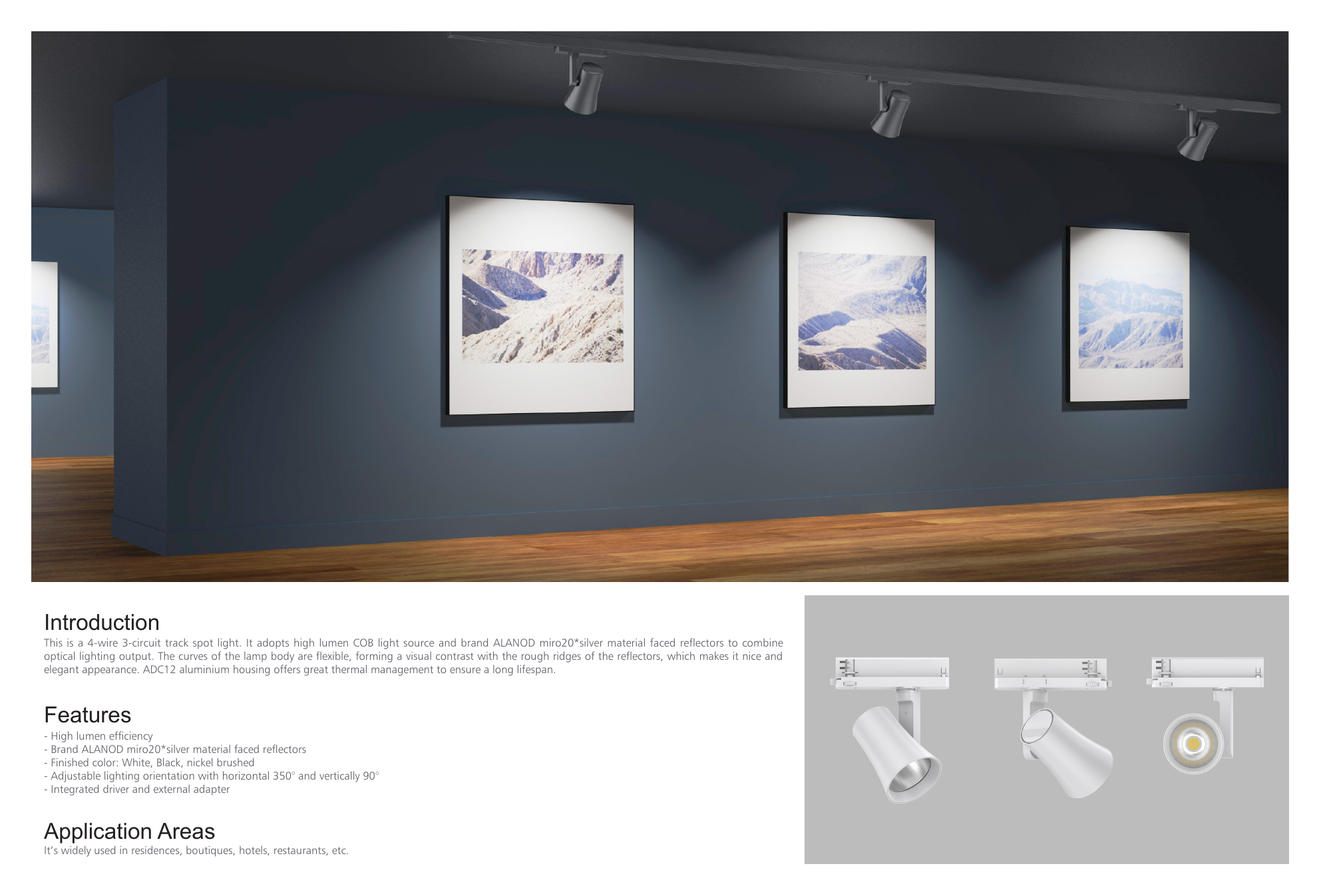

Introduction

This is a 4-wire 3-circuit track spot light. It adopts high lumen COB light source and brand ALANOD miro20*silver material faced reflectors to combine

optical lighting output. The curves of the lamp body are flexible, forming a visual contrast with the rough ridges of the reflectors, which makes it nice and

elegant appearance. ADC12 aluminium housing offers great thermal management to ensure a long lifespan.

Features

• High lumen efficiency
• Brand ALANOD miro20*silver material faced reflectors
• Finished color: White, Black, nickel brushed
• Adjustable lighting orientation with horizontal 350° and vertically 90°
• Integrated driver and external adapter

Application Areas It’s widely used in residences, boutiques, hotels, restaurants, etc.

D IP20 PF 0.88 PF 0.9

B

C

White Black Nickel Brushed

A

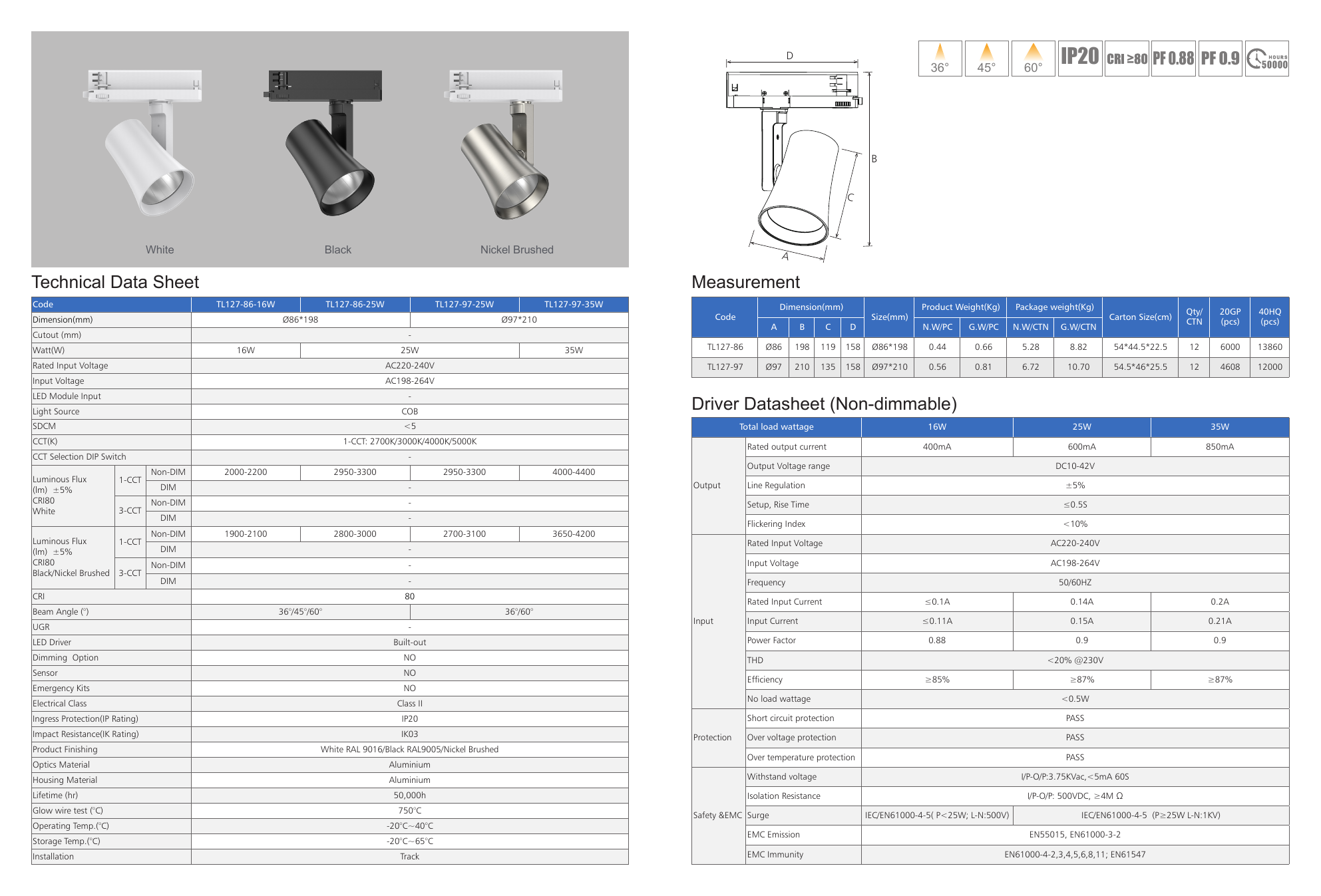

Technical Data Sheet Measurement Code TL127-86-16W TL127-86-25W TL127-97-25W TL127-97-35W Dimension(mm) Product Weight(Kg) Package weight(Kg)

Qty/ 20GP 40HQ Dimension(mm) Ø86*198 Ø97*210 Code Size(mm) Carton Size(cm) CTN (pcs) (pcs) A B C D N.W/PC G.W/PC N.W/CTN G.W/CTN

Cutout (mm) -Watt(W) 16W 25W 35W TL127-86 Ø86 198 119 158 Ø86*198 0.44 0.66 5.28 8.82 54*44.5*22.5 12 6000 13860 Rated Input Voltage AC220-240V TL127-97 Ø97 210 135 158 Ø97*210 0.56 0.81 6.72 10.70 54.5*46*25.5 12 4608 12000

Input Voltage AC198-264V LED Module Input -Driver Datasheet (Non-dimmable) Light Source COB SDCM <5 Total load wattage 16W 25W 35W

CCT(K) 1-CCT: 2700K/3000K/4000K/5000K Rated output current 400mA 600mA 850mA CCT Selection DIP Switch -Output Voltage range DC10-42V

Non-DIM 2000-2200 2950-3300 2950-3300 4000-4400 Luminous Flux 1-CCT (lm) ±5% DIM - Output Line Regulation ±5% CRI80 Non-DIM - Setup, Rise Time ≤0.5S

White 3-CCT DIM -Flickering Index <10% Non-DIM 1900-2100 2800-3000 2700-3100 3650-4200 Luminous Flux 1-CCT Rated Input Voltage AC220-240V

(lm) ±5% DIM -CRI80 Non-DIM - Input Voltage AC198-264V Black/Nickel Brushed 3-CCT DIM - Frequency 50/60HZ CRI 80 Rated Input Current ≤0.1A 0.14A 0.2A

Beam Angle (°) 36°/45°/60° 36°/60° Input Input Current ≤0.11A 0.15A 0.21A UGR -LED Driver Built-out Power Factor 0.88 0.9 0.9

Dimming Option NO THD <20% @230V Sensor NO Efficiency ≥85% ≥87% ≥87% Emergency Kits NO No load wattage <0.5W Electrical Class Class II

Ingress Protection(IP Rating) IP20 Short circuit protection PASS Impact Resistance(IK Rating) IK03 Protection Over voltage protection PASS

Product Finishing White RAL 9016/Black RAL9005/Nickel Brushed Over temperature protection PASS Optics Material Aluminium Withstand voltage I/P-O/P:3.75KVac,<5mA 60S

Housing Material Aluminium Lifetime (hr) 50,000h Isolation Resistance I/P-O/P: 500VDC, ≥4M Ω Glow wire test (°C) 750°C Safety &EMC Surge IEC/EN61000-4-5( P<25W; L-N:500V) IEC/EN61000-4-5 (P≥25W L-N:1KV)

Operating Temp.(°C) -20°C~40°C EMC Emission EN55015, EN61000-3-2 Storage Temp.(°C) -20°C~65°C Installation Track EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547

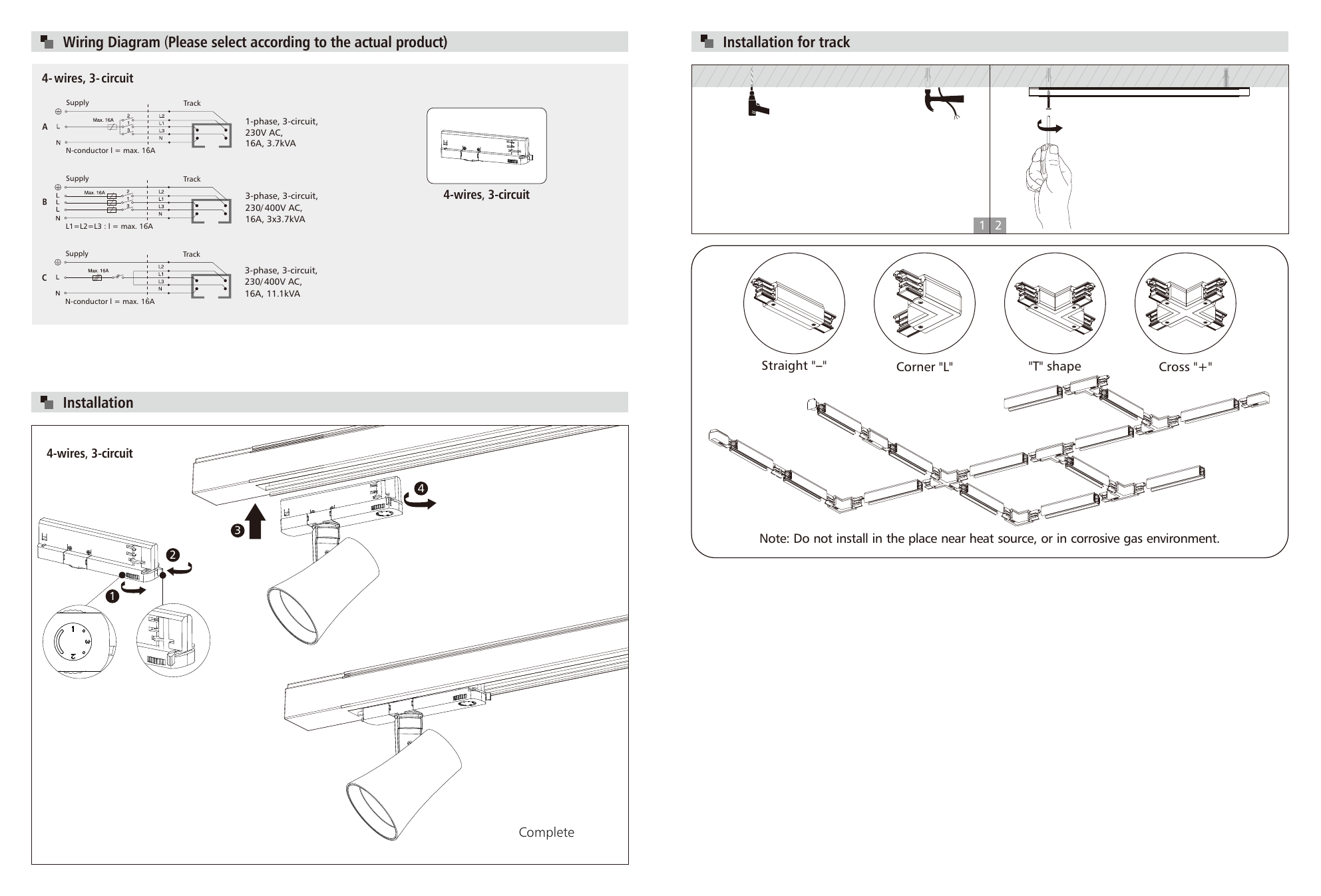

Wiring Diagram (Please select according to the actual product) Installation for track 4- wires, 3- circuit Supply Track 1-phase, 3-circuit,

A

230V AC, 16A, 3.7kVA N-conductor l = max. 16A Supply Track 4-wires, 3-circuit 3-phase, 3-circuit,

B

230/ 400V AC, 16A, 3x3.7kVA L1=L2=L3 : l = max. 16A 1 2 Supply Track 3-phase, 3-circuit,

C

230/ 400V AC, 16A, 11.1kVA N-conductor l = max. 16A Straight "--" Corner "L" "T" shape Cross "+"

Installation

4-wires, 3-circuit

Note: Do not install in the place near heat source, or in corrosive gas environment.

Complete
