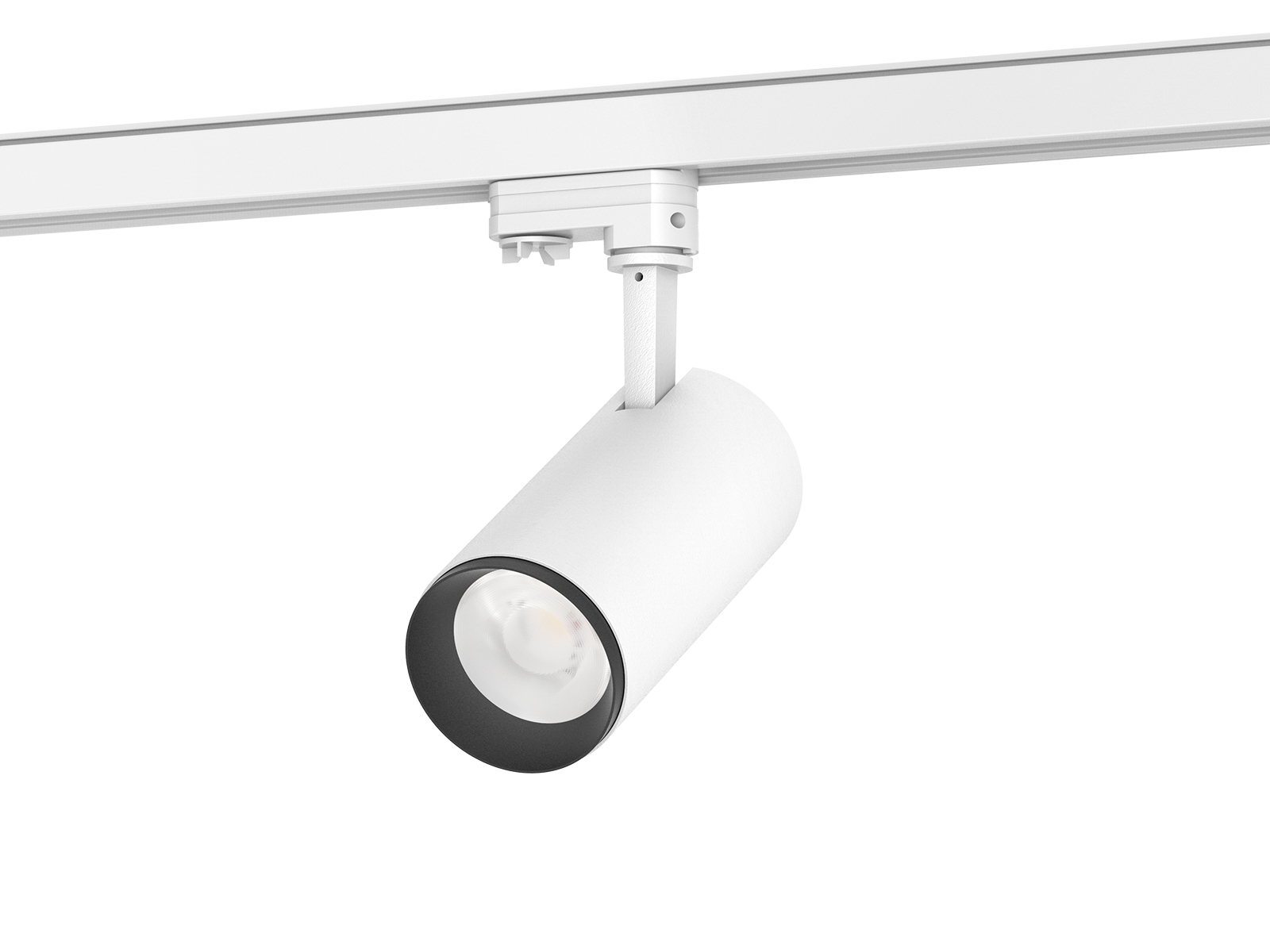

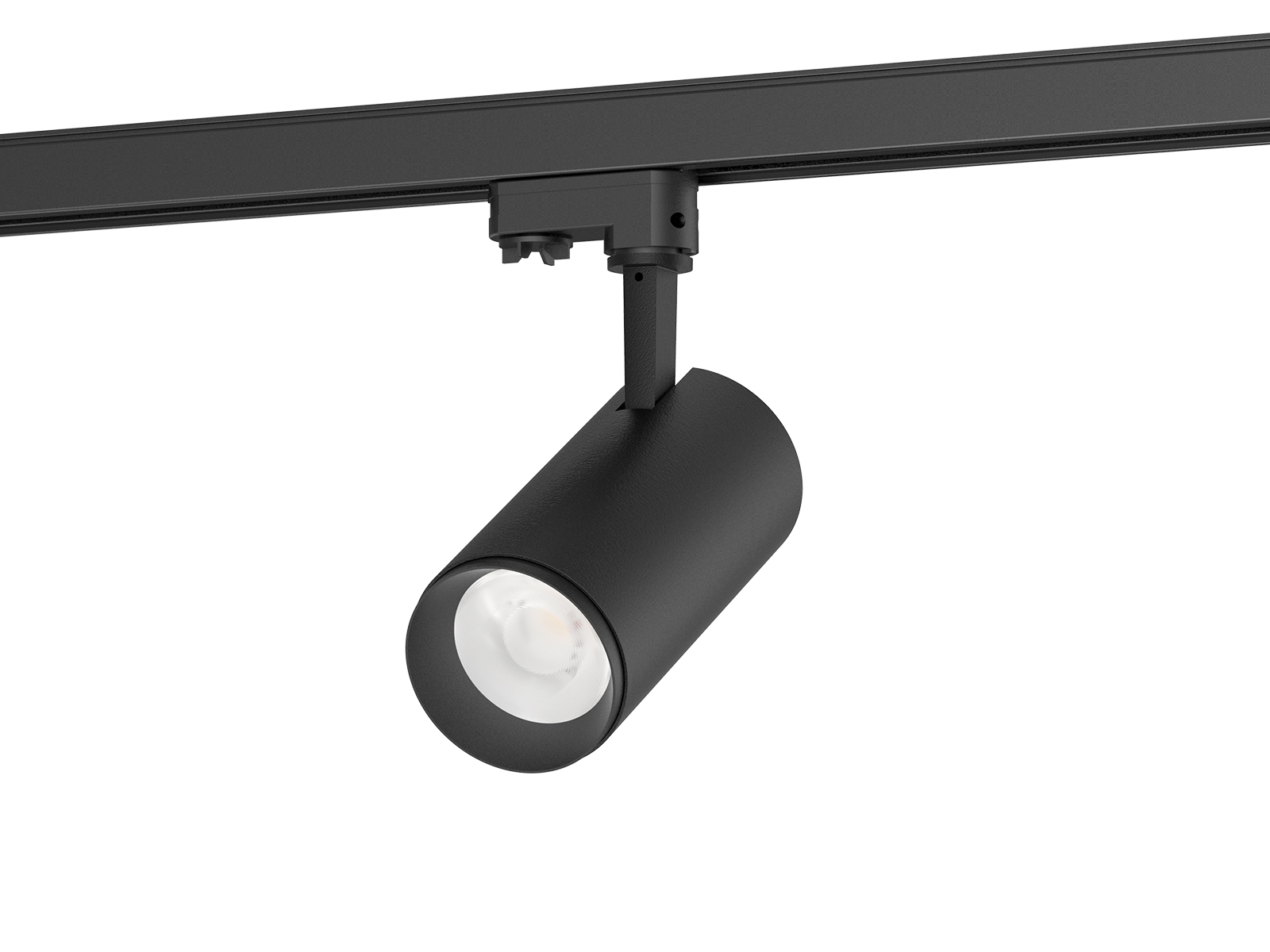

Tracklightové svítidlo, 30W, 3000K, 36°
Profesionální řešení Veralight
VRL-TL28-30W-3000K-36 je svítidlo z profesionální produktové řady UPSHINE, vybrané pro katalog Veralight podle technických možností a použití v reálných projektech. Je vhodné pro přesné směrové nasvícení sortimentu, výloh, stěn a centrálních expozic v prodejnách, showroomech a hotelových interiérech.
Produktový list uvádí varianty provedení, světelné parametry, rozměry a montážní možnosti. Díky tomu lze řešení přesně sladit s charakterem prostoru, výškou instalace i požadovanou atmosférou.
Potřebujete ověřit vhodnou konfiguraci? Připravíme doporučení svítidla, počtu kusů i způsobu řízení pro konkrétní prostor.
Údaje vycházejí z aktuálního produktového listu výrobce. Konkrétní konfiguraci, výkon, optiku a řízení vždy potvrzujeme pro vybranou variantu a projekt.
| Kód | TL228-10W | TL228-15W | TL228-15W-D | TL228-20W | TL228-25W | TL228-25W-DA | TL228-30W | TL228-40W | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Rozměry (mm) | Ø65*249 | Ø85*269 | Ø100*302 | |||||||
| Montážní otvor (mm) | - | |||||||||
| Příkon (W) | 10W | 15W | 15W | 20W | 25W | 25W | 30W | 40W | ||
| Jmenovité vstupní napětí | AC230V | |||||||||
| Vstupní napětí | AC200-240V | |||||||||
| Vstup LED modulu | - | |||||||||
| Světelný zdroj | COB | |||||||||
| SDCM | <6 | |||||||||
| CCT(K) | 1-CCT: 3000K/4000K || 3-CCT: 2700K + 3500K + 5000K | |||||||||
| Volba CCT DIP přepínačem | ane | ne | ||||||||
| Světelný tok (lm) ±5% CRI90 | 1-CCT | bez stmívání | 1290-1310 | 1830-1900 | - | 2640-2740 | 3020-3140 | - | 3650-3740 | 4630-4710 |
| stmívatelné | 1250-1280 | - | 1850-1910 | 2600-2700 | 2990-3160 | - | 3530-3590 | - | ||
| DALI | 1290-1310 | 1830-1900 | - | 2640-2740 | - | 3020-3140 | 3650-3740 | - | ||
| 3-CCT | bez stmívání | 1140-1250 | 1530-1740 | - | 2280-2480 | 2720-2900 | - | - | - | |
| stmívatelné | 1080-1210 | - | 1530-1740 | 2200-2400 | 2630-2780 | - | - | - | ||
| DALI | - | - | - | - | - | - | - | - | ||
| CRI | 90 | |||||||||
| Vyzařovací úhel (°) | 24°/36°/60° | |||||||||
| UGR | - | |||||||||
| LED driver | integrovaný | |||||||||
| Možnost stmívání | Triac/ DALI | DALI | Triac | Triac/ DALI | Triac | DALI | Triac/ DALI | ne | ||
| Senzor | - | |||||||||
| nouzové moduly | - | |||||||||
| Třída ochrany | Class Ⅰ | |||||||||
| Krytí IP | IP20 | |||||||||
| Mechanická odolnost IK | IK03 | |||||||||
| Povrchová úprava | bílá RAL 9016/černá RAL9005 | |||||||||
| Materiál optiky | PMMA | |||||||||
| Materiál těla | Aluminum | |||||||||
| Životnost (h) | 50,000h | |||||||||
| Zkouška žhavou smyčkou(°C) | 650°C | |||||||||
| Operating Temp(°C) | -20°C~40°C | |||||||||
| Storage Temp(°C) | -20°C~65°C | |||||||||
| Montáž | Track |
| Kód | Rozměry (mm) | Size(mm) | Hmotnost produktu (Kg) | Hmotnost balení (Kg) | Rozměr kartonu(cm) | Qty/ CTN | 20GP (pcs) | 40HQ (pcs) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | Čistá hmotnost/ks | Hrubá hmotnost/ks | Čistá hmotnost/karton | Hrubá hmotnost/karton | ||||||
| TL228-10W | Ø65 | 249 | 157 | 84 | Ø65*249 | 0.55 | 0.65 | 6.6 | 8.6 | 42.5*30.0*38.5 | 12 | 6912 | 16344 |
| TL228-15W | Ø65 | 249 | 157 | 84 | Ø65*249 | 0.55 | 0.65 | 6.6 | 8.6 | 42.5*30.0*38.5 | 12 | 6912 | 16344 |
| TL228-15W-D | Ø85 | 269 | 178 | 84 | Ø85*269 | 0.82 | 0.92 | 9.9 | 11.9 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-20W | Ø85 | 269 | 178 | 84 | Ø85*269 | 0.82 | 0.92 | 9.9 | 11.9 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-25W | Ø85 | 269 | 178 | 84 | Ø85*269 | 0.82 | 0.92 | 9.9 | 11.9 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-30W | Ø100 | 302 | 211 | 84 | Ø100*302 | 1.15 | 1.25 | 13.8 | 15.8 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-40W | Ø100 | 302 | 211 | 84 | Ø100*302 | 1.15 | 1.25 | 13.8 | 15.8 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-10W-DA | Ø65 | 249 | 157 | 113 | Ø65*249 | 0.52 | 0.62 | 6.2 | 8.2 | 42.5*30.0*38.5 | 12 | 6912 | 16344 |
| TL228-15W-DA | Ø65 | 249 | 157 | 113 | Ø65*249 | 0.52 | 0.62 | 6.2 | 8.2 | 42.5*30.0*38.5 | 12 | 6912 | 16344 |
| TL228-20W-DA | Ø85 | 269 | 178 | 113 | Ø85*269 | 0.80 | 0.90 | 9.6 | 12.6 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-25W-DA | Ø100 | 302 | 211 | 113 | Ø100*302 | 1.2 | 1.3 | 14.4 | 16.4 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-30W-DA | Ø100 | 302 | 211 | 113 | Ø100*302 | 1.2 | 1.3 | 14.4 | 16.4 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| ACC-TL228-65-24/36/60 | Ø50.5 | 24 | - | - | Ø50.5*24 | 0.033 | - | 3.17 | 3.94 | 34.5*23.5*15 | 96 | 202944 | 479232 |
| ACC-TL228-85-24/36/60 | Ø70 | 34.4 | - | - | Ø70*34.4 | 0.065 | - | 6.26 | 7.62 | 47.5*31.5*18 | 96 | 96768 | 225792 |
| ACC-TL228-100-24/36/60 | Ø84 | 38.7 | - | - | Ø84*38.7 | 0.1 | - | 9.6 | 11.37 | 52.5*35.5*22 | 96 | 67200 | 147840 |
| Celkový příkon zátěže | 10W | 15W | 20W | 25W | 30W | 40W | |
|---|---|---|---|---|---|---|---|
| Výstup | Jmenovitý výstupní proud | 230mA | 350mA | 500mA | 630mA | 750mA | 950mA |
| Rozsah výstupního napětí | DC30-40V | ||||||
| Regulace linky | ±5% | ||||||
| Doba náběhu | ≤0.5S | ||||||
| Index blikání | ≤10% | ||||||
| IEC-PST | ≤1% | ||||||
| CIE(SVM) | ≤0.4 | ||||||
| Vstup | Jmenovité vstupní napětí | AC200-240V | |||||
| Vstupní napětí | AC180-265V | ||||||
| Frekvence | 50/60Hz | ||||||
| Jmenovitý vstupní proud | ≤0.05A | ≤0.07A | 0.11A | 0.14A | 0.17A | 0.23A | |
| Vstupní proud | ≤0.06A | ≤0.08A | 0.12A | 0.15A | 0.18A | 0.25A | |
| Účiník | 0.9 | ||||||
| THD | <20% @230V | ||||||
| Účinnost | ≥82% | ≥85% | ≥87% | ≥87% | ≥87% | ≥87% | |
| Náběhový proud | 6.8A/35.4uS | 7.8A/34.9uS | 10A/42.1uS | ||||
| Příkon naprázdno | <0.5W | ||||||
| Spotřeba v pohotovostním režimu | - | ||||||
| Ochrana | Ochrana proti zkratu | splňuje | |||||
| Ochrana proti přepětí | splňuje | ||||||
| Ochrana proti přehřátí | splňuje | ||||||
| Bezpečnost a EMC | Zkušební napětí | I/P-O/P:3.75KVac,<5mA 60S | |||||
| Izolační odpor | 500VDC, ≥2M Ω | ||||||
| Surge | IEC/EN61000-4-5 ( L-N:1KV) | ||||||
| EMC emise | EN55015, EN61000-3-2 | ||||||
| EMC odolnost | EN61000-4-2,3,4,5,6,8,11; EN61547 |
| Celkový příkon zátěže | 10W | 15W | 20W | 25W | 30W | |
|---|---|---|---|---|---|---|
| Výstup | Jmenovitý výstupní proud | 220mA | 350mA | 480mA | 580mA | 700mA |
| Rozsah výstupního napětí Regulace linky | DC30-40V ±5% | |||||
| Doba náběhu Index blikání | ≤0.5S ≤10% | |||||
| IEC-PST | ≤1 | |||||
| CIE(SVM) | ≤0.4 | |||||
| Vstup | Jmenovité vstupní napětí | AC230V | ||||
| Vstupní napětí | AC200-240V | |||||
| Frekvence | 50/60Hz | |||||
| Jmenovitý vstupní proud | ≤0.05A | ≤0.08A | 0.11A | 0.14A | 0.15A | |
| Vstupní proud | ≤0.06A | ≤0.09A | 0.12A | 0.15A | 0.17A | |
| Účiník | 0.9 | |||||
| THD | - | - | - | <20% @230V | <20% @230V | |
| Účinnost | ≥78% | ≥83% | ≥84% | ≥85% | ||
| Náběhový proud | 1.36A/157uS | 2.22A/129uS | 2.82A/94.4uS | 3.06A/224uS | ||
| Příkon naprázdno | <1W@AC230V | |||||
| Spotřeba v pohotovostním režimu | <1W@AC230V | |||||
| Ochrana | Ochrana proti zkratu | splňuje | ||||
| Ochrana proti přepětí | splňuje | |||||
| Ochrana proti přehřátí | splňuje | |||||
| Bezpečnost a EMC | Zkušební napětí | I/P-O/P:3.75KVac,<5mA 60S | ||||
| Izolační odpor | 500VDC, ≥2M Ω | |||||
| Surge | IEC/EN61000-4-5 ( L-N:1KV) | |||||
| EMC emise | EN55015, EN61000-3-2 | |||||
| EMC odolnost | EN61000-4-2,3,4,5,6,8,11; EN61547 |
| Celkový příkon zátěže | 10W | 15W | 20W | 25W | 30W | |
|---|---|---|---|---|---|---|
| Výstup | Jmenovitý výstupní proud | 220mA | 350mA | 480mA | 580mA | 700mA |
| Rozsah výstupního napětí | DC30-40V | |||||
| Regulace linky | ±5% | |||||
| Doba náběhu | ≤0.5S | |||||
| Index blikání | ≤10% | |||||
| IEC-PST | ≤1% | |||||
| CIE(SVM) | ≤0.4 | |||||
| Vstup | Jmenovité vstupní napětí | AC230V | ||||
| Vstupní napětí | AC200-240V | |||||
| Frekvence | 50/60Hz | |||||
| Jmenovitý vstupní proud | ≤0.05A | ≤0.08A | ≤0.11A | ≤0.14A | ≤0.15A | |
| Vstupní proud | ≤0.06A | ≤0.09A | ≤0.12A | ≤0.15A | ≤0.17A | |
| Účiník | 0.9 | |||||
| THD | - | - | - | <20% @230V | <20% @230V | |
| Účinnost | ≥78% | ≥83% | ≥84% | ≥85% | ||
| Náběhový proud | 15.1A/113uS | 16A/214uS | ||||
| Příkon naprázdno | - | |||||
| Spotřeba v pohotovostním režimu | <0.5W | |||||
| Ochrana | Ochrana proti zkratu | splňuje | ||||
| Ochrana proti přepětí | splňuje | |||||
| Ochrana proti přehřátí | splňuje | |||||
| Bezpečnost a EMC | Zkušební napětí | I/P-O/P:3.75KVac,<5mA 60S | ||||
| Izolační odpor | 500VDC, ≥2M Ω | |||||
| Surge | IEC/EN61000-4-5 ( L-N:1KV) | |||||
| EMC emise | EN55015, EN61000-3-2 | |||||
| EMC odolnost | EN61000-4-2,3,4,5,6,8,11; EN61547 |
Produkt pochází z dodavatelského katalogu UPSHINE. Technické podklady a soubory ke stažení se mohou aktualizovat na původní produktové stránce.
Otevřít původní stránkuVRL-TL28-30W-3000K-36

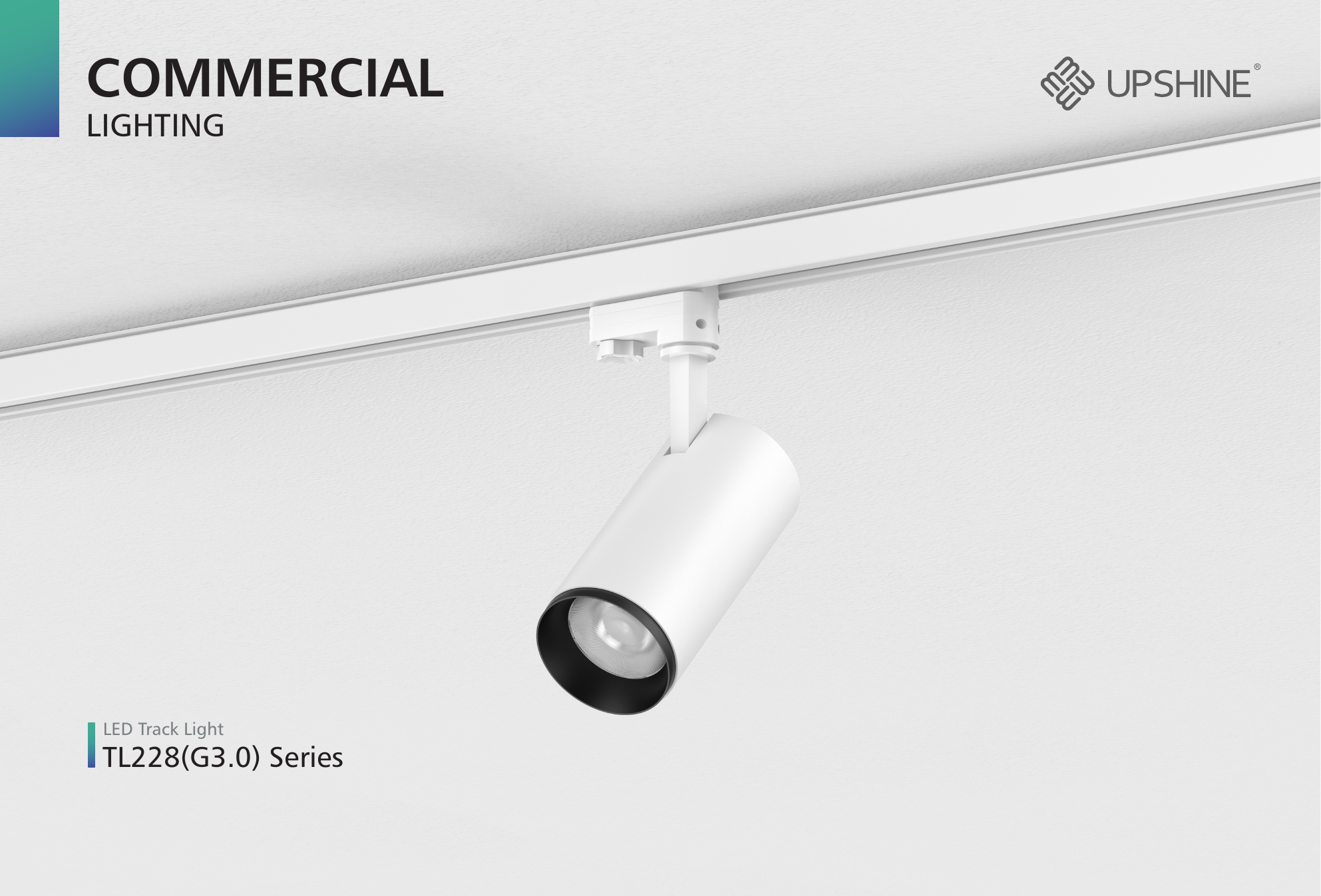

COMMERCIAL LIGHTING LED Track Light TL228(G3.0) Series

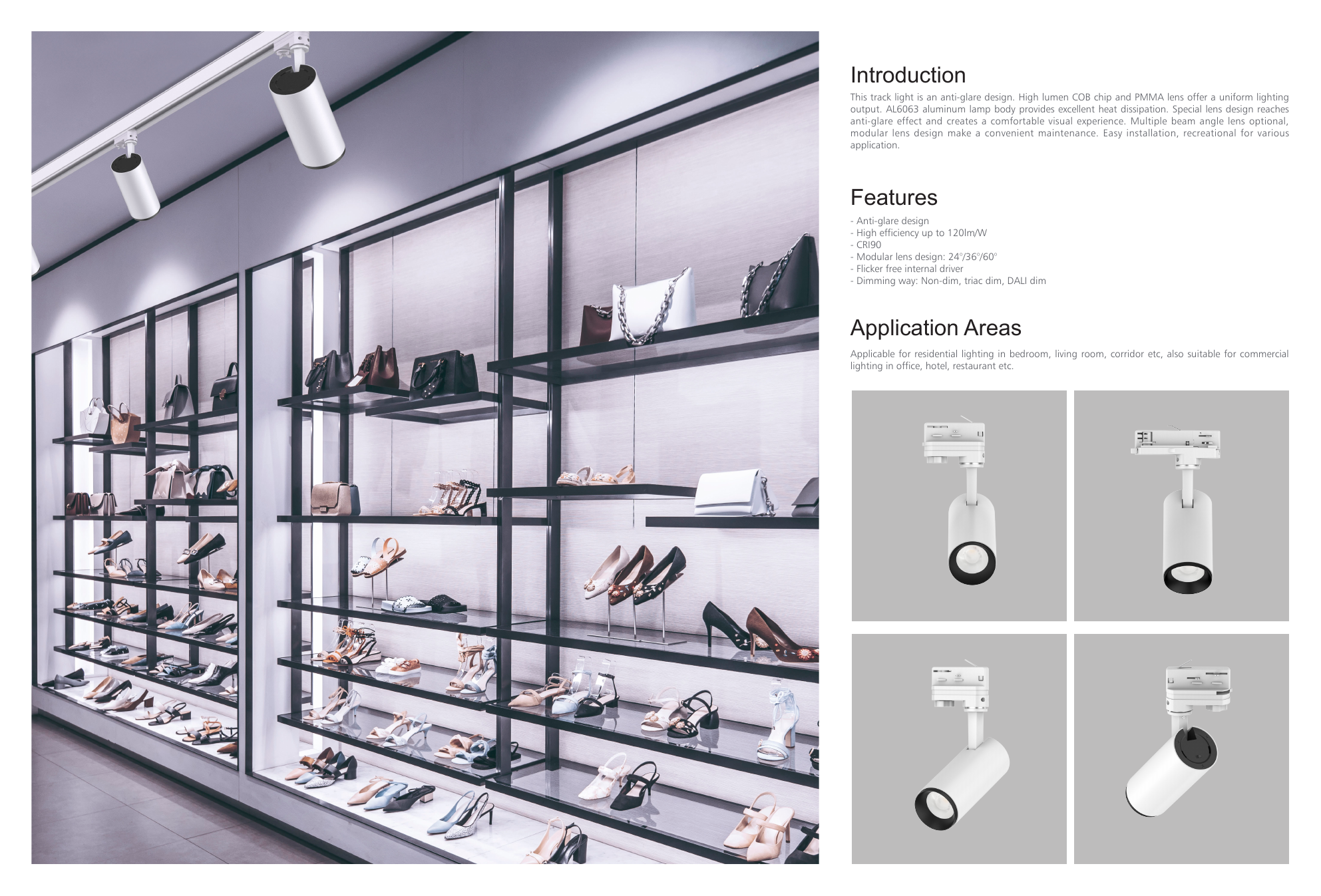

Introduction
This track light is an anti-glare design. High lumen COB chip and PMMA lens offer a uniform lighting output. AL6063 aluminum lamp body provides excellent heat dissipation. Special lens design reaches
anti-glare effect and creates a comfortable visual experience. Multiple beam angle lens optional, modular lens design make a convenient maintenance. Easy installation, recreational for various
application.
Features

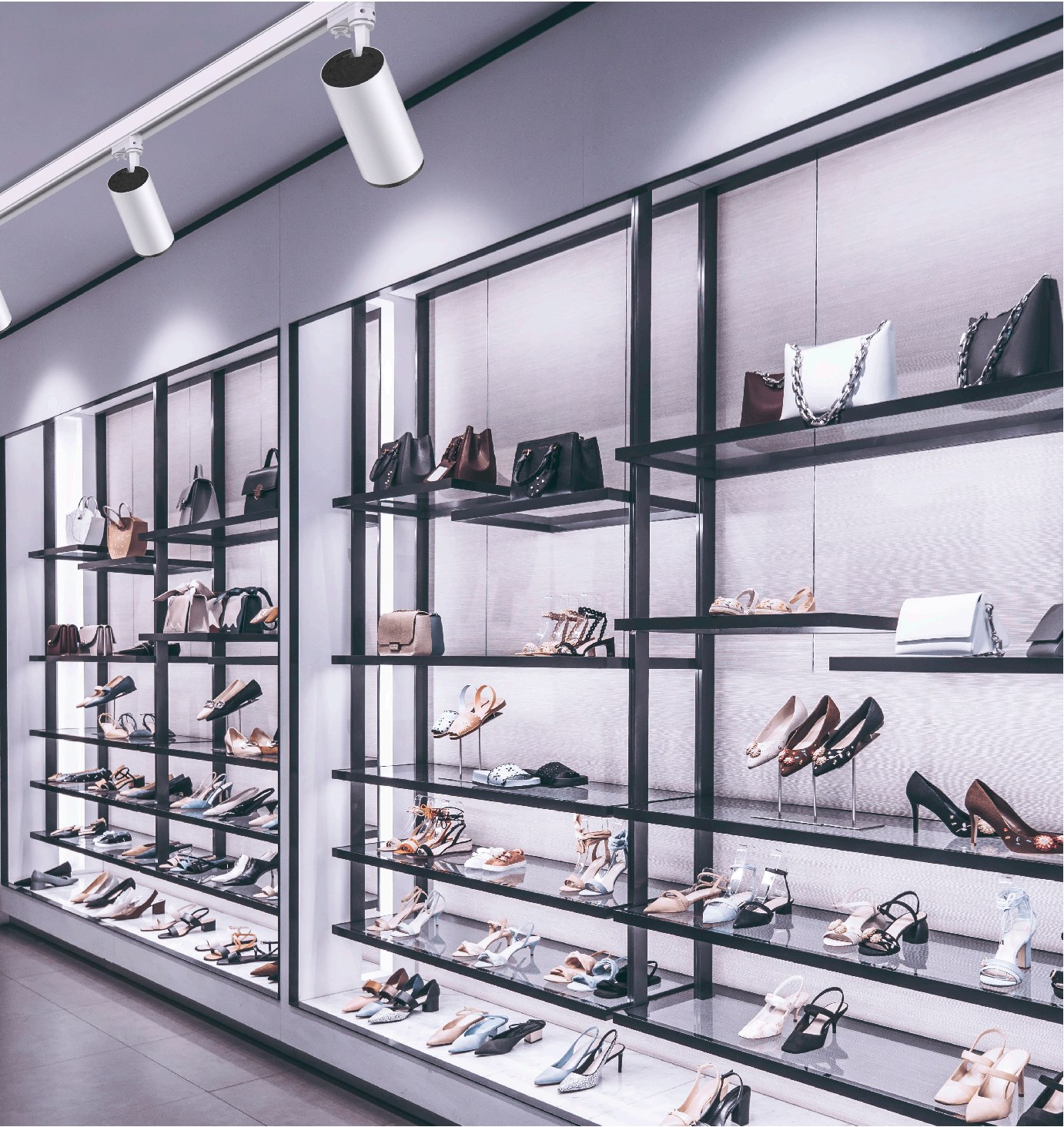

Application Areas Applicable for residential lighting in bedroom, living room, corridor etc, also suitable for commercial
lighting in office, hotel, restaurant etc.
IP20 IK03 24° 36° 60° Triac DALI
90° ACC-TL228-65-24/36/60 ACC-TL228-85-24/36/60 ACC-TL228-100-24/36/60 TL228 TL228-DA Lens modular accessory DALI Technical Data Sheet Measurement
Code TL228-10W TL228-15W TL228-15W-D TL228-20W TL228-25W TL228-25W-DA TL228-30W TL228-40W Dimension(mm) Product Weight (Kg) Package weight (Kg) Qty/ 20GP 40HQ
Code Size(mm) Carton Size(cm) A B C D N.W/PC G.W/PC N.W/CTN G.W/CTN CTN (pcs) (pcs) Dimension(mm) Ø65*249 Ø85*269 Ø100*302
TL228-10W Ø65 249 157 84 Ø65*249 0.55 0.65 6.6 8.6 42.5*30.0*38.5 12 6912 16344 Cutout(mm) - TL228-15W Ø65 249 157 84 Ø65*249 0.55 0.65 6.6 8.6 42.5*30.0*38.5 12 6912 16344
Watt(W) 10W 15W 15W 20W 25W 25W 30W 40W TL228-15W-D Ø85 269 178 84 Ø85*269 0.82 0.92 9.9 11.9 56.5*34.5*42.5 12 3840 9504
Rated Input Voltage AC230V TL228-20W Ø85 269 178 84 Ø85*269 0.82 0.92 9.9 11.9 56.5*34.5*42.5 12 3840 9504 TL228-25W Ø85 269 178 84 Ø85*269 0.82 0.92 9.9 11.9 56.5*34.5*42.5 12 3840 9504
Input Voltage AC200-240V TL228-30W Ø100 302 211 84 Ø100*302 1.15 1.25 13.8 15.8 56.5*34.5*42.5 12 3840 9504 LED Module Input -
TL228-40W Ø100 302 211 84 Ø100*302 1.15 1.25 13.8 15.8 56.5*34.5*42.5 12 3840 9504 Light Source COB TL228-10W-DA Ø65 249 157 113 Ø65*249 0.52 0.62 6.2 8.2 42.5*30.0*38.5 12 6912 16344
SDCM <6 TL228-15W-DA Ø65 249 157 113 Ø65*249 0.52 0.62 6.2 8.2 42.5*30.0*38.5 12 6912 16344 TL228-20W-DA Ø85 269 178 113 Ø85*269 0.80 0.90 9.6 12.6 56.5*34.5*42.5 12 3840 9504
CCT(K) 1-CCT: 3000K/4000K || 3-CCT: 2700K + 3500K + 5000K TL228-25W-DA Ø100 302 211 113 Ø100*302 1.2 1.3 14.4 16.4 56.5*34.5*42.5 12 3840 9504
CCT Selection DIP Switch Yes NO TL228-30W-DA Ø100 302 211 113 Ø100*302 1.2 1.3 14.4 16.4 56.5*34.5*42.5 12 3840 9504 Non-DIM 1290-1310 1830-1900 - 2640-2740 3020-3140 - 3650-3740 4630-4710 ACC-TL228-65-24/36/60 Ø50.5 24 - - Ø50.5*24 0.033 - 3.17 3.94 34.5*23.5*15 96 202944 479232
1-CCT DIM 1250-1280 - 1850-1910 2600-2700 2990-3160 - 3530-3590 - ACC-TL228-85-24/36/60 Ø70 34.4 - - Ø70*34.4 0.065 - 6.26 7.62 47.5*31.5*18 96 96768 225792
Luminous DALI 1290-1310 1830-1900 - 2640-2740 - 3020-3140 3650-3740 - ACC-TL228-100-24/36/60 Ø84 38.7 - - Ø84*38.7 0.1 - 9.6 11.37 52.5*35.5*22 96 67200 147840
Flux
(lm) ±5% Non-DIM 1140-1250 1530-1740 - 2280-2480 2720-2900 - - - Driver Datasheet (Non-Dimmable) CRI90 3-CCT DIM 1080-1210 - 1530-1740 2200-2400 2630-2780 - - -
Total load wattage 10W 15W 20W 25W 30W 40W DALI - - - - - - - - Rated output current 230mA 350mA 500mA 630mA 750mA 950mA Output Voltage range DC30-40V
CRI 90 Line Regulation ±5% Beam Angle (°) 24°/36°/60° Output Setup Rise Time ≤0.5S UGR - Flickering Index ≤10% IEC-PST ≤1%
LED Driver Built-in CIE(SVM) ≤0.4 Dimming Option Triac/ DALI DALI Triac Triac/ DALI Triac DALI Triac/ DALI NO Rated Input Voltage AC200-240V
Sensor - Input Voltage AC180-265V Frequency 50/60Hz Emergency Kits -Rated Input Current ≤0.05A ≤0.07A 0.11A 0.14A 0.17A 0.23A
Electrical Class Class Ⅰ Input Current ≤0.06A ≤0.08A 0.12A 0.15A 0.18A 0.25A Input Power Factor 0.9 Ingress Protection(IP Rating) IP20
THD <20% @230V Impact Resistance(IK Rating) IK03 Efficiency ≥82% ≥85% ≥87% ≥87% ≥87% ≥87% Product Finishing White RAL 9016/Black RAL9005 Inrush current 6.8A/35.4uS 7.8A/34.9uS 10A/42.1uS
No load wattage <0.5W Optics Material PMMA Stand-by power consumption -Housing Material Aluminum Short circuit protection Pass
Protection Over voltage protection Pass Lifetime(hr) 50,000h Over temperature protection Pass Glow wire test(°C) 650°C Withstand voltage I/P-O/P:3.75KVac,<5mA 60S
Operating Temp(°C) -20°C~40°C Isolation Resistance 500VDC, ≥2M Ω Safety & EMC Surge IEC/EN61000-4-5 ( L-N:1KV) Storage Temp(°C) -20°C~65°C
EMC Emission EN55015, EN61000-3-2 Installation Track EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547
| Code | TL228-10W | TL228-15W | TL228-15W-D | TL228-20W | TL228-25W | TL228-25W-DA | TL228-30W | TL228-40W | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø65*249 | Ø85*269 | Ø100*302 | |||||||
| Cutout(mm) | - | |||||||||
| Watt(W) | 10W | 15W | 15W | 20W | 25W | 25W | 30W | 40W | ||
| Rated Input Voltage | AC230V | |||||||||
| Input Voltage | AC200-240V | |||||||||
| LED Module Input | - | |||||||||
| Light Source | COB | |||||||||
| SDCM | <6 | |||||||||
| CCT(K) | 1-CCT: 3000K/4000K || 3-CCT: 2700K + 3500K + 5000K | |||||||||
| CCT Selection DIP Switch | Yes | NO | ||||||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 1290-1310 | 1830-1900 | - | 2640-2740 | 3020-3140 | - | 3650-3740 | 4630-4710 |
| DIM | 1250-1280 | - | 1850-1910 | 2600-2700 | 2990-3160 | - | 3530-3590 | - | ||
| DALI | 1290-1310 | 1830-1900 | - | 2640-2740 | - | 3020-3140 | 3650-3740 | - | ||
| 3-CCT | Non-DIM | 1140-1250 | 1530-1740 | - | 2280-2480 | 2720-2900 | - | - | - | |
| DIM | 1080-1210 | - | 1530-1740 | 2200-2400 | 2630-2780 | - | - | - | ||
| DALI | - | - | - | - | - | - | - | - | ||
| CRI | 90 | |||||||||
| Beam Angle (°) | 24°/36°/60° | |||||||||
| UGR | - | |||||||||
| LED Driver | Built-in | |||||||||
| Dimming Option | Triac/ DALI | DALI | Triac | Triac/ DALI | Triac | DALI | Triac/ DALI | NO | ||
| Sensor | - | |||||||||
| Emergency Kits | - | |||||||||
| Electrical Class | Class Ⅰ | |||||||||
| Ingress Protection(IP Rating) | IP20 | |||||||||
| Impact Resistance(IK Rating) | IK03 | |||||||||
| Product Finishing | White RAL 9016/Black RAL9005 | |||||||||
| Optics Material | PMMA | |||||||||
| Housing Material | Aluminum | |||||||||
| Lifetime(hr) | 50,000h | |||||||||
| Glow wire test(°C) | 650°C | |||||||||
| Operating Temp(°C) | -20°C~40°C | |||||||||
| Storage Temp(°C) | -20°C~65°C | |||||||||
| Installation | Track |
| Code | Dimension(mm) | Size(mm) | Product Weight (Kg) | Package weight (Kg) | Carton Size(cm) | Qty/ CTN | 20GP (pcs) | 40HQ (pcs) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | N.W/PC | G.W/PC | N.W/CTN | G.W/CTN | ||||||
| TL228-10W | Ø65 | 249 | 157 | 84 | Ø65*249 | 0.55 | 0.65 | 6.6 | 8.6 | 42.5*30.0*38.5 | 12 | 6912 | 16344 |
| TL228-15W | Ø65 | 249 | 157 | 84 | Ø65*249 | 0.55 | 0.65 | 6.6 | 8.6 | 42.5*30.0*38.5 | 12 | 6912 | 16344 |
| TL228-15W-D | Ø85 | 269 | 178 | 84 | Ø85*269 | 0.82 | 0.92 | 9.9 | 11.9 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-20W | Ø85 | 269 | 178 | 84 | Ø85*269 | 0.82 | 0.92 | 9.9 | 11.9 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-25W | Ø85 | 269 | 178 | 84 | Ø85*269 | 0.82 | 0.92 | 9.9 | 11.9 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-30W | Ø100 | 302 | 211 | 84 | Ø100*302 | 1.15 | 1.25 | 13.8 | 15.8 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-40W | Ø100 | 302 | 211 | 84 | Ø100*302 | 1.15 | 1.25 | 13.8 | 15.8 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-10W-DA | Ø65 | 249 | 157 | 113 | Ø65*249 | 0.52 | 0.62 | 6.2 | 8.2 | 42.5*30.0*38.5 | 12 | 6912 | 16344 |
| TL228-15W-DA | Ø65 | 249 | 157 | 113 | Ø65*249 | 0.52 | 0.62 | 6.2 | 8.2 | 42.5*30.0*38.5 | 12 | 6912 | 16344 |
| TL228-20W-DA | Ø85 | 269 | 178 | 113 | Ø85*269 | 0.80 | 0.90 | 9.6 | 12.6 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-25W-DA | Ø100 | 302 | 211 | 113 | Ø100*302 | 1.2 | 1.3 | 14.4 | 16.4 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-30W-DA | Ø100 | 302 | 211 | 113 | Ø100*302 | 1.2 | 1.3 | 14.4 | 16.4 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| ACC-TL228-65-24/36/60 | Ø50.5 | 24 | - | - | Ø50.5*24 | 0.033 | - | 3.17 | 3.94 | 34.5*23.5*15 | 96 | 202944 | 479232 |
| ACC-TL228-85-24/36/60 | Ø70 | 34.4 | - | - | Ø70*34.4 | 0.065 | - | 6.26 | 7.62 | 47.5*31.5*18 | 96 | 96768 | 225792 |
| ACC-TL228-100-24/36/60 | Ø84 | 38.7 | - | - | Ø84*38.7 | 0.1 | - | 9.6 | 11.37 | 52.5*35.5*22 | 96 | 67200 | 147840 |
| Total load wattage | 10W | 15W | 20W | 25W | 30W | 40W | |
|---|---|---|---|---|---|---|---|
| Output | Rated output current | 230mA | 350mA | 500mA | 630mA | 750mA | 950mA |
| Output Voltage range | DC30-40V | ||||||
| Line Regulation | ±5% | ||||||
| Setup Rise Time | ≤0.5S | ||||||
| Flickering Index | ≤10% | ||||||
| IEC-PST | ≤1% | ||||||
| CIE(SVM) | ≤0.4 | ||||||
| Input | Rated Input Voltage | AC200-240V | |||||
| Input Voltage | AC180-265V | ||||||
| Frequency | 50/60Hz | ||||||
| Rated Input Current | ≤0.05A | ≤0.07A | 0.11A | 0.14A | 0.17A | 0.23A | |
| Input Current | ≤0.06A | ≤0.08A | 0.12A | 0.15A | 0.18A | 0.25A | |
| Power Factor | 0.9 | ||||||
| THD | <20% @230V | ||||||
| Efficiency | ≥82% | ≥85% | ≥87% | ≥87% | ≥87% | ≥87% | |
| Inrush current | 6.8A/35.4uS | 7.8A/34.9uS | 10A/42.1uS | ||||
| No load wattage | <0.5W | ||||||
| Stand-by power consumption | - | ||||||
| Protection | Short circuit protection | Pass | |||||
| Over voltage protection | Pass | ||||||
| Over temperature protection | Pass | ||||||
| Safety & EMC | Withstand voltage | I/P-O/P:3.75KVac,<5mA 60S | |||||
| Isolation Resistance | 500VDC, ≥2M Ω | ||||||
| Surge | IEC/EN61000-4-5 ( L-N:1KV) | ||||||
| EMC Emission | EN55015, EN61000-3-2 | ||||||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 |

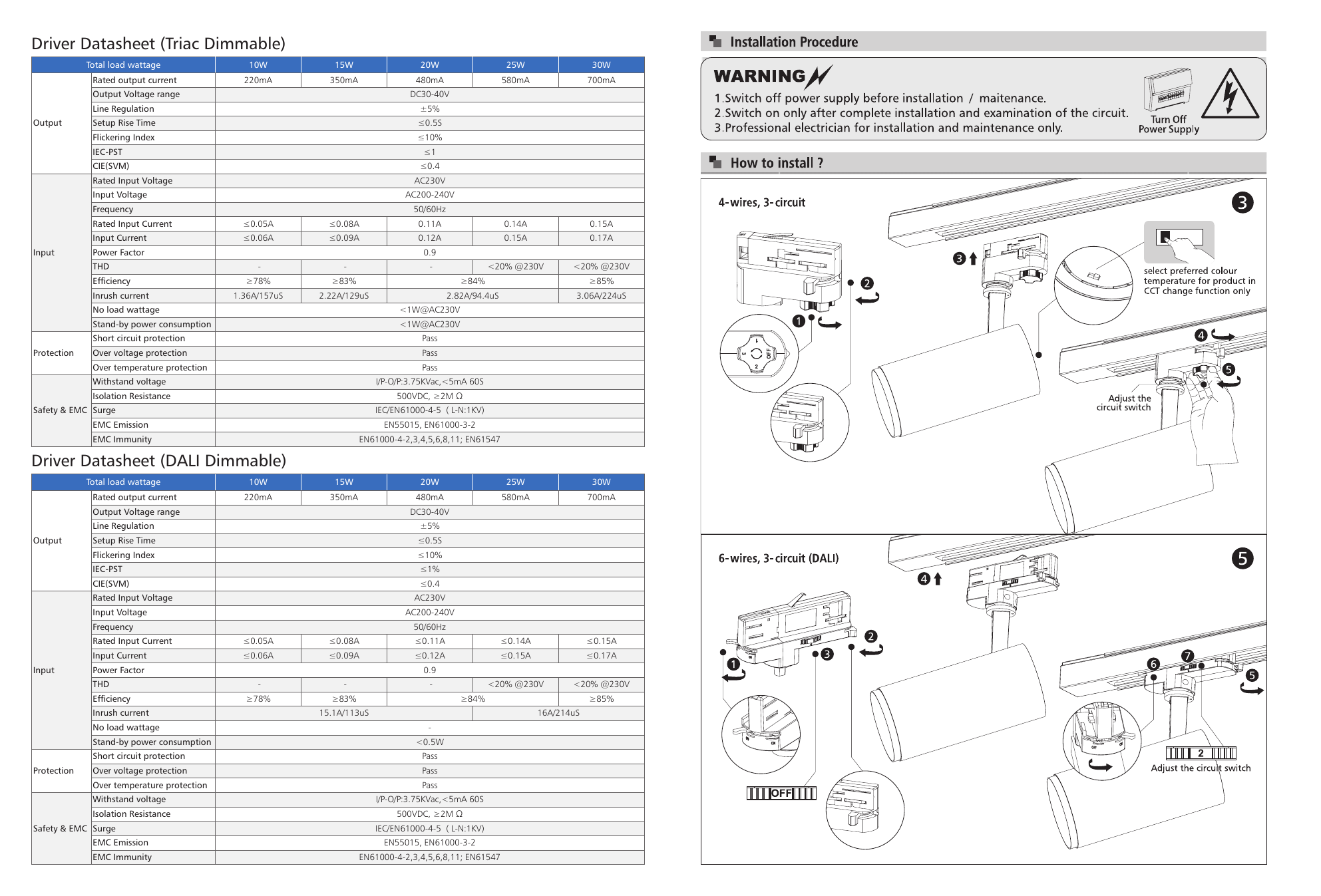

Driver Datasheet (Triac Dimmable) Total load wattage 10W 15W 20W 25W 30W Rated output current 220mA 350mA 480mA 580mA 700mA
Output Voltage range DC30-40V Line Regulation ±5% Output Setup Rise Time ≤0.5S Flickering Index ≤10% IEC-PST ≤1 CIE(SVM) ≤0.4
Rated Input Voltage AC230V Input Voltage AC200-240V Frequency 50/60Hz Rated Input Current ≤0.05A ≤0.08A 0.11A 0.14A 0.15A
Input Current ≤0.06A ≤0.09A 0.12A 0.15A 0.17A Input Power Factor 0.9 THD - - - <20% @230V <20% @230V Efficiency ≥78% ≥83% ≥84% ≥85%
Inrush current 1.36A/157uS 2.22A/129uS 2.82A/94.4uS 3.06A/224uS No load wattage <1W@AC230V Stand-by power consumption <1W@AC230V
Short circuit protection Pass Protection Over voltage protection Pass Over temperature protection Pass Withstand voltage I/P-O/P:3.75KVac,<5mA 60S
Isolation Resistance 500VDC, ≥2M Ω Safety & EMC Surge IEC/EN61000-4-5 ( L-N:1KV) EMC Emission EN55015, EN61000-3-2 EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547
Driver Datasheet (DALI Dimmable) Total load wattage 10W 15W 20W 25W 30W Rated output current 220mA 350mA 480mA 580mA 700mA
Output Voltage range DC30-40V Line Regulation ±5% Output Setup Rise Time ≤0.5S Flickering Index ≤10% IEC-PST ≤1% CIE(SVM) ≤0.4
Rated Input Voltage AC230V Input Voltage AC200-240V Frequency 50/60Hz Rated Input Current ≤0.05A ≤0.08A ≤0.11A ≤0.14A ≤0.15A
Input Current ≤0.06A ≤0.09A ≤0.12A ≤0.15A ≤0.17A Input Power Factor 0.9 THD - - - <20% @230V <20% @230V Efficiency ≥78% ≥83% ≥84% ≥85%
Inrush current 15.1A/113uS 16A/214uS No load wattage -Stand-by power consumption <0.5W Short circuit protection Pass Protection Over voltage protection Pass
Over temperature protection Pass Withstand voltage I/P-O/P:3.75KVac,<5mA 60S Isolation Resistance 500VDC, ≥2M Ω Safety & EMC Surge IEC/EN61000-4-5 ( L-N:1KV)
EMC Emission EN55015, EN61000-3-2 EMC Immunity EN61000-4-2,3,4,5,6,8,11; EN61547
| Total load wattage | 10W | 15W | 20W | 25W | 30W | |
|---|---|---|---|---|---|---|
| Output | Rated output current | 220mA | 350mA | 480mA | 580mA | 700mA |
| Output Voltage range Line Regulation | DC30-40V ±5% | |||||
| Setup Rise Time Flickering Index | ≤0.5S ≤10% | |||||
| IEC-PST | ≤1 | |||||
| CIE(SVM) | ≤0.4 | |||||
| Input | Rated Input Voltage | AC230V | ||||
| Input Voltage | AC200-240V | |||||
| Frequency | 50/60Hz | |||||
| Rated Input Current | ≤0.05A | ≤0.08A | 0.11A | 0.14A | 0.15A | |
| Input Current | ≤0.06A | ≤0.09A | 0.12A | 0.15A | 0.17A | |
| Power Factor | 0.9 | |||||
| THD | - | - | - | <20% @230V | <20% @230V | |
| Efficiency | ≥78% | ≥83% | ≥84% | ≥85% | ||
| Inrush current | 1.36A/157uS | 2.22A/129uS | 2.82A/94.4uS | 3.06A/224uS | ||
| No load wattage | <1W@AC230V | |||||
| Stand-by power consumption | <1W@AC230V | |||||
| Protection | Short circuit protection | Pass | ||||
| Over voltage protection | Pass | |||||
| Over temperature protection | Pass | |||||
| Safety & EMC | Withstand voltage | I/P-O/P:3.75KVac,<5mA 60S | ||||
| Isolation Resistance | 500VDC, ≥2M Ω | |||||
| Surge | IEC/EN61000-4-5 ( L-N:1KV) | |||||
| EMC Emission | EN55015, EN61000-3-2 | |||||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 |
| Total load wattage | 10W | 15W | 20W | 25W | 30W | |
|---|---|---|---|---|---|---|
| Output | Rated output current | 220mA | 350mA | 480mA | 580mA | 700mA |
| Output Voltage range | DC30-40V | |||||
| Line Regulation | ±5% | |||||
| Setup Rise Time | ≤0.5S | |||||
| Flickering Index | ≤10% | |||||
| IEC-PST | ≤1% | |||||
| CIE(SVM) | ≤0.4 | |||||
| Input | Rated Input Voltage | AC230V | ||||
| Input Voltage | AC200-240V | |||||
| Frequency | 50/60Hz | |||||
| Rated Input Current | ≤0.05A | ≤0.08A | ≤0.11A | ≤0.14A | ≤0.15A | |
| Input Current | ≤0.06A | ≤0.09A | ≤0.12A | ≤0.15A | ≤0.17A | |
| Power Factor | 0.9 | |||||
| THD | - | - | - | <20% @230V | <20% @230V | |
| Efficiency | ≥78% | ≥83% | ≥84% | ≥85% | ||
| Inrush current | 15.1A/113uS | 16A/214uS | ||||
| No load wattage | - | |||||
| Stand-by power consumption | <0.5W | |||||
| Protection | Short circuit protection | Pass | ||||
| Over voltage protection | Pass | |||||
| Over temperature protection | Pass | |||||
| Safety & EMC | Withstand voltage | I/P-O/P:3.75KVac,<5mA 60S | ||||
| Isolation Resistance | 500VDC, ≥2M Ω | |||||
| Surge | IEC/EN61000-4-5 ( L-N:1KV) | |||||
| EMC Emission | EN55015, EN61000-3-2 | |||||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 |

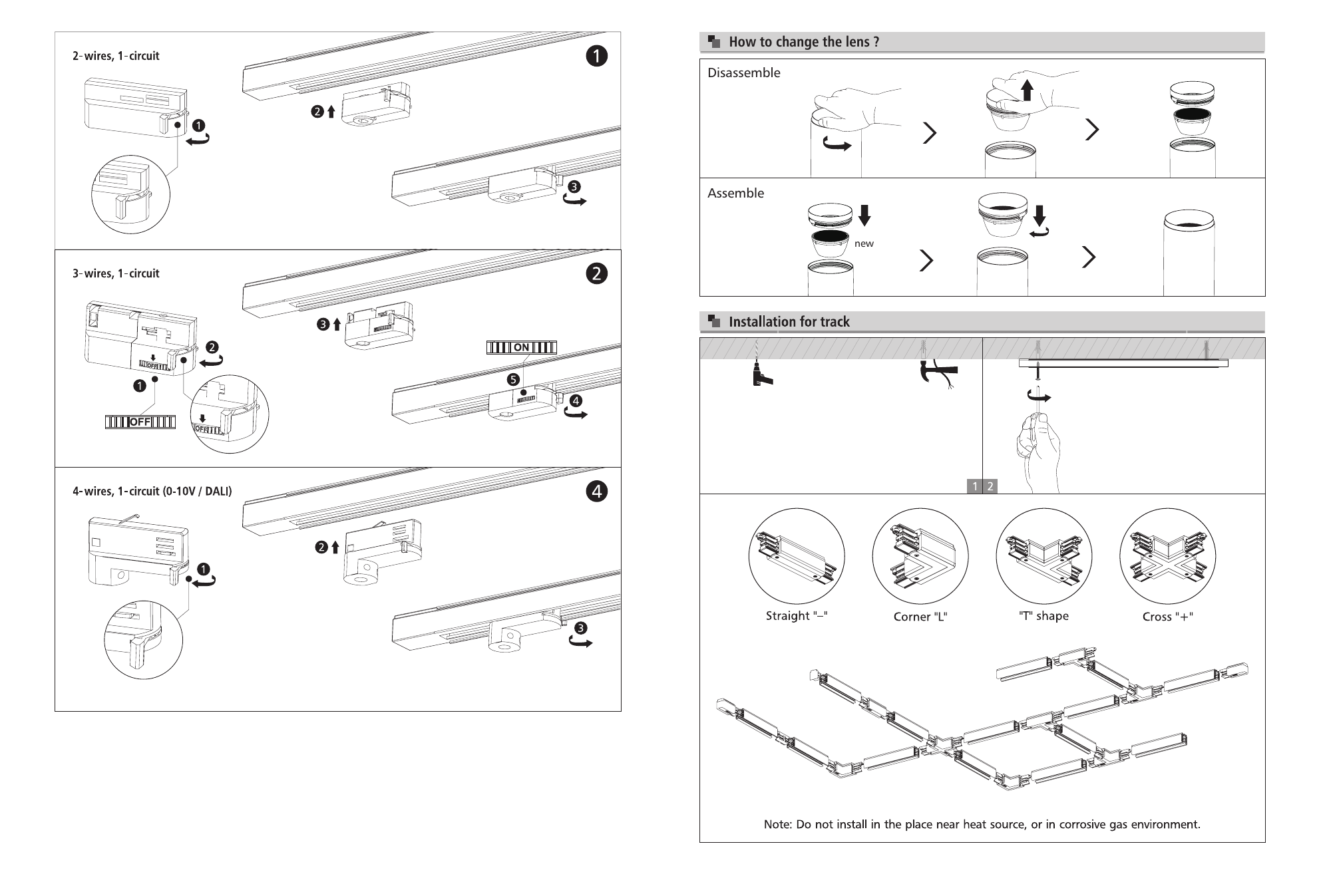

How to change the lens ?
Disassemble
Assemble
new

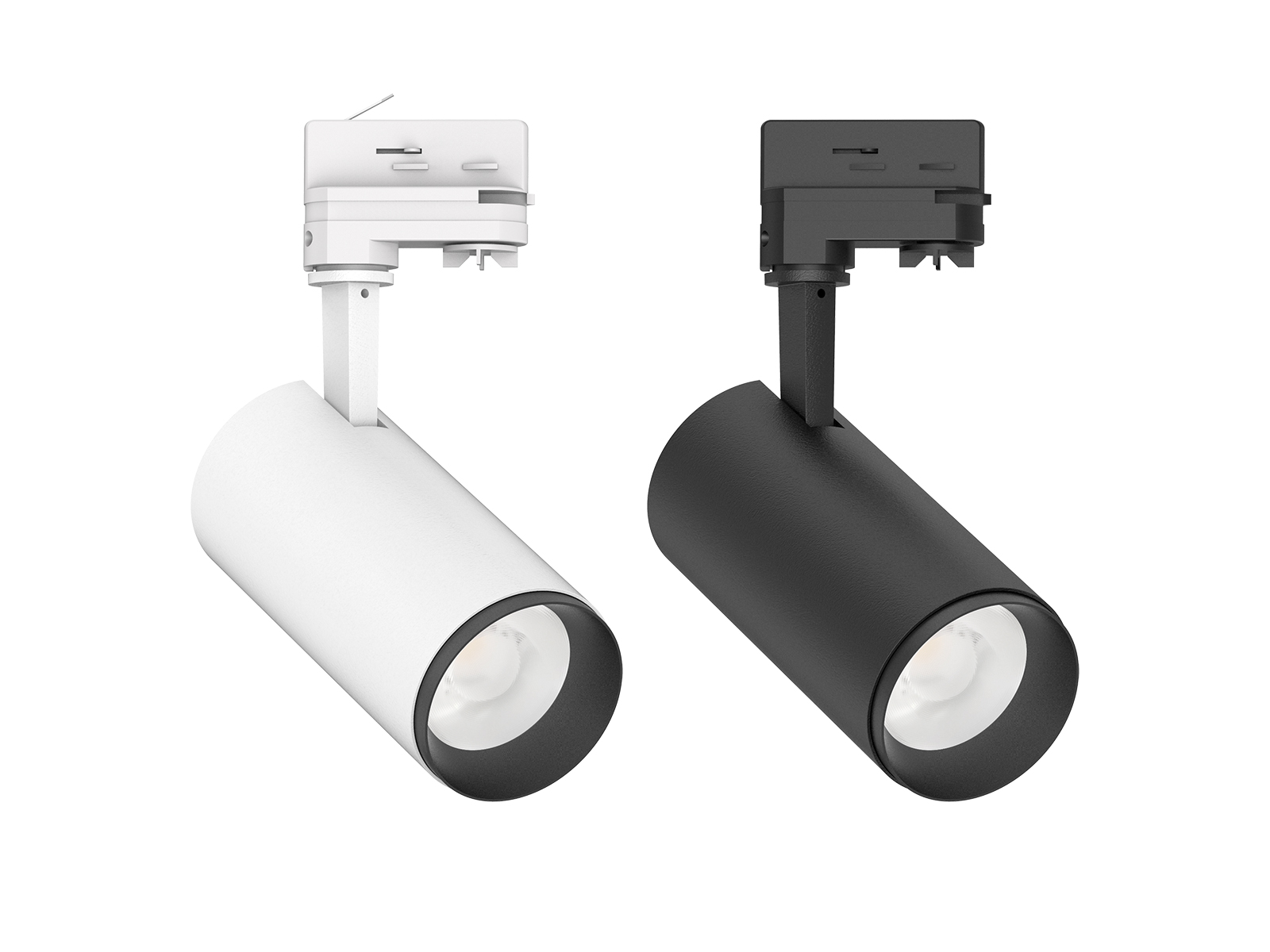

VRL-TL28-30W-3000K-36
COMMERCIAL osvětlení LED Track Light TL228(G3.0) Series
Úvod
application.
Vlastnosti
Oblasti použití Applicable for residential osvětlení in bedroom, living room, corridor etc, also suitable for commercial
osvětlení in office, hotel, restaurant etc.

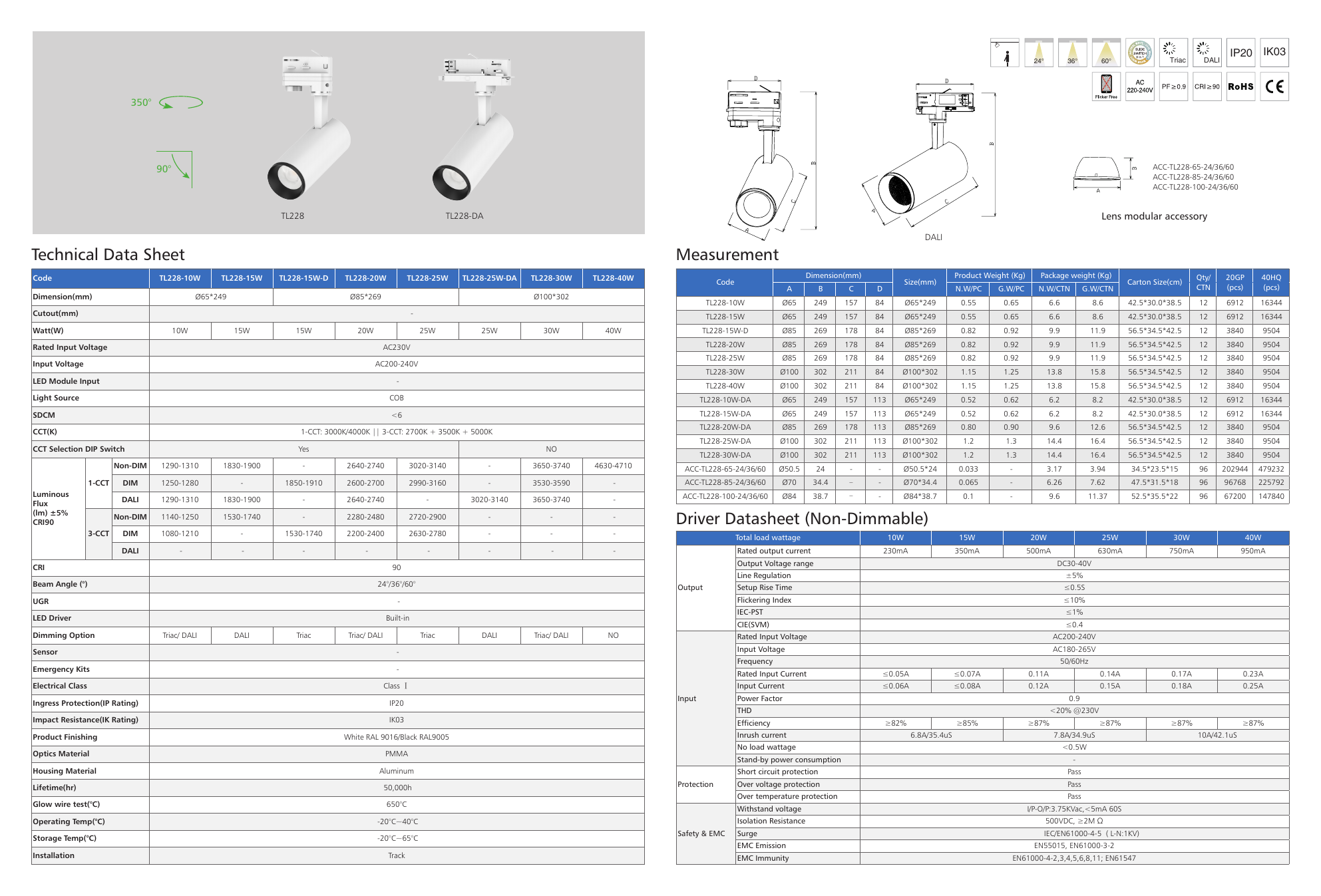

| Kód | TL228-10W | TL228-15W | TL228-15W-D | TL228-20W | TL228-25W | TL228-25W-DA | TL228-30W | TL228-40W | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Rozměry (mm) | Ø65*249 | Ø85*269 | Ø100*302 | |||||||
| Montážní otvor (mm) | - | |||||||||
| Příkon (W) | 10W | 15W | 15W | 20W | 25W | 25W | 30W | 40W | ||
| Jmenovité vstupní napětí | AC230V | |||||||||
| Vstupní napětí | AC200-240V | |||||||||
| Vstup LED modulu | - | |||||||||
| Světelný zdroj | COB | |||||||||
| SDCM | <6 | |||||||||
| CCT(K) | 1-CCT: 3000K/4000K || 3-CCT: 2700K + 3500K + 5000K | |||||||||
| Volba CCT DIP přepínačem | ane | ne | ||||||||
| Světelný tok (lm) ±5% CRI90 | 1-CCT | bez stmívání | 1290-1310 | 1830-1900 | - | 2640-2740 | 3020-3140 | - | 3650-3740 | 4630-4710 |
| stmívatelné | 1250-1280 | - | 1850-1910 | 2600-2700 | 2990-3160 | - | 3530-3590 | - | ||
| DALI | 1290-1310 | 1830-1900 | - | 2640-2740 | - | 3020-3140 | 3650-3740 | - | ||
| 3-CCT | bez stmívání | 1140-1250 | 1530-1740 | - | 2280-2480 | 2720-2900 | - | - | - | |
| stmívatelné | 1080-1210 | - | 1530-1740 | 2200-2400 | 2630-2780 | - | - | - | ||
| DALI | - | - | - | - | - | - | - | - | ||
| CRI | 90 | |||||||||
| Vyzařovací úhel (°) | 24°/36°/60° | |||||||||
| UGR | - | |||||||||
| LED driver | integrovaný | |||||||||
| Možnost stmívání | Triac/ DALI | DALI | Triac | Triac/ DALI | Triac | DALI | Triac/ DALI | ne | ||
| Senzor | - | |||||||||
| nouzové moduly | - | |||||||||
| Třída ochrany | Class Ⅰ | |||||||||
| Krytí IP | IP20 | |||||||||
| Mechanická odolnost IK | IK03 | |||||||||
| Povrchová úprava | bílá RAL 9016/černá RAL9005 | |||||||||
| Materiál optiky | PMMA | |||||||||
| Materiál těla | Aluminum | |||||||||
| Životnost (h) | 50,000h | |||||||||
| Zkouška žhavou smyčkou(°C) | 650°C | |||||||||
| Operating Temp(°C) | -20°C~40°C | |||||||||
| Storage Temp(°C) | -20°C~65°C | |||||||||
| Montáž | Track |
| Kód | Rozměry (mm) | Size(mm) | Hmotnost produktu (Kg) | Hmotnost balení (Kg) | Rozměr kartonu(cm) | Qty/ CTN | 20GP (pcs) | 40HQ (pcs) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | Čistá hmotnost/ks | Hrubá hmotnost/ks | Čistá hmotnost/karton | Hrubá hmotnost/karton | ||||||
| TL228-10W | Ø65 | 249 | 157 | 84 | Ø65*249 | 0.55 | 0.65 | 6.6 | 8.6 | 42.5*30.0*38.5 | 12 | 6912 | 16344 |
| TL228-15W | Ø65 | 249 | 157 | 84 | Ø65*249 | 0.55 | 0.65 | 6.6 | 8.6 | 42.5*30.0*38.5 | 12 | 6912 | 16344 |
| TL228-15W-D | Ø85 | 269 | 178 | 84 | Ø85*269 | 0.82 | 0.92 | 9.9 | 11.9 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-20W | Ø85 | 269 | 178 | 84 | Ø85*269 | 0.82 | 0.92 | 9.9 | 11.9 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-25W | Ø85 | 269 | 178 | 84 | Ø85*269 | 0.82 | 0.92 | 9.9 | 11.9 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-30W | Ø100 | 302 | 211 | 84 | Ø100*302 | 1.15 | 1.25 | 13.8 | 15.8 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-40W | Ø100 | 302 | 211 | 84 | Ø100*302 | 1.15 | 1.25 | 13.8 | 15.8 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-10W-DA | Ø65 | 249 | 157 | 113 | Ø65*249 | 0.52 | 0.62 | 6.2 | 8.2 | 42.5*30.0*38.5 | 12 | 6912 | 16344 |
| TL228-15W-DA | Ø65 | 249 | 157 | 113 | Ø65*249 | 0.52 | 0.62 | 6.2 | 8.2 | 42.5*30.0*38.5 | 12 | 6912 | 16344 |
| TL228-20W-DA | Ø85 | 269 | 178 | 113 | Ø85*269 | 0.80 | 0.90 | 9.6 | 12.6 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-25W-DA | Ø100 | 302 | 211 | 113 | Ø100*302 | 1.2 | 1.3 | 14.4 | 16.4 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| TL228-30W-DA | Ø100 | 302 | 211 | 113 | Ø100*302 | 1.2 | 1.3 | 14.4 | 16.4 | 56.5*34.5*42.5 | 12 | 3840 | 9504 |
| ACC-TL228-65-24/36/60 | Ø50.5 | 24 | - | - | Ø50.5*24 | 0.033 | - | 3.17 | 3.94 | 34.5*23.5*15 | 96 | 202944 | 479232 |
| ACC-TL228-85-24/36/60 | Ø70 | 34.4 | - | - | Ø70*34.4 | 0.065 | - | 6.26 | 7.62 | 47.5*31.5*18 | 96 | 96768 | 225792 |
| ACC-TL228-100-24/36/60 | Ø84 | 38.7 | - | - | Ø84*38.7 | 0.1 | - | 9.6 | 11.37 | 52.5*35.5*22 | 96 | 67200 | 147840 |
| Celkový příkon zátěže | 10W | 15W | 20W | 25W | 30W | 40W | |
|---|---|---|---|---|---|---|---|
| Výstup | Jmenovitý výstupní proud | 230mA | 350mA | 500mA | 630mA | 750mA | 950mA |
| Rozsah výstupního napětí | DC30-40V | ||||||
| Regulace linky | ±5% | ||||||
| Doba náběhu | ≤0.5S | ||||||
| Index blikání | ≤10% | ||||||
| IEC-PST | ≤1% | ||||||
| CIE(SVM) | ≤0.4 | ||||||
| Vstup | Jmenovité vstupní napětí | AC200-240V | |||||
| Vstupní napětí | AC180-265V | ||||||
| Frekvence | 50/60Hz | ||||||
| Jmenovitý vstupní proud | ≤0.05A | ≤0.07A | 0.11A | 0.14A | 0.17A | 0.23A | |
| Vstupní proud | ≤0.06A | ≤0.08A | 0.12A | 0.15A | 0.18A | 0.25A | |
| Účiník | 0.9 | ||||||
| THD | <20% @230V | ||||||
| Účinnost | ≥82% | ≥85% | ≥87% | ≥87% | ≥87% | ≥87% | |
| Náběhový proud | 6.8A/35.4uS | 7.8A/34.9uS | 10A/42.1uS | ||||
| Příkon naprázdno | <0.5W | ||||||
| Spotřeba v pohotovostním režimu | - | ||||||
| Ochrana | Ochrana proti zkratu | splňuje | |||||
| Ochrana proti přepětí | splňuje | ||||||
| Ochrana proti přehřátí | splňuje | ||||||
| Bezpečnost a EMC | Zkušební napětí | I/P-O/P:3.75KVac,<5mA 60S | |||||
| Izolační odpor | 500VDC, ≥2M Ω | ||||||
| Surge | IEC/EN61000-4-5 ( L-N:1KV) | ||||||
| EMC emise | EN55015, EN61000-3-2 | ||||||
| EMC odolnost | EN61000-4-2,3,4,5,6,8,11; EN61547 |
| Celkový příkon zátěže | 10W | 15W | 20W | 25W | 30W | |
|---|---|---|---|---|---|---|
| Výstup | Jmenovitý výstupní proud | 220mA | 350mA | 480mA | 580mA | 700mA |
| Rozsah výstupního napětí Regulace linky | DC30-40V ±5% | |||||
| Doba náběhu Index blikání | ≤0.5S ≤10% | |||||
| IEC-PST | ≤1 | |||||
| CIE(SVM) | ≤0.4 | |||||
| Vstup | Jmenovité vstupní napětí | AC230V | ||||
| Vstupní napětí | AC200-240V | |||||
| Frekvence | 50/60Hz | |||||
| Jmenovitý vstupní proud | ≤0.05A | ≤0.08A | 0.11A | 0.14A | 0.15A | |
| Vstupní proud | ≤0.06A | ≤0.09A | 0.12A | 0.15A | 0.17A | |
| Účiník | 0.9 | |||||
| THD | - | - | - | <20% @230V | <20% @230V | |
| Účinnost | ≥78% | ≥83% | ≥84% | ≥85% | ||
| Náběhový proud | 1.36A/157uS | 2.22A/129uS | 2.82A/94.4uS | 3.06A/224uS | ||
| Příkon naprázdno | <1W@AC230V | |||||
| Spotřeba v pohotovostním režimu | <1W@AC230V | |||||
| Ochrana | Ochrana proti zkratu | splňuje | ||||
| Ochrana proti přepětí | splňuje | |||||
| Ochrana proti přehřátí | splňuje | |||||
| Bezpečnost a EMC | Zkušební napětí | I/P-O/P:3.75KVac,<5mA 60S | ||||
| Izolační odpor | 500VDC, ≥2M Ω | |||||
| Surge | IEC/EN61000-4-5 ( L-N:1KV) | |||||
| EMC emise | EN55015, EN61000-3-2 | |||||
| EMC odolnost | EN61000-4-2,3,4,5,6,8,11; EN61547 |
| Celkový příkon zátěže | 10W | 15W | 20W | 25W | 30W | |
|---|---|---|---|---|---|---|
| Výstup | Jmenovitý výstupní proud | 220mA | 350mA | 480mA | 580mA | 700mA |
| Rozsah výstupního napětí | DC30-40V | |||||
| Regulace linky | ±5% | |||||
| Doba náběhu | ≤0.5S | |||||
| Index blikání | ≤10% | |||||
| IEC-PST | ≤1% | |||||
| CIE(SVM) | ≤0.4 | |||||
| Vstup | Jmenovité vstupní napětí | AC230V | ||||
| Vstupní napětí | AC200-240V | |||||
| Frekvence | 50/60Hz | |||||
| Jmenovitý vstupní proud | ≤0.05A | ≤0.08A | ≤0.11A | ≤0.14A | ≤0.15A | |
| Vstupní proud | ≤0.06A | ≤0.09A | ≤0.12A | ≤0.15A | ≤0.17A | |
| Účiník | 0.9 | |||||
| THD | - | - | - | <20% @230V | <20% @230V | |
| Účinnost | ≥78% | ≥83% | ≥84% | ≥85% | ||
| Náběhový proud | 15.1A/113uS | 16A/214uS | ||||
| Příkon naprázdno | - | |||||
| Spotřeba v pohotovostním režimu | <0.5W | |||||
| Ochrana | Ochrana proti zkratu | splňuje | ||||
| Ochrana proti přepětí | splňuje | |||||
| Ochrana proti přehřátí | splňuje | |||||
| Bezpečnost a EMC | Zkušební napětí | I/P-O/P:3.75KVac,<5mA 60S | ||||
| Izolační odpor | 500VDC, ≥2M Ω | |||||
| Surge | IEC/EN61000-4-5 ( L-N:1KV) | |||||
| EMC emise | EN55015, EN61000-3-2 | |||||
| EMC odolnost | EN61000-4-2,3,4,5,6,8,11; EN61547 |
Katalog
Kompaktní LED track light s účinností 100 lm/W, vyměnitelnou CCT a dvěma výkonovými variantami pro retail, prodejny a recepce.
LED Track svítidlo, 16W, 4000K, CRI93 vyzařovací úhel 36°
